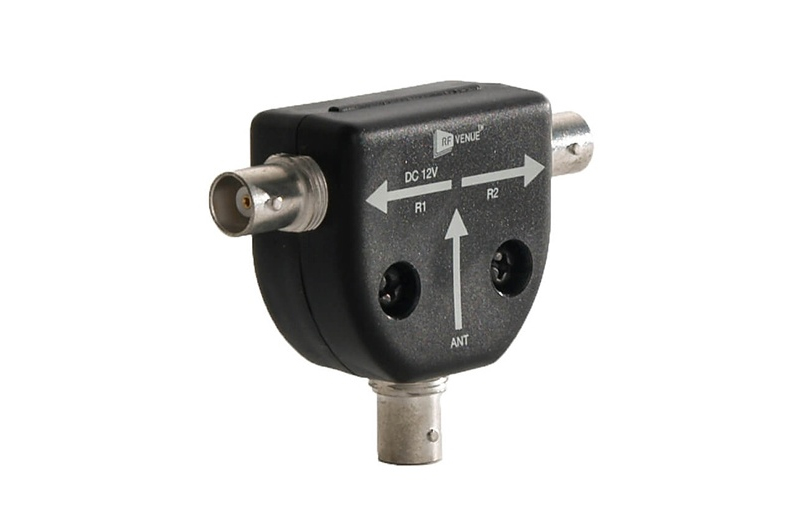

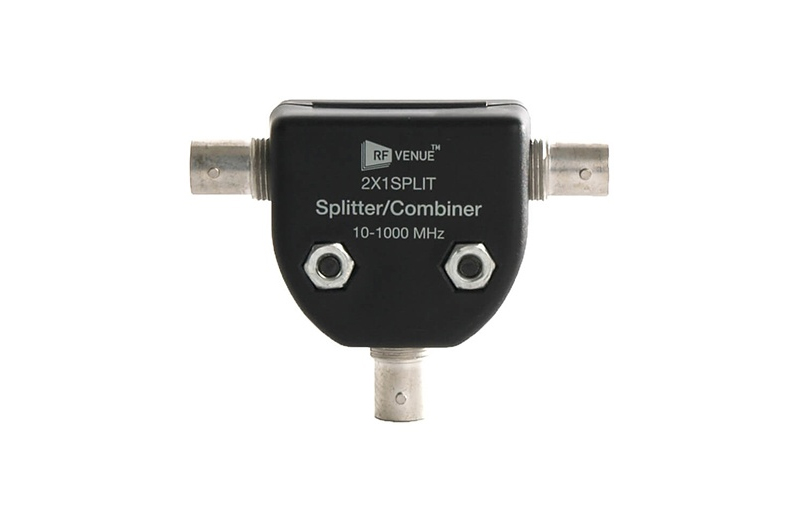

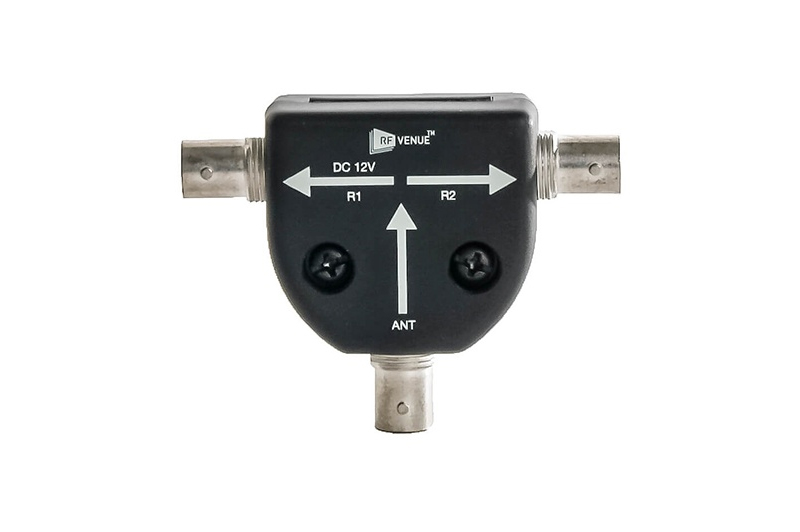

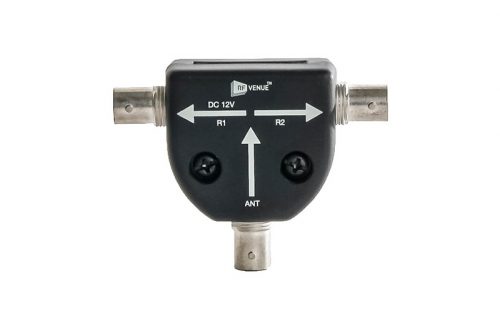

RF Venue 2x1SPLIT RF Splitter/Combiner
- Passive splitter or combiner
- BNC female connectors
- 10 to 1000 MHz
$99.00 USD
RF Venue 2x1SPLIT RF Splitter/Combiner
The RF Venue 2x1SPLIT is a passive signal splitter and combiner with BNC connectors for wireless microphones and in-ear monitors of any major brand.
Use one BNC in and two out, or two in and one out. A pair of them shares one diversity antenna or two paddles between two receivers. One connects a 4- or 8-channel in-ear monitor combiner to a single circularly polarized antenna, and one joins two diversity zones into one receiver. The R1 channel passes 12 V DC when DC over coax is present.
Features
- Passive splitter or combiner
- BNC female connectors
- 10 to 1000 MHz
- R1 channel passes 12 V DC over coax
- Works with all major wireless brands
About RF Venue
RF Venue makes antennas, antenna distribution systems, transmitter combiners, and spectrum tools that work with any brand of wireless microphone or in-ear monitor. Based in Walpole, Massachusetts, they began in 2009 with antennas. They cover their products with a two-year limited warranty.
Specifications
| RF Carrier Frequency Range | 10 to 1000 MHz |
|---|---|
| VSWR | 1:2 |
| Impedance | 50 Ω |
| Isolation | 20 dB |
| Insertion Loss | 2 dB |
| Max Power into ANT Input | 30 dBm |
| Max Power to Each of R1 and R2 | 26 dBm |
| Power Requirements | 12 V DC, 100 mA |
| Dimensions | 72.2 × 54.9 × 23.6 mm / 3 × 2 × 1 in |
| Weight | 62.6 g / 2.2 oz |
