PSC RF Multi Mini Antenna Distribution System
- Feeds up to three diversity receivers from one pair of antennas
- Switchable remote antenna power
- Single, Dual, or Wide Band versions
From $831.25 USD
PSC RF Multi Mini Antenna Distribution System

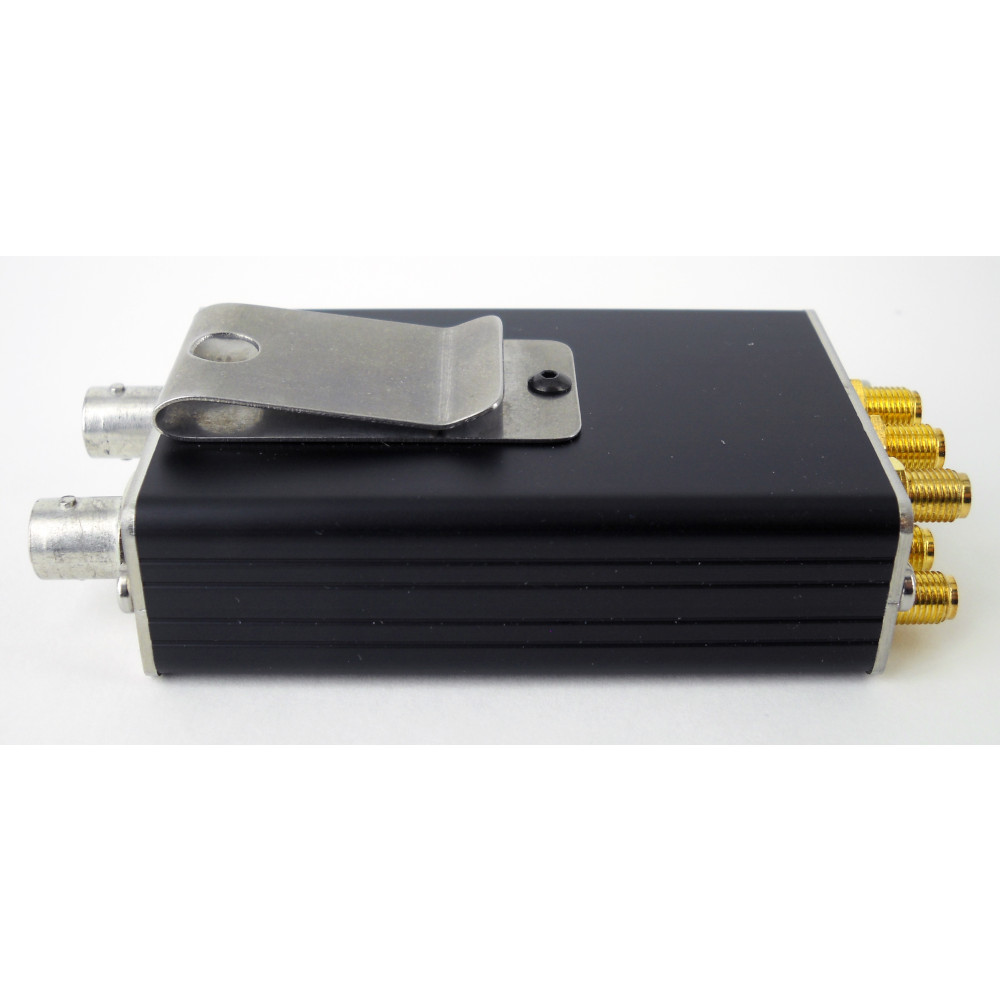

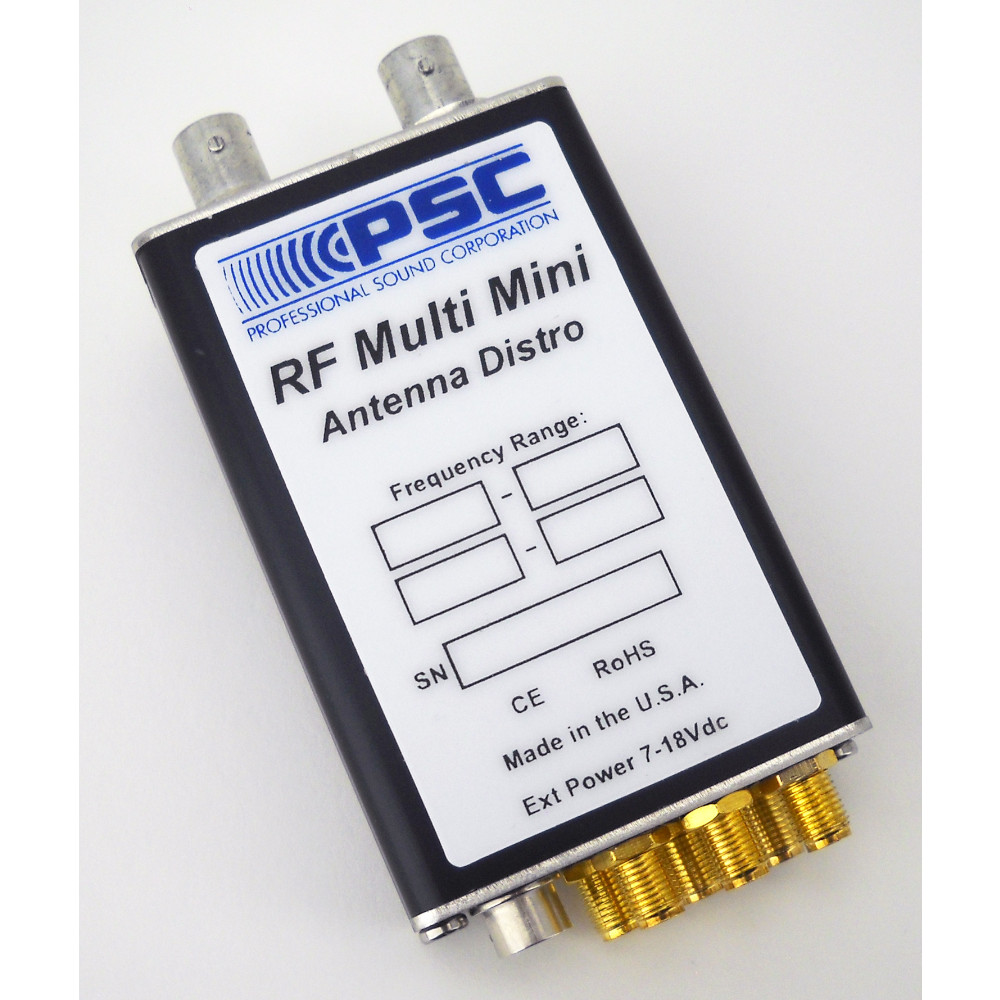

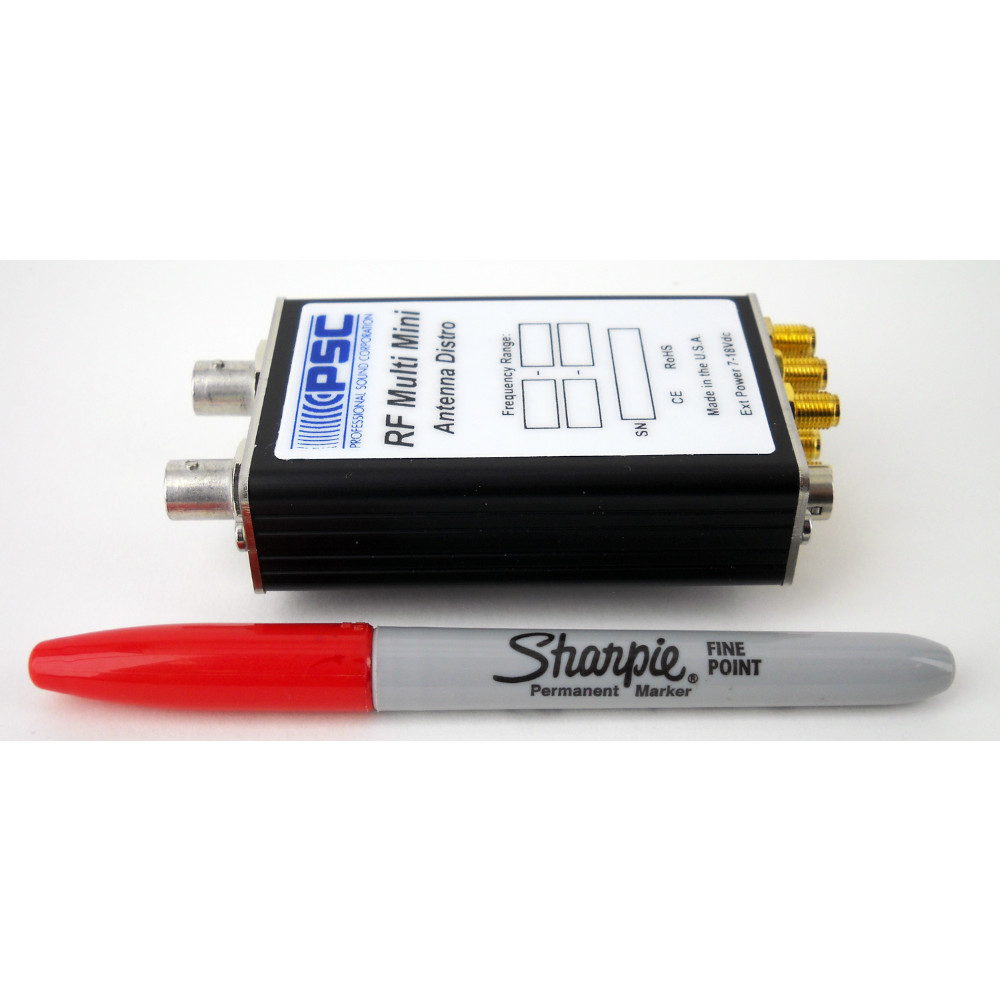

With two separate active 1 × 3 splitters, the PSC RF Multi Mini feeds up to three diversity receivers from one pair of antennas in a compact aluminum housing.

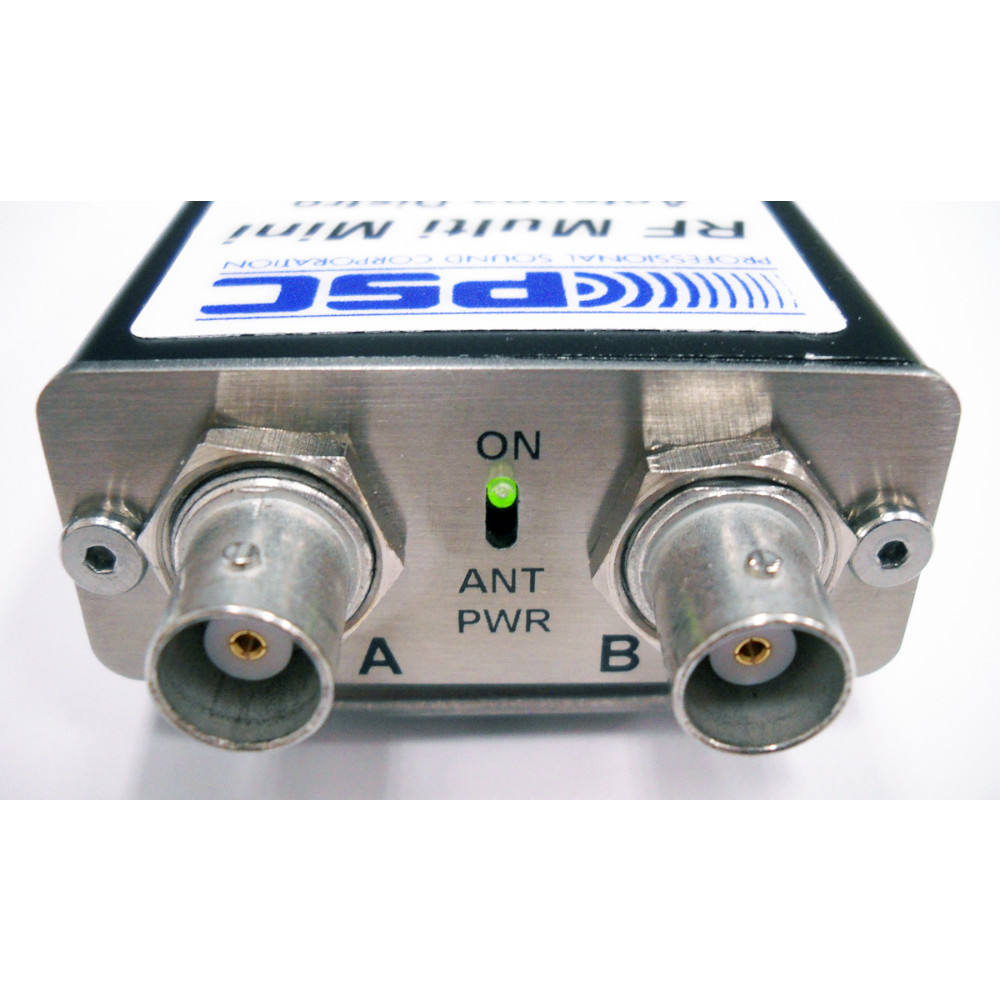

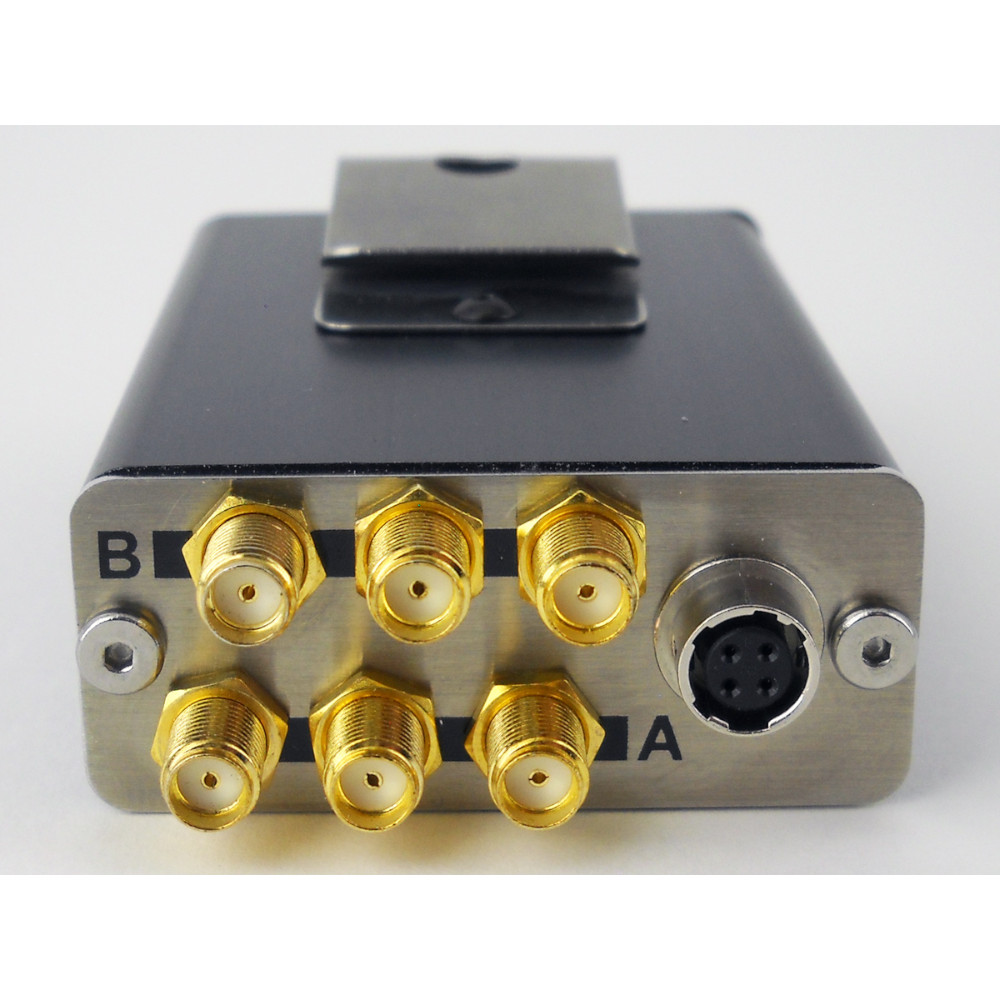

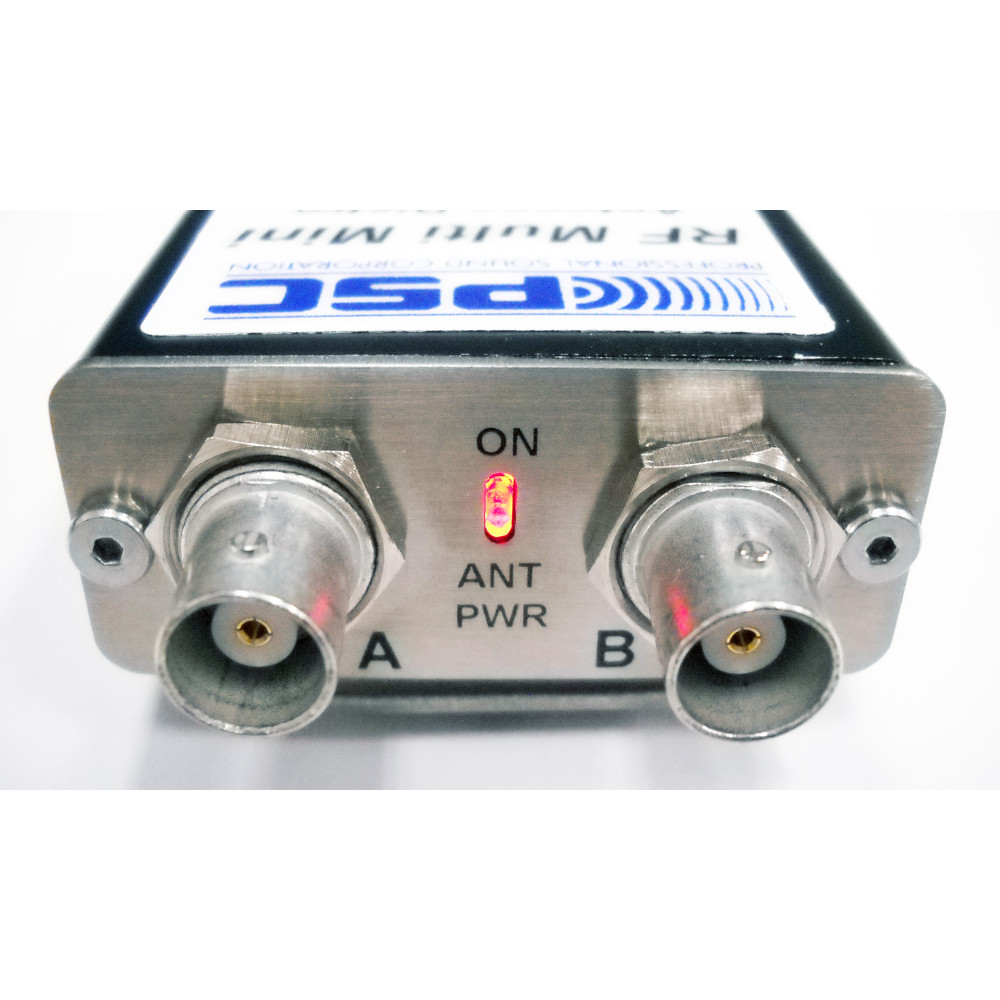

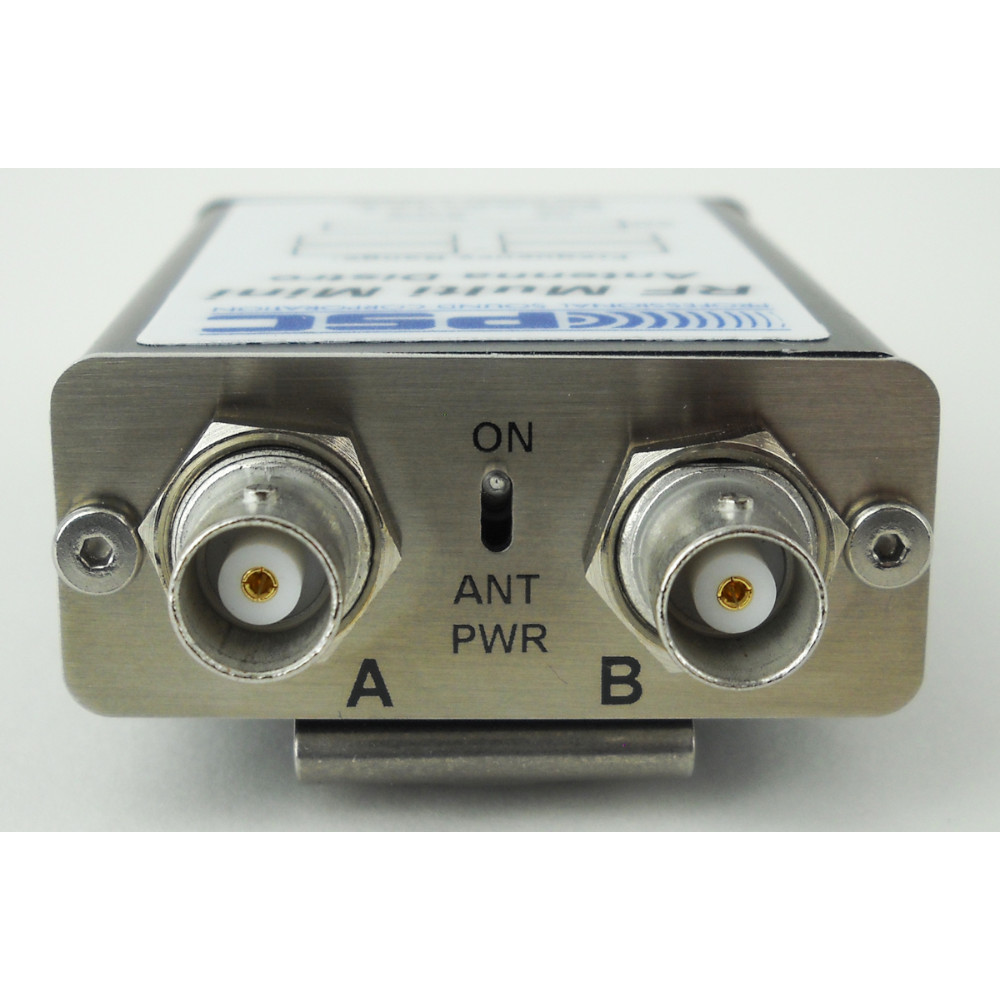

Antennas connect on BNC inputs and receivers on SMA outputs, with typically 24 to 28 dB of isolation between them. One three-position switch on top sets off, power on, or power on with remote antenna power, and its LED turns from green to red when antenna power is on. It runs on 7 to 18 VDC at about 120 mA and is made in the U.S.A. Its bandpass filter sets the version: Single Band, Dual Band, or Wide Band.
Features
- Two active 1 × 3 splitters for up to three diversity receivers
- BNC inputs, SMA outputs
- 24 to 28 dB typical isolation
- Three-position switch with antenna power
- 7 to 18 VDC, about 120 mA
- Made in the U.S.A.
Available Options
| Band | Frequency Range | Part Number |
|---|---|---|
| Single Band | 470 to 700 MHz | RFMMSB |
| Dual Band | 470 to 618 MHz and 940 to 960 MHz | RFMMDB |
| Wide Band | 470 to 960 MHz | RFMMWB |
Specifications
| RF | |
|---|---|
| Splitters | 2 x active 1 × 3 |
| Frequency Range | Single Band 470 to 700 MHz; Dual Band 470 to 618 MHz and 940 to 960 MHz; Wide Band 470 to 960 MHz |
| Inputs | 2 x BNC, 50 ohms |
| Outputs | SMA, 50 ohms |
| Isolation | 24 to 28 dB typical |
| Noise Figure | 0.8 dB |
| IP3 | +31 |
| Maximum Input Before Limiting | +13 dB |
| General | |
| Power | 7 to 18 VDC, about 120 mA |
| Weight | 6 oz (172 g) |
| Construction | Aircraft aluminum chassis, stainless steel end plates, black anodized |
| Warranty | 1 year, limited |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.professionalsound.com. |
