PSC RF 4 Slot Rack with RF Distribution
- Rack for four slot receivers with active RF distribution
- Built-in AC supply and DC input
- Single, Dual, or Wide Band versions
From $1,858.50 USD
PSC RF 4 Slot Rack with RF Distribution

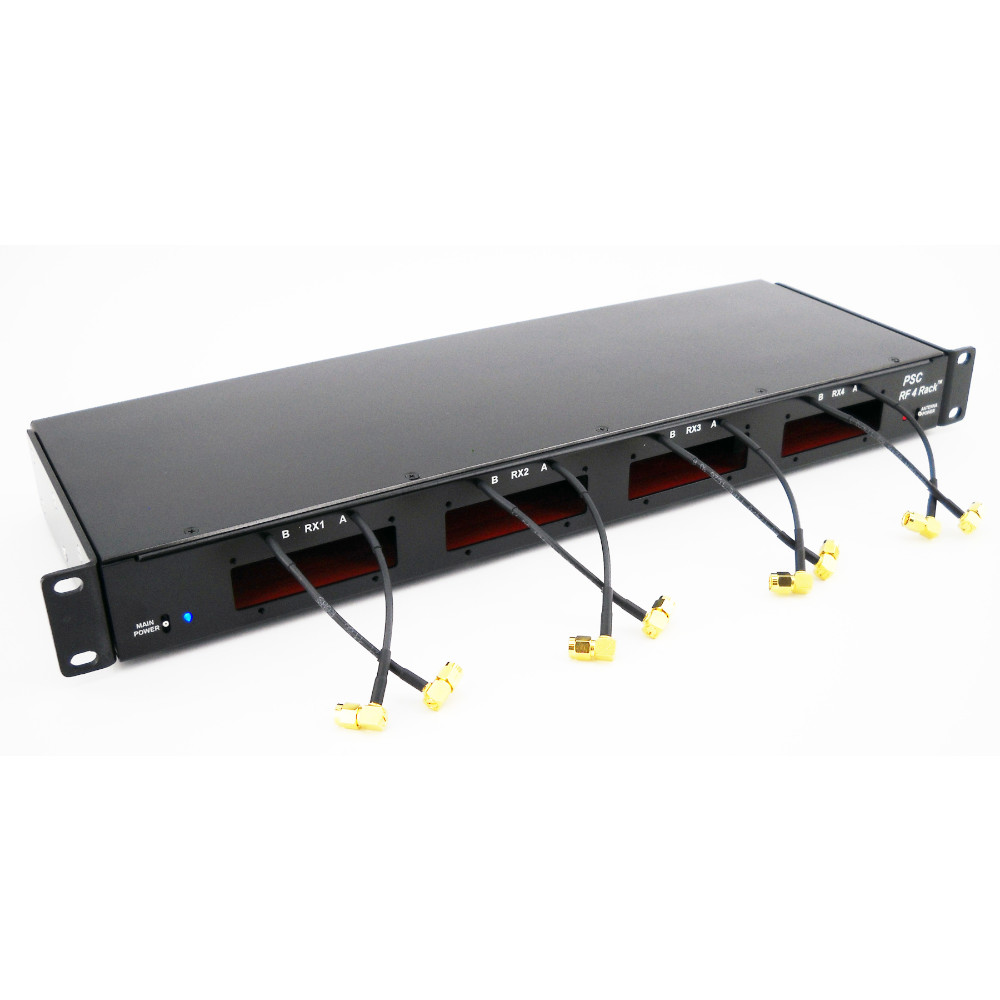

The PSC RF 4 Slot Rack holds four slot receivers and feeds them RF through built-in low-noise, high-current amplifiers and 4-way active splitters.
Two BNC inputs take external antennas, and switchable antenna power runs powered antennas or remote line amplifiers. Isolation between receivers is typically 24 to 28 dB. MAIN POWER and ANT PWR switches on the front each have an LED.

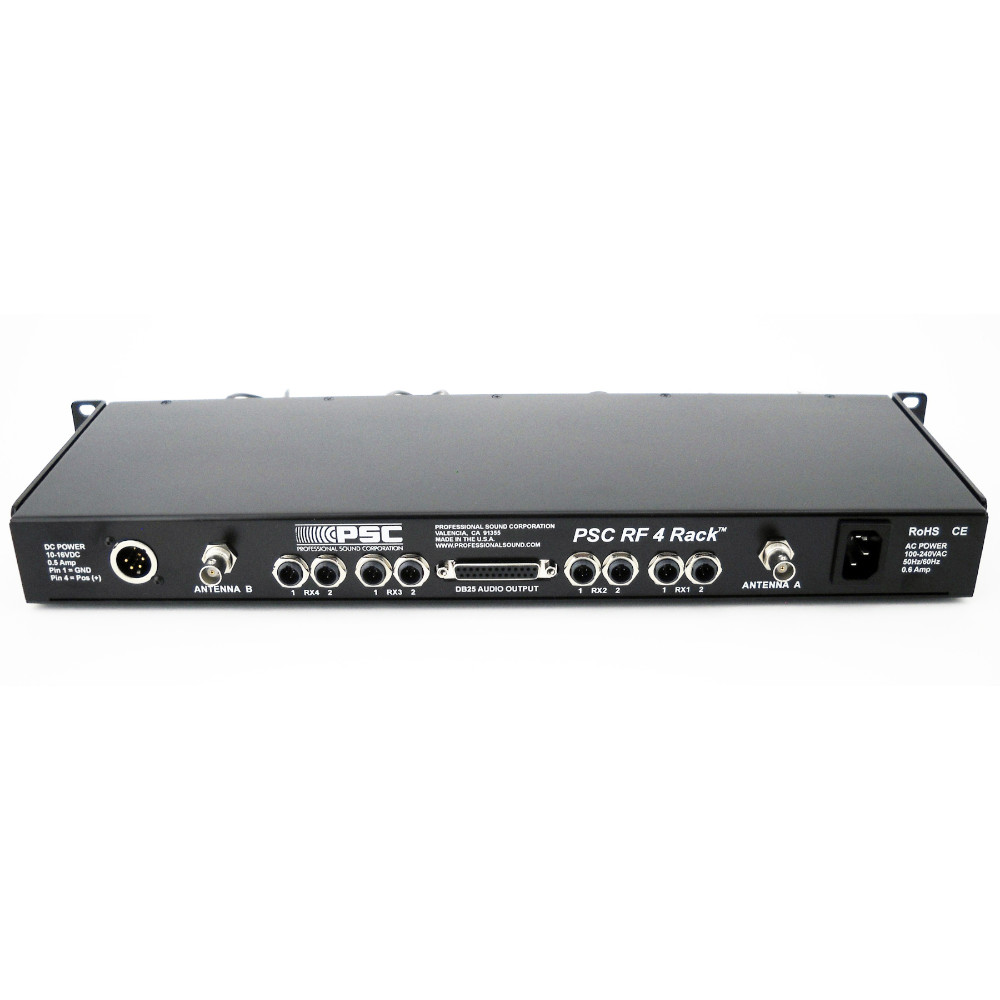

A built-in AC supply runs it on 90 to 240 VAC for fixed installations, and a 4-pin XLR on the back takes 12 to 18 VDC. Audio from the four slots comes out on eight TA3M mini XLR connectors and on a DB-25 wired to the Tascam standard. It is made in the U.S.A. in Single Band, Dual Band, and Wide Band versions.
Features
- Holds four slot receivers
- Low-noise RF amplifiers and 4-way active splitters
- Switchable remote antenna power
- Built-in AC supply and 4-pin XLR DC input
- Eight TA3M outputs and a DB-25 audio snake connector
- Made in the U.S.A.
Available Options
| Band | Frequency Range | Part Number |
|---|---|---|
| Single Band | 470 to 700 MHz | RFSRSB |
| Dual Band | 470 to 618 MHz and 940 to 960 MHz | RFSRDB |
| Wide Band | 470 to 960 MHz | RFSRWB |
Specifications
| RF | |
|---|---|
| Frequency Range | Single Band 470 to 700 MHz; Dual Band 470 to 618 MHz and 940 to 960 MHz; Wide Band 470 to 960 MHz |
| Inputs | 2 x BNC, 50 ohms |
| Outputs | SMA, 50 ohms |
| Isolation | 24 to 28 dB typical |
| Maximum Input Signal | +13 dB |
| Noise Figure | 0.8 dB |
| Power and Audio | |
| DC Power | 12 to 18 VDC, 185 mA, 4-pin XLR |
| AC Power | 90 to 240 VAC, 30 W |
| Audio Outputs | 8 x TA3M mini XLR; DB-25, Tascam wiring |
| General | |
| Size | 17.5 × 6.5 × 1.75 in (44.5 × 16.5 × 4.5 cm) |
| Weight | 3.5 lb (1.6 kg) |
| Chassis | Aircraft aluminum, black wrinkle-texture powder coat |
| Warranty | 1 year, limited |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.professionalsound.com. |
