PSC RF Multi SMA Antenna Distribution System
- Feeds up to eight diversity receivers from one pair of antennas
- Switchable remote antenna power
- Single, Dual, or Wide Band versions
From $1,009.50 USD
PSC RF Multi SMA Antenna Distribution System

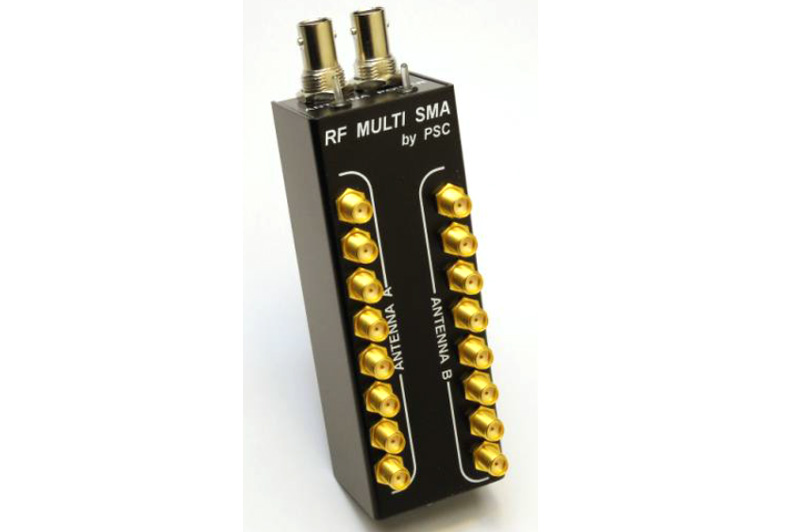

The PSC RF Multi SMA feeds up to eight diversity receivers from one pair of antennas, with two separate active 1 × 8 RF splitters in a compact housing for a bag or cart.

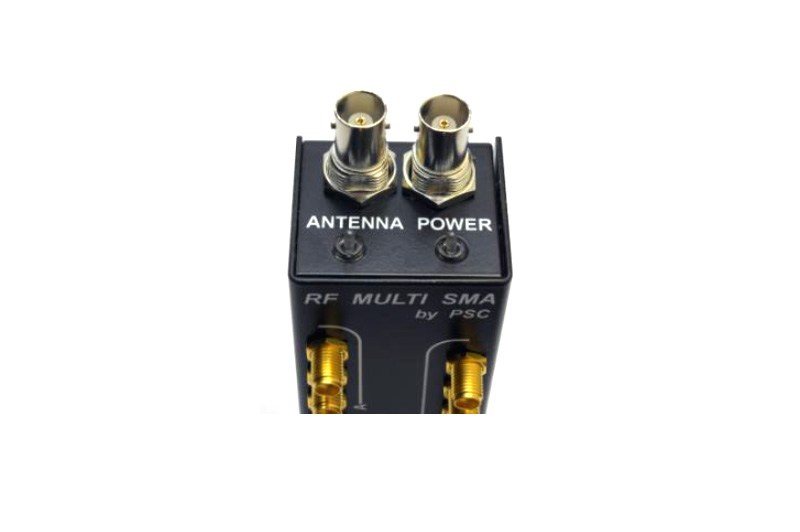

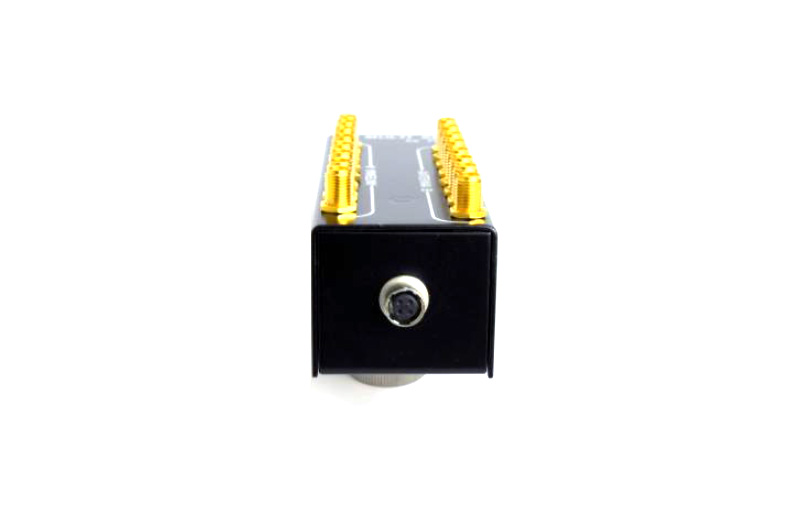

Antennas connect on BNC inputs, and each SMA output gives typically 24 to 28 dB of isolation between receivers. Two lighted switches on top turn on the unit and, when needed, send power to powered antennas or remote line amplifiers. It runs on 10 to 15 VDC through a 4-pin Hirose connector on the bottom panel. A belt clip comes with it for a sound bag. It comes in Single Band, Dual Band, and Wide Band versions.
Features
- Two active 1 × 8 splitters for up to eight diversity receivers
- BNC inputs, SMA outputs
- 24 to 28 dB typical isolation between outputs
- Switchable remote antenna power
- 10 to 15 VDC on a 4-pin Hirose connector
- Belt clip included
Available Options
| Band | Frequency Range | Part Number |
|---|---|---|
| Dual Band | 470 to 618 MHz and 940 to 960 MHz | RFSMADB |
| Single Band | 470 to 700 MHz | RFSMASB |
| Wide Band | 470 to 960 MHz | RFSMAWB |
What's Included
- RF Multi SMA
- Belt clip
Specifications
| RF | |
|---|---|
| Splitters | 2 x active 1 × 8 |
| Frequency Range | Single Band 470 to 700 MHz; Dual Band 470 to 618 MHz and 940 to 960 MHz; Wide Band 470 to 960 MHz |
| Inputs | 2 x BNC, 50 ohms |
| Output Impedance | 50 ohms |
| Isolation | 24 to 28 dB typical |
| Noise Figure | 0.8 dB |
| Maximum Input Level | +13 dB |
| General | |
| Power | 10 to 15 VDC, 120 mA, 4-pin Hirose |
| Size | 4.275 × 1.385 × 1.625 in (108 × 35 × 41 mm) |
| Weight | 6.5 oz (185 g) |
| Chassis | Aircraft aluminum, black powder coat |
| Warranty | 1 year, limited |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.professionalsound.com. |
