PSC RF Active Matrix Rack Antenna Distribution System
- Combines up to four RF zones
- Feeds up to 16 diversity receivers
- Single, Dual, or Wide Band versions
From $2,750.25 USD
PSC RF Active Matrix Rack Antenna Distribution System

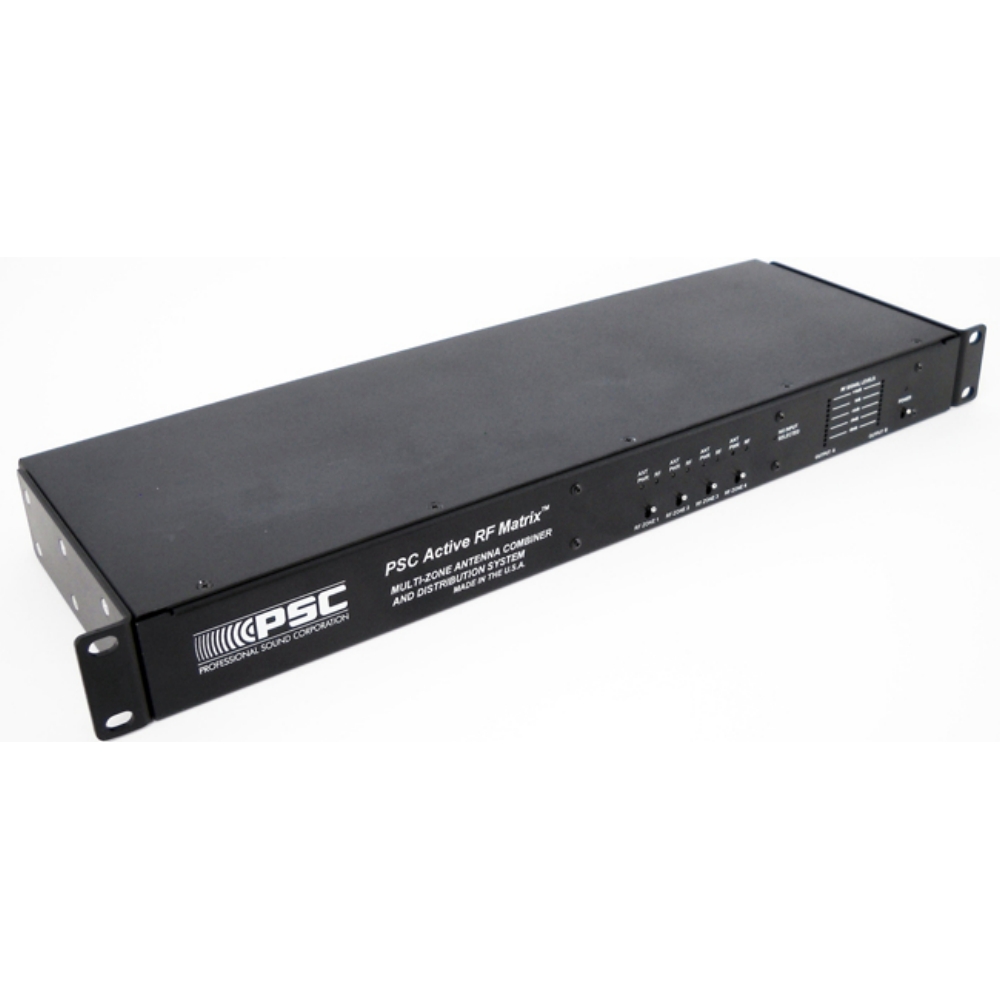

The PSC RF Active Matrix Rack combines up to four RF zones and routes their signals to as many as 16 diversity receivers.

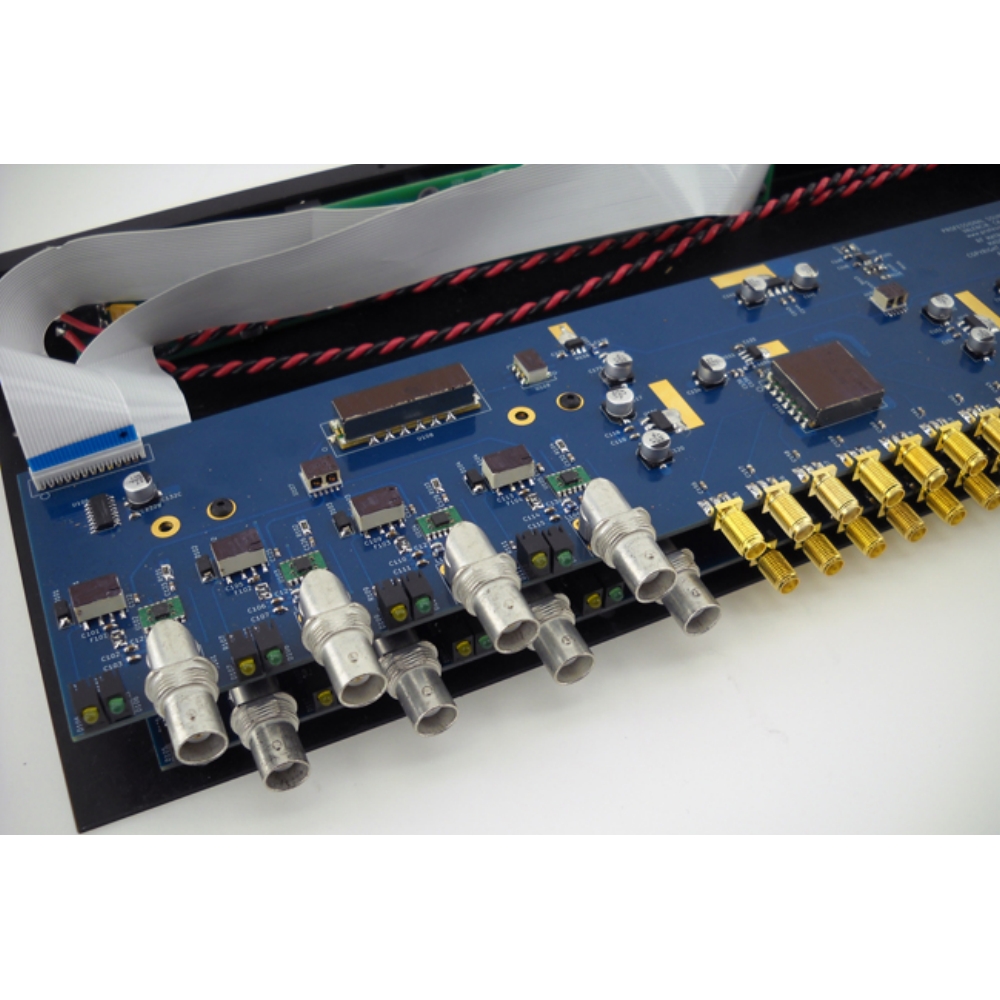

Four pairs of BNC inputs take external antennas, one diversity pair for each RF zone, and front-panel switches route each pair to the matrix. Each input pair has its own switchable antenna power for powered antennas or remote line amplifiers, and the receivers connect on 32 SMA outputs.

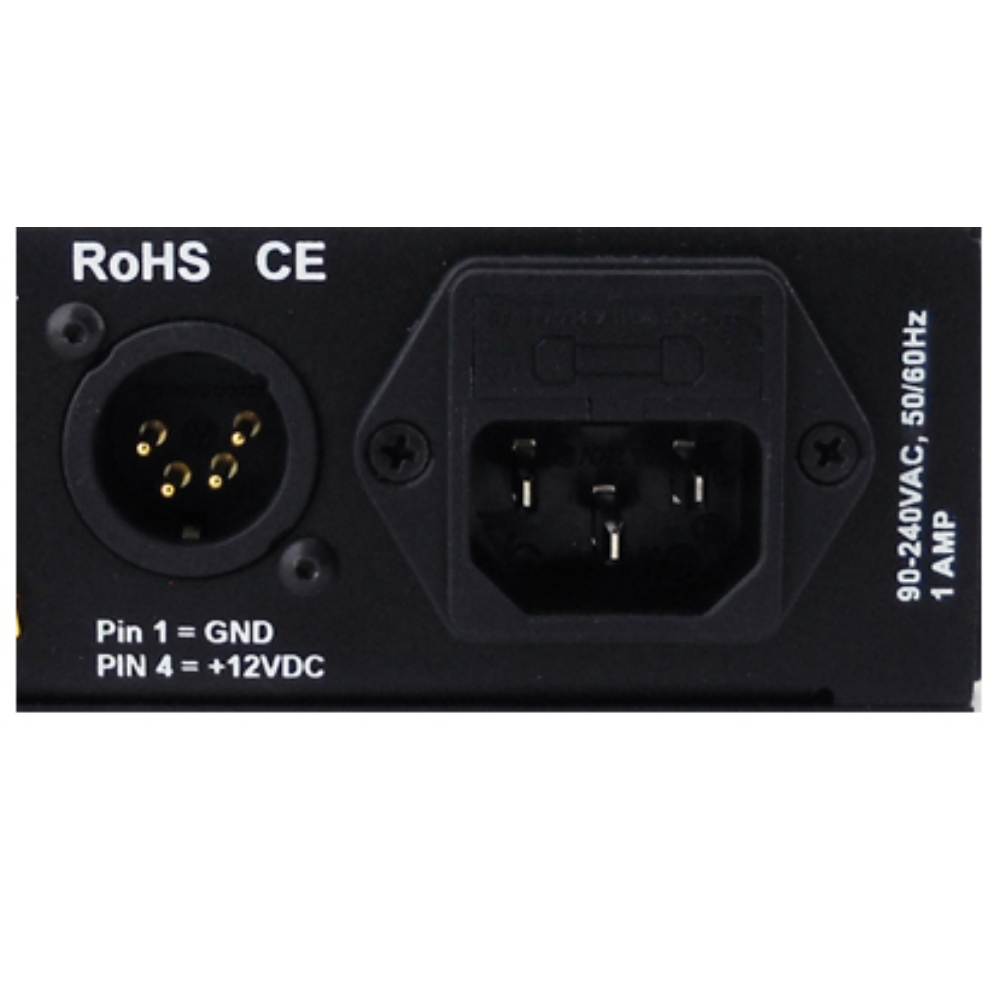

It runs on 90 to 240 VAC or on 10.8 to 18 VDC from an external supply, in a black-anodized aircraft aluminum chassis. It is made in the U.S.A. in Single Band, Dual Band, and Wide Band versions.
Features
- Combines up to four RF zones
- Feeds up to 16 diversity receivers

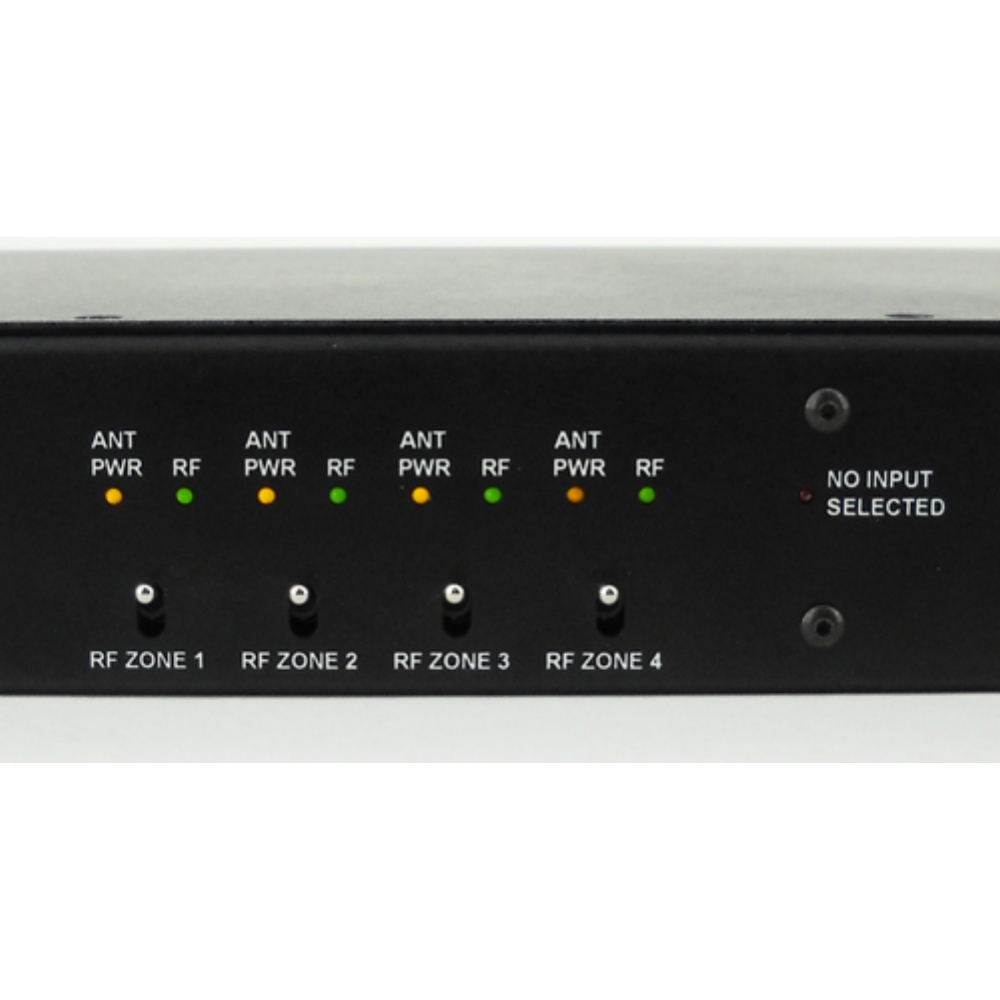

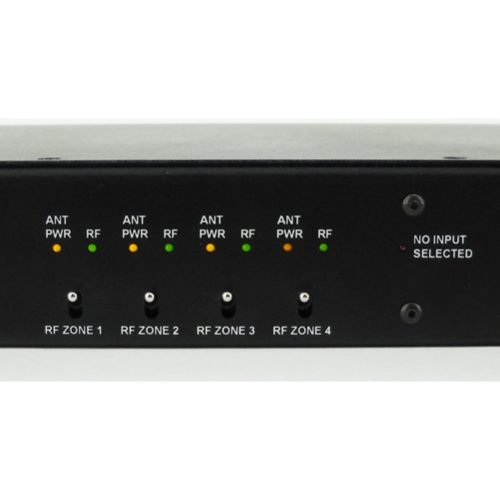

- Front-panel switches route each input pair
- Switchable antenna power on each input pair
- 8 BNC inputs, 32 SMA outputs
- AC or DC power
- Made in the U.S.A.
Available Options
| Band | Frequency Range | Part Number |
|---|---|---|
| Single Band | 470 to 700 MHz | RFMRSB |
| Dual Band | 470 to 618 MHz and 940 to 960 MHz | FRFMDB |
| Wide Band | 470 to 960 MHz | FRFMWB |
Specifications
| RF | |
|---|---|
| Frequency Range | Single Band 470 to 700 MHz; Dual Band 470 to 618 MHz and 940 to 960 MHz; Wide Band 470 to 960 MHz |
| Inputs | 8 x BNC, 50 ohms |
| Outputs | 32 x SMA, 50 ohms |
| Maximum Input Signal | +13 dB |
| Noise Figure | 0.8 dB |
| Matrix Switching Crosstalk | More than 50 dB |
| Power | |
| DC Power | 10.8 to 18 VDC, 800 mA nominal, 2 A maximum |
| AC Power | 90 to 240 VAC, 30 W |
| General | |
| Size | 17.5 × 6.5 × 1.75 in (44.5 × 16.5 × 4.5 cm) |
| Weight | 3.5 lb (1.6 kg) |
| Chassis | Aircraft aluminum, black anodize type II |
| Warranty | 1 year, limited |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.professionalsound.com. |
