Lectrosonics AMJKIT Jointed Whip Antenna Kit
- Jointed whip antenna with a male SMA connector
- Cut to length for any Lectrosonics block
- Color caps and a cutting template in the kit
$53.00 USD
Availability: In Stock
Lectrosonics AMJKIT Jointed Whip Antenna Kit
The Lectrosonics AMJKIT is a jointed whip antenna kit with a standard male SMA connector, and the whip is cut to length for the Lectrosonics block it will work on.

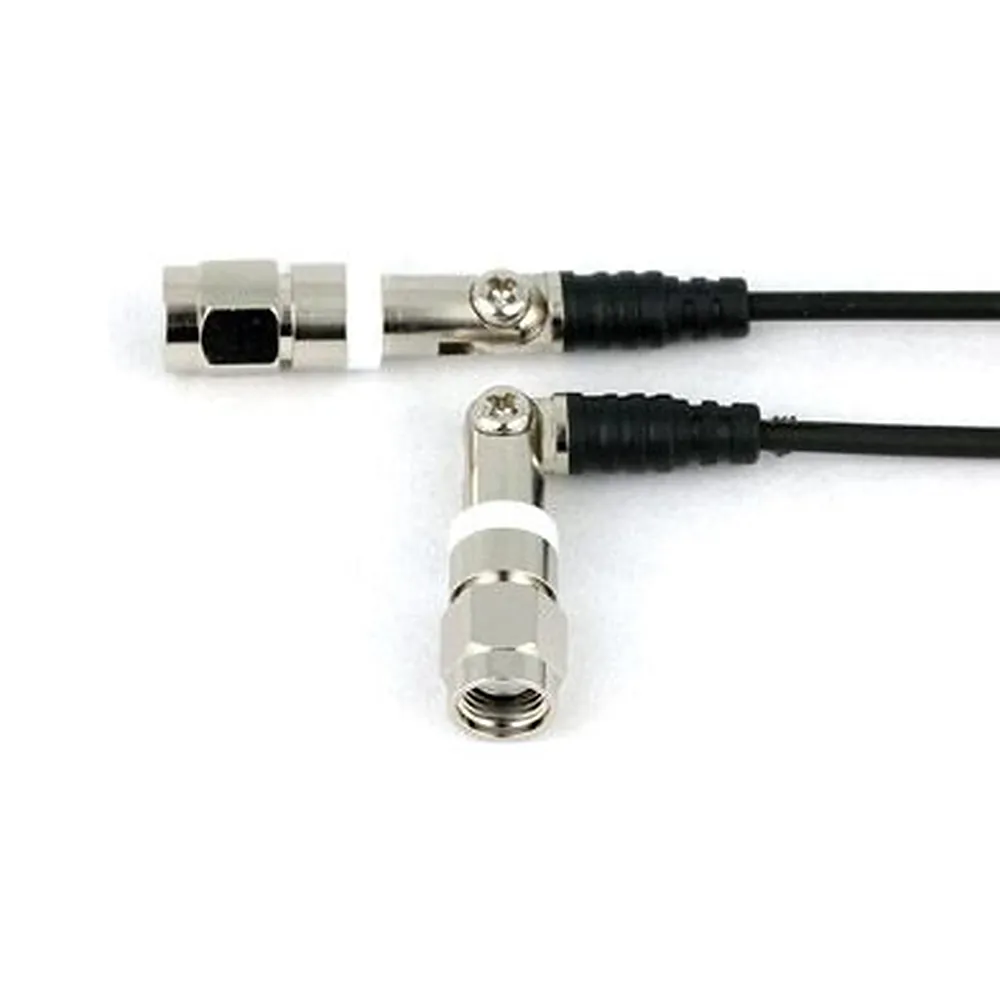

It fits UM belt packs, newer SM Series belt packs, and newer SR receivers, along with any Lectrosonics receiver or transmitter that has a standard SMA connector. The hinged joint pivots both ways to aim the whip at any angle.
To set it up, lay the whip on the full-size cutting template, cut it at the mark for your block, and fit the matching color cap, or trim the cap into a sleeve. The Sizing tab gives the length and color for each block. Disconnect the antenna for storage and transport, since about 25 lb of sideways force near the hinge can break the center pin.
Features
- Jointed whip antenna with a male SMA connector
- Cut to length for any Lectrosonics block
- Color caps and a cutting template in the kit

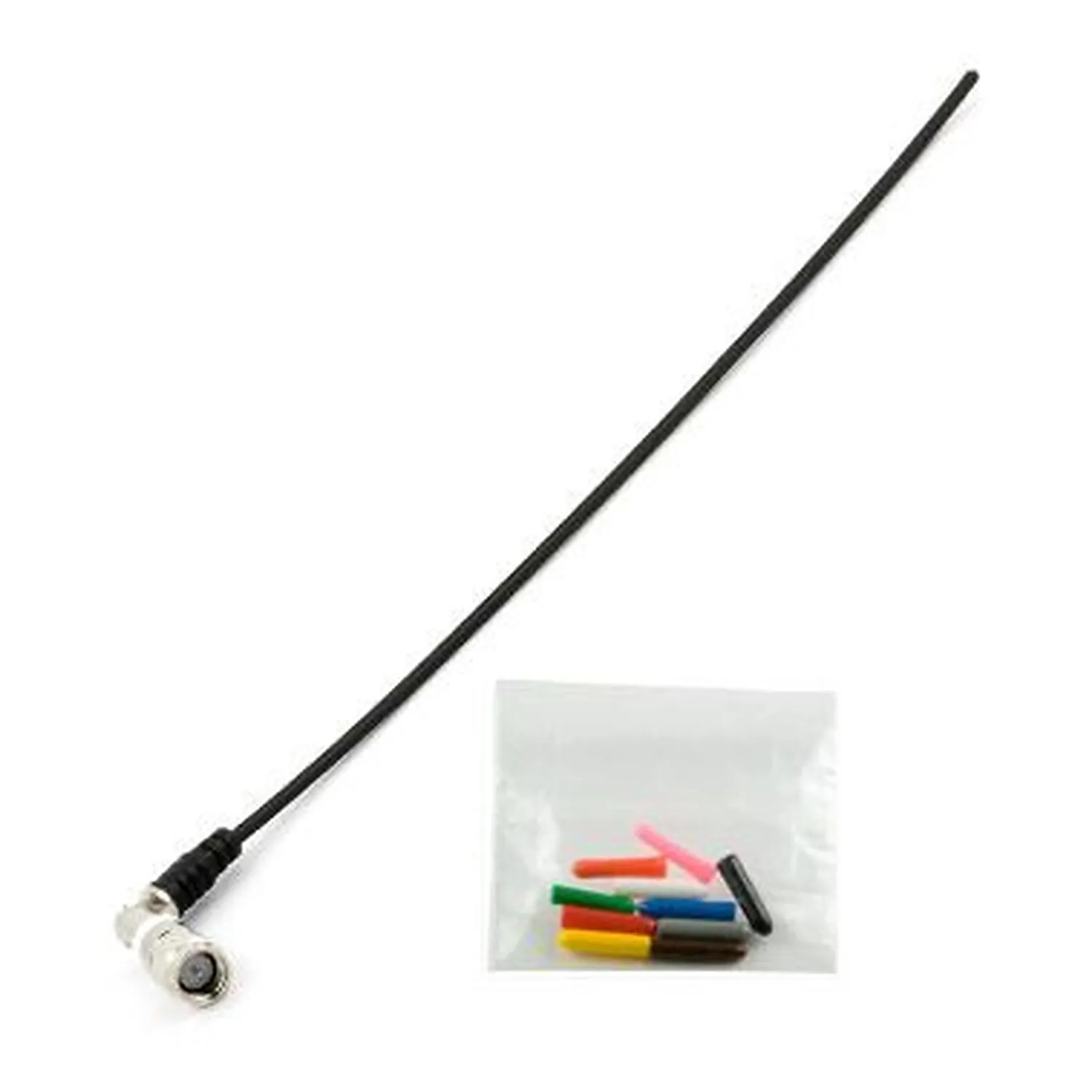

What's Included
- Jointed whip antenna with male SMA connector
- Assorted color caps
- Cutting template
Specifications
| Antenna | |
|---|---|
| Type | Jointed whip, hinged to pivot in both directions |

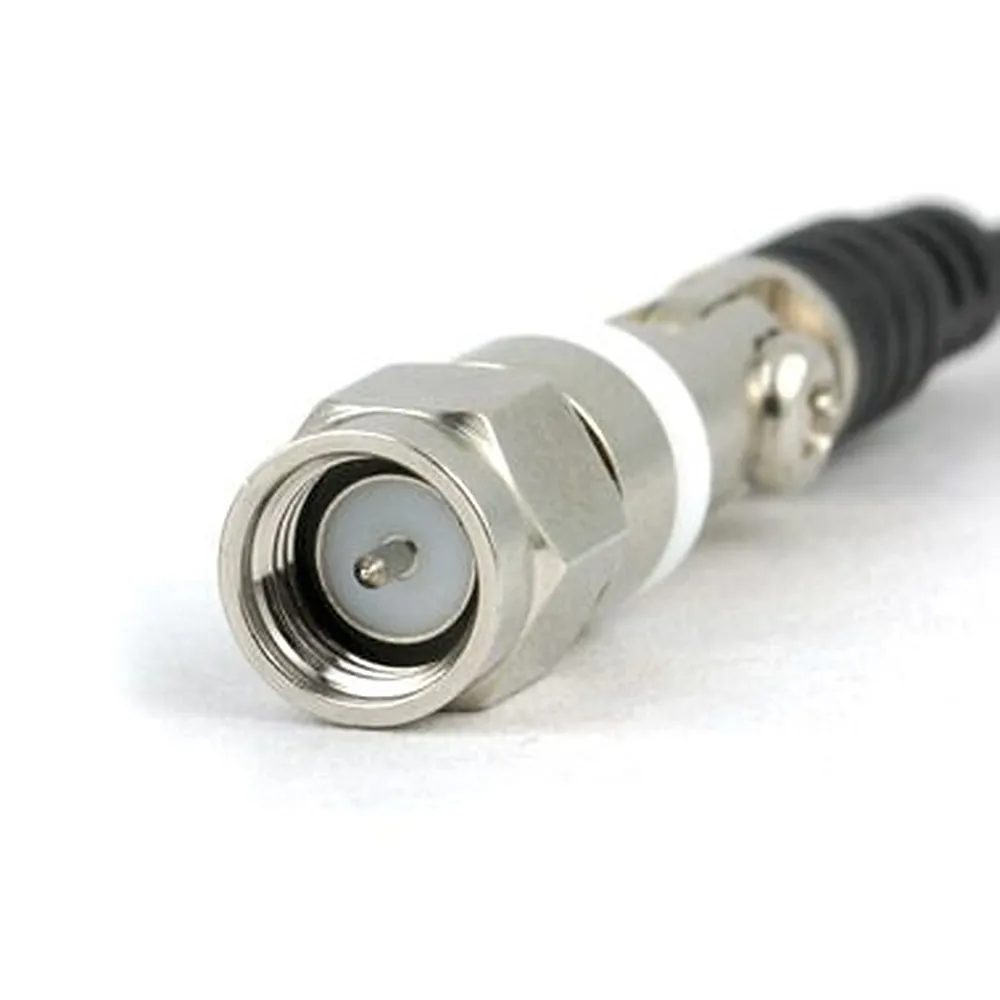

| Connector | Standard male SMA |
| Length | Cut to the block’s length (see the Sizing tab) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit lectrosonics.com. |
Sizing
| Block | Frequency Range (MHz) | Cap or Sleeve Color | Whip Length |
|---|---|---|---|
| 470 | 470.100 to 495.675 | Black | 141.2 mm (5.56 in) |
| 19 | 486.400 to 511.975 | Black | 133.9 mm (5.27 in) |
| 20 | 512.000 to 537.575 | Black | 125.2 mm (4.93 in) |
| 21 | 537.600 to 563.175 | Brown | 119.6 mm (4.71 in) |
| 22 | 563.200 to 588.775 | Red | 113.8 mm (4.48 in) |
| 23 | 588.800 to 614.375 | Orange | 108.5 mm (4.27 in) |
| 24 | 614.400 to 639.975 | Yellow | 103.4 mm (4.07 in) |
| 25 | 640.000 to 665.575 | Green | 98.3 mm (3.87 in) |
| 26 | 665.600 to 691.175 | Blue | 93.5 mm (3.68 in) |
| 27 | 691.200 to 716.775 | Violet (pink) | 89.4 mm (3.52 in) |
| 28 | 716.800 to 742.375 | Gray | 85.3 mm (3.36 in) |
| 29 | 742.400 to 767.975 | White | 81.8 mm (3.22 in) |
| 30 | 768.000 to 793.575 | Black | 78.2 mm (3.08 in) |
| 31 | 793.600 to 819.175 | Black | 75.4 mm (2.97 in) |
| 32 | 819.200 to 844.775 | Black | 73.4 mm (2.89 in) |
| 33 | 844.800 to 865.075 | Black | 71.4 mm (2.81 in) |
| 944 | 944.100 to 951.975 | Black | 64.3 mm (2.53 in) |
