Lectrosonics DSR4 Four-Channel Digital Slot Receiver
- Four digital receiver channels in one slot unit
- Analog and AES3 outputs with AES 256 encryption
- Fits SuperSlot and Sound Devices 8-Series
Unavailable for shipping outside the United States and Canada.
From $4,672.00 USD
Lectrosonics DSR4 Four-Channel Digital Slot Receiver

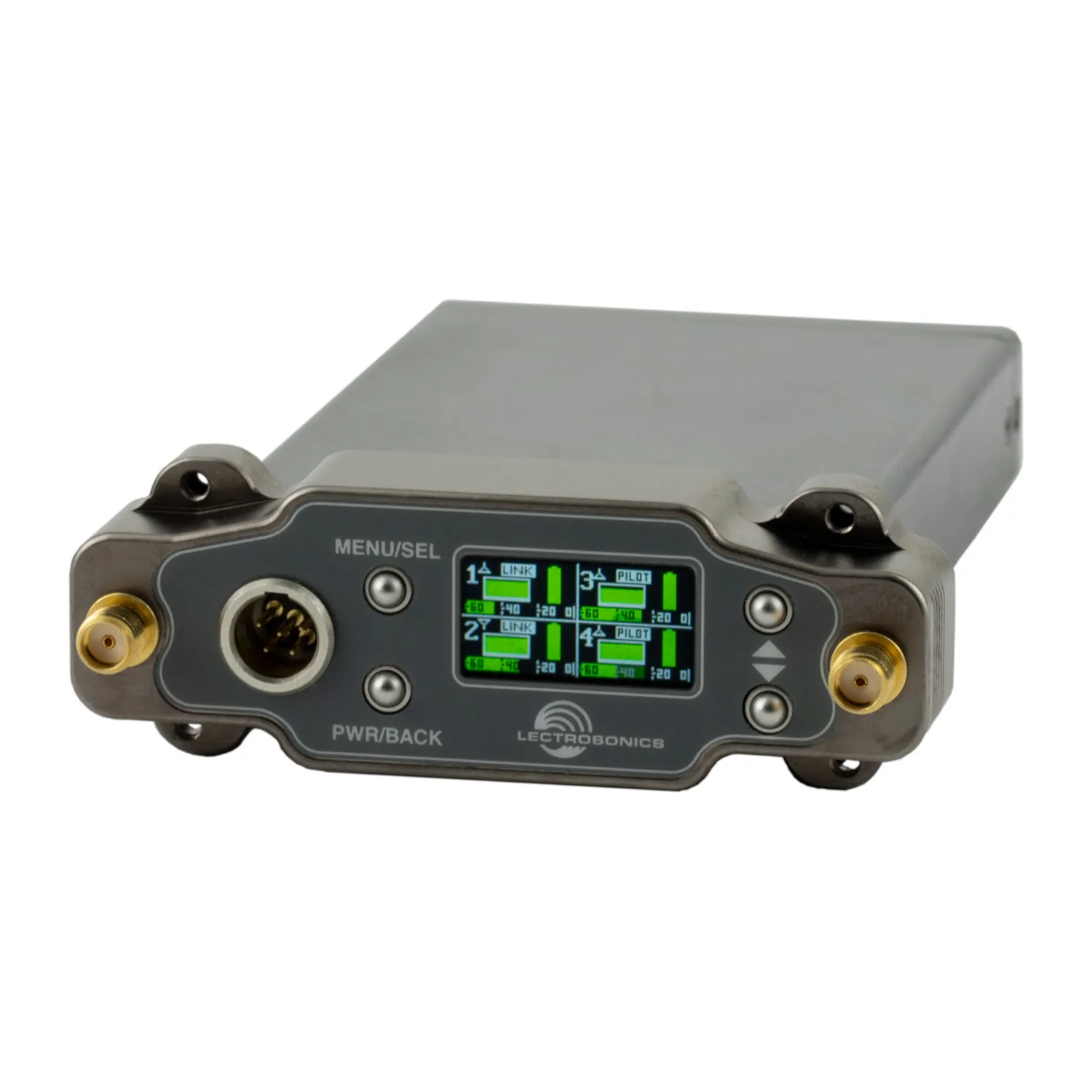

The Lectrosonics DSR4 is a four-channel digital slot receiver with independent channels in one compact unit, for bags, sound carts, and camera slots.

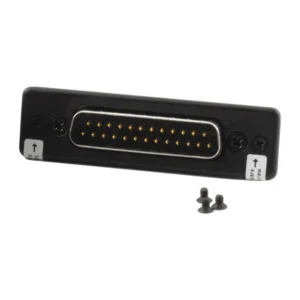

It fits SuperSlot, and with DSR4 firmware 1.09 and 8-Series firmware 9.30 it integrates fully with Sound Devices 8-Series mixer-recorders. External DC powers it, and settings are made from the front panel with tactile buttons and a color LCD. Its machined aluminum housing has a hard-anodized finish with laser-etched markings.
Frequency Bands
Trew Audio carries the DSR4 in three tuning ranges: A1B1 (470.100 to 614.375 MHz), B1C1 (537.600 to 691.175 MHz), and 941 (941.525 to 959.825 MHz). Frequencies step in 25 kHz increments, and each version comes with jointed SMA antennas for its range.
Diversity and RF
With all four channels in use, each channel combines the signals from both antennas, in or out of phase, for the strongest result. For two-channel work, its receivers pair up for Vector Diversity, which continuously blends the RF from both paired receivers. A front end with an IP3 of +15 dBm resists intermodulation and desensitization, and the built-in spectrum analyzer and SmartTune find clear frequencies in crowded RF.
Audio and Outputs

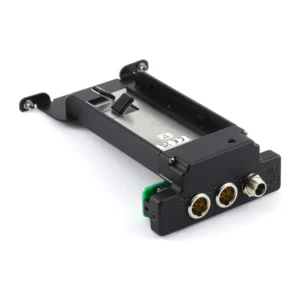

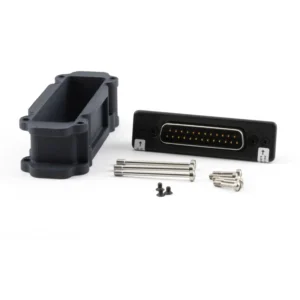

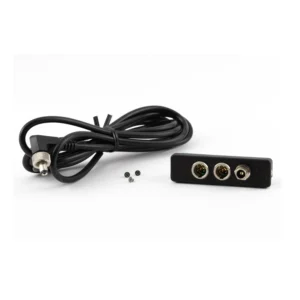

Audio is 24-bit, 48 kHz, with AES 256-bit CTR encryption and four key policies. Outputs are analog or AES3 digital, through camera slot adapters, a dual TA5 output adapter, battery sled adapters, or the front-panel TA5 jack. SmartNR noise reduction has Off, Normal, and Full settings for hiss from lav mics and preamps.
The DSR4 receives Lectrosonics D-Squared and Duet digital transmitters and the Digital Hybrid Wireless transmitters, which the Compatibility tab lists by name.
Features
- Four independent channels in one compact unit
- Antenna phase switching for four channels, Vector Diversity for two
- 24-bit, 48 kHz digital audio
- AES 256-bit CTR encryption with four key policies
- IP3 of +15 dBm for crowded RF
- Built-in spectrum analyzer and SmartTune
- Analog and AES3 digital outputs
- SuperSlot design, integrated with Sound Devices 8-Series
- External DC power, with USB for firmware and data
- IR port for setup between units
What's Included
- Quickstart Guide
- IR reflector (27372)
- Adhesive strip for the IR reflector (27373)
- AMJ jointed SMA antennas for the version’s range (A1B1: two AMJ-19 and two AMJ-22; B1C1: two AMJ-22 and two AMJ-25; 941: two AMJ-944; 961: two AMJ-961)
Specifications
| Receiver | |
|---|---|
| Operating Frequencies | A1B1: 470.100 to 614.375 MHz B1C1: 537.600 to 691.175 MHz 941: 941.525 to 959.825 MHz 961: 961.100 to 1014.900 MHz |
| Frequency Selection Steps | 25 kHz |
| Frequency Stability | ±0.001% |
| Front End Bandwidth | ±5.5 MHz at −3 dB |
| Sensitivity | 20 dB SINAD: 0.9 µV (−108 dBm), A-weighted 60 dB quieting: 1.12 µV (−105 dBm), A-weighted |
| AM Rejection | Greater than 60 dB, 2 µV to 1 V |
| Modulation Acceptance | 85 kHz |
| Spurious Rejection | 85 dB |
| Third Order Intercept | +15 dBm |
| Diversity | Antenna phase switching (4-channel operation) Vector Diversity (2-channel operation) |
| Antenna Inputs | 50 ohm, SMA female |
| Audio | |
| Frequency Response | 25 Hz to 20 kHz (+0/−3 dB) |
| THD | 0.2% typical |
| SNR at Receiver Output | SmartNR Off: 103.5 dB, 108.0 dB with limiting SmartNR Normal: 107.0 dB, 111.5 dB with limiting SmartNR Full: 108.5 dB, 113.0 dB with limiting |
| Input Dynamic Range | 125 dB with full transmitter limiting |
| Latency | 1.6 ms with a digital transmitter Under 2.9 ms with a Hybrid transmitter |
| Audio Test Tone | 1 kHz, −50 to +7 dBu, under 1% THD |
| Audio Outputs | Interchangeable D connector adapters or camera slot interfaces Dual TA5 male balanced output adapter Battery sled adapters with TA5 male outputs Front-panel TA5 male for AES3 outputs or analog channels 3 and 4 |
| Controls, Power, and Physical | |
| Front Panel | Color LCD; Menu/Sel, Pwr/Back, and up/down buttons; USB port; IR port |
| Rear Panel | Connector for audio and power accessory panels |
| External Power | 7 to 17 VDC; 420 mA maximum at 9 VDC |
| Operating Temperature | −20 to 50 °C (−5 to 122 °F) |
| Weight | 408 g (14.4 oz) without audio adapter |
| Dimensions (W × H × D) | 82 × 31 × 140 mm 3.23 × 1.23 × 5.50 in |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit lectrosonics.com. |
Compatibility
| Transmitter | Family |
|---|---|
| DBu | D-Squared or Duet digital |
| DHu | D-Squared or Duet digital |
| DPR | D-Squared or Duet digital |
| DPR-A | D-Squared or Duet digital |
| DBSM | D-Squared or Duet digital |
| DCHT | D-Squared or Duet digital |
| M2T | D-Squared or Duet digital |
| SM and SMWB series | Digital Hybrid Wireless |
| WM | Digital Hybrid Wireless |
| HM series | Digital Hybrid Wireless |
| MM400 series | Digital Hybrid Wireless |
| HH series | Digital Hybrid Wireless |
| LT | Digital Hybrid Wireless |
| LMb | Digital Hybrid Wireless |
| UM400 series | Digital Hybrid Wireless |
| SSM | Digital Hybrid Wireless |
