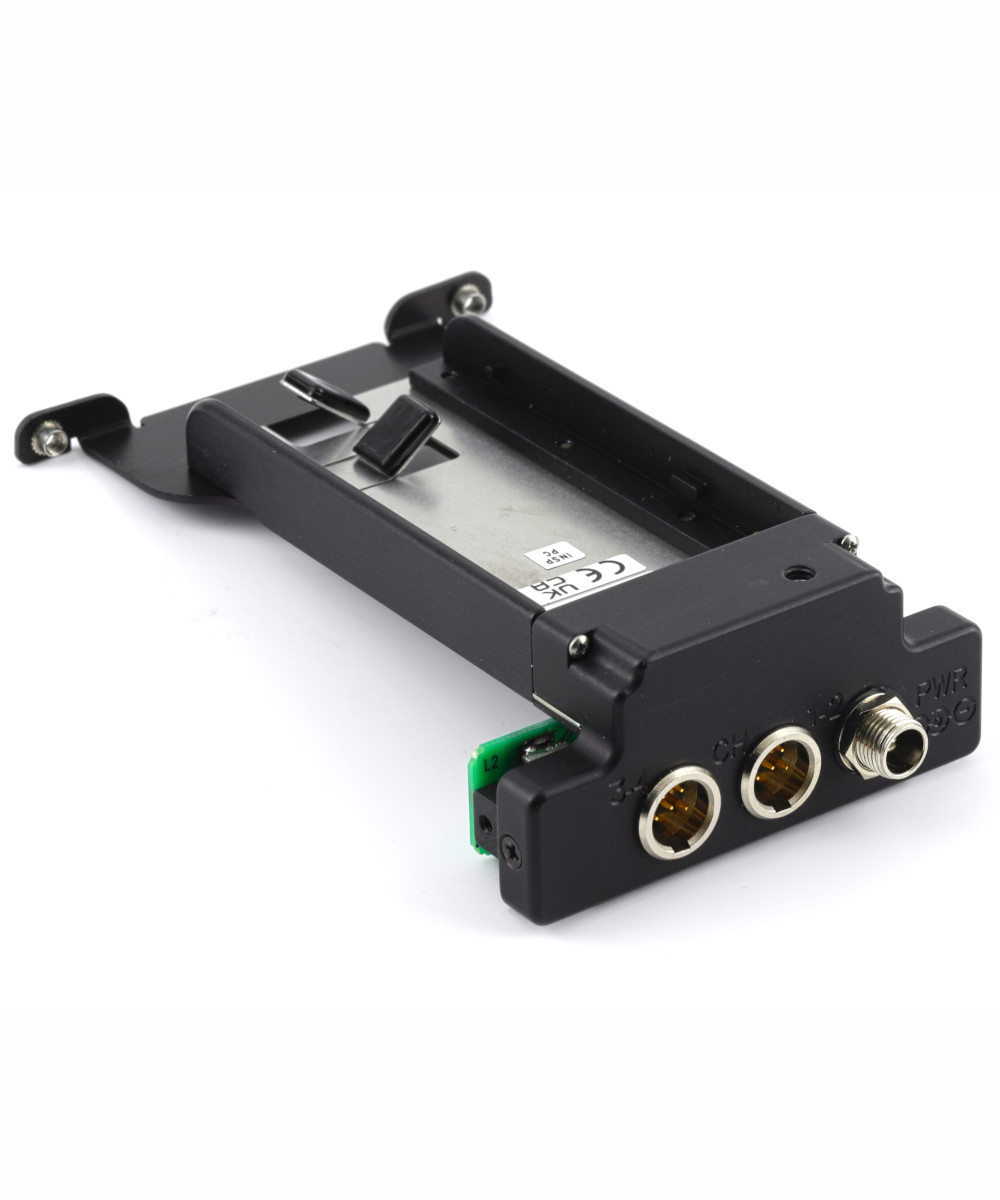

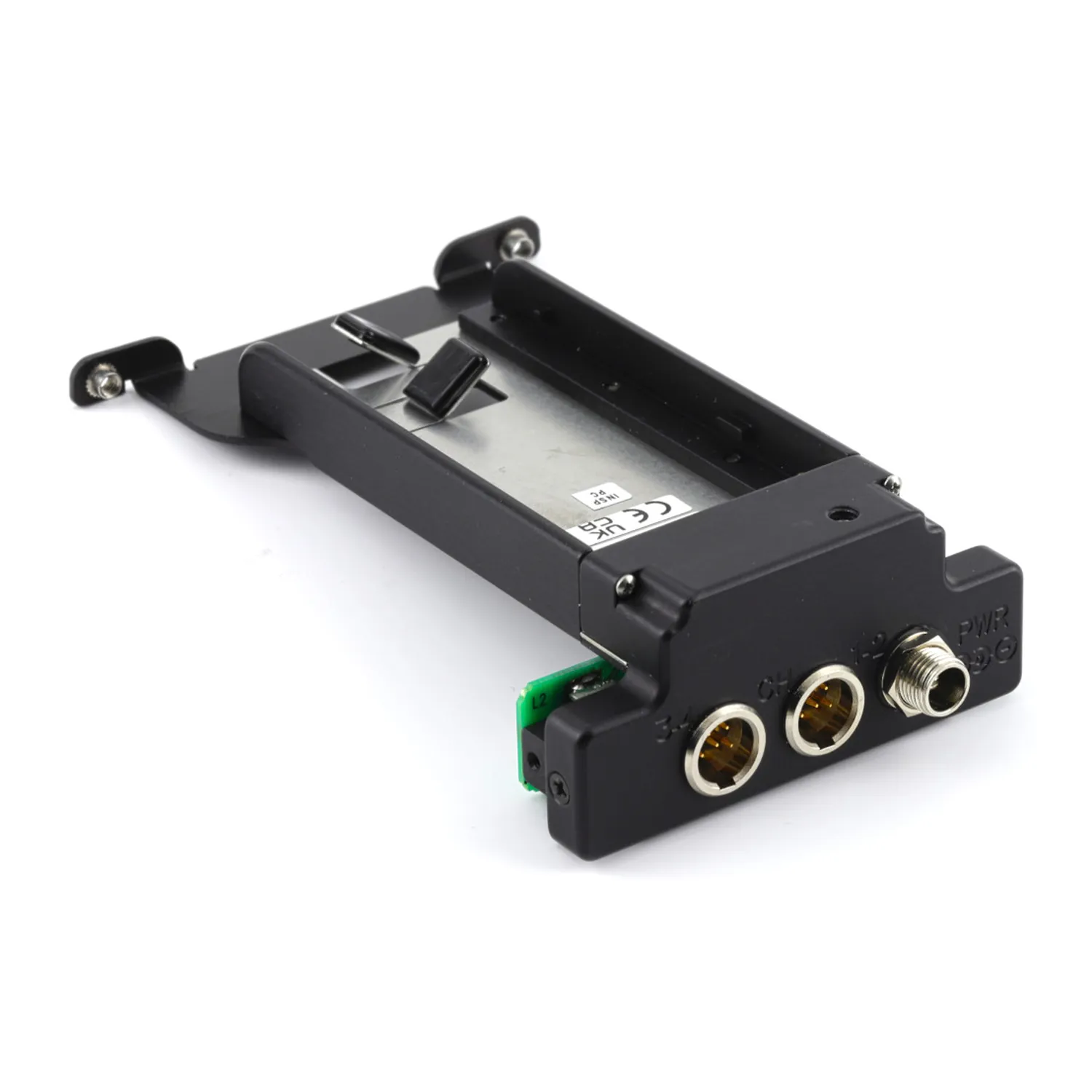

Lectrosonics DSR4BATTSLEDTOP Top-Mount Battery Sled for DSR4

The Lectrosonics DSR4BATTSLEDTOP runs a top-mount DSR4 receiver from an L or M type video camera battery.

The sled replaces the DSR4’s rear panel and puts the battery on top of the receiver, with the LCD and rear panel markings reading the right way up. Its panel has two balanced TA5M audio outputs and a locking power jack. A built-in circuit switches between the battery and an external source on its own.

It has no charging circuit, so the battery charges on its own charger. Machined from aluminum, it slides into the receiver along engraved bowtie marks that guide its alignment. Two side screws and two top screws hold it, and spare screws come with it. The DSR4BATTSLEDBOTTOM is the version for mounting under a camera.

Features

• Top-mount battery sled for the DSR4 receiver
• Takes L and M type camera batteries
• Two TA5M outputs and a locking power jack
