Lectrosonics ACOAXTX Coaxial Antenna with SMA Connector
- Coaxial antenna on a cable, about 36 in long
- SMA connector
- Cut to the chosen frequency block
From $135.00 USD
Lectrosonics ACOAXTX Coaxial Antenna with SMA Connector
When a whip antenna would sit buried in a bag or under clothing, the Lectrosonics ACOAXTX coaxial antenna sits at a distance from the equipment instead.
It runs about 36 in overall, with an SMA connector at the equipment end.

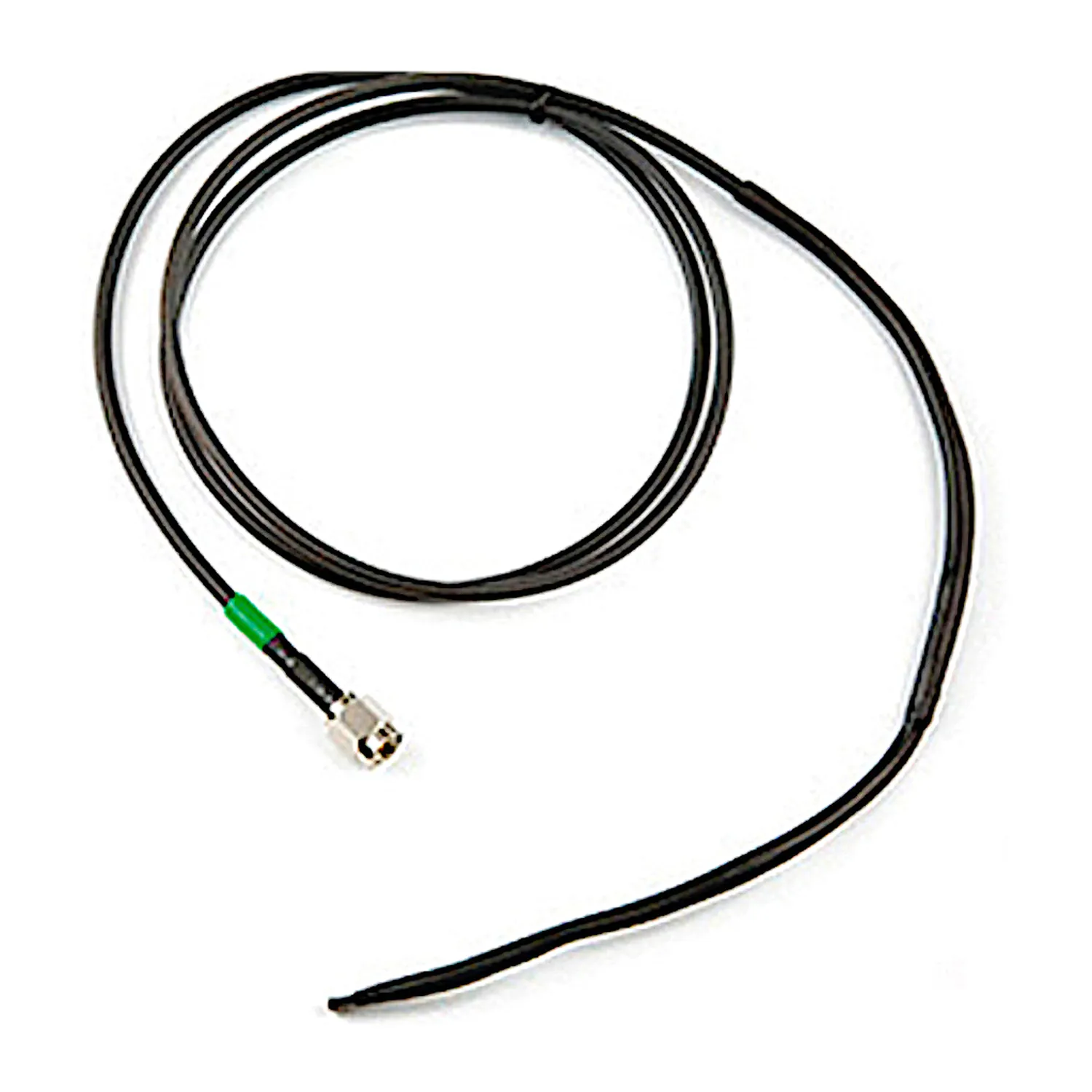

The thicker, shrink-wrapped section at the end is the antenna, its two halves each cut to a quarter wavelength of the chosen block. A color band and tag mark the block.
Mount the antenna section vertically, pointing up or down, and away from metal surfaces. How the rest of the cable runs makes no difference, so in a multichannel bag the antenna can ride on the bag strap.
Features
- Coaxial antenna on its own cable, about 36 in overall
- SMA connector
- Antenna section cut to a quarter wavelength of the block
- Color band and tag mark the block
- Works pointing up or down
Available Options
| Block | Model |
|---|---|
| Block 19: 486.400 – 511.900 MHz | ACOAXTX, Block 19 |
| Block 20: 512.000 – 537.500 MHz | ACOAXTX, Block 20 |
| Block 21: 537.600 – 563.100 MHz | ACOAXTX, Block 21 |
| Block 22: 563.200 – 588.700 MHz | ACOAXTX, Block 22 |
| Block 24: 614.400 – 639.900 MHz | ACOAXTX, Block 24 |
| Block 25: 640.000 – 665.500 MHz | ACOAXTX, Block 25 |
| Block 26: 665.600 – 691.100 MHz | ACOAXTX, Block 26 |
