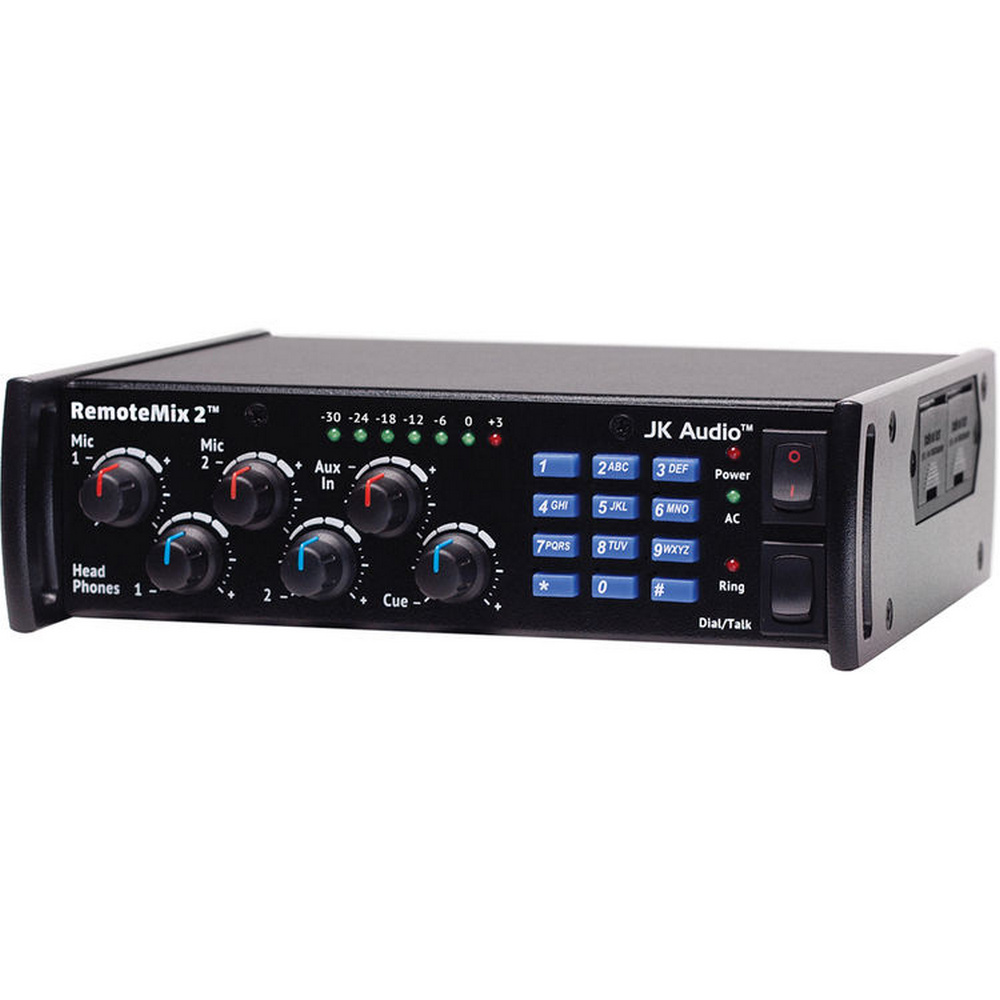

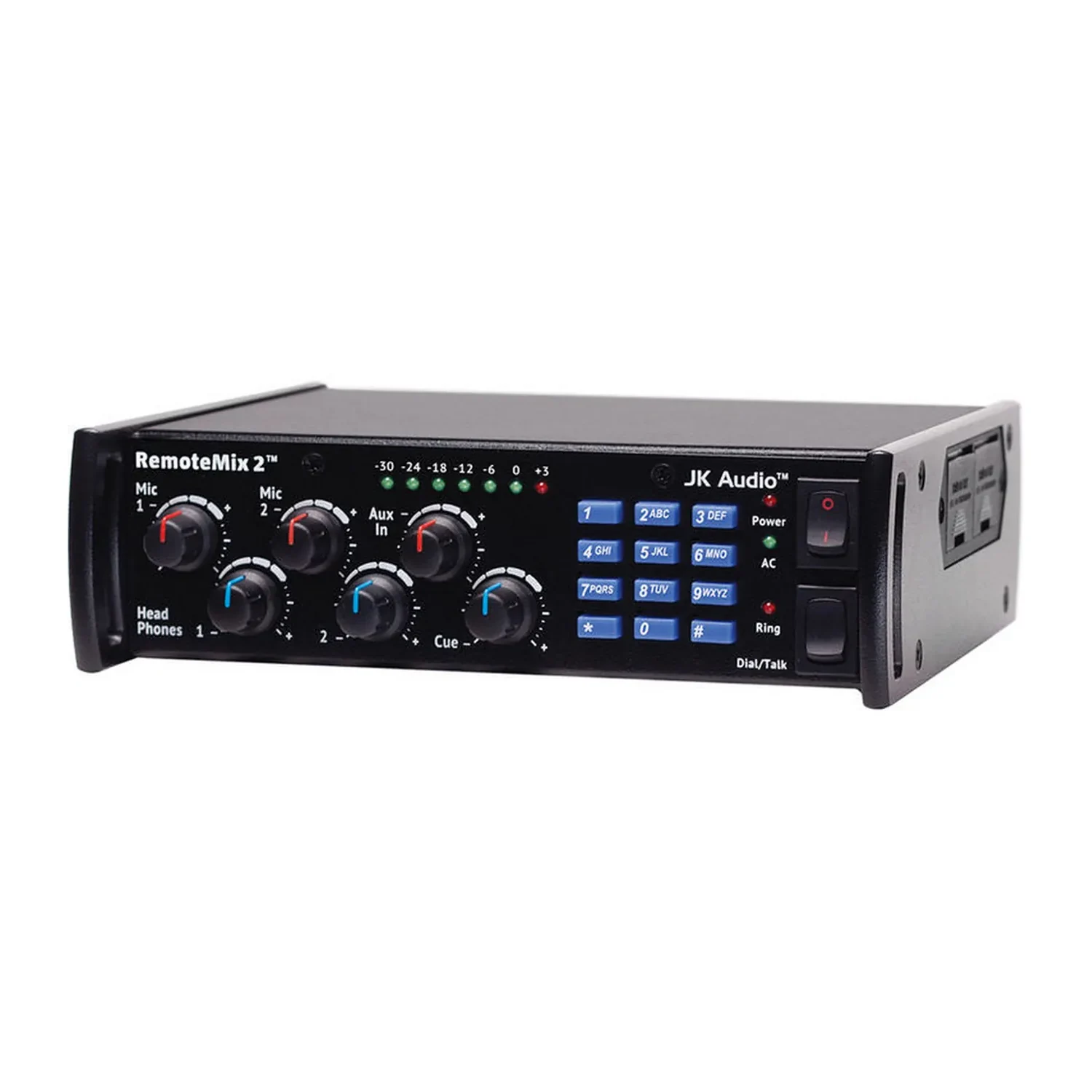

JK Audio RemoteMix 2 Two-Channel Broadcast Field Mixer
- Two-channel field mixer and headphone amplifier
- Phone line hybrid with DTMF keypad
- Wired cell phone and notebook headset interface
$962.00 USD
In Stock
JK Audio RemoteMix 2 Two-Channel Broadcast Field Mixer
Built for remote broadcasts, the JK Audio RemoteMix 2 mixes two mics, drives two headphones, and connects to a phone line or a cell phone for IFB or a backup audio path.
Its phone line hybrid has a DTMF keypad. The wired headset interface plugs into the 3.5 mm headset jack of a cell phone or notebook, with HD Voice for 7 kHz wide-band speech on supported phones and networks.
For TV, the two 1/4 in headphone outputs, each with its own level control, let a crew send and receive interview audio while pulling IFB off the phone line, a cell phone, or a notebook. The integrated headphone amplifier provides sidetone to monitor all inputs plus an external cue feed. For radio, the RemoteMix 2 works as the front-end mixer for a POTS, VoIP, or smartphone codec, or calls into a studio talk show hybrid.

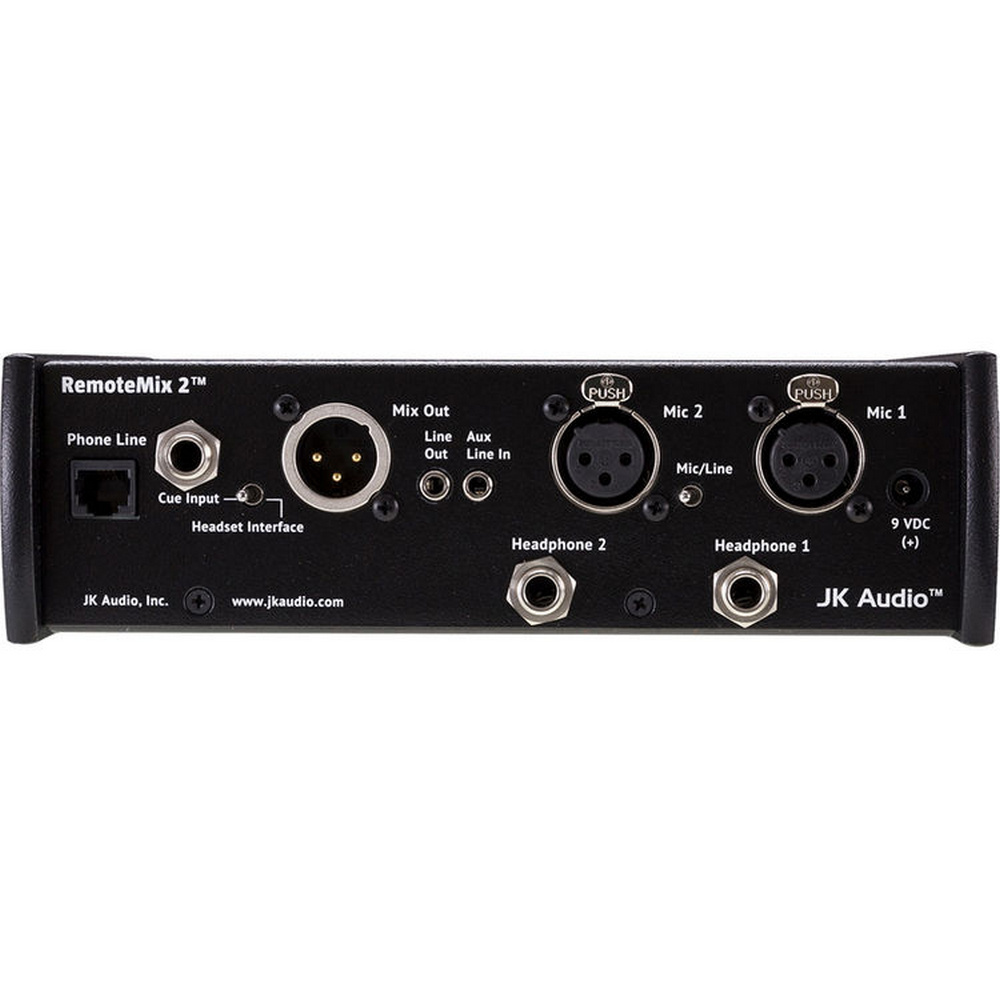

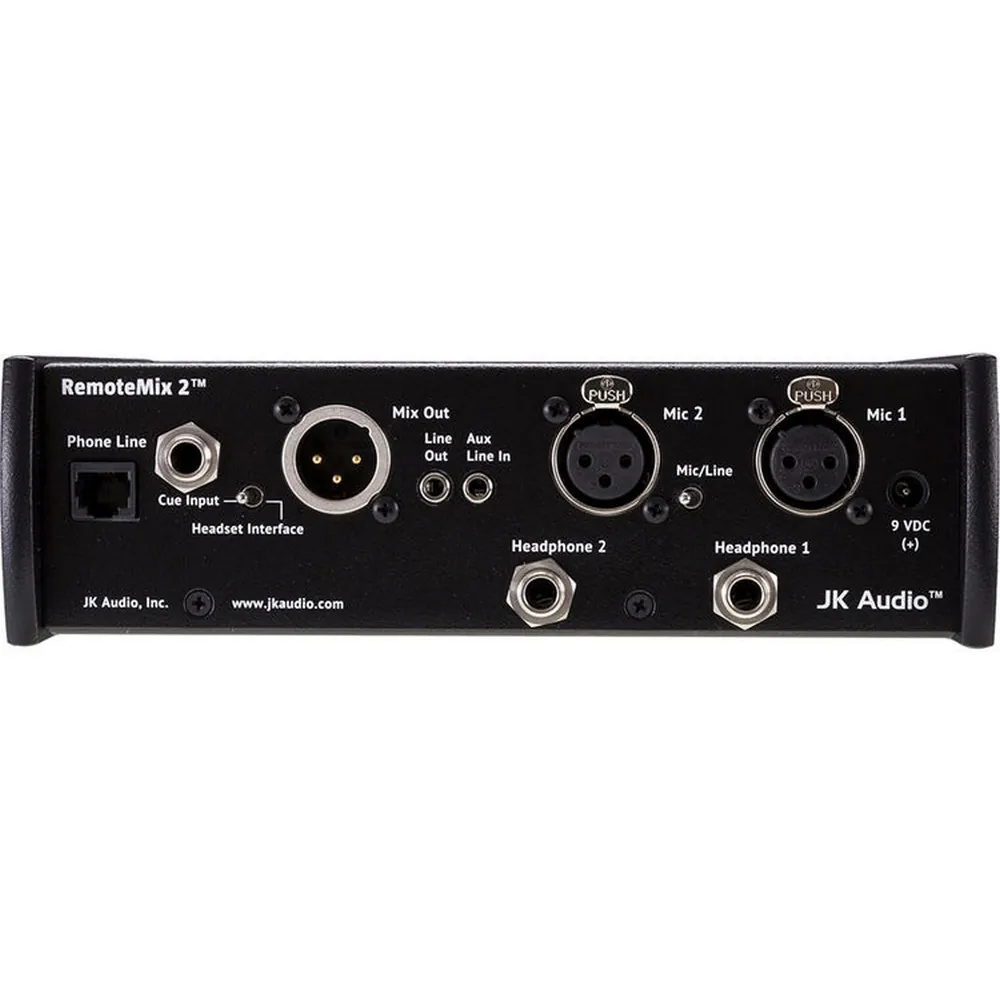

The two XLR mic inputs have a mic/line pad switch and feed a balanced XLR mix output with 20 Hz to 20 kHz response. 3.5 mm send and receive jacks connect a recorder or playback device, and an LED VU meter confirms levels. Power comes from two hot-swappable 9 V batteries or a 100 to 240 VAC external supply.
Features
- Two XLR mic inputs with mic/line pad switch
- Two 1/4 in headphone outputs with level controls
- Phone line hybrid with DTMF keypad
- 3.5 mm wired cell phone and notebook headset interface
- HD Voice compatible (7 kHz wide-band speech)
- Balanced XLR mix output, 20 Hz to 20 kHz
- 1/4 in headphone cue input
- 3.5 mm send and receive jacks and LED VU meter
- Hot-swappable dual 9 V batteries or AC power
Specifications
| Audio | |
|---|---|
| Mic Inputs | Female XLR, 2k ohms, −25 dBu nominal; mic/line pad switch, +6 dBu maximum |
| Aux Line In | 3.5 mm stereo, 20k ohms, −10 dBu nominal |
| Cue Input | 1/4 in mono, 20k ohms, −10 dBu nominal |
| Mix Out | Balanced male XLR, +16 dBu maximum, 20 Hz to 20 kHz ±1 dB |
| Line Out | 3.5 mm stereo, 100 ohms, −10 dBu nominal |
| Headphones | 1/4 in stereo, 8 ohms, 1/3 W per channel |
| Telephone and Physical | |
| Phone Line | RJ11C |
| Ringer | 0.5B REN |
| Isolation | 3750 VAC |
| Power | 100 to 240 VAC, 50 to 60 Hz external supply, or two 9 VDC batteries |
| Size | 7.75 × 6.5 × 2.3 in |
| Weight | 2.1 lb (960 g) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.jkaudio.com. |
