JK Audio Interchange Intercom Phone Bridge
- Bridges a party-line intercom to a JK Audio phone hybrid
- Front panel headset jack for a mobile phone
- Half-rack chassis powered by the intercom
$760.00 USD
In Stock
JK Audio Interchange Intercom Phone Bridge
The JK Audio Interchange links a party-line intercom to a JK Audio innkeeper LTD digital hybrid, so remote callers on a phone line can join the intercom.
This half-rack interface gives the hybrid a four-wire audio connection and a remote control connection. Its front panel headset jack also connects a mobile phone, tablet, or computer, so remote crew can join over a wireless phone call or a conferencing app.

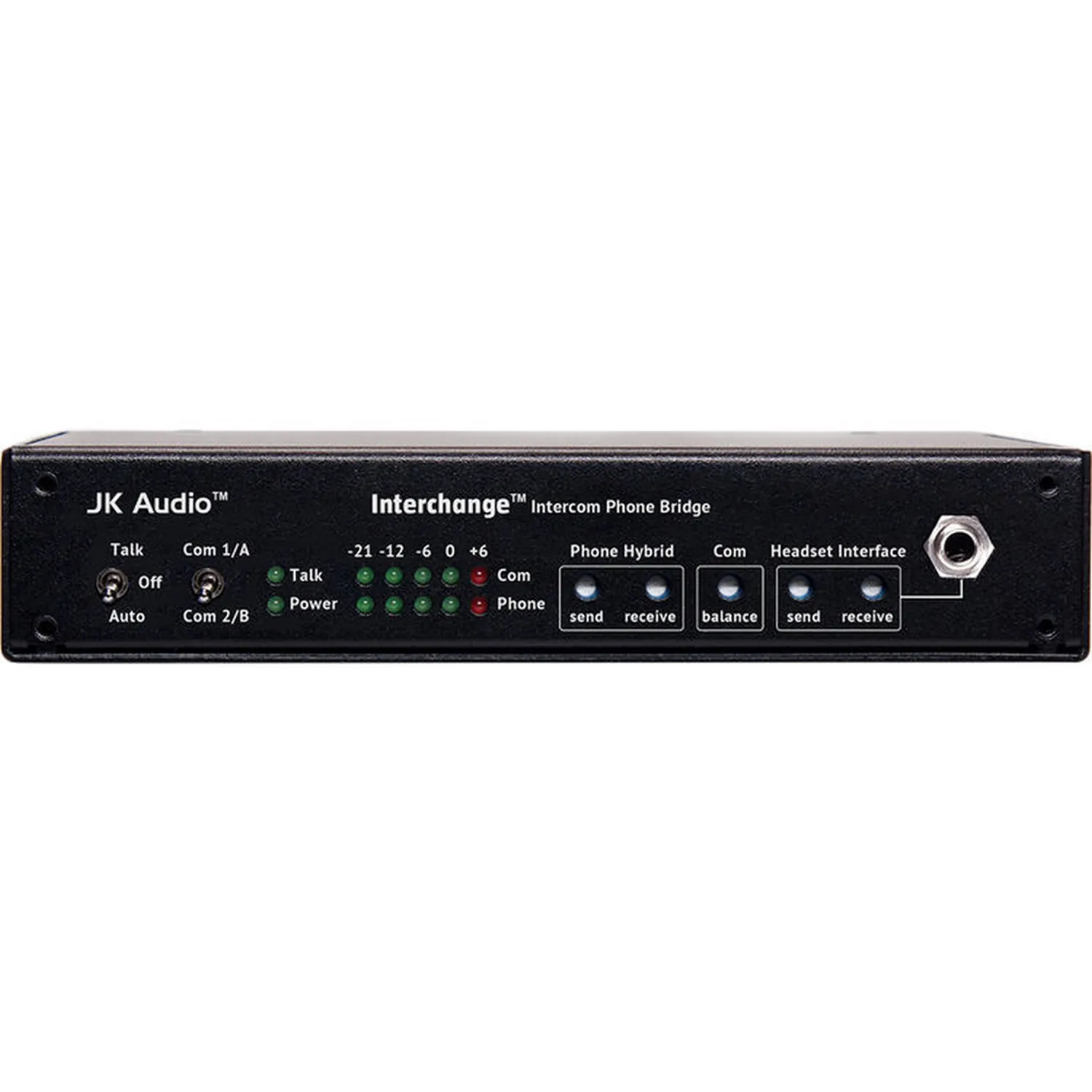

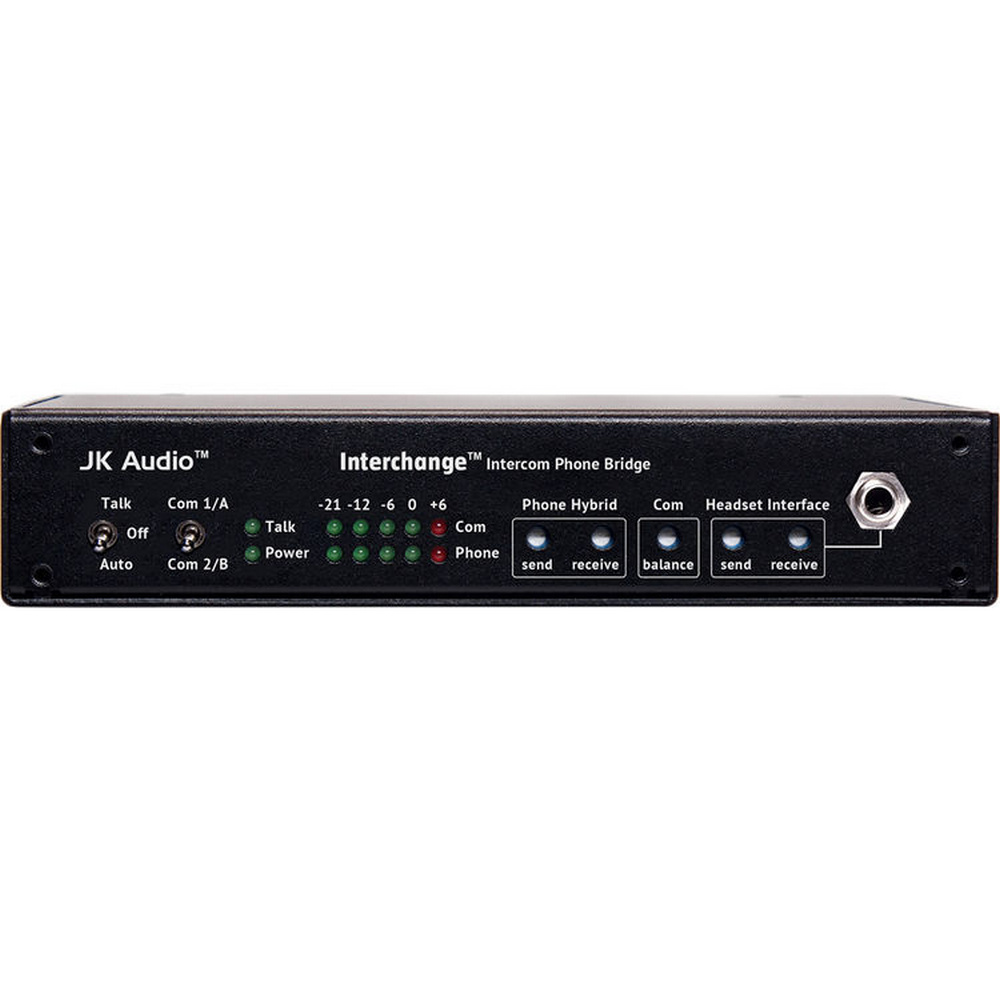

Both the hybrid’s four-wire connection and the headset interface monitor the intercom like any other belt pack, through a high-impedance bridging tap on the intercom line. A front panel switch sets talk mode to Off, On, or Auto, and Auto follows the hybrid’s auto-answer setting.

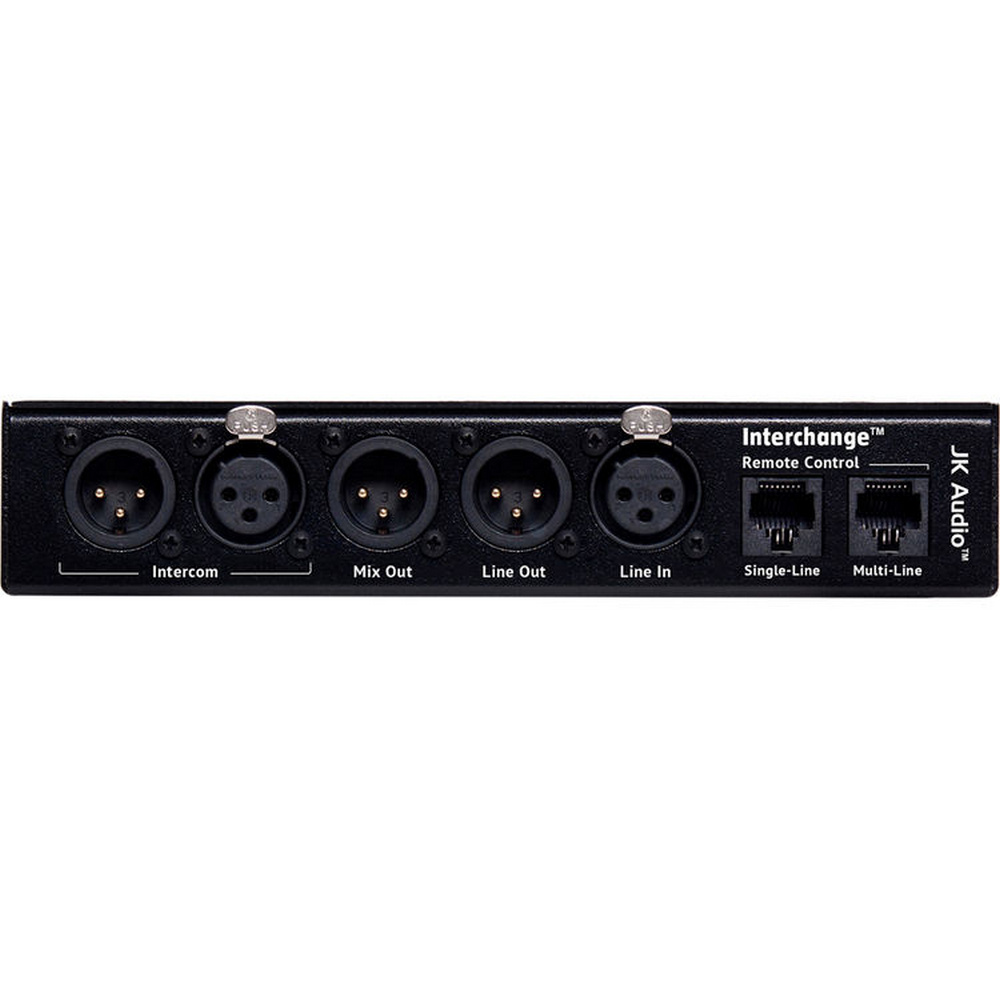

Male and female 3-pin XLR jacks connect the intercom loop and the four-wire hybrid connection, and a male XLR mix line output feeds monitoring. Setup uses send and receive LED metering, front panel screwdriver level controls, and a channel select switch. The intercom line powers the Interchange. The optional RA2 rack mount adapter holds two Interchanges in one rack space.
Features
- Party-line intercom access through a JK Audio digital hybrid
- Four-wire audio and remote control connection for the hybrid
- Male and female 3-pin XLR intercom loop jacks
- Male and female 3-pin XLR four-wire jacks
- Male XLR mix line output for monitoring
- Front panel cell phone headset interface, HD Voice compatible
- Always listens; talks only when talk is enabled
- Send and receive LED metering with screwdriver level controls
- Powered by the intercom line
- Made in America
Specifications
| Intercom Channel | |
|---|---|
| Connectors | Male and female 3-pin XLR |
| Output Level | −10 dBu (250 mV RMS) nominal |
| Terminating Impedance | 200 ohms |
| Bridging Impedance | Over 15k ohms |
| Pinout | Pin 1: common Pin 2: audio + 30 VDC (+12 VDC minimum), 50 mA Pin 3: audio |
| Four-Wire and Headset | |
| Line In | Balanced female XLR, 20k ohms, 50 Hz to 20 kHz, 500 mV RMS (−4 dBu nominal, +12 dBu maximum) |
| Line Out | Balanced XLR, 200 ohms, 50 Hz to 20 kHz, 500 mV RMS (−4 dBu nominal, +12 dBu maximum) |
| Headset Interface | 3.5 mm TRRS; wireless interface 50 Hz to 7 kHz (HD Voice) |
| Physical | |
| Power | Intercom powered, +30 VDC (+12 VDC minimum), 50 mA |
| Size | 7.6 × 5.3 × 1.5 in (20 × 14 × 4 cm) |
| Weight | 1.2 lb (0.5 kg) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.jkaudio.com. |
