JK Audio Daptor Two Wireless Phone Audio Interface
- Connects a cell phone or notebook to XLR or 1/4 in gear
- Two-way audio for remote broadcasts and IFB
- Passive, with no battery or AC power
$204.00 USD
Availability: In Stock
JK Audio Daptor Two Wireless Phone Audio Interface

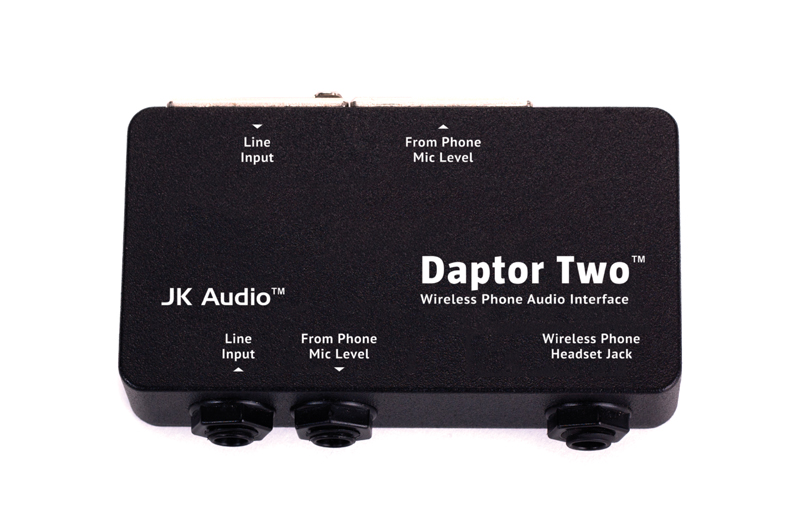

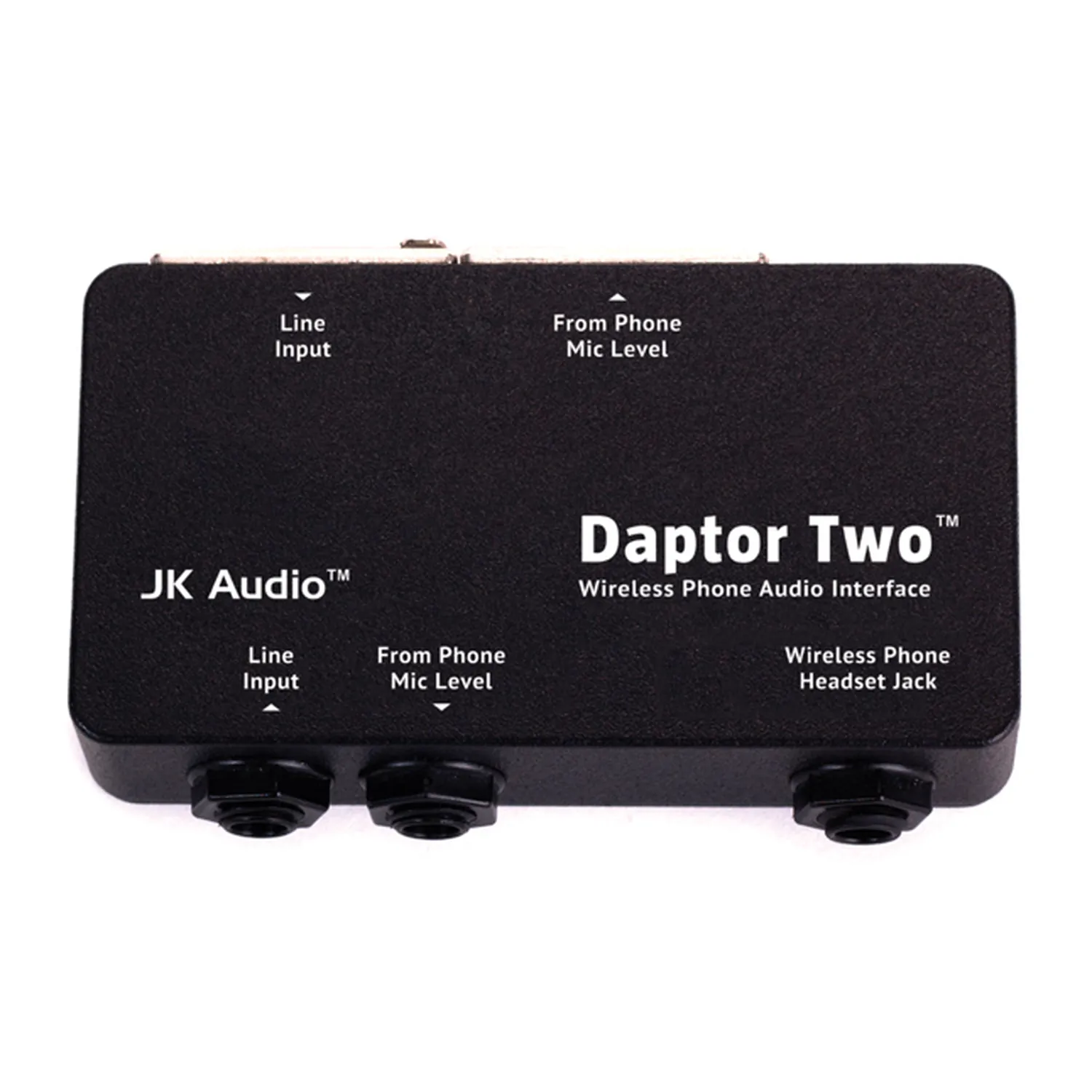

The JK Audio Daptor Two connects a cell phone or notebook to XLR or 1/4 in audio gear, for remote broadcasts or IFB feeds over a wireless phone call, with no battery or AC power.

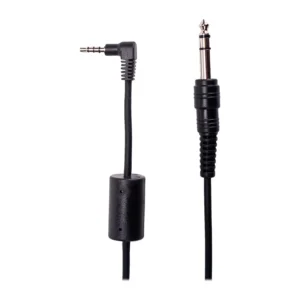

The included CN113 cable runs from the Daptor Two’s headset jack to the 3.5 mm TRRS headset jack of any phone or notebook that accepts a third-party headset. The phone or notebook treats the Daptor Two as a headset and turns off its own mic and speaker. Regular calls carry voice band audio, and third-party codec apps carry full-bandwidth audio. Phones without a 3.5 mm TRRS headset jack need an adapter, which is not included.

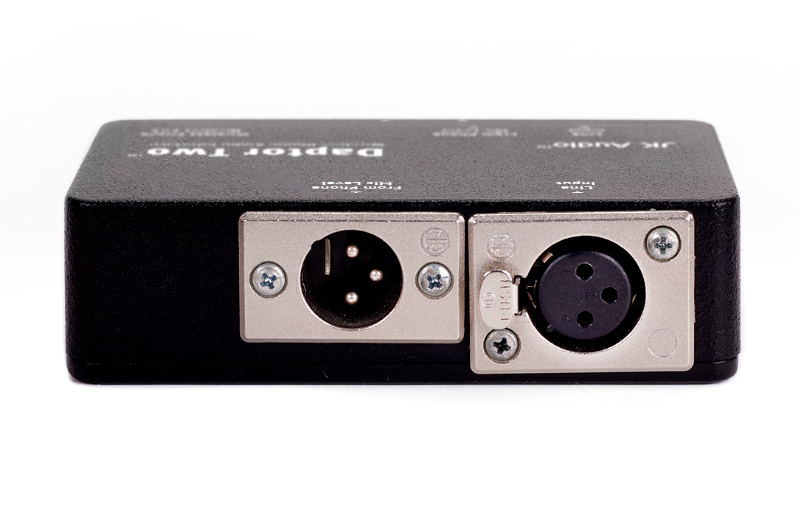

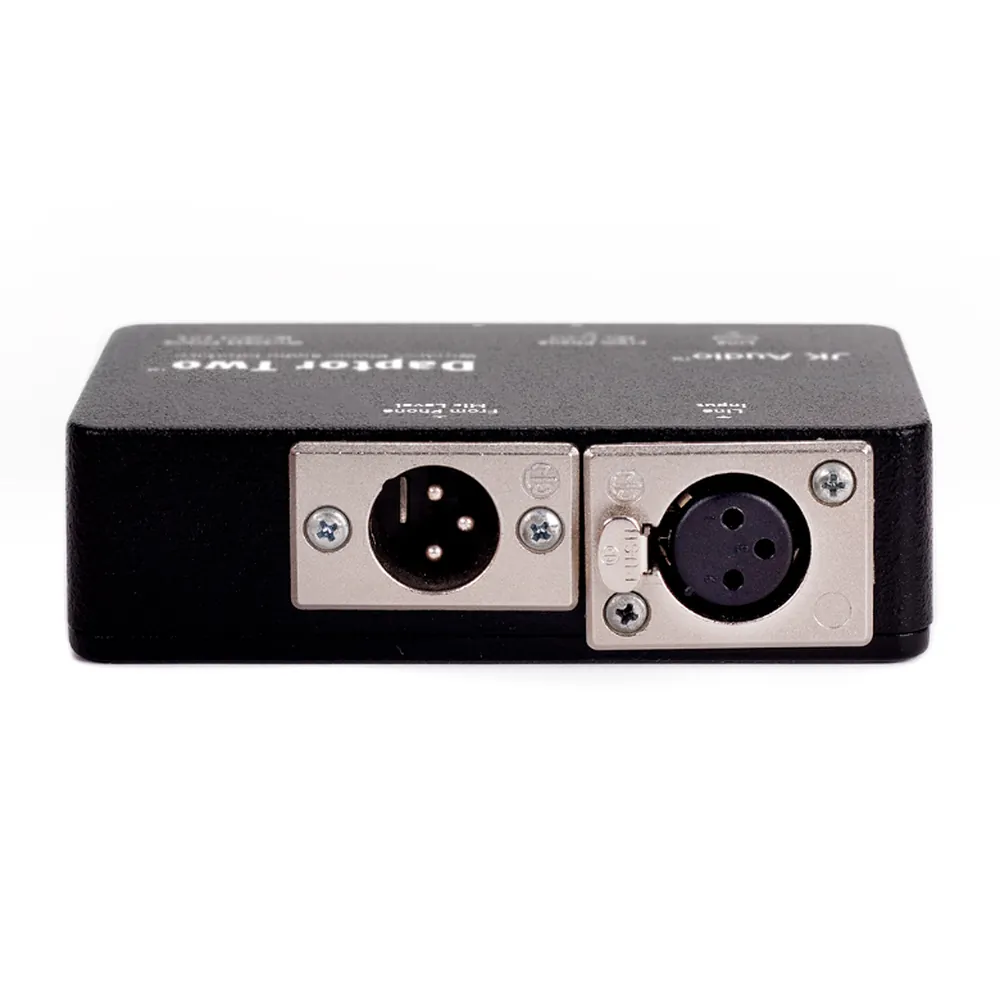

The input takes line level and the output gives mic level, each on a balanced XLR or an unbalanced 1/4 in jack. Only one of each pair works at a time: plugging into the 1/4 in input disconnects the XLR input, and the outputs work the same way. HD Voice phones on supported networks carry 7 kHz wide-band speech.
Features
- Balanced XLR and unbalanced 1/4 in input and output
- Line-level input and mic-level output
- CN113 1/4 in TRS to 3.5 mm TRRS cable included
- HD Voice compatible (7 kHz wide-band speech)
- Passive design with no battery or AC power
- Made in America
What's Included
- Daptor Two wireless phone audio interface
- CN113 1/4 in TRS to 3.5 mm TRRS cell phone interface cable
Specifications
| Input | |
|---|---|
| Connectors | Balanced female XLR or unbalanced 1/4 in mono |
| Impedance | 600 ohms |
| Level | 250 mV RMS (−10 dBu nominal, 0 dBu maximum) |
| Output | |
| Connectors | Balanced male XLR or unbalanced 1/4 in mono |
| Impedance | 600 ohms |
| Level | 45 mV RMS (−25 dBu nominal) |
| Physical | |
| Phone Connection | 3.5 mm TRRS headset jack, through the CN113 cable |
| Power | Passive, no battery or AC required |
| Size | 4.4 × 2.7 × 1.2 in (11.2 × 6.9 × 3.5 cm) |
| Weight | 9 oz (250 g) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.jkaudio.com. |
