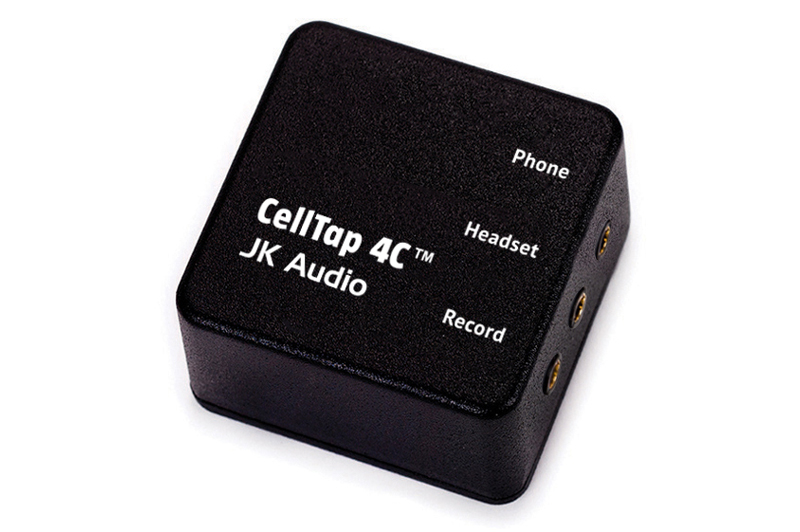

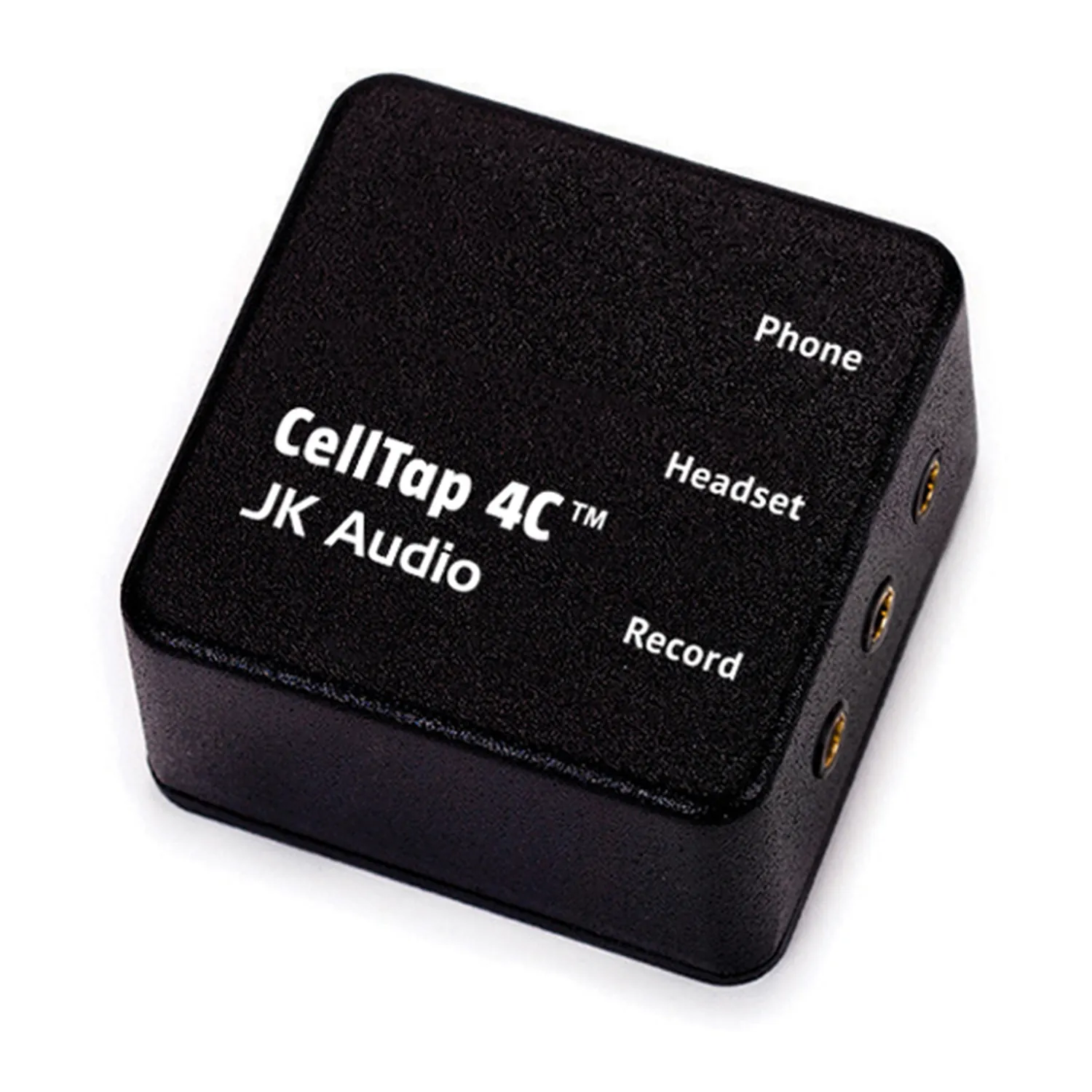

JK Audio CellTap 4C Phone Audio Recording Adapter

$99.75 USD


SKU: JKA CELLTAP4C Categories: , Tag:

Product Description

Capture Both Sides of the Conversation

CellTap 4C is an interview-recording adapter that connects between the headset and cell phone, providing stereo output to a recorder or mixer. CellTap 4C™ is compatible with most smart phones, tablets, and notebooks that use the 3.5 mm 4-conductor TRRS headset jack. Simply connect CellTap 4C between your existing ear-bud headset and phone, and then connect the stereo output to a mic level input on your recorder or mixer.

Audio Quality

The transformer coupled stereo output provides the local mic on the left channel and the caller on the right channel. Local audio is a full bandwidth connection, meaning your voice will sound considerably better than the caller. Of course, audio quality is limited by the quality and placement of the microphone on the ear-bud style headset.

Wired Headset Required

CellTap 4C™ will not interfere with headset button controls on most devices. A headset is required for operation, as the phone will not recognize CellTap 4C without a headset connected.

TRRS Configurations

Internal switch supports both of the following wiring standards:

  • Sleeve = Ground R2 = Mic
  • Sleeve = Mic R2 = Ground

The word standard is used loosely, since there are no actual standards for headset wiring or control operation. Therefore, we cannot promise compatibility with every phone.

Key Features:

  • HD Voice (Wide-Band Speech)
  • Switch Between Popular TRRS Configurations
  • No AC or Battery Power Needed
Record Output 1/8" (3.5mm) Stereo
Impedance 600 ohms
Level 2.4 mV RMS (-50 dBu nom)
Size 2” x 2” x 1.3” (5.1 x 5.1 x 3.3 cm)
Weight 3.5 oz
