JK Audio BlueDriver
JK Audio BlueDriver

JK Audio BlueDriver – Bluetooth Audio Interface


SKU: JKA BDRV- Categories: , Tag:

Product Description

Special considerations may apply if this item is received outside of North America. Please read for details.

JK Audio BlueDriver

The JK Audio BlueDriver series audio interfaces uses Bluetooth Wireless Technology* to send and receive audio from your professional audio equipment.

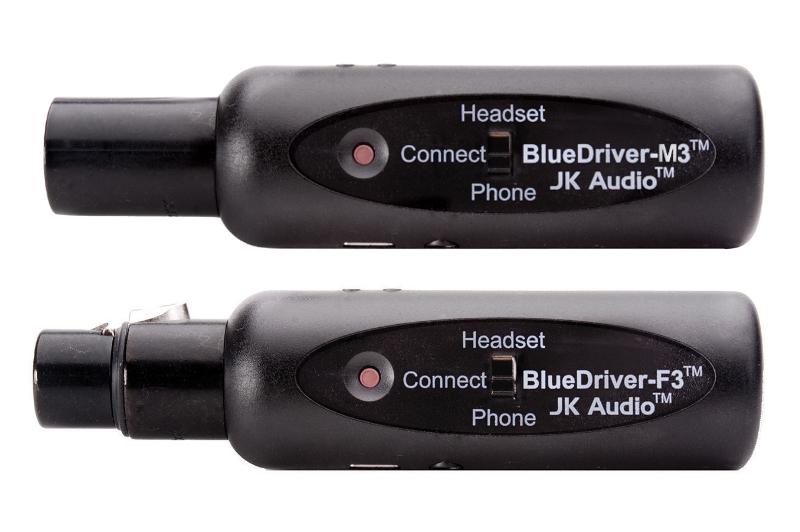

The BlueDriver-F3 plugs directly into a dynamic mic or the mic level output from a mixing console. Pair to your Bluetooth enabled cell phone or headset. The 3.5 mm stereo jack contains a mic level output suitable for recording, with the clean mic signal on the left channel and the Bluetooth return on the right.

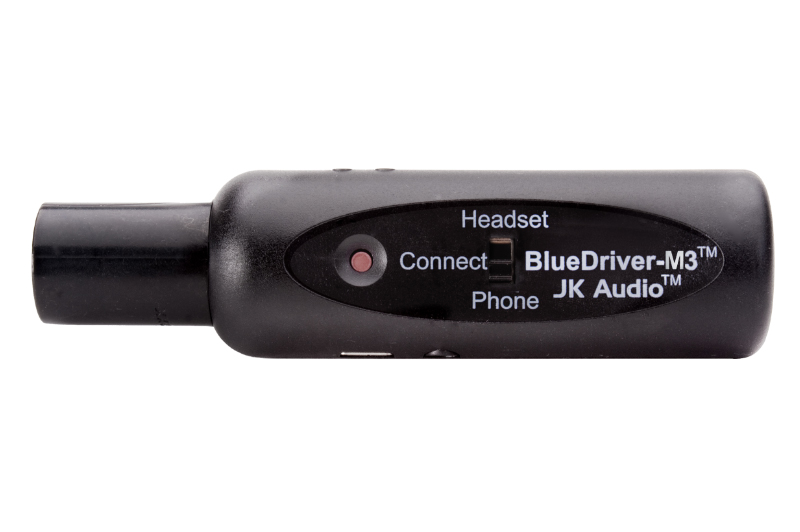

The BlueDriver-M3 plugs into the mic input channel of a mixer. Pair to your Bluetooth equipped cell phone or headset. The 3.5 mm jack will accept a signal from the headphone output of the mixer for transmission back to the cell phone or headset.

A switch on either unit selects between connection to a 3rd party Bluetooth headset, or a cell phone.

Headset Connect:

Pair BlueDriver to your 3rd party Bluetooth headset. Some Bluetooth headsets allow you to switch between your audio device and a cell phone.

Phone Connect:

Pair BlueDriver to your cell phone to call into the station or bring in caller audio.

Please select between the BlueDriver M3 and BlueDriver F3 from option menu above.

Input BlueDriver-F3 3 pin female XLR, 1k ohms, -34 dBu nom.
Input BlueDriver-M3 3.5 mm stereo, 20k ohms, -10 dBu nom.
Output BlueDriver-F3 3.5 mm stereo, 1.1k ohms, -34 dBu nom.
Output BlueDriver-M3 3 pin male XLR, 1k ohms, -34 dBu nom
Bluetooth Standard 2.0
Bluetooth ProfilesHF = full duplex voice, 300Hz ヨ 3400Hz/ A2DP = 30Hz ヨ 17 kHz kHz, master to slave
Range 33 feet (10 meters)
Battery Internal Lithium-Ion Polymer rechargeable
Power 120-240 VAC power supply (included)
Size 1.1" x 4.4" (2.8 cm x 11.2 cm)
Weight 2.1 ounces (60 grams)
