DPA 4060 and 4061 CORE+ Omni Lavalier Microphone
- Miniature omni lavalier with CORE+
- 4060 normal SPL or 4061 loud SPL
- Soft Boost and High Boost Grids included
From $595.00 USD
DPA 4060 and 4061 CORE+ Omni Lavalier Microphone
The DPA 4060 and 4061 are miniature omni lavalier microphones with CORE+, DPA’s latest preamplifier technology, which neutralizes distortion across the entire dynamic range.
The 4060 was the first miniature mic DPA developed, from technology previously used only in hearing aids and measurement microphones. It was designed for wireless use in theater and is now widely used in television and film. The omni pattern needs no aiming and is less sensitive to handling, pop, and wind noise.
Choosing a Model
The 4060 has normal sensitivity (20 mV/Pa) and handles up to 134 dB SPL peak, a good balance of signal and noise for chest placement and quieter sources. The 4061 is acoustically identical but about 10 dB less sensitive (6 mV/Pa), handling up to 144 dB SPL peak. It suits the head or forehead of a theater performer, where the sound pressure level is about 10 dB higher than at the chest.
Grids and Construction
Each mic comes with two grids. The pre-fitted Soft Boost Grid adds 3 dB at 8 to 20 kHz for head mounting and natural sound, and the High Boost Grid adds 10 dB around 12 kHz for chest placement. Both are anodized stainless steel and come off for cleaning. The 5.4 mm capsule has a vertical diaphragm and a double-vent protection system against humidity and sweat, and the Kevlar-reinforced cable relief stands up to constant twists and pulls.
MicroLock is DPA’s locking connector. A MicroLock adapter connects the mic to most professional wireless transmitters, and MicroLock parts also mate with MicroDot parts (the lock works only when both halves are MicroLock). Hardwired 3-pin LEMO, TA4F, and Mini-Jack versions plug straight into popular transmitters.
Features
- CORE+ neutralizes distortion across the dynamic range
- 4060 normal SPL or 4061 loud SPL
- 5.4 mm capsule with an accurate omni pattern
- Soft Boost and High Boost Grids included
- Double-vent protection against humidity and sweat
- Kevlar-reinforced cable relief
- MicroLock or hardwired connectors
- Black, brown, beige, or white
Available Options
| Connector | Models | Colors | Fits |
|---|---|---|---|

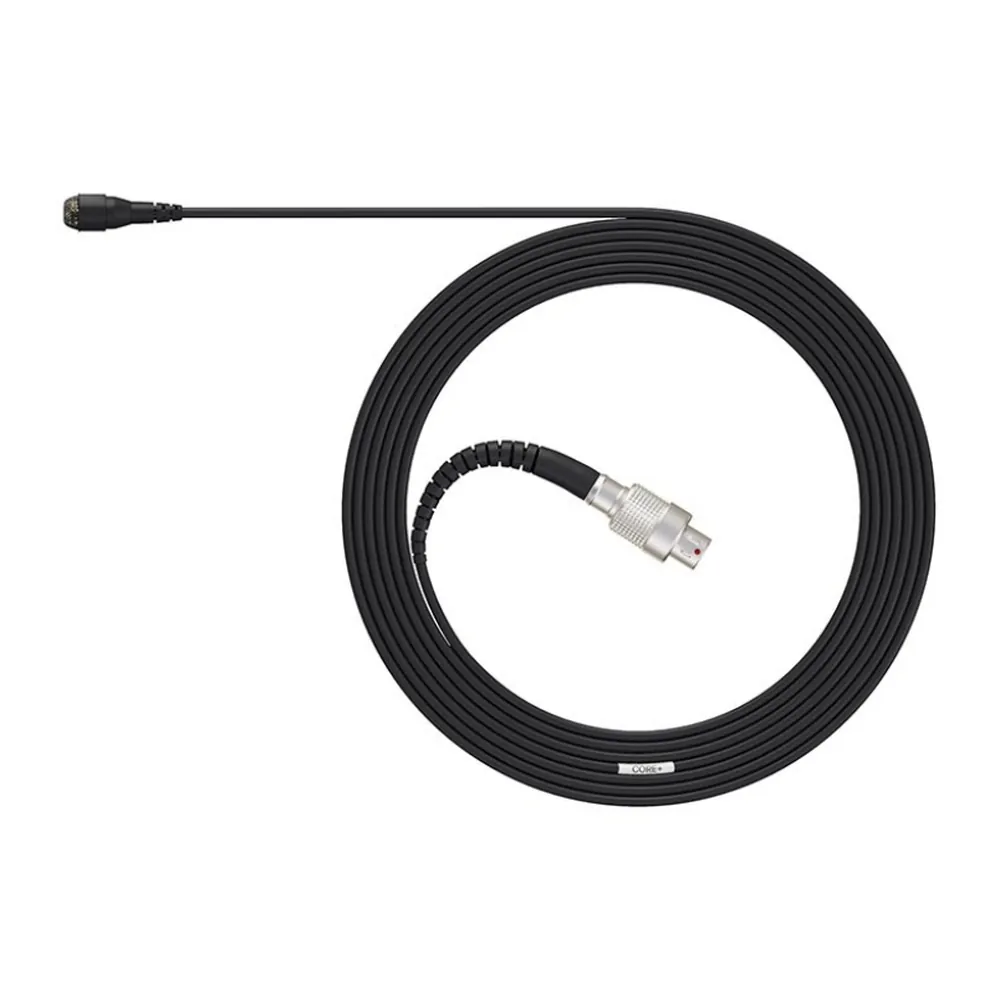

| 3-pin Lemo | 4060 and 4061 | Black, Brown, Beige, and White | Sennheiser, Lectrosonics, Shure, Wisycom, and Trantec transmitters with a 3-pin LEMO input |

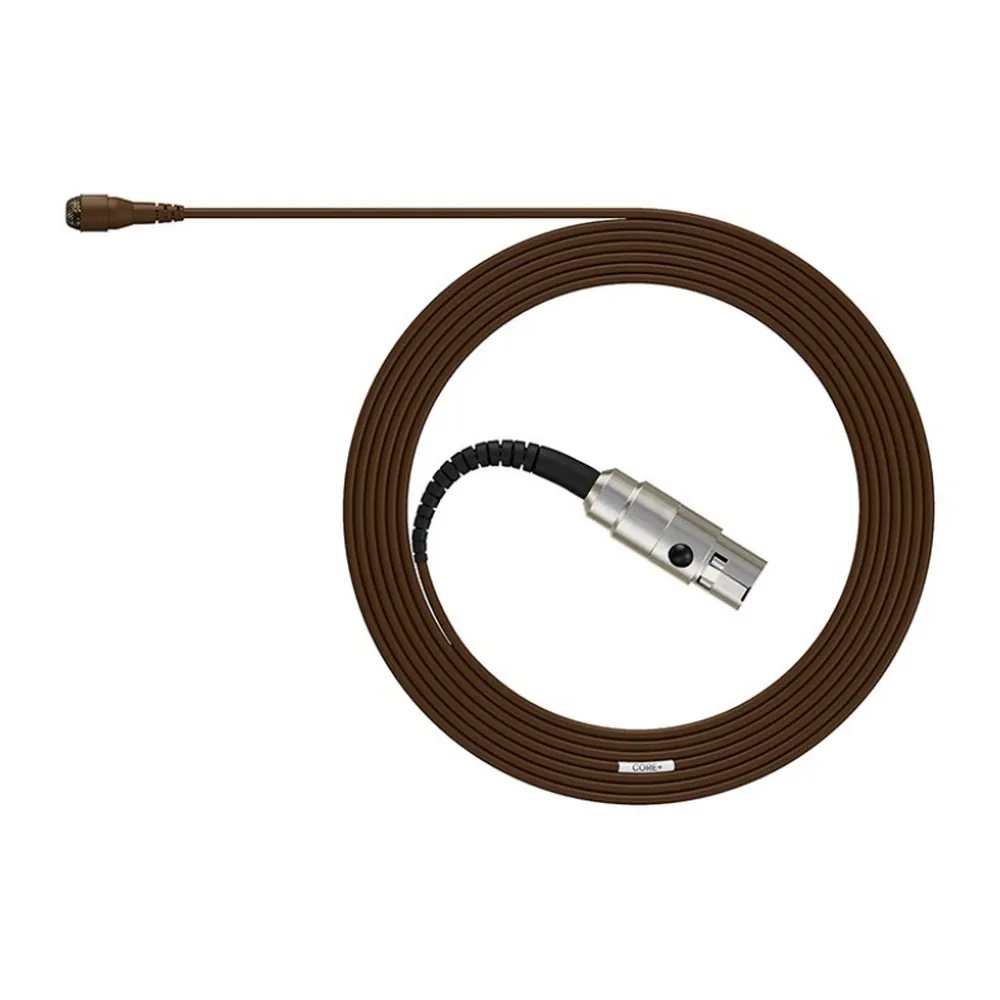

| TA4F | 4060 and 4061 | Black, Brown, Beige, and White | Shure, TOA, and Line 6 transmitters with a TA4F input |

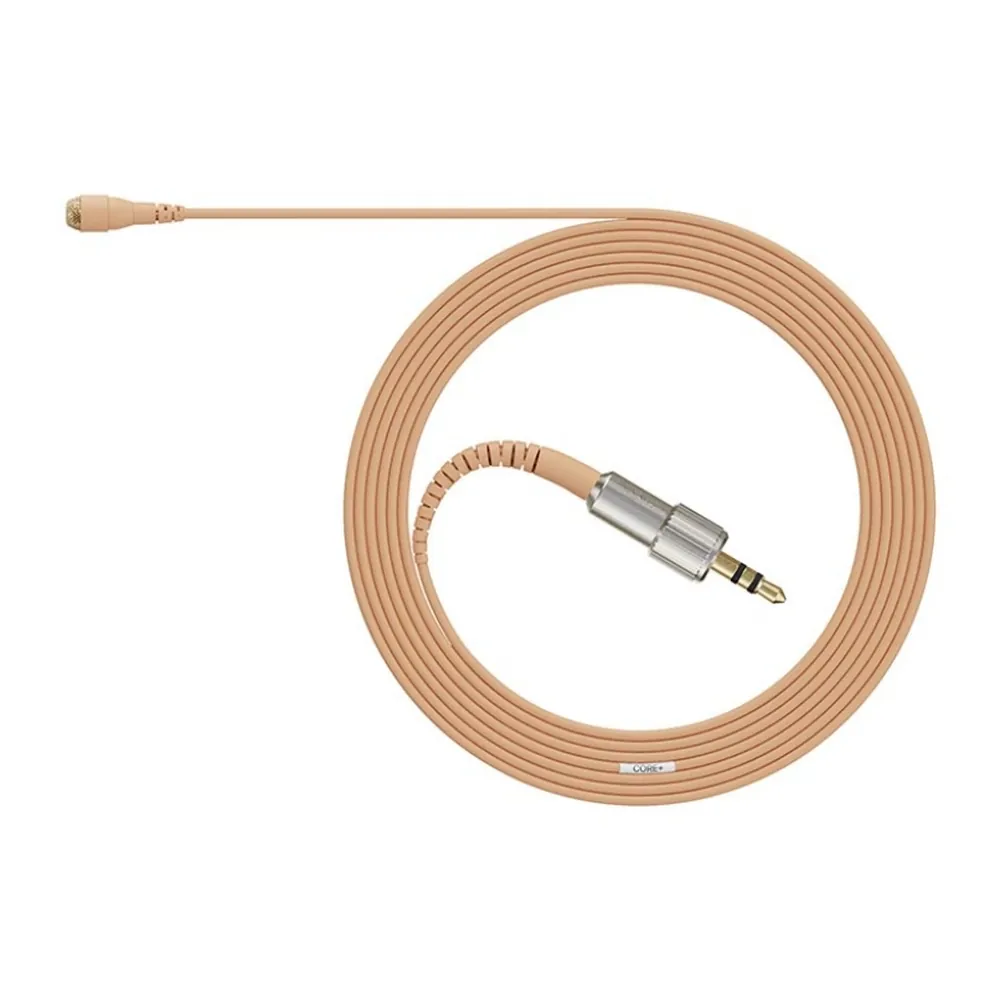

| Mini-Jack | 4060 and 4061 | Black, Brown, Beige, and White | Sennheiser Evolution and other transmitters with a threaded mini-jack input |

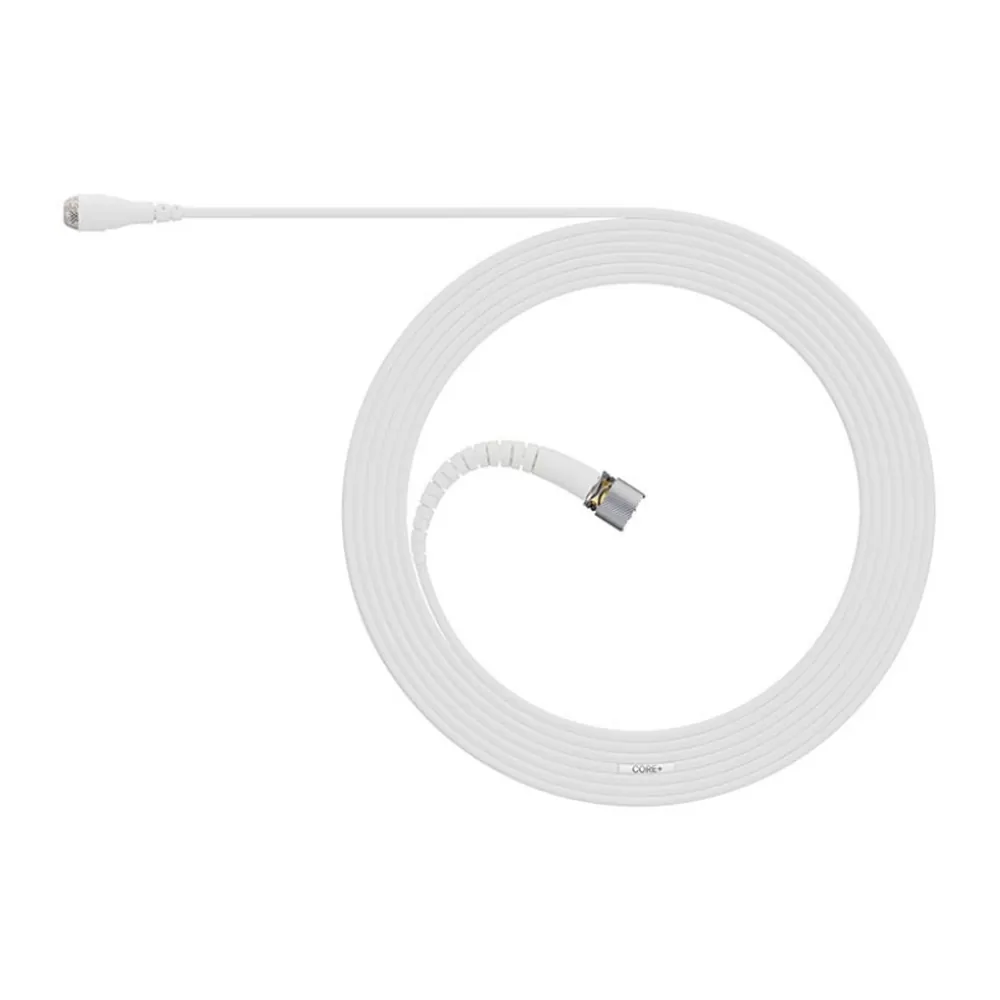

| MicroLock | 4060 and 4061 | Black, Brown, Beige, and White | Any wireless system, through a DPA MicroLock adapter |
What's Included
- 4060 or 4061 microphone with the Soft Boost Grid fitted
- High Boost Grid
Specifications
| Acoustic | |
|---|---|
| Directional Pattern | Omnidirectional |
| Principle of Operation | Pressure |
| Cartridge Type | Pre-polarized condenser |
| Frequency Response | 20 Hz to 20 kHz |
| Effective Frequency Range (±2 dB) | Soft Boost Grid: 20 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz High Boost Grid: 20 Hz to 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity (±3 dB at 1 kHz) | 4060: 20 mV/Pa (−34 dB re 1 V/Pa) 4061: 6 mV/Pa (−44 dB re 1 V/Pa) |
| Equivalent Noise Level (A-weighted) | 4060: 23 dB(A) typical (26 dB(A) max) 4061: 26 dB(A) typical (28 dB(A) max) |
| Equivalent Noise Level (ITU-R BS.468-4) | 4060: 35 dB typical (38 dB max) 4061: 38 dB typical (40 dB max) |
| Distortion, THD below 0.5% | 4060: 128 dB SPL RMS, 131 dB SPL peak 4061: 133 dB SPL RMS, 136 dB SPL peak |
| Distortion, THD below 1% | 4060: 129 dB SPL RMS, 132 dB SPL peak 4061: 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic Range | 4060: 106 dB typical 4061: 111 dB typical |
| Max. SPL (THD 10%) | 4060: 134 dB SPL peak 4061: 144 dB SPL peak |
| Sensitivity Selection Tolerance (1 kHz) | ±1.5 dB |
| Electrical | |
| Rated Output Impedance | 30 to 40 Ω |
| Power Supply | Wireless systems: 5 to 10 V through a DPA adapter With DAD6001-BC: P48 phantom power (works from 12 V) |
| Current Consumption | 1.5 mA typical (microphone) 3.5 mA with DAD9001-BC XLR adapter |
| Cable Drive Capability | Up to 300 m (984 ft) with DAD9001-BC XLR adapter |
| Physical | |
| Connector | MicroLock, TA4F Mini-XLR, 3-pin LEMO, or Mini-Jack |
| Microphone Diameter | 5.4 mm (0.21 in) |
| Microphone Length | 12.7 mm (0.5 in) |
| Cable Length | 1.8 m (5.9 ft) |
| Weight | 7.5 g (0.26 oz) including cable and MicroLock connector |
| Temperature Range | −40°C to 45°C (−40°F to 113°F) |
| Relative Humidity | Up to 90% |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
