DPA ANT202A Active Directional Antenna

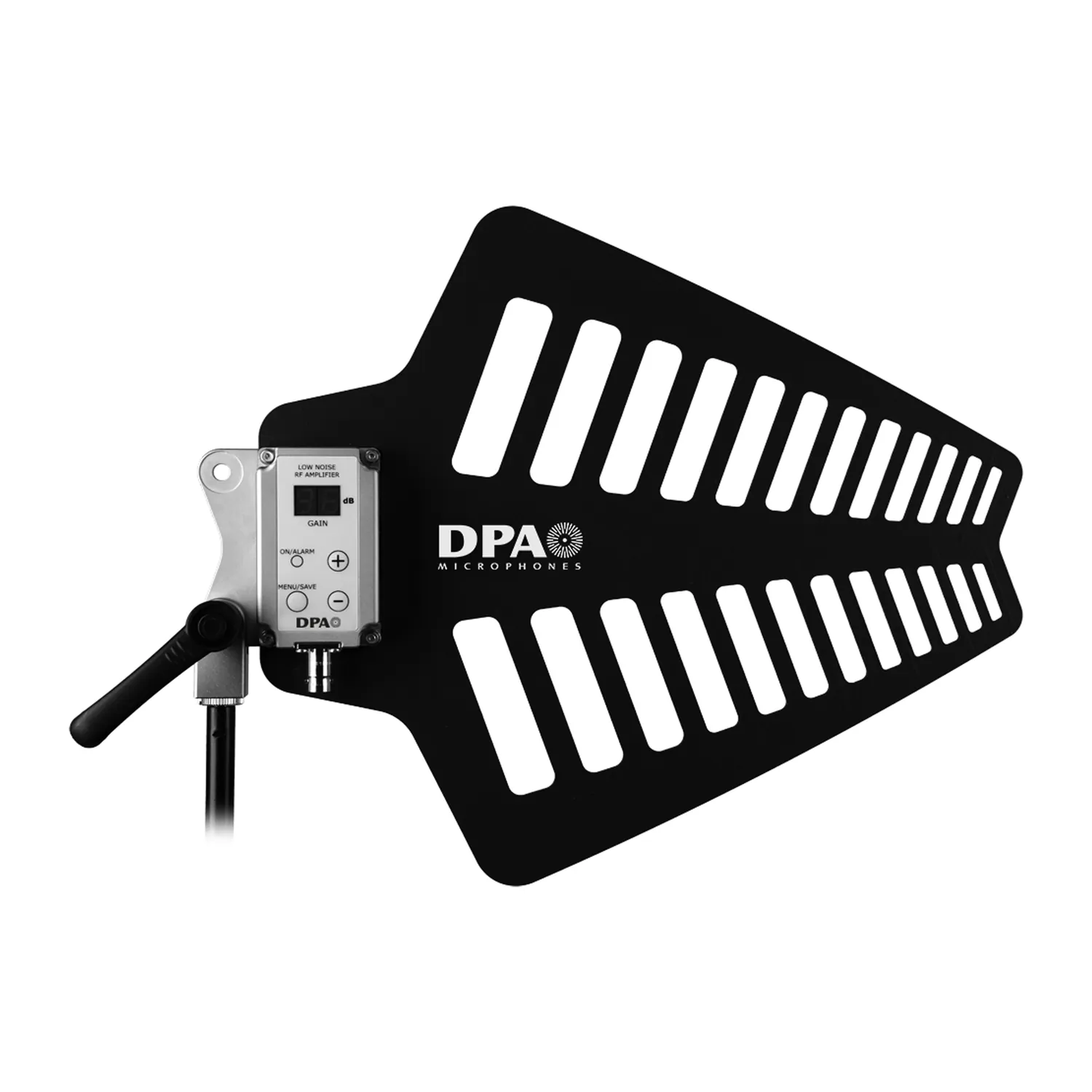

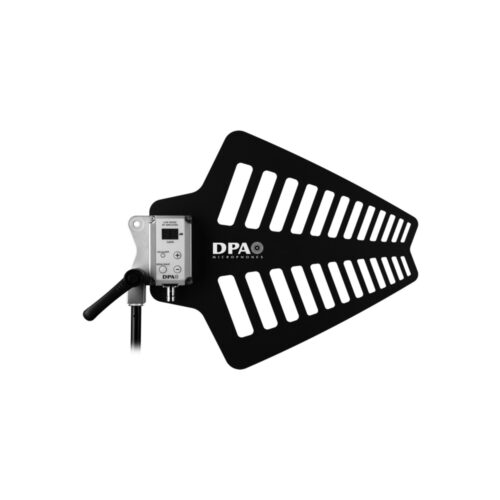

The DPA ANT202A, an active directional antenna for UHF wireless, adds a built-in booster to a wideband log periodic dipole array (LPDA).

The antenna gives about 6 dB of gain with a typical beamwidth of 90°. Its booster adds 0 to 15 dB, set in 1 dB steps with the buttons beside the LED display, and holds its gain within ±1 dB across the 470 to 870 MHz working band. With the booster bypassed, the antenna covers 420 to 1300 MHz.

The booster runs on +12 V at 100 mA, the bias power that the N-DR1 receiver’s antenna inputs and the ADS0208 splitter supply. The body is sturdy metal, with epoxy protection on the cable joints.

Features

About 6 dB of gain, 90° typical beamwidth
Booster adds 0 to 15 dB in 1 dB steps
LED display and function buttons
470 to 870 MHz working band
Highly linear booster
Powered by +12 V antenna bias
BNC connector

Specifications

RF
Type	Active log periodic dipole array (LPDA)
Frequency Range	470 to 870 MHz (420 to 1300 MHz bypassed)
Antenna Gain	About 6 dB
Beamwidth	90° typical
Booster Gain	0 to 15 dB typical, in 1 dB steps
Booster Gain Flatness	±1 dB across the working band
OIP3	+43 dBm typical
Rated Output Impedance	50 Ω
SWR	Below 1:1.5 (1:1.4 typical)
Polarization	Vertical
Power and Physical
Power Supply	+12 V, 100 mA
Connector	BNC
Material	Epoxy fiberglass (copper-clad)
Finish	Black matte
Dimensions (H × W × D)	276 × 336 × 61 mm
Weight	535 g
Latest Specifications	Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com.
