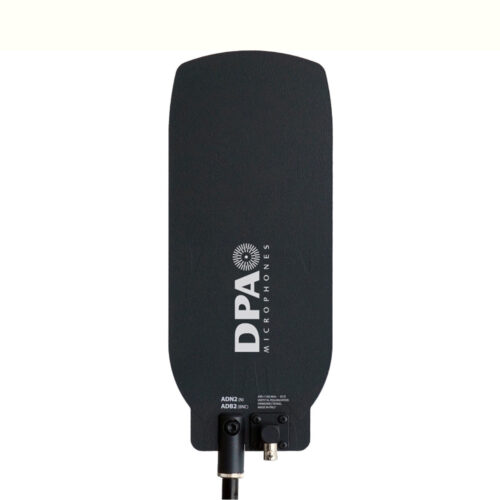

DPA ANT101P Omnidirectional Passive Antenna

For wideband UHF reception, the DPA ANT101P is an omnidirectional passive antenna with about 3.2 dBi of gain.

It picks up evenly in every direction, so it needs no aiming, and its working range takes in the 470 to 870 MHz band of DPA’s N-Series wireless. It connects by BNC. The epoxy fiberglass body has a black matte, textured, weather-resistant coating, a sturdy metal support, and epoxy-protected cable joints.

Features

• Omnidirectional, so it needs no aiming
• About 3.2 dBi of gain
• Covers the N-Series band
• Passive, with a BNC connector
• Weather-resistant coating
• Metal support and mounting base

About DPA Microphones N-Series Wireless

N-Series is the digital wireless line from DPA: the N-DR1 dual channel receiver, the N-BP1 bodypack and N-HH1 handheld transmitters, and the antennas, antenna splitter, rechargeable batteries, and charger built for them. The system works from 470 to 870 MHz, depending on the region, with latency under 2.9 ms and AES256 encryption. The receiver sends audio over Dante as standard.

DPA designs and builds their microphones in Denmark, drawing on a history that began with Brüel & Kjær measurement microphones.
