DPA 6388 CORE+ Directional Headset Microphone
- Supercardioid headset mic with CORE+
- Consistent sound, high gain before feedback
- IP58, standard or small size
From $1,095.00 USD
DPA 6388 CORE+ Directional Headset Microphone
Built for demanding live stages, the DPA 6388 CORE+ directional headset pairs strong feedback rejection and clear speech with a secure, discreet fit.

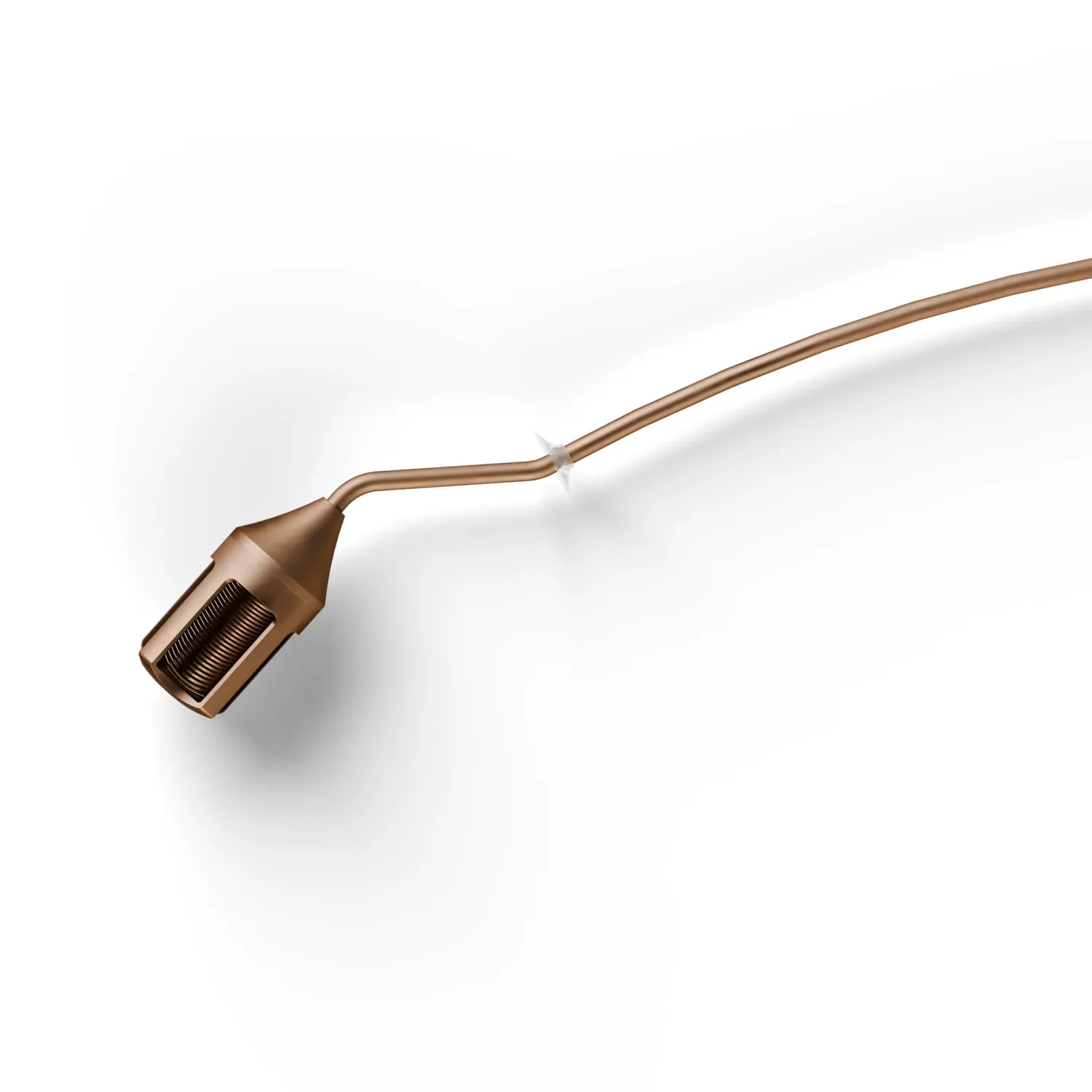

Its supercardioid capsule sits in an asymmetrical housing with a shifted acoustical axis. That design and a tightly controlled proximity effect make the mic less sensitive to exact placement, so the sound stays consistent even if the headset moves during a performance.
Directionality holds steady across frequency, for predictable off-axis rejection and a stable tonal balance. That gives better isolation, less stage bleed, and more gain before feedback. The wide dynamic range handles soft and powerful vocals alike, and CORE+ keeps distortion low across all of it.

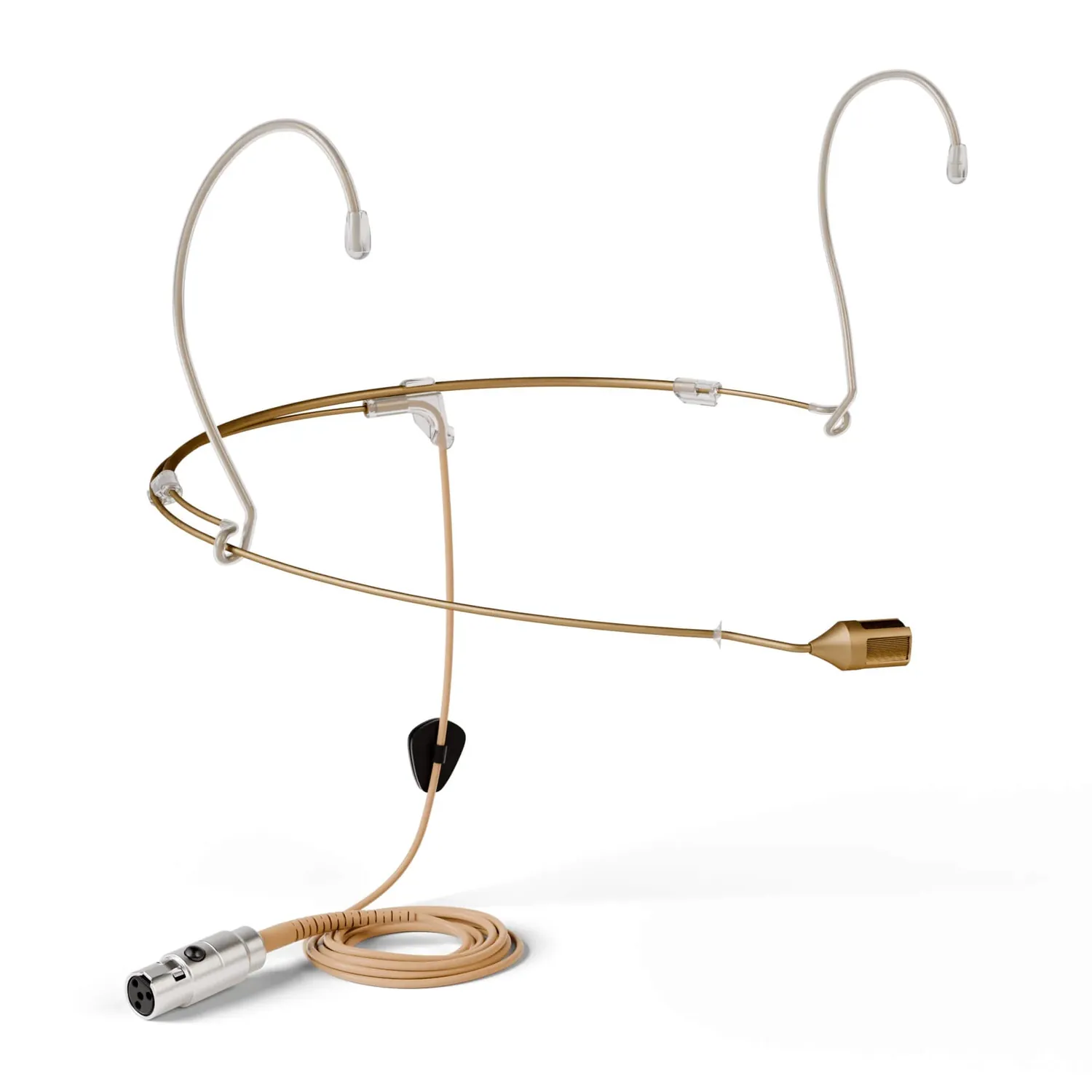

The boom switches to the left or right side, so the mic can sit beside or slightly behind the mouth. The frame is a refined version of DPA’s Act Headset Frame, for a secure, stable fit and all-day comfort. IP58 certification protects against dust and humidity. The 6388 comes in black, brown, or beige, in standard or small sizes, with MicroLock, 3-pin LEMO, TA4F Mini-XLR, or Mini-Jack termination.
Features
- Supercardioid capsule with CORE+
- Asymmetrical housing and shifted acoustical axis
- Consistent sound when the headset moves
- High gain before feedback on loud stages
- Boom switches left or right
- Refined Act Headset Frame for all-day comfort
- IP58 against dust and humidity
- Standard or small size, three colors
Available Options
| Termination | Sizes | Colors | Fits |
|---|---|---|---|
| MicroLock | Standard Size and Small Size | Black, Brown, and Beige | Any wireless system, through a DPA MicroLock adapter |
| 3-pin LEMO | Standard Size and Small Size | Black, Brown, and Beige | Sennheiser, Lectrosonics, Shure, Wisycom, and Trantec transmitters with a 3-pin LEMO input |
| TA4F Mini-XLR | Standard Size and Small Size | Black, Brown, and Beige | Shure, TOA, and Line 6 transmitters with a TA4F input |
| Mini-Jack | Standard Size and Small Size | Black, Brown, and Beige | Sennheiser Evolution and other transmitters with a threaded mini-jack input |
Specifications
| Acoustic | |
|---|---|
| Directional Pattern | Supercardioid |
| Principle of Operation | Pressure gradient |
| Cartridge Type | Pre-polarized condenser |
| Frequency Response | 20 Hz to 20 kHz |
| Effective Frequency Range (±2 dB) | 100 Hz to 18 kHz, 1 dB soft boost at 14 kHz |
| Sensitivity (±2.4 dB at 1 kHz) | 8 mV/Pa (−42 dB re 1 V/Pa) |
| Equivalent Noise Level (A-weighted) | 26 dB(A) typical (28 dB(A) max) |
| Equivalent Noise Level (ITU-R BS.468-4) | 37 dB typical (39 dB max) |
| Distortion, THD below 0.5% | 138 dB SPL RMS, 141 dB SPL peak |
| Distortion, THD below 1% | 140 dB SPL RMS, 143 dB SPL peak |
| Dynamic Range | 117 dB typical |
| Max. SPL (THD 10%) | 144 dB SPL peak |
| Electrical | |
| Rated Output Impedance | 60 to 80 Ω from MicroLock 100 Ω from DAD9001 |
| Current Consumption | 1.0 mA typical (microphone) 3.5 mA with DAD9001 XLR adapter |
| Cable Drive Capability | Up to 300 m (984 ft) with DAD9001 XLR adapter |
| Physical | |
| Connector | MicroLock, 3-pin LEMO, TA4F Mini-XLR, or Mini-Jack |
| Microphone Head Size | ø6.3 / 13.3 mm (ø0.25 / 0.52 in) |
| Capsule Diameter | 5.1 mm (0.2 in) |
| Cable Length | 1.3 m (4.3 ft) |
| Weight | 15 g (0.53 oz) including cable and connector |
| Colors | Black, brown, or beige |
| Temperature Range | −40°C to 45°C (−40°F to 113°F) |
| Relative Humidity | Up to 90% |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
