DPA 4660 Heavy Duty Omnidirectional Lavalier Microphone
- Heavy duty omni lavalier mic with a stainless steel housing
- Thick 2.2 mm Kevlar-reinforced cable
- Soft Boost and High Boost Grids included
$585.00 USD
In Stock

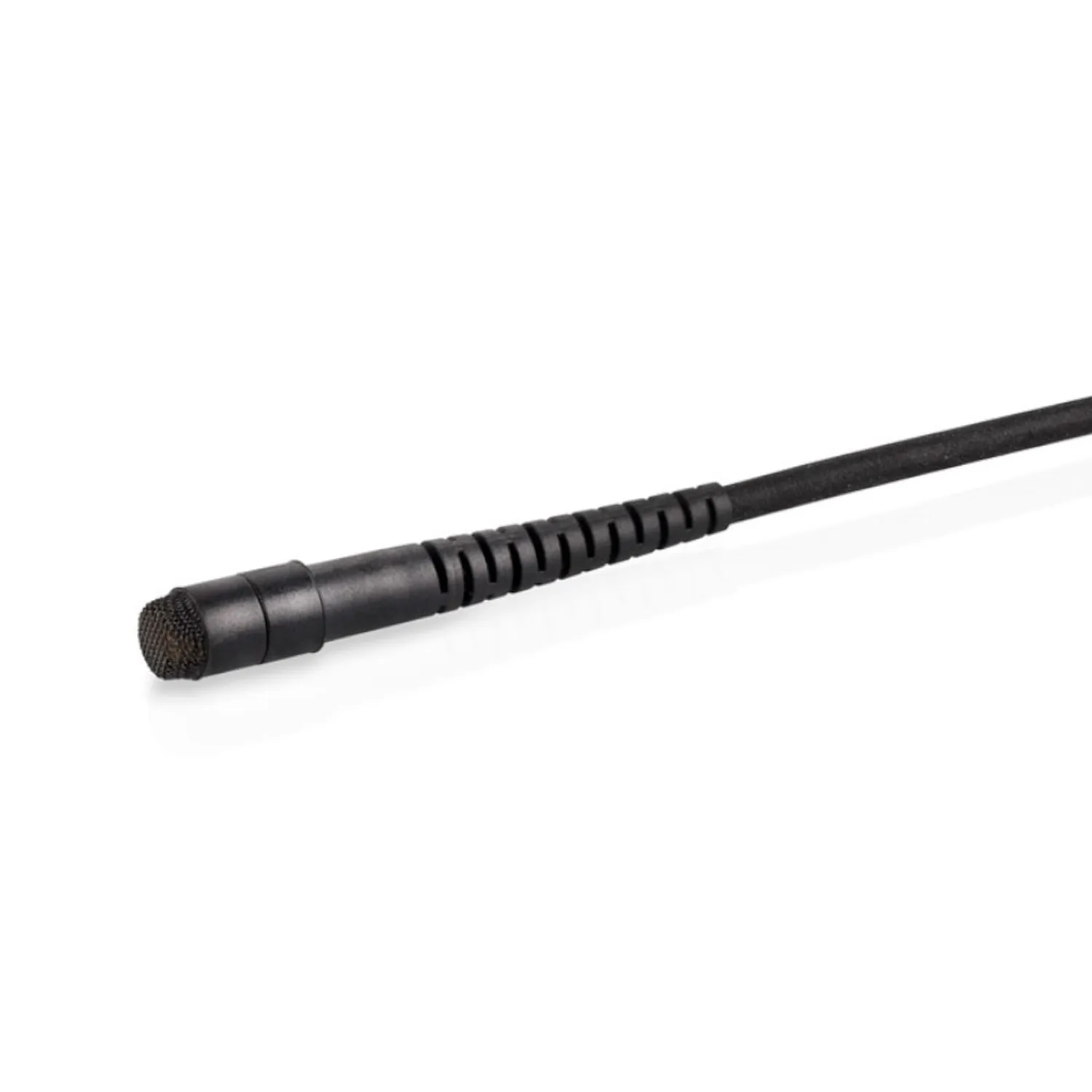

DPA 4660 Heavy Duty Omnidirectional Lavalier Microphone
Built for jobs where security matters more than size, the DPA 4660 is a heavy duty omnidirectional lavalier microphone. It has a stainless steel housing, a heavy-duty cable relief, and a thick 2.2 mm (0.09 in) cable.
This is the black 4660 CORE with a MicroDot connector, made for normal sound levels up to 134 dB SPL peak. Its accurate omni pattern needs no aiming and captures the nuances of speech. It also suits high-end ambient recording where space is tight or the mic has to stay hidden.
The Kevlar-reinforced cable and strain relief stand up to constant twisting, bending, and pulling, and DPA’s Double Vent Protection System keeps out humidity and sweat. Two anodized stainless steel grids come with the mic: the Soft Boost Grid adds 3 dB at 8 to 20 kHz, and the High Boost Grid adds 10 dB around 12 kHz. Both detach to be wiped clean of sweat, makeup, and dust.
The MicroDot connector takes DPA’s adapters for most professional wireless systems.
Features
- Stainless steel housing and heavy-duty strain relief
- Thick 2.2 mm Kevlar-reinforced cable
- Accurate omnidirectional pickup
- Handles up to 134 dB SPL peak
- Resists humidity and sweat
- Soft Boost and High Boost Grids included
- MicroDot connector for DPA’s wireless adapters
What's Included
- 4660 heavy duty microphone
- Soft Boost Grid
- High Boost Grid
Specifications
| Acoustic | |
|---|---|
| Directional Pattern | Omnidirectional |
| Principle of Operation | Pressure |
| Cartridge Type | Pre-polarized condenser |
| Frequency Response | 20 Hz to 20 kHz |
| Effective Frequency Range (±2 dB) | Soft Boost Grid: 20 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz High Boost Grid: 20 Hz to 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity (±3 dB at 1 kHz) | 20 mV/Pa (−34 dB re 1 V/Pa) |
| Equivalent Noise Level (A-weighted) | 23 dB(A) typical (26 dB(A) max) |
| Equivalent Noise Level (ITU-R BS.468-4) | 35 dB typical (38 dB max) |
| Distortion, THD below 0.5% | 125 dB SPL RMS, 128 dB SPL peak |
| Distortion, THD below 1% | 126 dB SPL RMS, 129 dB SPL peak |
| Dynamic Range | 106 dB typical |
| Max. SPL (THD 10%) | 134 dB SPL peak |
| Electrical | |
| Rated Output Impedance | 30 to 40 Ω from MicroDot 100 Ω from DAD9001-BC |
| Power Supply | Wireless systems: 5 to 10 V through a DPA adapter With DAD6001-BC: P48 phantom power (works from 12 V) |
| Current Consumption | 1.5 mA typical (microphone) 3.5 mA with DAD9001-BC XLR adapter |
| Cable Drive Capability | Up to 300 m (984 ft) with DAD9001-BC XLR adapter |
| Physical | |
| Connector | MicroDot |
| Microphone Diameter | 5.4 mm (0.21 in) |
| Microphone Length | 17.6 mm (0.7 in) |
| Cable Length | 1.8 m (5.9 ft) |
| Cable Diameter | 2.2 mm (0.09 in) |
| Weight | 13 g (0.46 oz) including cable and connector |
| Color | Black |
| Temperature Range | −40°C to 45°C (−40°F to 113°F) |
| Relative Humidity | Up to 90% |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
