DPA 4166 CORE+ Omnidirectional Flex Headsets and Earsets
- Omni earset or headset mic with CORE+
- Quick to put on, for conference and stage
- Worn left or right, with a swappable cable
From $985.00 USD
DPA 4166 CORE+ Omnidirectional Flex Headsets and Earsets
The DPA 4166 CORE+ puts DPA’s 4066 omnidirectional capsule, the same capsule type as the 4060, on a lightweight, flexible earset or headset boom.
It is the quickest DPA headworn mic to put on, for when miking has to be fast and easy, as at conferences. It gives clean, transparent sound with plenty of headroom and clear, natural speech, and performers can speak and sing into it at high levels without distortion. CORE+ keeps distortion low across the whole dynamic range.

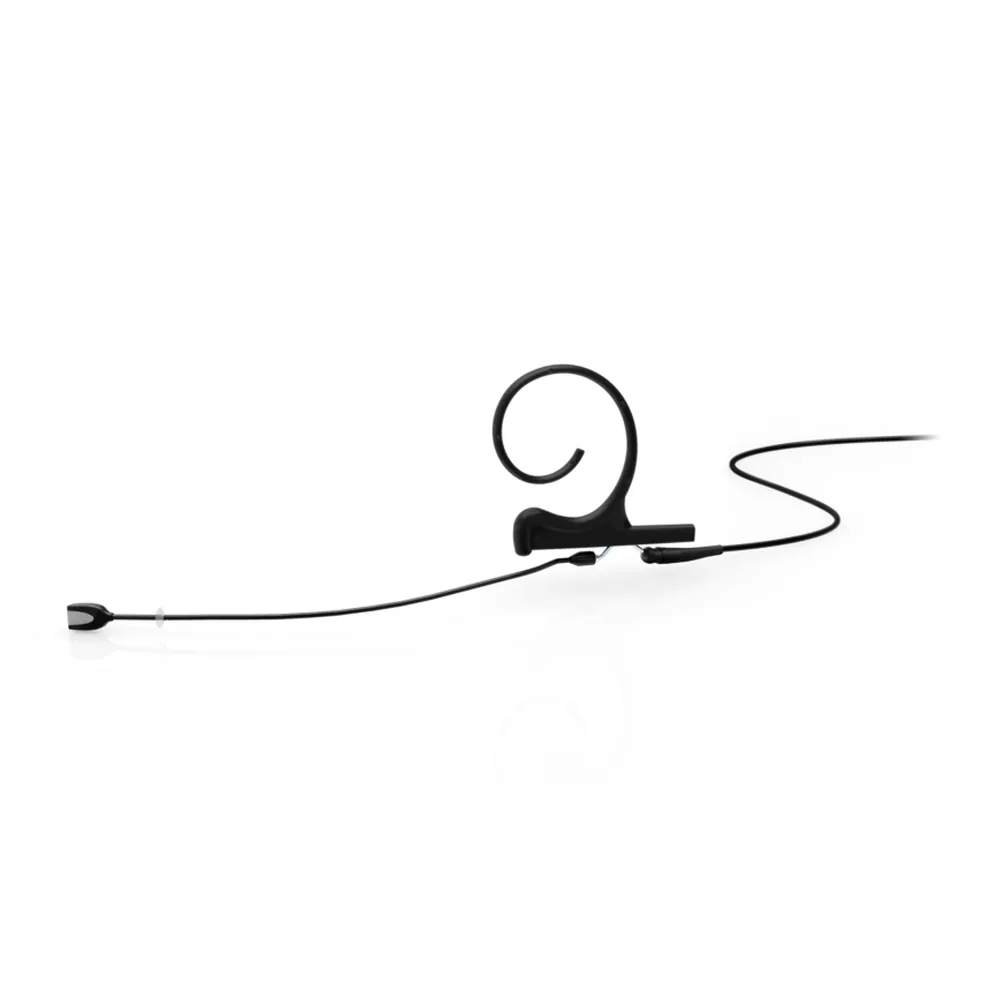

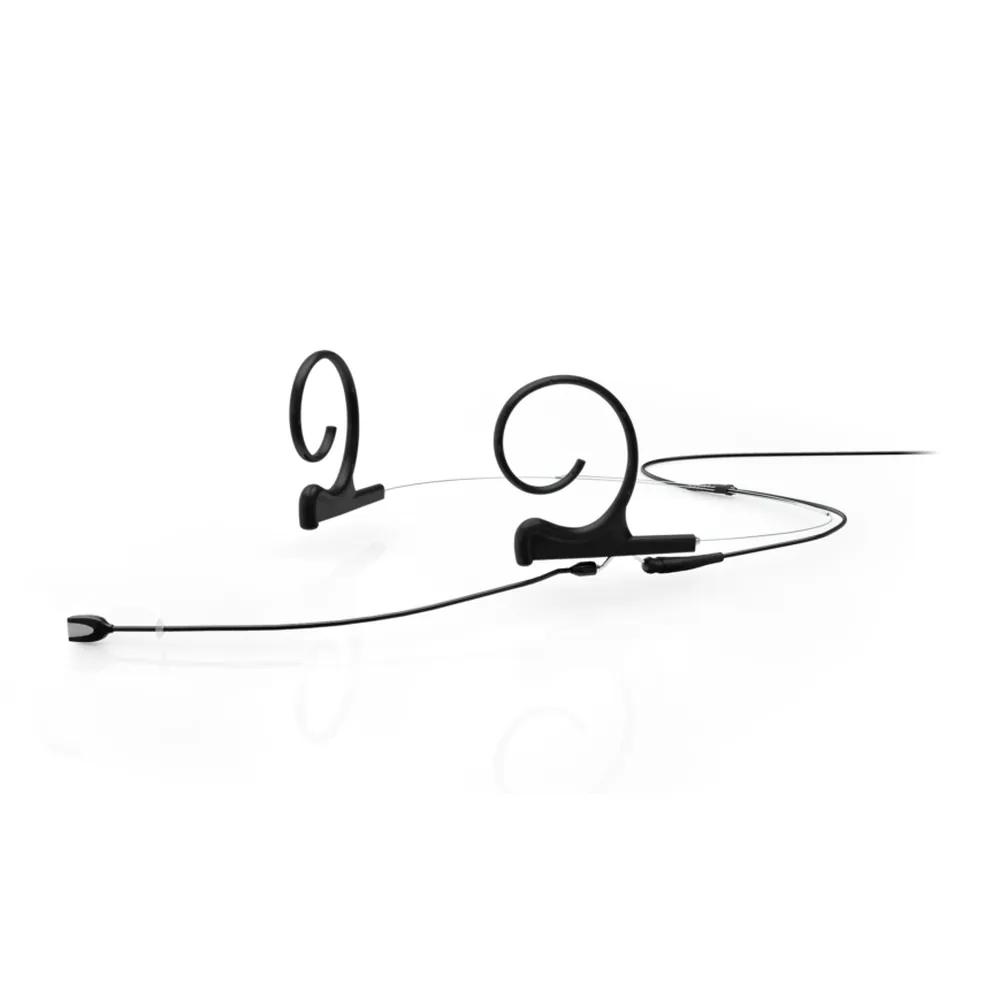

The earset hooks over one ear, and the headset is worn over both. Either style fits any ear size and head shape, mounts securely, and is hardly visible; turn the boom and ear hook to wear it on the left or right. The cable splits from the boom at a connector, so a damaged cable or a different wireless connector can be swapped quickly.
The boom comes in 110 mm (4.3 in), the standard choice for most users, or 90 mm (3.5 in). The MicroLock version connects to most professional wireless systems through DPA’s MicroLock adapters, and hardwired versions come with 3-pin LEMO, TA4F Mini-XLR, or Mini-Jack connectors.
Features
- DPA 4066 omni capsule with CORE+
- Earset (one ear) or headset (both ears)
- Quick and easy to put on
- Speak or sing without distortion
- Worn on the left or right
- Cable detaches from the boom
- 110 mm or 90 mm boom
- MicroLock or hardwired connectors
Available Options
| Connector | Earset 90 mm | Earset 110 mm | Headset 90 mm | Headset 110 mm |
|---|---|---|---|---|
| MicroLock | Black, Brown, and Beige | Black, Brown, and Beige | Black, Brown, and Beige | Black, Brown, and Beige |
| 3-pin LEMO | Not offered | Black, Brown, and Beige | Not offered | Black, Brown, and Beige |
| TA4F Mini-XLR | Not offered | Black, Brown, and Beige | Not offered | Black, Brown, and Beige |
| Mini-Jack | Not offered | Black, Brown, and Beige | Not offered | Black, Brown, and Beige |
Specifications
| Acoustic | |
|---|---|
| Directional Pattern | Omnidirectional |
| Principle of Operation | Pressure |
| Cartridge Type | Pre-polarized condenser |
| Frequency Response | 20 Hz to 20 kHz |
| Effective Frequency Range (±2 dB) | 40 Hz to 20 kHz, 3 dB soft boost at 8 to 15 kHz |
| Sensitivity (±3 dB at 1 kHz) | 6 mV/Pa (−44 dB re 1 V/Pa) |
| Equivalent Noise Level (A-weighted) | 26 dB(A) typical (28 dB(A) max) |
| Equivalent Noise Level (ITU-R BS.468-4) | 38 dB typical (40 dB max) |
| Distortion, THD below 0.5% | 133 dB SPL RMS, 136 dB SPL peak |
| Distortion, THD below 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic Range | 113 dB typical |
| Max. SPL (THD 10%) | 144 dB SPL peak |
| Electrical | |
| Rated Output Impedance | 30 to 40 Ω from MicroLock 100 Ω from DAD9001 |
| Power Supply | Wireless systems: 5 to 10 V through a DPA adapter With DAD9001: P48 phantom power (works from 12 V) |
| Current Consumption | 1.5 mA typical (microphone) 3.5 mA with DAD9001 XLR adapter |
| Cable Drive Capability | Up to 300 m (984 ft) with DAD9001 XLR adapter |
| Physical | |
| Connector | MicroLock, 3-pin LEMO, TA4F Mini-XLR, or Mini-Jack |
| Boom Length | 110 mm (4.3 in) or 90 mm (3.5 in) |
| Microphone Diameter | 5.4 mm (0.21 in) |
| Cable Length | 1.3 m (4.3 ft) |
| Cable Diameter | 1.6 mm (0.06 in) |
| Weight | 8.5 g (0.30 oz) total: boom 0.8 g, earhook 1.1 g, cable 6.6 g |
| Colors | Black, brown, or beige |
| Temperature Range | −40°C to 45°C (−40°F to 113°F) |
| Relative Humidity | Up to 90% |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
