Name: DPA 4097 CORE+ Micro Shotgun Microphone
Brand: DPA Microphones
SKU: DPA.4097DPGB90010
Price: 660.00 USD
Availability: InStock

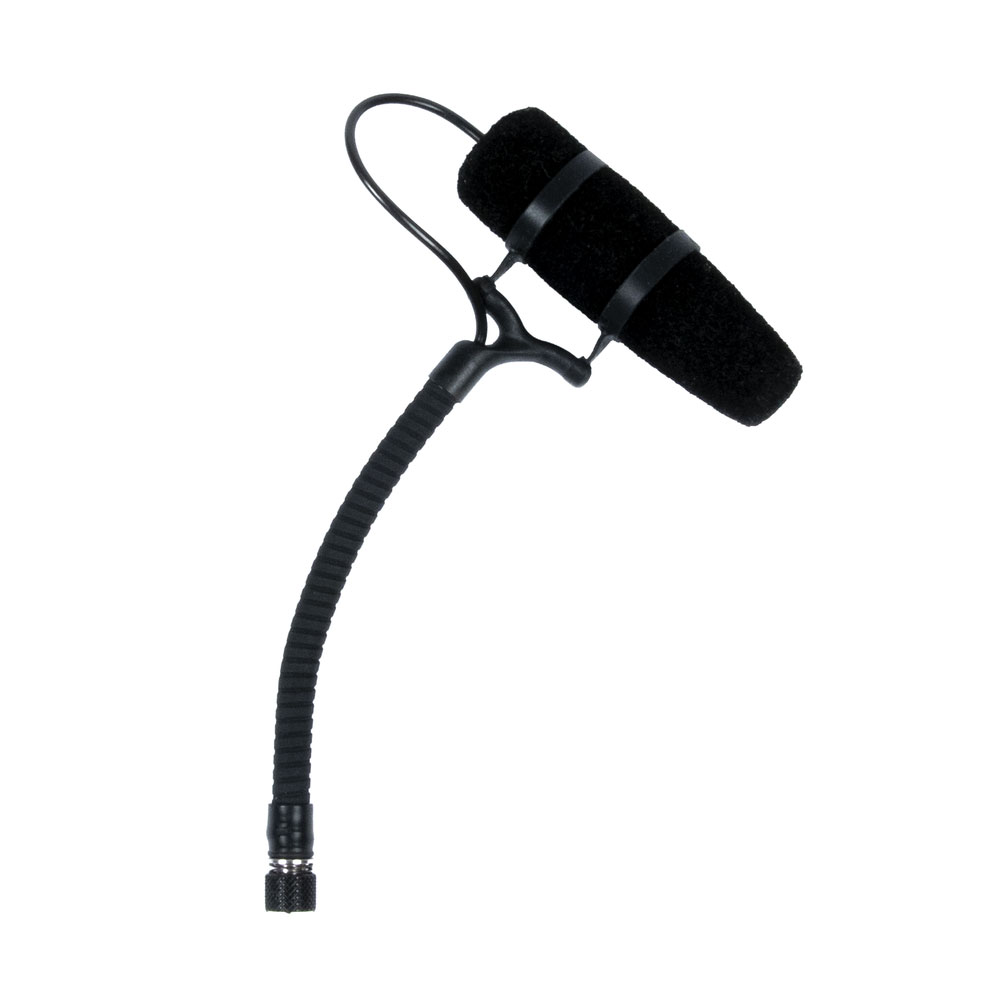

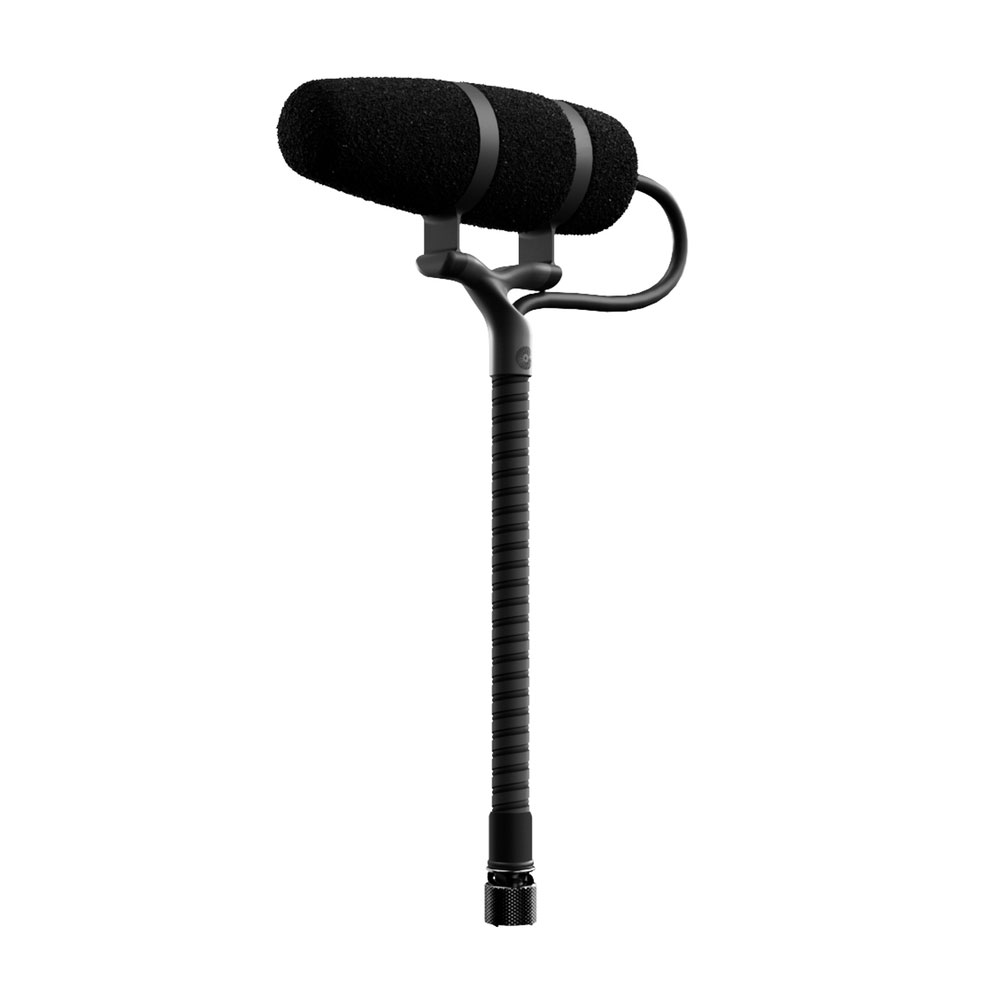

DPA 4097 CORE+ Micro Shotgun Microphone

The DPA 4097 CORE+ is a micro shotgun microphone on a 10 cm gooseneck with a MicroLock connector, made to mount straight onto a wireless transmitter where a boom will not fit.

A supercardioid capsule sits deep inside a small interference tube under a replaceable foam windscreen. It isolates the voice in front of it, and sound from the sides keeps its natural character at a lower level. CORE+ keeps the sound clean even when someone speaks loudly or yells in a tight space such as a car, and the mic is IP58 certified.

On Set and on Location

A free-running nut at the MicroLock end of the gooseneck lets you clip the transmitter to a sun visor and aim the head at the actors. The built-in shock mount handles a moving car, the foam windscreen copes with open windows, and the matte black finish keeps reflections down. It also works as a wireless podium mic and as a light interview and voice-over mic for broadcast.

The 4097 shares the sonic character of DPA’s 4017 shotgun and 4060 and 6060 lavaliers, which saves time in the mix. MicroLock is DPA’s locking connector. A MicroLock adapter connects the mic to most professional wireless transmitters, and MicroLock parts also mate with MicroDot parts (the lock works only when both halves are MicroLock).

Features

Supercardioid micro shotgun on a 10 cm gooseneck
Free-running nut for aiming after mounting
Built-in shock mount and foam windscreen
CORE+ with 111 dB dynamic range
High rejection of radio frequency interference
IP58 certified
MicroLock connector

Specifications

Acoustic
Directional Pattern	Supercardioid
Principle of Operation	Pressure gradient
Cartridge Type	Pre-polarized condenser
Frequency Response	20 Hz to 20 kHz
Effective Frequency Range (±2 dB, at 20 cm)	80 Hz to 15 kHz with 2 dB soft boost at 10 to 12 kHz
Sensitivity (±3 dB at 1 kHz)	16 mV/Pa (−36 dB re 1 V/Pa)
Equivalent Noise Level (A-weighted)	23 dB(A) typical (26 dB(A) max)
Equivalent Noise Level (ITU-R BS.468-4)	35 dB typical (38 dB max)
Distortion, THD below 0.5%	130 dB SPL RMS, 133 dB SPL peak
Distortion, THD below 1%	131 dB SPL RMS, 134 dB SPL peak
Dynamic Range	111 dB typical
Max. SPL (THD 10%)	136 dB SPL peak
Electrical
Rated Output Impedance	MicroLock: 30 to 40 Ω With DAD9099 XLR adapter: 100 Ω
Power Supply	Wireless systems: 5 to 10 V through a DPA adapter With DAD9099: P48 phantom power (works from 12 V)
Current Consumption	1.5 mA typical (microphone) 3.5 mA with DAD9099 XLR adapter
Cable Drive Capability	Up to 300 m (984 ft) with DAD9099 XLR adapter
Physical
Connector	MicroLock
Gooseneck	10 cm (4 in)
Microphone Length	10.4 cm (4 in)
Weight	10 g (0.35 oz)
Color	Black
Temperature Range	−40°C to 45°C (−40°F to 113°F)
Relative Humidity	Up to 90%
Latest Specifications	Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com.
