Name: DPA 4080 CORE+ Cardioid Lavalier Microphone
Brand: DPA Microphones
SKU: DPA4080PL
Availability: InStock

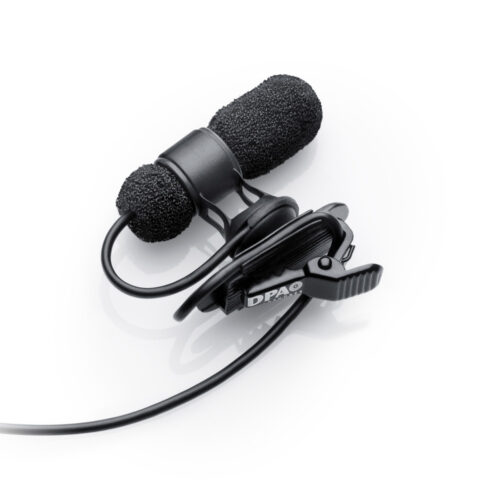

DPA 4080 CORE+ Cardioid Lavalier Microphone

Made for chest placement, the DPA 4080 CORE+ is a cardioid lavalier microphone that captures the voice in fine detail and focuses on the speaker while rejecting sound from the sides.

An omni miniature hears the whole room, which suits many jobs, but in difficult acoustics with noise off to the side, the 4080’s directional pickup is the better choice. The mic’s acoustic design adds a 4 dB presence boost that matches chest placement and makes speech easier to understand. CORE+, DPA’s preamplifier technology, keeps distortion low across the whole dynamic range.

Mounting

The 4080 sits in a holder with a built-in shock mount, fixed on a clip, with a black pop filter fitted and a white pop filter in the box. The holder turns in any direction, so the mic sits right on left- or right-buttoned shirts. The 4080 is built for broadcast, conference, and live performance, in the studio and in the field.

Connectors

The MicroLock version connects to most professional wireless systems through DPA’s MicroLock adapters. Hardwired versions with 3-pin LEMO, TA4F Mini-XLR, and Mini-Jack connectors plug straight into popular transmitters.

Features

Cardioid pattern optimized for chest placement
4 dB presence boost for clear speech
CORE+ for low distortion across the dynamic range
Holder with built-in shock mount and clip
Black and white pop filters included
Fits left- and right-buttoned shirts
MicroLock, 3-pin LEMO, TA4F Mini-XLR, or Mini-Jack

What's Included

4080 CORE+ microphone in a holder with a built-in shock mount and clip
Black pop filter (fitted)
White pop filter

Specifications

Acoustic
Directional Pattern	Cardioid
Principle of Operation	Pressure gradient
Cartridge Type	Pre-polarized condenser
Frequency Response	20 Hz to 20 kHz
Effective Frequency Range (±2 dB)	250 Hz to 17 kHz with 4 dB soft boost at 4 to 6 kHz (−5 dB at 100 Hz)
Sensitivity (±3 dB at 1 kHz)	20 mV/Pa (−34 dB re 1 V/Pa)
Equivalent Noise Level (A-weighted)	23 dB(A) typical (26 dB(A) max)
Distortion, THD below 0.5%	127 dB SPL RMS, 130 dB SPL peak
Distortion, THD below 1%	128 dB SPL RMS, 131 dB SPL peak
Dynamic Range	108 dB typical
Max. SPL (THD 10%)	134 dB SPL peak
Electrical
Rated Output Impedance	30 to 40 Ω
Power Supply	Wireless systems: 5 to 10 V through a DPA adapter With DAD9001: P48 phantom power (works from 12 V)
Current Consumption	1.5 mA typical (microphone) 3.5 mA with DAD9001 XLR adapter
Cable Drive Capability	Up to 300 m (984 ft) with DAD9001 XLR adapter
Physical
Connector	MicroLock, 3-pin LEMO, TA4F Mini-XLR, or Mini-Jack
Microphone Diameter	5.7 mm (0.22 in)
Microphone Length	30 mm (1.2 in)
Cable Length	1.2 m (3.9 ft)
Cable Diameter	1.6 mm (0.06 in)
Weight	15 g (0.5 oz) including cable and MicroLock connector
Color	Black
Temperature Range	−40°C to 45°C (−40°F to 113°F)
Relative Humidity	Up to 90%
Latest Specifications	Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com.
