DPA 4018ER/ES Supercardioid Microphone
- Ultra-compact supercardioid mic, 35 mm long
- Integrated XLR cable, side or rear entry
- SM4000-C suspension mount for hanging use
From $2,225.00 USD
DPA 4018ER/ES Supercardioid Microphone
Only 35 mm (1.38 in) long, the DPA 4018ER/ES is an ultra-compact supercardioid microphone for unobtrusive or distant miking, such as desktop or hanging use.

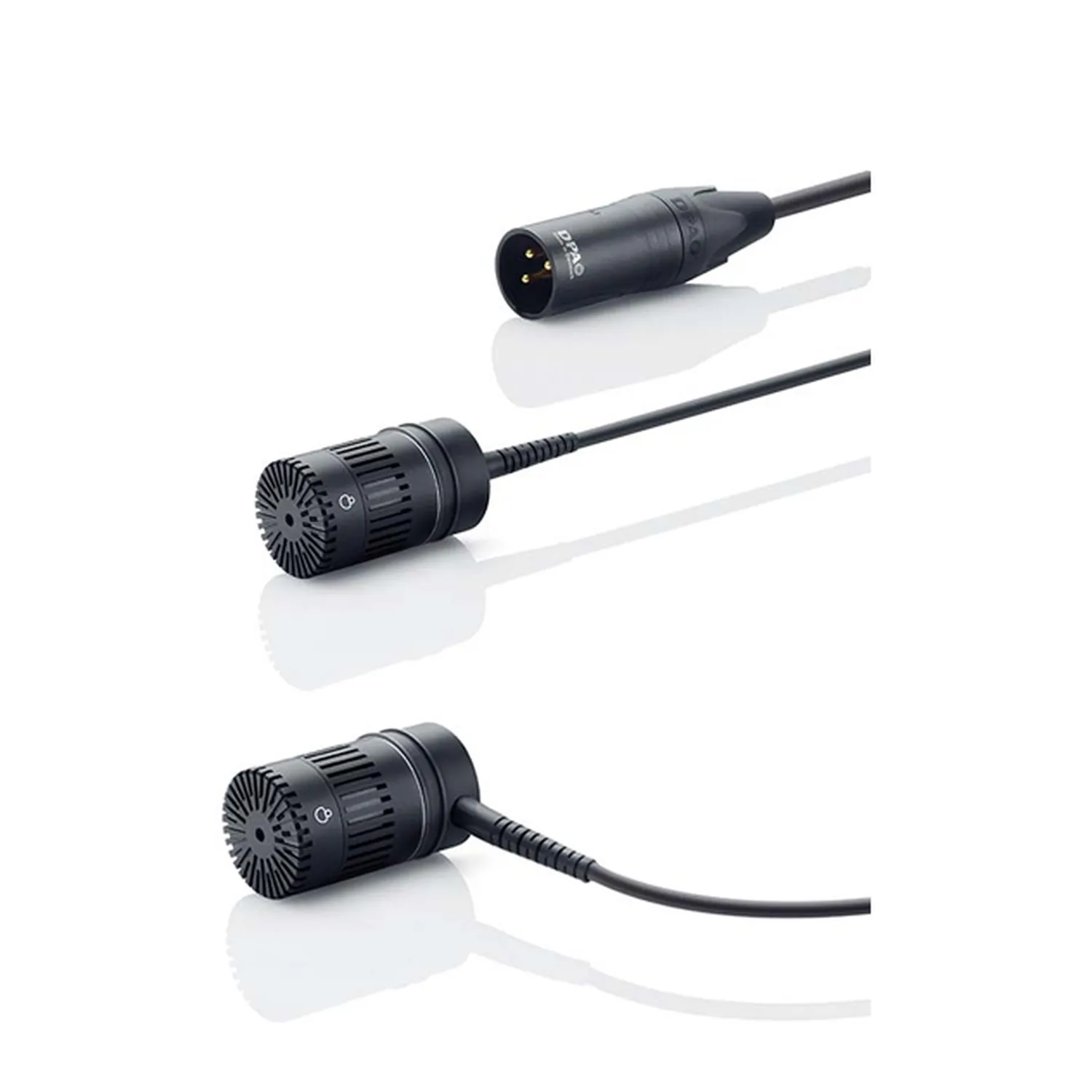

It pairs DPA’s MMC4018 supercardioid capsule with the MMP-ER/ES, an integrated 3 m (9.8 ft) active XLR cable. The cable leaves the mic from the side on the 4018ES or from the rear on the 4018ER. The pickup is highly directional, with a smooth, uniform off-axis response and a minimized rear lobe, so sound keeps the same color around the mic.
Uses
The 4018ER/ES is made for music recording and for long-distance broadcast, ENG, and film miking: booming, dialogue, interviews, and table or spot recording. The SM4000-C suspension mount in the box lets it hang from the ceiling for precise spot miking of orchestra sections or room ambience. Like every DPA pencil mic, its capsule is modular and moves to another DPA preamp with no tools.
Features
- Ultra-compact supercardioid, 35 mm (1.38 in) long
- Uniform, frequency-independent directionality
- Low noise and high sensitivity
- Integrated 3 m (9.8 ft) XLR cable, side or rear entry
- SM4000-C suspension mount included
- Modular capsule
What's Included
- 4018ER or 4018ES microphone with integrated 3 m (9.8 ft) XLR cable
- SM4000-C suspension mount
Specifications
| Acoustic | |
|---|---|
| Directional Pattern | Supercardioid |
| Principle of Operation | Pressure gradient |
| Cartridge Type | Pre-polarized condenser |
| Frequency Response | 20 Hz to 20 kHz |
| Effective Frequency Range (±2 dB at 30 cm) | 40 Hz to 18 kHz |
| Sensitivity (±2 dB at 1 kHz) | 12 mV/Pa (−38.4 dB re 1 V/Pa) |
| Equivalent Noise Level (A-weighted) | 16 dB(A) typical (19 dB(A) max) |
| Equivalent Noise Level (ITU-R BS.468-4) | 23 dB typical |
| Distortion, THD below 1% | 134 dB SPL RMS, 137 dB SPL peak |
| Dynamic Range | 121 dB typical |
| Max. SPL (THD 10%) | 142 dB SPL peak |
| Matching Tolerance | ±1 dB (frequency response and sensitivity) |
| Electrical | |
| Rated Output Impedance | 100 Ω |
| Output Balance Principle | Impedance balancing |
| Common Mode Rejection Ratio | Over 40 dB |
| Power Supply | P48 phantom power |
| Current Consumption | 3.5 mA |
| Maximum Output Voltage | 2.2 V RMS |
| Cable Drive Capability | 100 m (328 ft) |
| Physical | |
| Connector | XLR-3M |
| Microphone Diameter | 19 mm (0.75 in) |
| Microphone Length | 35 mm (1.38 in) |
| Weight | 109 g (3.8 oz) |
| Color | Matte black |
| Temperature Range | −40°C to 45°C (−40°F to 113°F) |
| Relative Humidity | Up to 90% |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
