DPA 4018C Compact Supercardioid Microphone
- Compact supercardioid, only 64 mm long
- Uniform directivity with a minimized rear lobe
- Low 16 dB(A) self-noise
$2,105.00 USD
In Stock

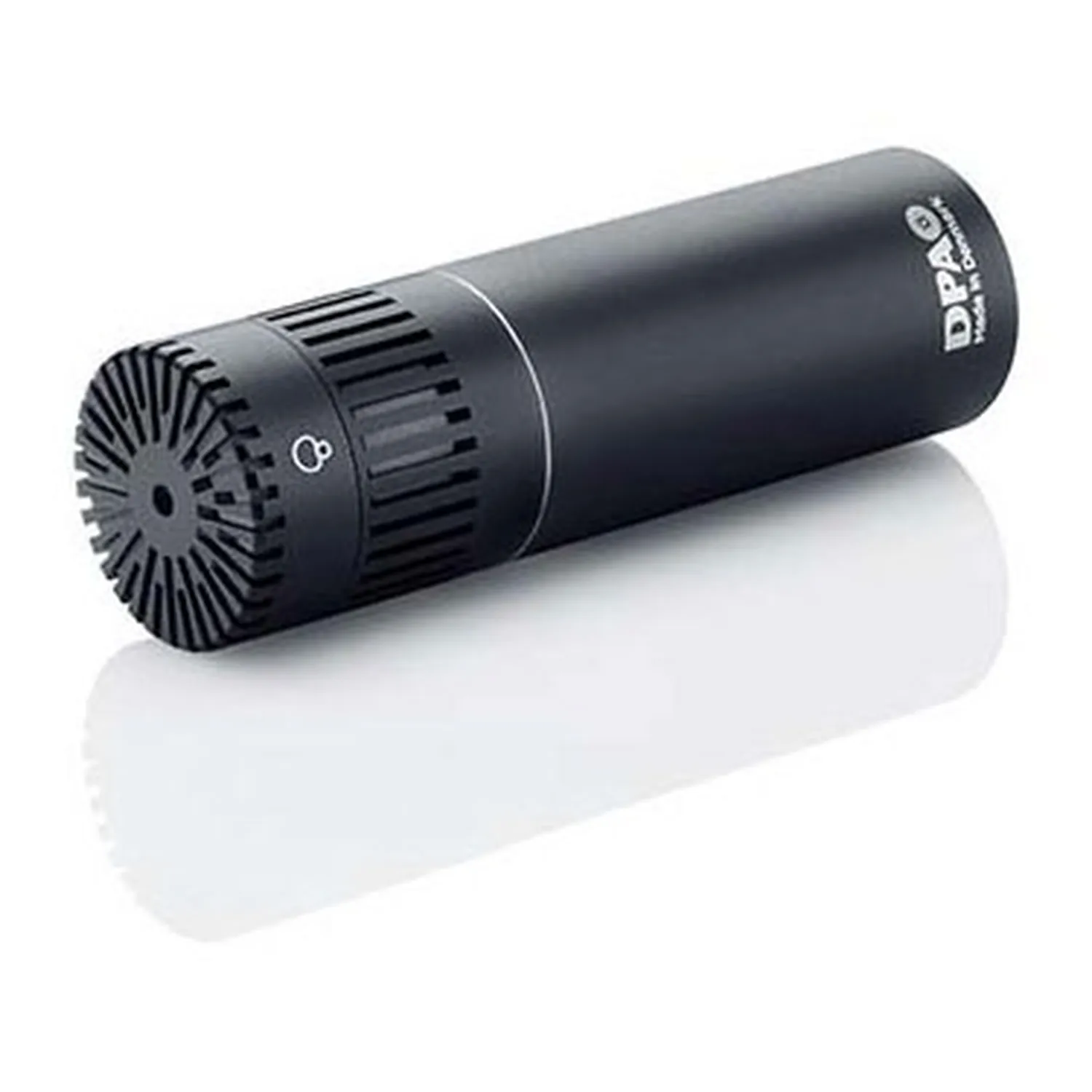

DPA 4018C Compact Supercardioid Microphone
Only 64 mm (2.5 in) long, the DPA 4018C is a compact supercardioid mic for booming, dialogue, interviews, and table or spot recording.
Its supercardioid shape is frequency independent, so the sound color stays the same around the mic, and the rear lobe most supercardioids have is minimized. That keeps it well isolated without frequency-dependent peaks and dips. Low self-noise of 16 dB(A) and 12 mV/Pa sensitivity suit quiet dialogue, while 150 dB SPL peak handling covers loud sources.
The small footprint also makes the 4018C a good spot or hanging mic for orchestra recording. It is part of DPA’s modular pencil mic series, so it works with the series’ accessories.
Features
- Highly directional supercardioid pattern
- Frequency-independent directivity with a minimized rear lobe
- 64 mm long, 58 g
- 16 dB(A) self-noise
- Handles up to 150 dB SPL peak
- P48 phantom power, XLR-3M
Specifications
| Acoustic | |
|---|---|
| Directional Pattern | Supercardioid |
| Principle of Operation | Pressure gradient |
| Cartridge Type | Pre-polarized condenser |
| Frequency Response | 20 Hz to 20 kHz |
| Effective Frequency Range (±2 dB, at 30 cm) | 40 Hz to 18 kHz |
| Sensitivity (±2 dB at 1 kHz) | 12 mV/Pa (−38.4 dB re 1 V/Pa) |
| Equivalent Noise Level (A-weighted) | 16 dB(A) typical (19 dB(A) max) |
| Equivalent Noise Level (ITU-R BS.468-4) | 23 dB typical |
| Distortion, THD below 1% | 134 dB SPL RMS, 137 dB SPL peak |
| Dynamic Range | 121 dB typical |
| Max. SPL (THD 10%) | 150 dB SPL peak |
| Electrical | |
| Rated Output Impedance | 100 Ω |
| Cable Drive Capability | 100 m (328 ft) |
| Output Balance Principle | Impedance balancing with Active Drive |
| Common Mode Rejection Ratio | Over 50 dB |
| Maximum Output Voltage (RMS) | 4.5 V |
| Power Supply | P48 phantom power |
| Current Consumption | 2.8 mA |
| Physical | |
| Connector | XLR-3M |
| Microphone Diameter | 19 mm (0.75 in) |
| Capsule Diameter | 19 mm (0.75 in) |
| Microphone Length | 64 mm (2.5 in) |
| Weight | 58 g (2 oz) |
| Temperature Range | −40°C to 45°C (−40°F to 113°F) |
| Relative Humidity | Up to 90% |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
