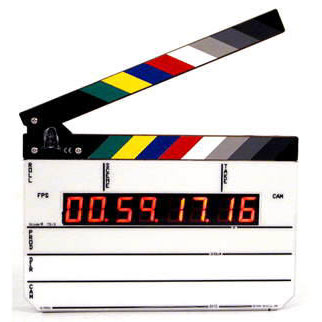

Denecke TS-3EL Backlit Timecode Slate
- TS-3 timecode slate with an EL backlit display
- Internal Syncbox generator jams to all rates
- Scroll back of the last 16 claps
$1,672.00 USD
Denecke TS-3EL Backlit Timecode Slate
The Denecke TS-3EL is the TS-3 timecode slate with a backlit electroluminescent (EL) display behind its scene, take, and production fields, for night shoots and dimly lit stages.
The slate reads and displays SMPTE/EBU timecode, and its internal Syncbox generator jams to all standard frame rates, 23.976 included. It sets itself to the incoming frame rate, jams its user bits when the time is set, and warns of a sync error when rates differ. A blinking LED shows the jam, and a temperature compensated crystal oscillator (TCXO) keeps drift low.
The TS-3EL has a flat back with a removable plate for camera logs, and it fits in a front box. Six AA batteries load through a sliding access door, and a time-out for open sticks saves them. Scroll back shows the last 16 claps for logging. On external power of 12.5 V or more, the EL backlight switches off to protect itself.
Features
- Electroluminescent backlight behind scene, take, and production
- Internal Syncbox timecode generator
- Auto set to the incoming frame rate
- Blinking LED jam indicator
- Sync error warning for differing frame rates
- Scroll back of the last 16 claps
- Flat back with a removable camera log plate
- Battery voltage and low battery warning
- Time-out for open sticks to save batteries
Specifications
| TS-3EL | |
|---|---|
| Timecode | Reads and displays SMPTE/EBU timecode; internal Syncbox generator |
| Frame Rates | All standard rates, including 23.976 |
| Display | Red LED timecode; electroluminescent (EL) backlight behind scene, take, and production |
| TC Input | −15 dB at 4.7 kΩ, 1/4 in phone jack |
| TCXO Stability | ±1 ppm at −30 to +75 °C |
| Batteries | 6 alkaline AA (removed when on external power) |
| External Power | 5.7 to 16 V DC |
| Dimensions | 8.25 × 11 × 1.3 in (21 × 28 × 3.3 cm) |
| Weight | 2.35 lb (1.05 kg); 2.7 lb (1.25 kg) with batteries |
