Denecke Dcode SB-4 Syncbox Timecode Generator

427.50 USD

  • Generates and Jam Syncs to all common SMPTE Timecode frame rates.
  • Cross jams regardless of incoming frame rates.

Quantity:

SKU: DEN.SB4 Categories: , Tag:

Description

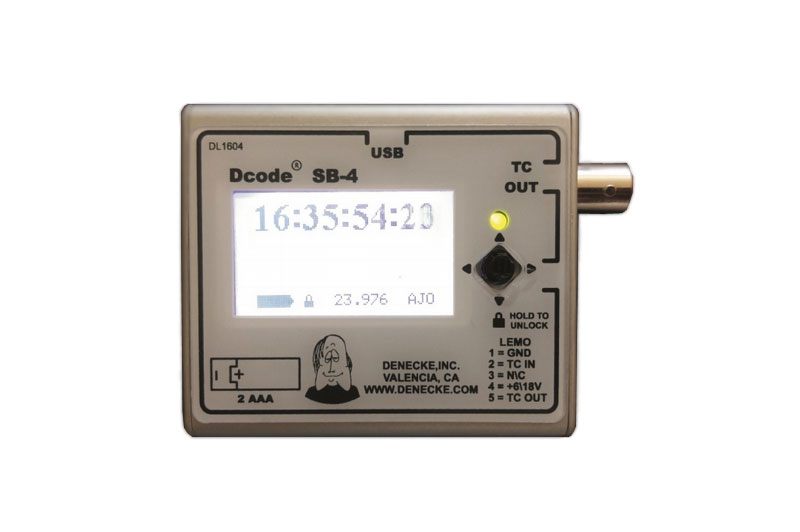

Denecke Dcode® SB-4 Syncbox® Timecode Generator

The Denecke Dcode SB-4 is designed to replace the SB-3 in the Denecke line of Timecode Generators. The SB-4 features a display and menu system, which allows for ease of use and display of timecode and settings. It reads, generates and jam syncs to all standard frame rates including 23.976 for High Definition shoots. The advanced Temperature Compensated Crystal Oscillator (TCXO) has ten times the frequency stability than previous products, eliminating the need to jam more than once per day.

Key Features:

  • Generates and Jam Syncs to all common SMPTE Timecode frame rates.
  • Cross jams regardless of incoming frame rates.
  • Sunlight-readable display with backlight.
  • Jam from an external timecode source or set it internally and use as a stand alone generator.
  • Selectable TC output levels, eliminating the need for external output reduction pads.
  • Runs on 2 AAA batteries or external power connection.
  • Simple to set up. Reprogrammable for new features and updates, via both Mac and Windows computers.
  • Very high stability crystal ensures low drift.
  • Provides indication of drift/inaccuracy between SB-4 and a timecode input signal.
Input: -15dB @ 4.7K; LEMO Connector
Output: Selectable 2.0V, 1.0V, 0.50V and 0.20V
Battery Power: 2 “AAA” Batteries
External Power: 6 to 18 Volts DC, via LEMO Connector 5V, via Micro USB Connector
TCXO Crystal: +/- 0.1PPM @ -40o to +85o C
Size: 2.5” (W) x 2.2” (H) x 1.0” (D)
Weight: 4 oz. (with batteries)
Battery Life: 30+ Hours; Approximately 15+ Hours With Back Light Continuously ON.
