Decimator 2 SDI to Composite and HDMI Down Converter (3G/HD/SD)

345.00 USD

The Decimator 2 from Decimator Design allows you to view any format of SDI on a composite or HDMI monitor with de-embedded audio.

Temporarily Unavailable

SKU: DEC.DECIMATOR2 Categories: , Tag:

Description

Special considerations may apply if this item is received outside of North America. Please read for details.

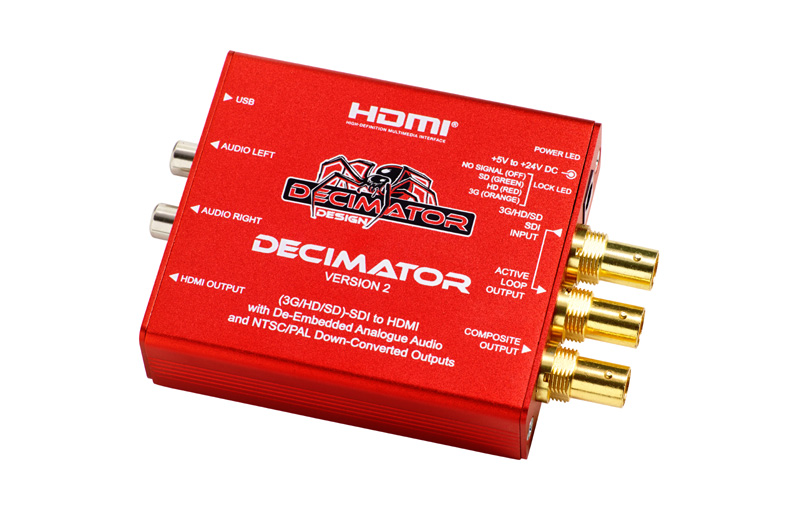

The Decimator 2 from Decimator Design allows you to view any format of SDI on a composite or HDMI monitor with de-embedded audio. Scale either output simultaneously and perform aspect ratio conversion on the HDMI output.

Key Features:

  • Auto detection of 3G, HD or SD (26 formats total)
  • Selection of NTSC or PAL for 3G/HD inputs
  • 2x RCA connectors for de-embedded analogue audio
  • Switching of synchronous sources
  • Simultaneous scaling on both the HDMI & composite outputs
  • 16:9 and 4:3 aspect ratio conversion
  • Full 16 channel audio metering on the HDMI output
  • Graticules and overlays on the HDMI output
  • Loop Through

Control either via USB on a Windows app or on-unit using the dip switch. The unit comes with a Locking DC Power Supply, HDMI Cable, USB Cable & Mounting Bracket. Warranty for all Decimator Design products is 3 years.

Video Formats:

3G:

HD:

  • SMPTE 292M/274M/[email protected] and 1.435Gb/s
  • 1080i@60/59.94/50Hz
  • 1080p/psf@30/29.97/25/24/23.98Hz
  • 720p@60/59.94/50/30/29.97/25/24/23.98Hz

SD:

  • SMPTE 259M@270Mb/s
  • 625i50
  • 525i59.94

DIP SWITCH CONTROLS

  • NTSC or PAL Selection
  • SD Pedestal
  • Crop 16:9 to 4:3
  • 16:9 or 4:3 Aspect Selection
  • Simultaneous scaling on both the HDMI & composite outputs
  • 16:9 and 4:3 aspect ratio conversion
  • Stereo Pair selection for RCA Analogue Audio
  • HDMI Output format select

INPUTS

  • (3G/HD/SD)-SDI 10-bit
  • Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A

OUTPUTS

  • HDMI
  • SD-Composite
  • 1 x (3G/HD/SD)-SDI Active Loop-Through
  • 2 x RCA for De-embedded Analogue Audio (20dBFS=-10dBu)

LED STATUS

  • Power
  • Signal Lock

DIMENSIONS

  • 90mm x 71mm x 23mm (3.5″ x 2.8″ x 0.9″)

POWER

  • +5V to +24V DC, ~5 Watts
  • Positive Centre Pin
