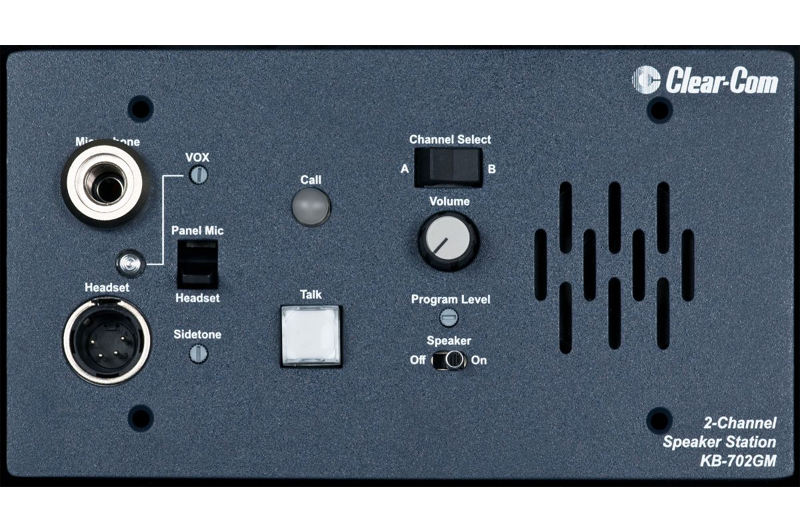

Clear-Com KB-702GM Encore 2-Channel Remote Speaker Station
- Encore 2-channel remote speaker station
- Gooseneck mic connector with VOX circuitry
- Wall or console mounting, or an optional V-Box
$855.00 USD
Clear-Com KB-702GM Encore 2-Channel Remote Speaker Station
The Clear-Com KB-702GM, an Encore 2-channel remote speaker station, has a gooseneck mic connector and VOX circuitry for talking or listening on either channel.
Talk and listen work with a headset mic, a telephone handset, or a push-to-talk microphone, and the station has a built-in speaker. Four modes of operation are set inside with DIP switches, and a balanced local program input has its own level control.
Calls show and sound at the station. It mounts in a wall or a console, or in an optional V-Box for portable or desktop use, and it accepts an optional 4-wire daughter board. It runs on 20 to 30 V DC, drawing 90 mA idle and 110 mA at most.
Features
- Encore 2-channel remote speaker station
- Gooseneck microphone connector with VOX circuitry
- Talk and listen through a headset, telephone handset, or push-to-talk mic
- Four operating modes set by internal DIP switches
- Balanced local program input with level control
- Visual and audible call signaling
- Wall or console mounting, or an optional V-Box
- Built-in speaker
Specifications
| Channels | 2 (selectable) |
|---|---|
| Microphone Inputs | Gooseneck mic connector with VOX; headset mic, telephone handset, or push-to-talk mic |
| Headset Microphone | Dynamic |
| Panel Microphone | Electret |
| Program Input | Balanced, with level control |
| Connections | Intercom line on a five-terminal connector; program input on a three-terminal connector |
| Power | 20 to 30 V DC; 90 mA idle, 110 mA maximum |
| Mounting | Wall or console; optional V-Box for portable or desktop use |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Dimensions (H × W × D) | 4.5 × 8.25 × 1.75 in (114 × 210 × 44 mm) |
| Weight | 1.1 lb (0.50 kg) |
