Cinela E-OSIX Mounts

The Cinela E-OSIX series is the “Elliptical” isolators version of their famous OSIX series. Elliptical isolators are smaller and smarter, with a wide range of elasticity grades and are very good for most mono situations.

There are two strength variations, a Soft grade and a Hard grade. The Soft grade is very good for quiet indoors with light foam, and the Hard grade is suitable for outdoor situations with a furry windscreen.

A more compact version, the Cinela MINIX, is also available.

All E-OSIX and MINIX are equipped with the SW-UL-B toothed swivel since 2018. The base of the SW-UL-B can be rotated +/- 90°, which allows for a choice of XLR or Plug-On transmitter positioning.

An optional wiring configuration (referred to as “RF-OPT”) offers enhanced protection against interference caused by the increasing use of digital transmitters.

Available Models:

• E-OSIX-CMIT-S (soft grade): For Schoepps CMIT5U
• E-OSIX-CMIT-H (hard grade): For Schoepps CMIT5U
• E-OSIX-MKH50-S (soft grade): For Sennheiser MKH40/50
• E-OSIX-MKH50-H (hard grade): For Sennheiser MKH40/50
• E-OSIX-4017B-S (soft grade): For DPA 4017B
• E-OSIX-4017B-H (hard grade): For DPA 4017B

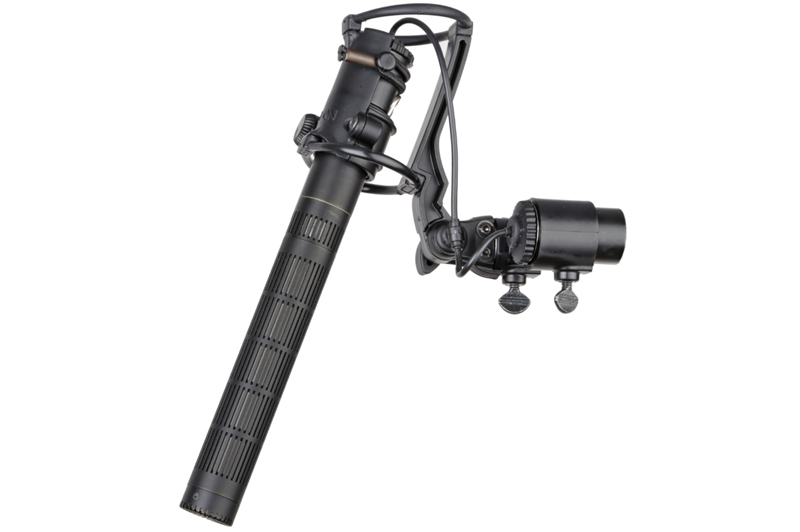

• E-OSIX-4017C: For DPA 4017C (Foam only, indoor use, need for an external rumble filter in the audio chain)
• E-OSIX-4018C: For DPA 4018C
• E-OSIX-416-H (hard grade): For MKH416
• E-OSIX-KM-S (soft grade): For Neumann FOR KM100, KM 180, & KMA 180

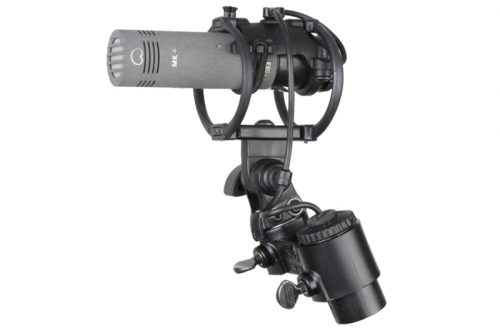

• E-OSIX-CMC1-S (soft grade): For CMC-1U without CUT60 filter

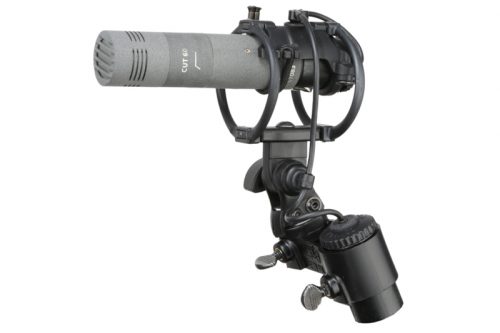

• E-OSIX-CMC1-H (hard grade): For CMC-1U with CUT60 filter (Using the CUT60 is recommended)
• E-OSIX-CMC1L-H (hard grade): For CMC-1L
• E-OSIX-MiniCMIT: For Schoepps MiniCMIT (Foam only, indoor use, built-in PERFECT filter inside the MiniCMIT)
• E-OSIX-KMIT-CMC1L: For KMIT + CMC1L Lemo (Foam only)
• E-OSIX-KMIT-CMC1U: For KMIT + CMC1-U XLR (Foam only)
