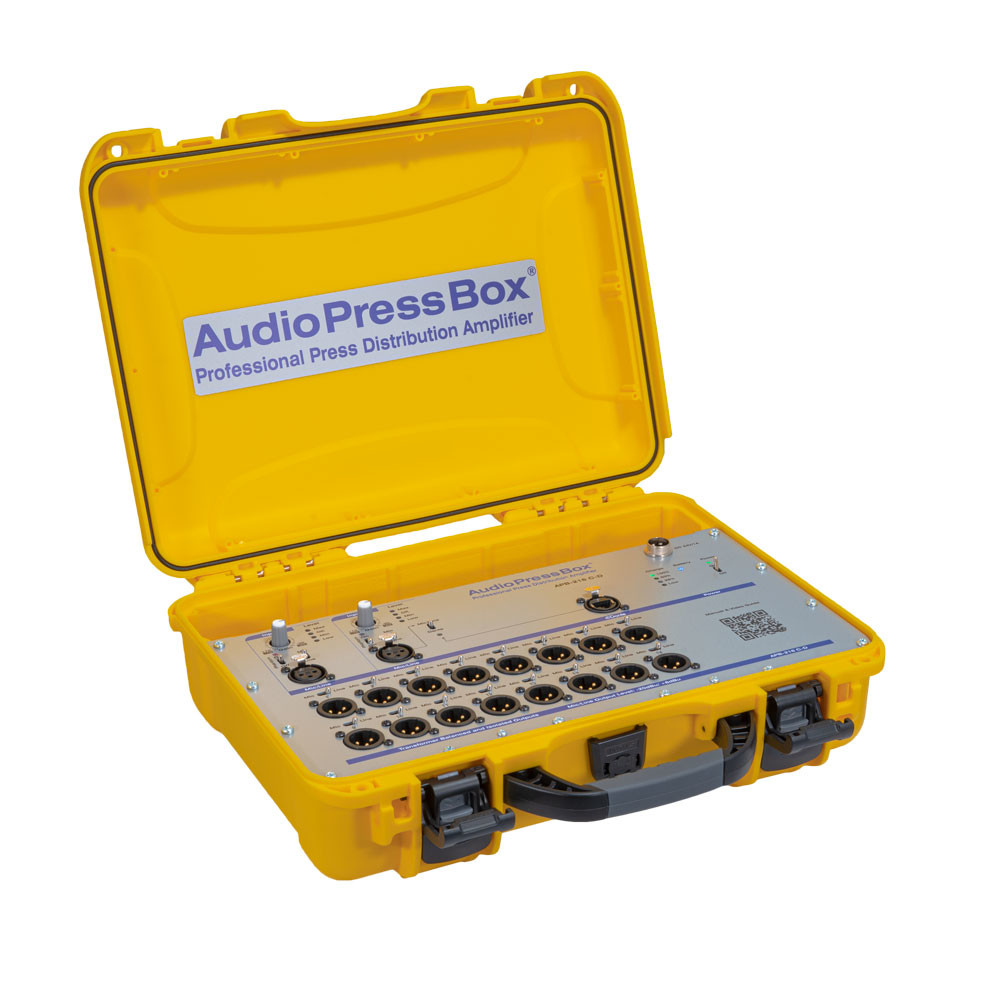

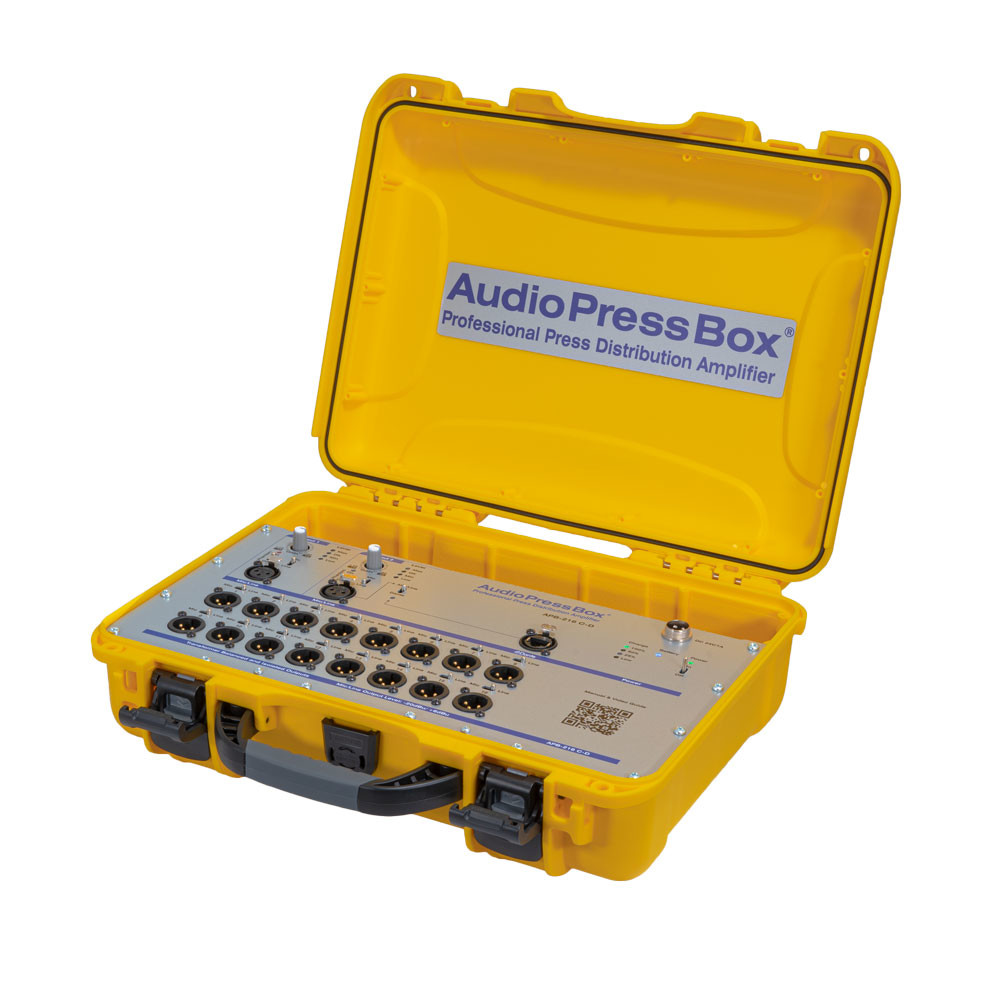

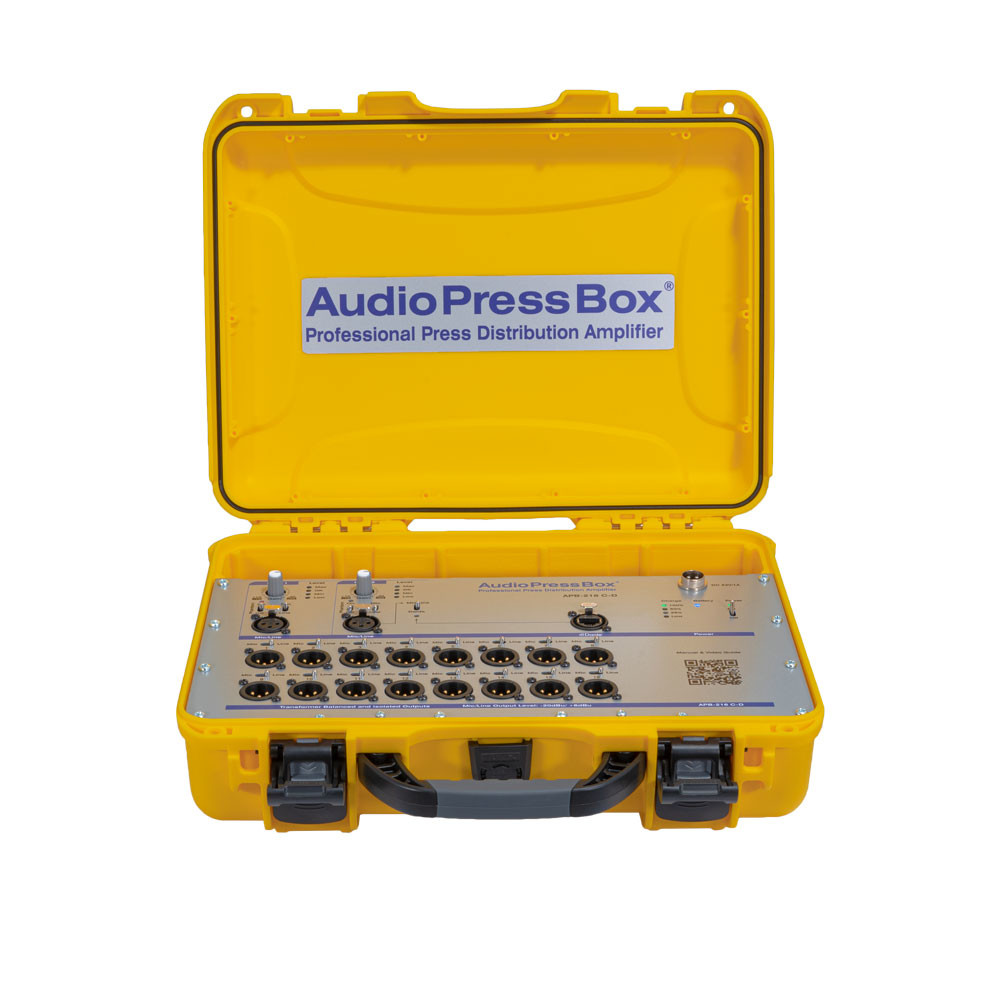

AudioPressBox APB-216 C-D Portable Dante Press Box, 16 Outputs
The AudioPressBox APB-216 C-D is a portable press box that adds a Dante network input to two analog Mic/Line inputs and sends the signal to 16 balanced XLR outputs.
The single Dante channel arrives on an RJ45 etherCON jack and needs no PoE. A switch selects it in place of the second analog input. Each analog input has gain control, a 26 dB pad, 48 V phantom power, and a built-in compressor and limiter.

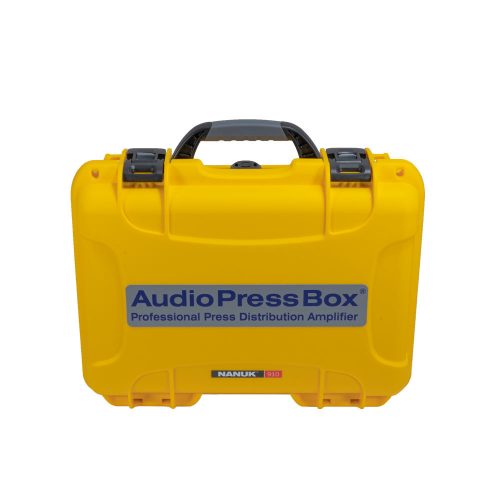

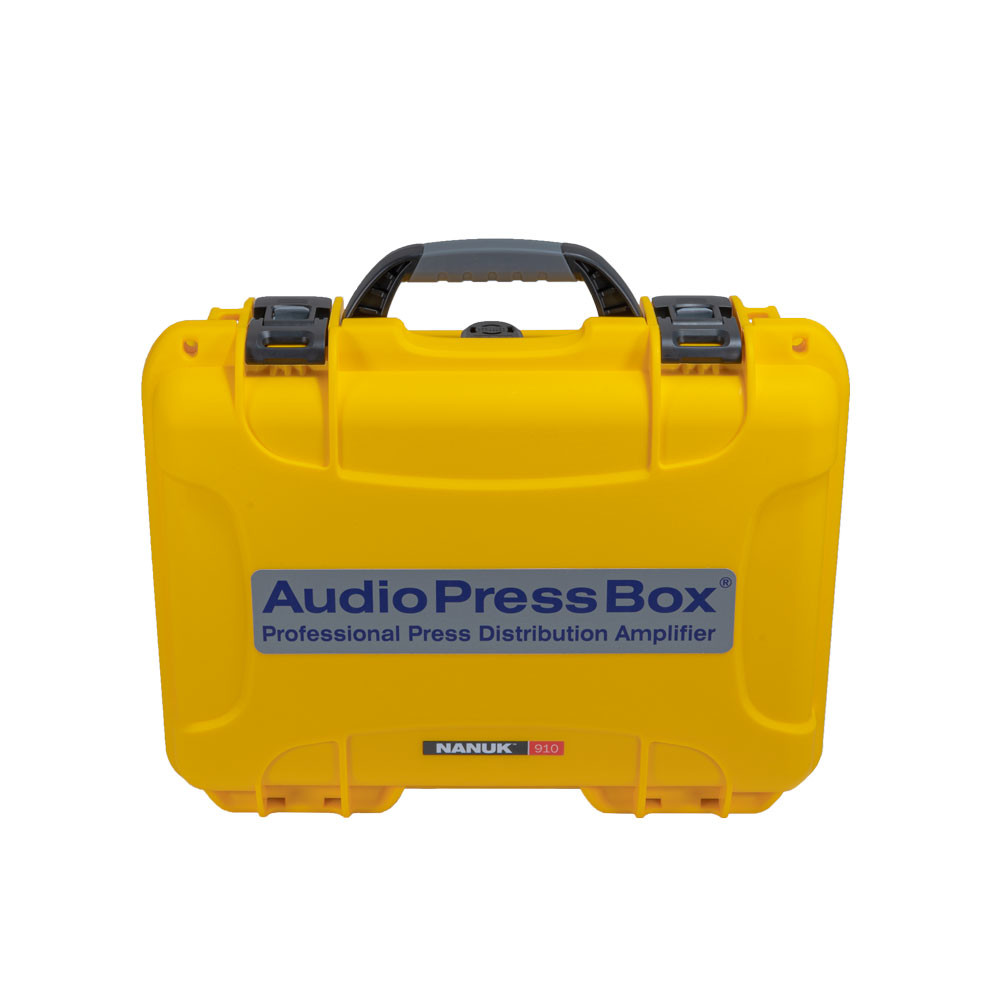

Each output is transformer isolated and switches between mic and line level. A built-in Li-Ion battery runs it for up to 20 hours. It works indoors or outdoors in its heavy-duty, IP67 waterproof Nanuk case. A QR code printed on the unit links to its manual and user guide.
Features
- 2 balanced XLR Mic/Line inputs with gain control, 26 dB pad, and 48 V phantom power
- 1-channel Dante input on an RJ45 etherCON jack, no PoE needed
- 16 balanced XLR outputs, each transformer isolated
- Each output switchable between mic and line level
- Built-in compressor and limiter on each input
- Built-in Li-Ion battery with microprocessor-controlled management, up to 20 hours
- IP67 waterproof Nanuk case
- TAA compliant
