AudioPressBox APB-112 SB-D Portable Dante Press Box, 12 Outputs

  • 1-channel Dante input on an RJ45 etherCON jack
  • 12 transformer-isolated XLR outputs, each switchable to mic or line level
  • Powered by PoE over the Dante network cable

$2,238.00 USD

Brand: Category: Trew SKU: APB.APB112SBD MPN: APB-112 SB-D

AudioPressBox APB-112 SB-D Portable Dante Press Box, 12 Outputs

The AudioPressBox APB-112 SB-D, a portable press box, takes one channel of audio from a Dante network and sends it to 12 balanced XLR outputs.

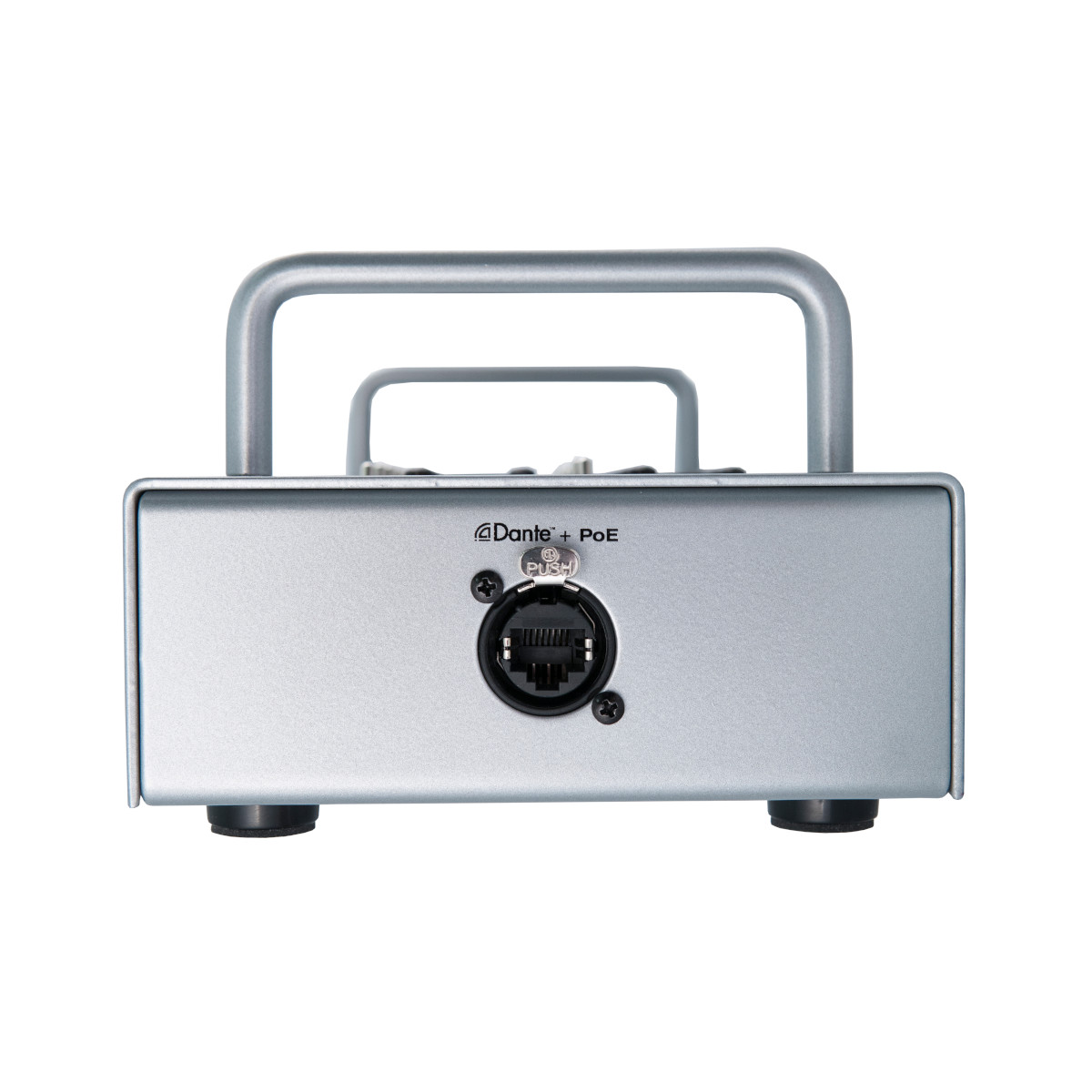

PoE powers the unit over its Dante network connection, so a single cable carries both the signal and the power. The Dante channel arrives on an RJ45 etherCON jack. Patching more APB-112 SB-D units over Dante adds channels or outputs.

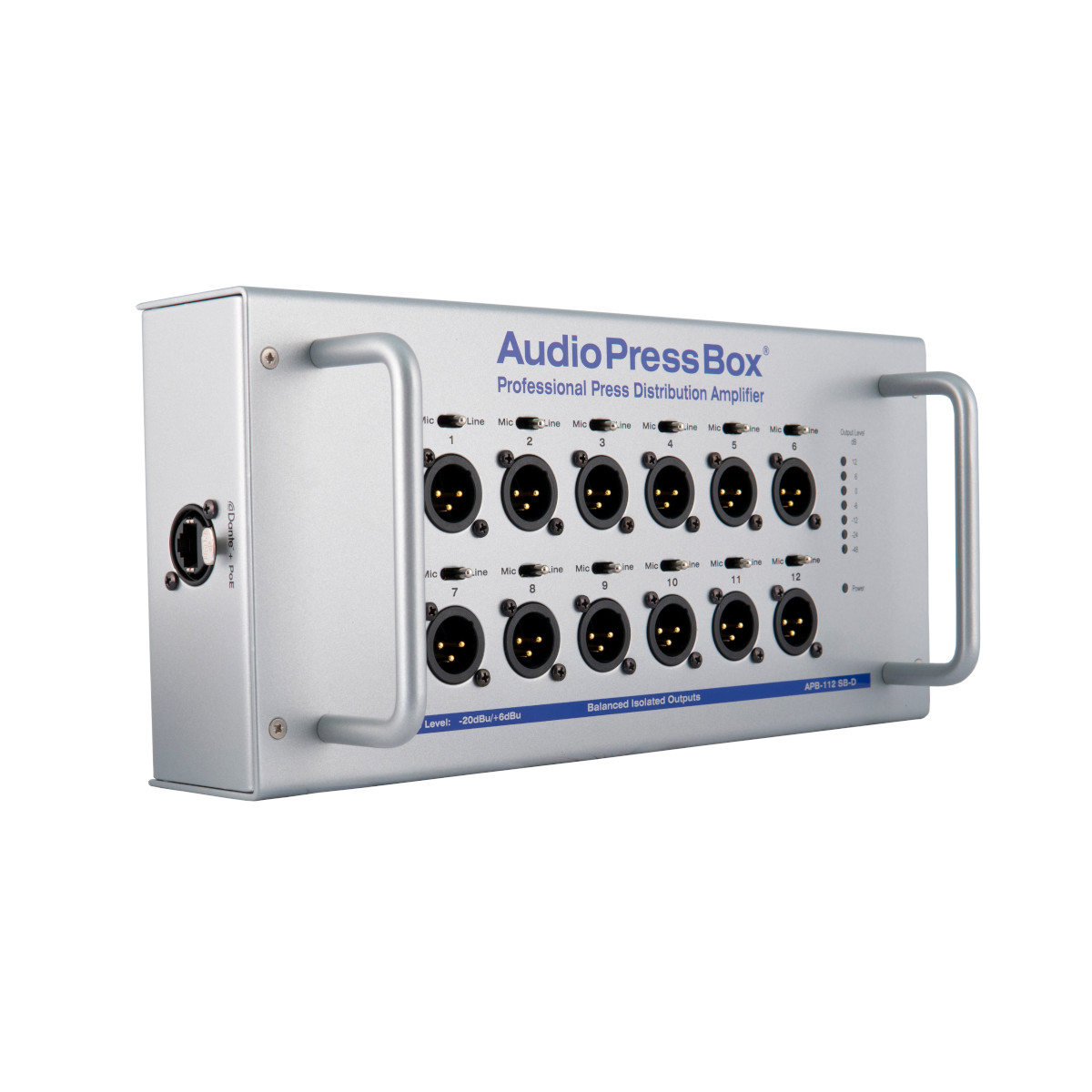

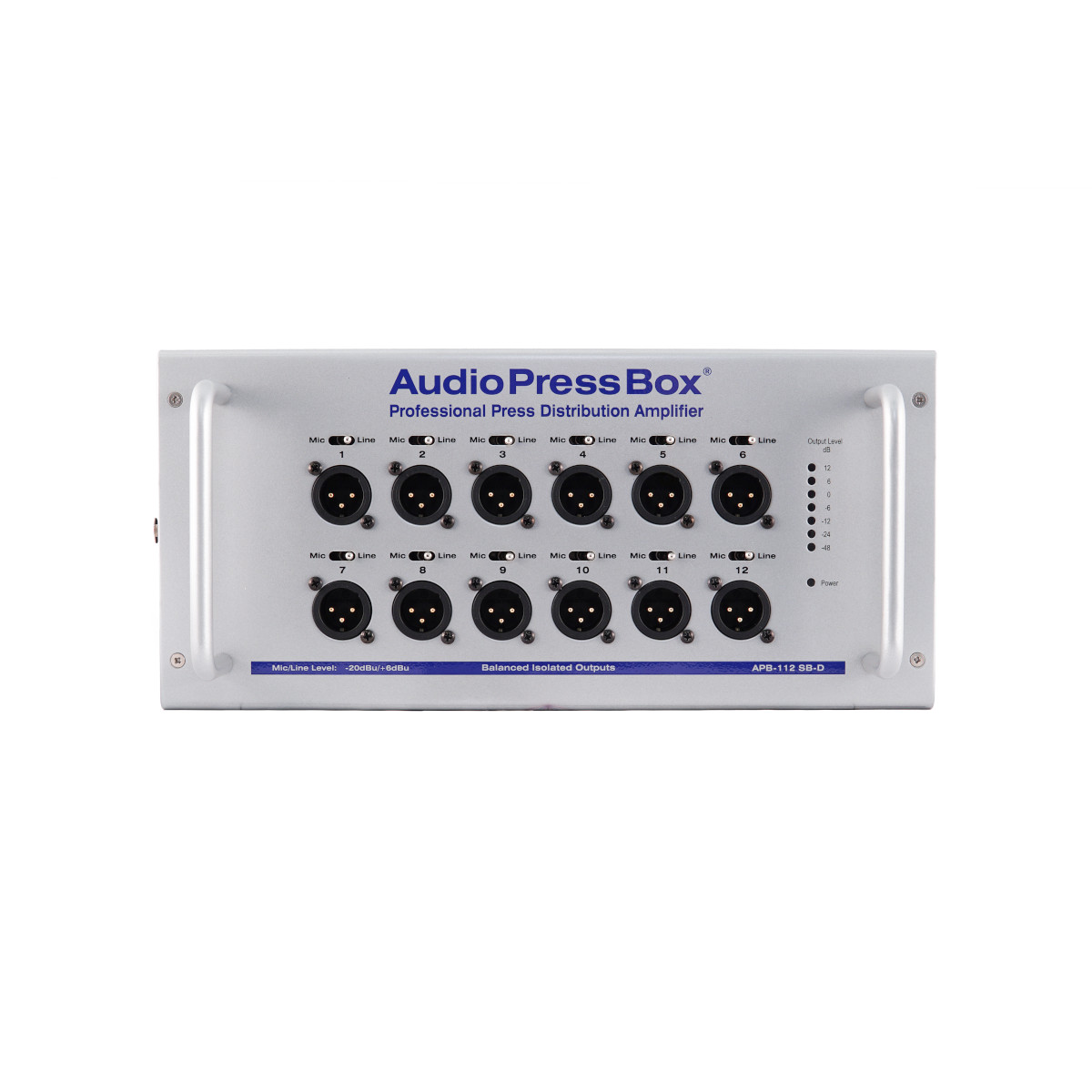

Each output is transformer isolated and switches between mic and line level. Indicators show the output level and power.

Features

  • 1-channel Dante input on an RJ45 etherCON jack
  • 12 balanced XLR outputs, each transformer isolated
  • Each output switchable between mic and line level
  • Powered over the Dante network by PoE (Class 3)
  • More units patched over Dante add channels or outputs
  • TAA compliant

Specifications

Inputs 1 Dante channel
Dante Input 1 channel, RJ45 etherCON; PoE required
Outputs 12 Mic/Line, balanced XLR, each transformer isolated
Output Level +6 dBu nominal; +20 dBu maximum (no load), +14 dBu (600 Ω)
Output Impedance Mic 220 Ω; Line 600 Ω
Frequency Response 25 Hz to 20 kHz (−3 dB)
Signal-to-Noise Ratio Greater than 70 dB
Power Supply PoE, Type 1, Class 3 (12.95 W)
Dimensions 295 × 138 × 100 mm W × H × D (11.61 × 5.43 × 3.94 in)
Weight 2.8 kg (6.17 lb)
