AudioPressBox APB-216 C Portable Press Box, 16 Outputs

  • 2 Mic/Line inputs with 48 V phantom power and a 26 dB pad
  • 16 transformer-isolated XLR outputs, each switchable to mic or line level
  • Built-in Li-Ion battery for up to 20 hours, in an IP67 waterproof Nanuk case

$2,991.00 USD

Brand: Category: Trew SKU: APB.APB216C MPN: APB-216 C

AudioPressBox APB-216 C Portable Press Box, 16 Outputs

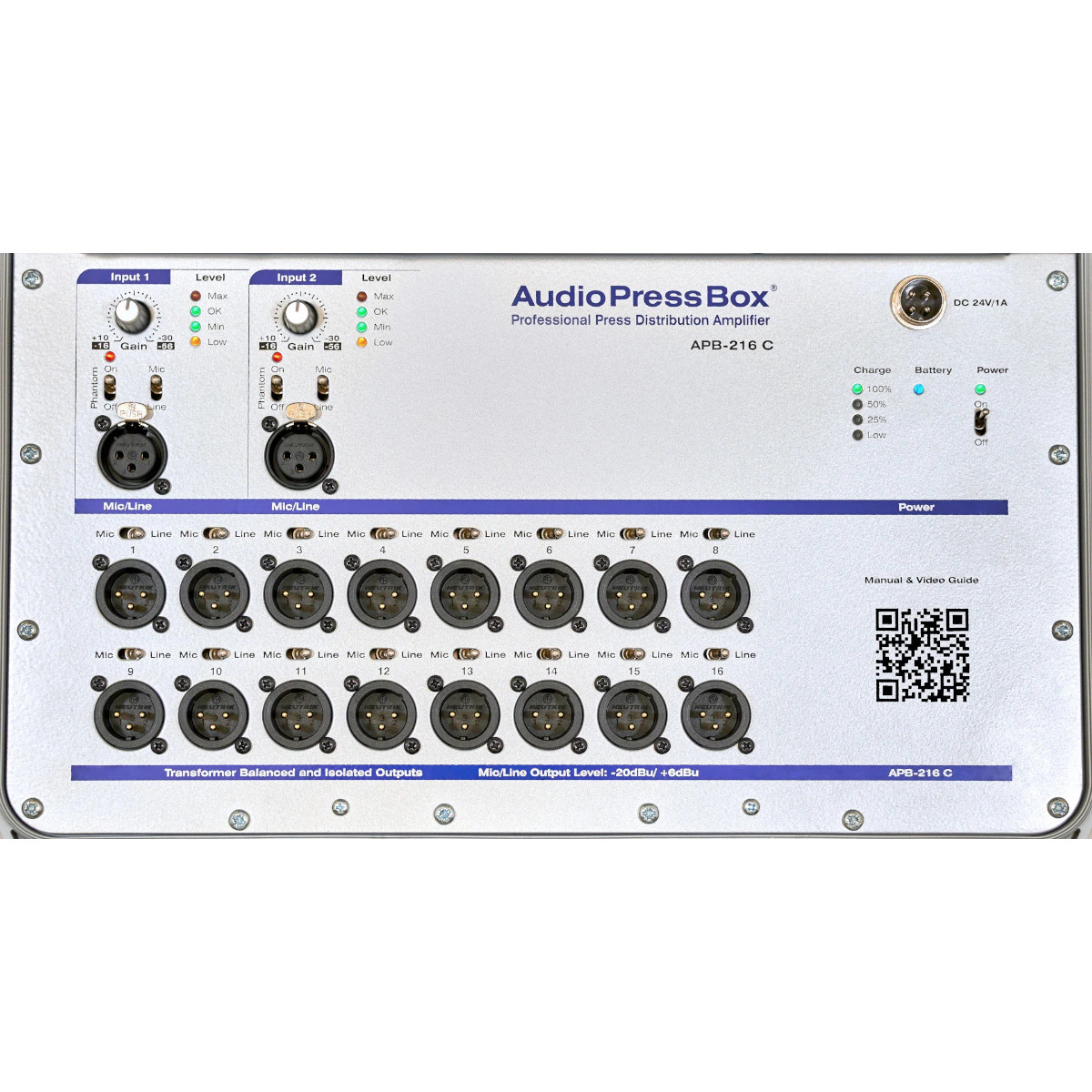

The AudioPressBox APB-216 C takes up to two microphone or line sources and feeds them to 16 balanced XLR outputs, all in a portable active press box.

Each output is transformer isolated and switches between mic and line level, so cameras and recorders can each take the feed at the level they need. Each input has gain control, a 26 dB pad, 48 V phantom power, and a built-in compressor and limiter.

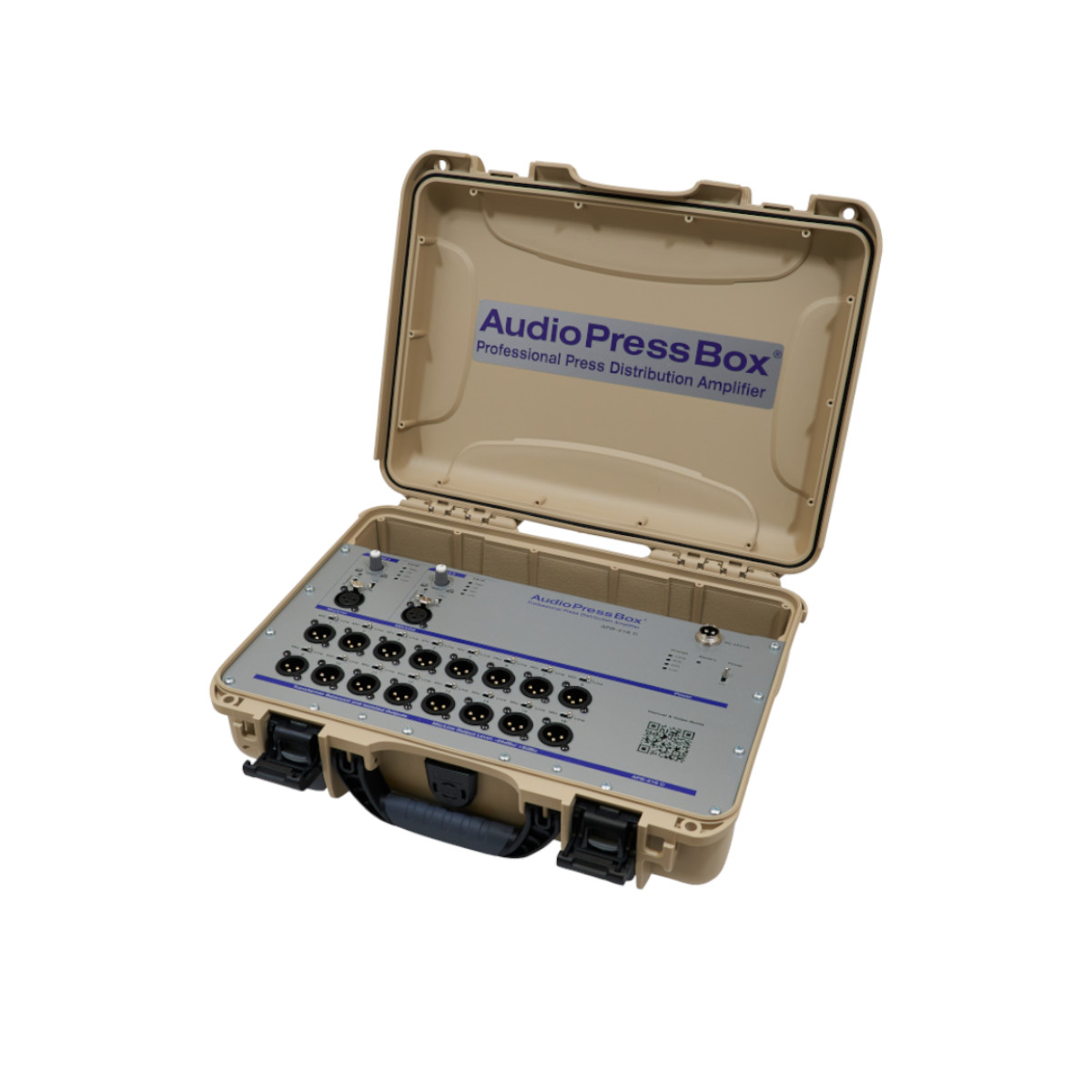

A Li-Ion battery built into the unit runs it for up to 20 hours, and a 24 V DC adapter powers it otherwise. It works indoors or outdoors in its heavy-duty, IP67 waterproof Nanuk case.

Features

  • 2 balanced XLR Mic/Line inputs with gain control, 26 dB pad, and 48 V phantom power
  • 16 balanced XLR outputs, each transformer isolated
  • Each output switchable between mic and line level
  • Built-in compressor and limiter on each input
  • Built-in Li-Ion battery with microprocessor-controlled management, up to 20 hours
  • IP67 waterproof Nanuk case
  • TAA compliant

Specifications

Inputs 2 Mic/Line, balanced XLR
Input Gain Mic +22 to +62 dB; Line −4 to +36 dB
Phantom Power 48 V
Outputs 16 Mic/Line, balanced XLR, each transformer isolated
Output Level +6 dBu nominal; +20 dBu maximum (no load), +14 dBu (600 Ω)
Output Impedance Mic 220 Ω; Line 600 Ω
Frequency Response 120 Hz to 30 kHz (−1 dB)
Signal-to-Noise Ratio 86 dB
Power Supply 24 V DC, 1 A external adapter
Battery Built-in Li-Ion, 14.4 V, 2200 mAh
Battery Life Up to 20 hours
Dimensions 370 × 120 × 300 mm W × H × D (14.57 × 4.72 × 11.81 in)
Weight 4.7 kg (10.36 lb)
