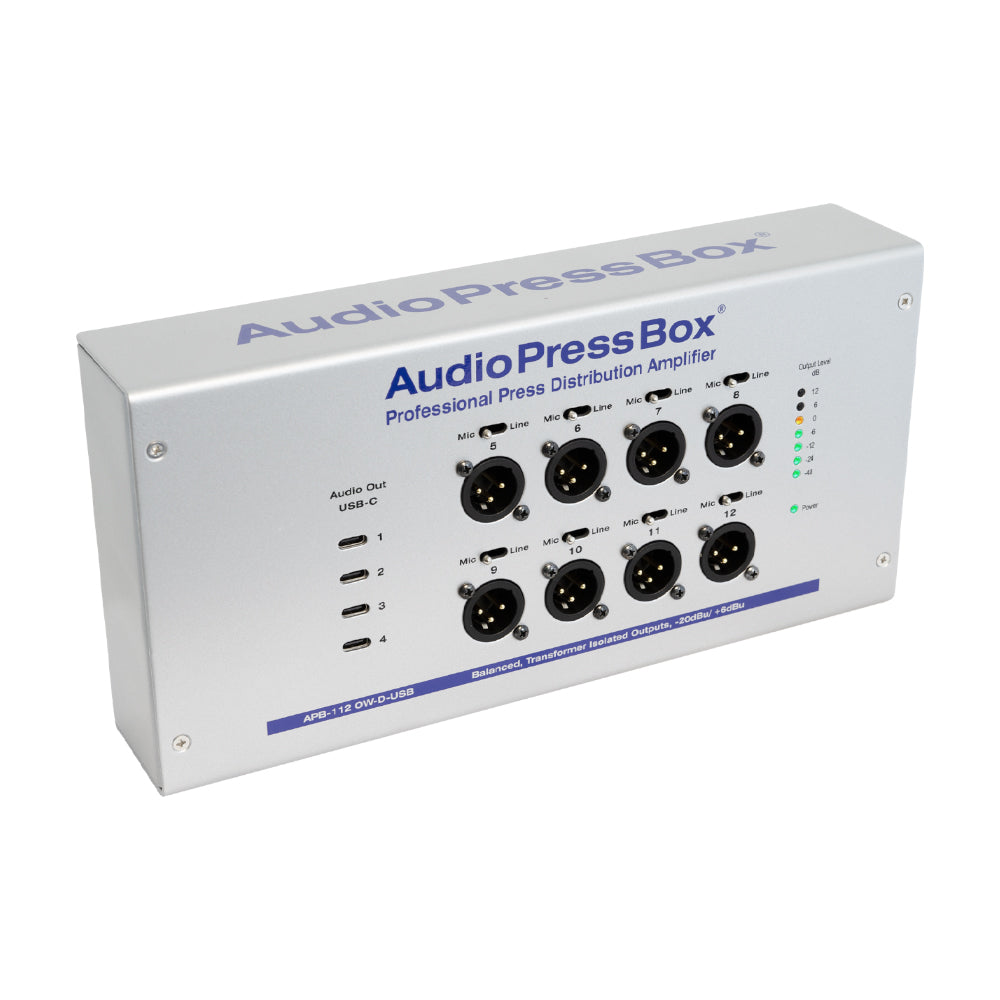

AudioPressBox APB-112 OW-D-USB
2,497.00 USD
AudioPressBox APB-112 OW-D-USB — Professional, on wall, active, AudioPressBox unit with 1 channel DANTE input, 8 LINE/Mic outputs and 4 USB-C outputs. It is powered via PoE so you need only 1 cable for the signal and power. The easy install allows for quick setup.
Share on:
Description
AudioPressBox APB-112 OW-D-USB
AudioPressBox APB-112 OW-D-USB — Professional, on wall, active, AudioPressBox unit with 1 channel DANTE input, 8 LINE/Mic outputs and 4 USB-C outputs. It is powered via PoE so you need only 1 cable for the signal and power. The easy install allows for quick setup.
Features:
- 1 channel DANTE input – RJ45
- 8 high quality balanced and individually transformer isolated outputs
- 4 Digital USB-C outputs
- Each XLR Output is switchable between MIC or LINE output level
- The unit is powered only via PoE from DANTE network
- Via DANTE patching, easily expand number of channels or number of outputs by adding other APB-112 OW-D or APB-112 OW-D-USB units
Specifications
| Type | 1 In 12 Out | |
| Groups | 1 | |
| Input section | ||
| Inputs | 1 | |
| Input connectors | RJ45 – Dante | |
| PoE Requirement | YES | |
| Reference level | -18dBFS | |
| Analog outputs | ||
| Outputs | 8 Line/MIC level | |
| Output connectors | Balanced, XLR | |
| Nominal Output Level | +6dBu | |
| Maximum Output Level | +20dBu (no load) +14dBu (600Ohm) |
|
| Output impedance | Mic: 220 Ohm | Line: 600 Ohm |
| Transformer isolated outputs | Yes (each output) | |
| SNR | >70 dB | |
| Frequency Response | 20Hz to 20kHz/-3dB | |
| Digital Outputs | ||
| Output connector | USB Type C | |
| Compliant USB Specification | USB 2.0 | |
| Supported Sampling Rates | 8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz | |
| Bit Depth | 16-Bit | |
| Interface Powering | Bus powered (from connected USB host device) | |
| Charging capability | No | |
| Indicators | ||
| Output section: | Output level. Power | |
| Power | ||
| Power Supply | PoE (Type 1, Class 3 (12,95W)) | |
| Mechanical | ||
| Dimensions (WxHxD) | 280x138x54mm | |
| Weight | 2400 g | |
