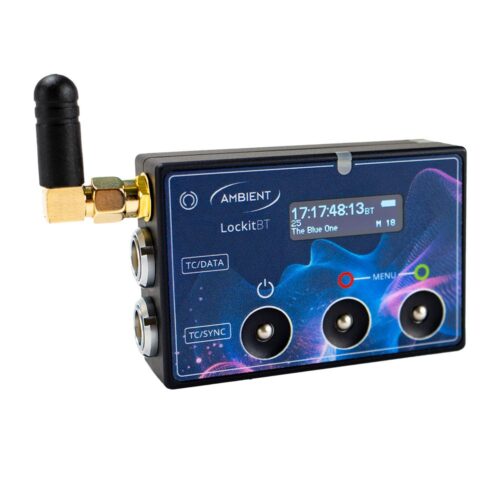

Ambient LockitBT (ACN-LB) Timecode & Sync Generator

Highly accurate timecode & sync generator with a bluetooth interface for remote control via the LockitRemote app. The LockitBT features zero drift (with C-Jam Mode active), SMPTE timecode and genlock / wordclock sync, and full ACN™ (Ambient Communication Network) compatability.

Compared to the Lockit (ACN-CL), the LockitBT’s additional Bluetooth interface enables remote control via the LockitRemote smartphone app (available for free on iOS and Android) and transmission of timecode information to compatible devices from other manufacturers. Connect your LockitBT via Bluetooth and adjust all settings directly on your smartphone. You can control the entire LockitBT menu and start the C-Jam Master. In “ACN Radar,” you can monitor and control all Lockit devices on the same ACN channel – even older models.

Features

• Highly accurate Timecode & Sync generator
• Zero Drift (with C-Jam Mode active)
• Supports SMPTE Timecode and Genlock / Wordclock Sync
• Full ACN™ (Ambient Communication Network) compatability
• Bluetooth Interface for remote control via LockitRemote App
• OLED display with button operation
• USB-C port for MIDI Timecode, battery charging and connection to LockitToolbox
• Customizable TC and Sync Offset
• Changeable battery (NP-50 Li-Ion included)
• ~14h runtime
• Robust aluminum housing

Product Overview

ACN – Ambient Communication Network

The Ambient Communication Network (ACN) is Ambient’s own wireless network that connects all Lockit boxes on set. When C-Jam (Continuous Jam) mode is activated, all Lockit devices are constantly synchronized with each other, which ensures zero drift. In other words: an incredible 0.0 ppm drift over an entire day of shooting.

ACN is Ambient’s own stable, interference-resistant radio network through which Lockit devices communicate with each other. This makes the connection independent of interfering radiations, bad network or adverse weather conditions.

One Button Syncing

Press the green button on one of your Lockit boxes for three seconds, and via ACN all other Lockit devices (in the same ACN channel) are synchronized in terms of TC and frame rate settings. This initial sync already ensures frame accuracy for the whole day.

App or Display Menu

In addition to the LockitRemote app, the LockitBT can also be set up using the haptic OLED display menu (press the red and green buttons simultaneously to open).

Battery

With a single standard NP-50 battery with 750mAh, the ACN-CL Lockit will last approximately 14 hours. ACN communication (C-Jam Mode) only hardly impacts runtime. The replaceable lithium-ion battery can be charged during operation. The NP-50 battery is widely used in the pro audio industry and is often available with inexpensive chargers.

All Sync Formats

Designed for today’s equipment, the LockitBT supports 1080P and 1080i genlock for project rates 23.976 to 60 FPS while audio recorders are covered with wordclock up to 192 KHz.

Outputs

Two Lemo-compatible push-pull sockets provide maximum flexibility and continued use of available cables. TC in and out follow industry standard and allow for syncing of 2 cameras in parallel or jamming via a cable while leaving the synced unit connected.

The primary output carries timecode and genlock/wordclock. This gives you the freedom to choose running it either on straight, Y-split cable or 2 separate leads using the second connector for timecode which also connects to devices that support ACN for metadata transfer.

MIDI Timecode

While LTC timecode is output via the side Lemo-compatible sockets, MIDI timecode can be tapped via the USB-C interface. For example, to feed timecode to the DAW (Digital Audio Workstation) on your laptop. Some camera types also accept MIDI timecode via a standard USB cable.

Powering and charging

External power and charging are available through a common USB-C port. Connected to a Mac or PC the Lockit transforms into a MIDI timecode interface without additional configuration and allows for deep level editing of the settings.
