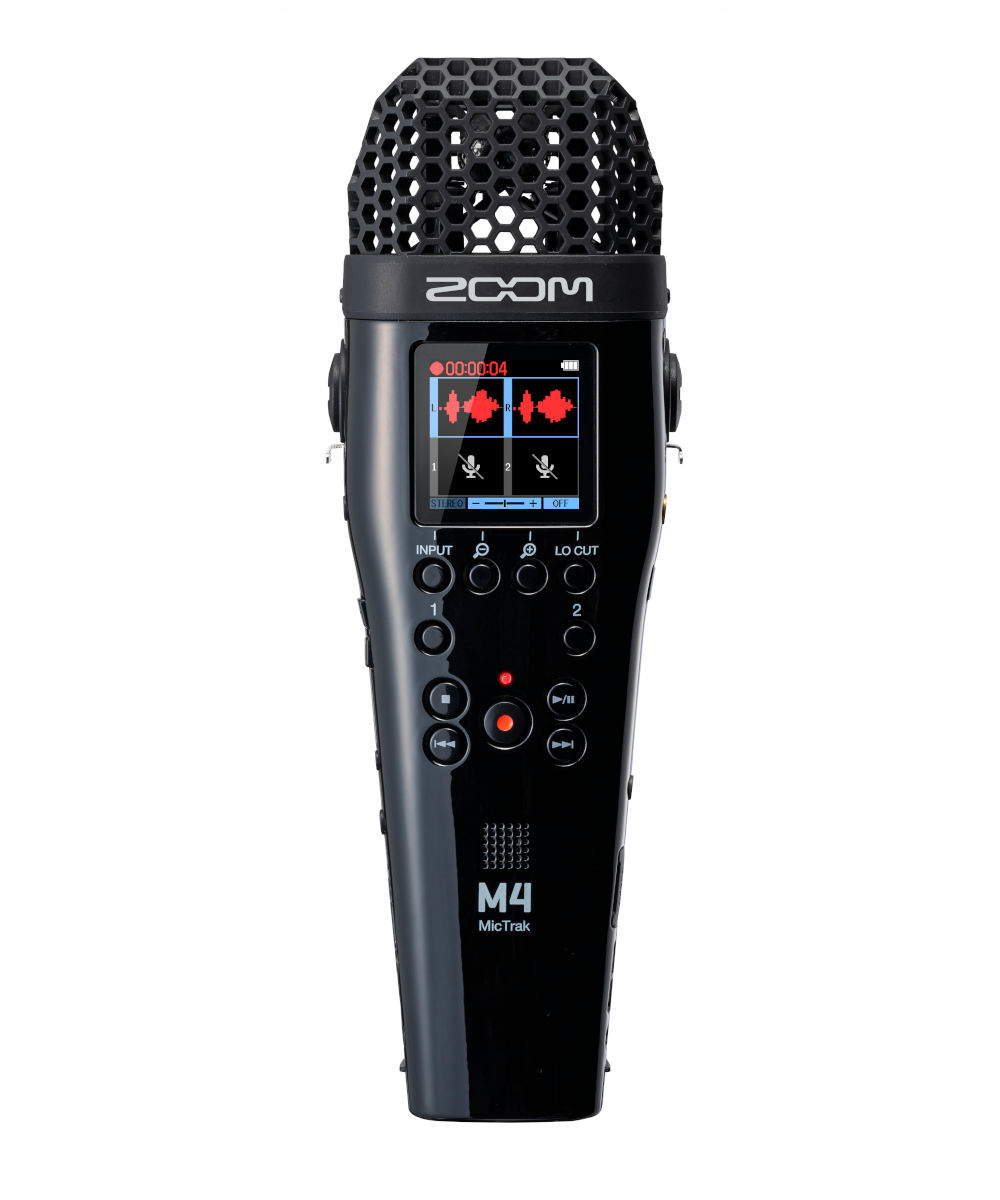

Zoom M4 MicTrak Handheld Recorder with Timecode Generator
Zoom M4 MicTrak — portable 32-bit recorder with built-in timecode generator.
199.99 USD
In Stock
Zoom M4 MicTrak Handheld Recorder with Timecode Generator
The Zoom M4 MicTrak is a portable recorder equipped with both 32-bit recording and a built-in timecode generator for easy syncing to video. This innovative, compact recorder provides 4 tracks of pristine, clip-free audio (XY capsule and 2 XLR inputs) and is the perfect solution for filmmakers and musicians.
Specifications
| INPUTS | CHANNELS | 2(BUILT IN XY MIC) + 2(XLR/TRS INPUTS) | |
| MIC INPUT | MIC TYPE | Unidirectional | |
| SENSITIVITY | -42 dB, 1 kHz at 1 Pa | ||
| INPUT GAIN | Adjustment unnecessary (dual AD converter circuits used) |
||
| MAX SOUND PRESSURE INPUT | 135 dB SPL | ||
| EXT MIC INPUT | CONNECTORS | 1/8″ stereo mini jack | |
| INPUT GAIN | Adjustment unnecessary (dual AD converter circuits used) |
||
| INPUT IMPEDANCE | 2 kΩ or more | ||
| XLR/TRS INPUTS | CONNECTORS | XLR(2: HOT)/TRS combo jacks | |
| INPUT GAIN | Adjustment unnecessary (dual AD converter circuits used) |
||
| INPUT IMPEDANCE | MIC: 3 kΩ or more LINE: 3 kΩ or more |
||
| MAXIMUM INPUT LEVEL | MIC: +4 dBu LINE: +24 dBu |
||
| PHANTOM POWER | +24/+48V 10mA maximum for each channel |
||
| EQUIVALENT INPUT NOISE | −127 dBu or less (IHF-A) | ||
| OUTPUTS | LINE OUT | CONNECTOR | 1/8″ stereo mini jack |
| MAXIMUM OUTPUT LEVEL | +1 dBu | ||
| HEADPHONE | CONNECTOR | 1/8″ stereo mini jack | |
| MAXIMUM OUTPUT LEVEL | 20 mW +20 mW (32 Ω load) |
||
| BUILT-IN SPEAKER | 500mW/8Ω mono speaker | ||
| RECORDING | RECORDING MEDIA | 4GB–32GB microSDHC cards 64GB–1TB microSDXC cards |
|
| WAV | SUPPORTED FORMATS | 44.1/47.952/48/48.048/96/192kHz 32-bit float mono/stereo BWF and iXML |
|
| MAXIMUM SIMULTANEOUS RECORDING TRACKS |
4 (2 BUILT IN XY MIC + 2 XLR/TRS INPUTS) | ||
| TIME CODE | CONNECTOR | 1/8″ stereo mini jack (Tip: IN, Ring: OUT) | |
| MODES | Off Int Free Run, Int Record Run, Int RTC Run Ext |
||
| FRAME RATES | 23.976ND 24ND 25ND 29.97ND 29.97D 30ND 30D |
||
| PRECISION | ±0.2 ppm | ||
| SUPPORTED INPUT LEVELS | 0.2 – 5.0 Vpp | ||
| INPUT IMPEDANCE | 4.6 kΩ | ||
| OUTPUT LEVEL | 3.3 Vpp | ||
| OUTPUT IMPEDANCE | 50 Ω or less | ||
| POWER SUPPLIES | BATTERIES | 4 AA | |
| AC ADAPTER | ZOOM AD-17 (DC 5 V/1 A) • USB bus power is supported. |
||
| DISPLAY | LCD | 1.54″ full color (240 × 240) |
|
| REMOTE | INPUT | RC2/RC4/RCH-5/RCH-6 | |
| USB | CONNECTOR | USB Type-C | |
| MASS STORAGE | CLASS | USB 2.0 High Speed | |
| AUDIO INTERFACE WITH REC |
CLASS | USB 2.0 High Speed | |
| SAMPLING RATE | 48kHz | ||
| BIT RATE | 24-bit/32-bit float | ||
| CHANNELS | 4 in/2 out | ||
| ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES | 48 kHz/32-bit float, 2ch recording to microSDHC card | Alkaline batteries: about 18 hours | |
| BUNDLE | QUICK GUIDE | ||
| WINDSCREEN | |||
