Zaxcom TRX745 Digital Plug-on Transmitter
- Plug-on transmitter with interchangeable cones
- Analog, AES, and AES42 mic support
- Encrypted audio with internal recording
From $2,295.00 USD

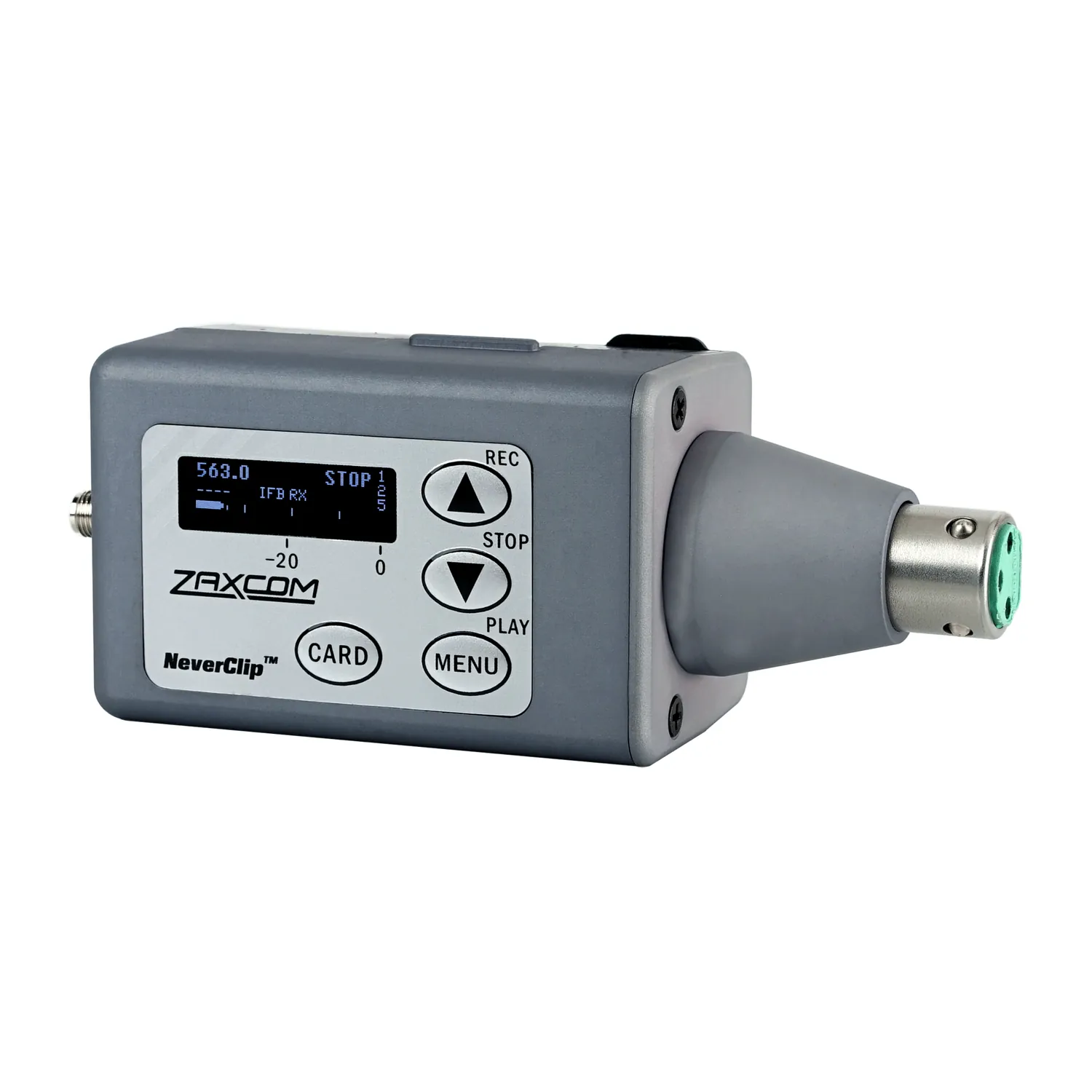

Zaxcom TRX745 Digital Plug-on Transmitter
The Zaxcom TRX745 is a digital plug-on transmitter that turns a boom or handheld mic into an encrypted UHF wireless mic, with interchangeable cones for mono analog, stereo analog, AES, and AES42 mics.

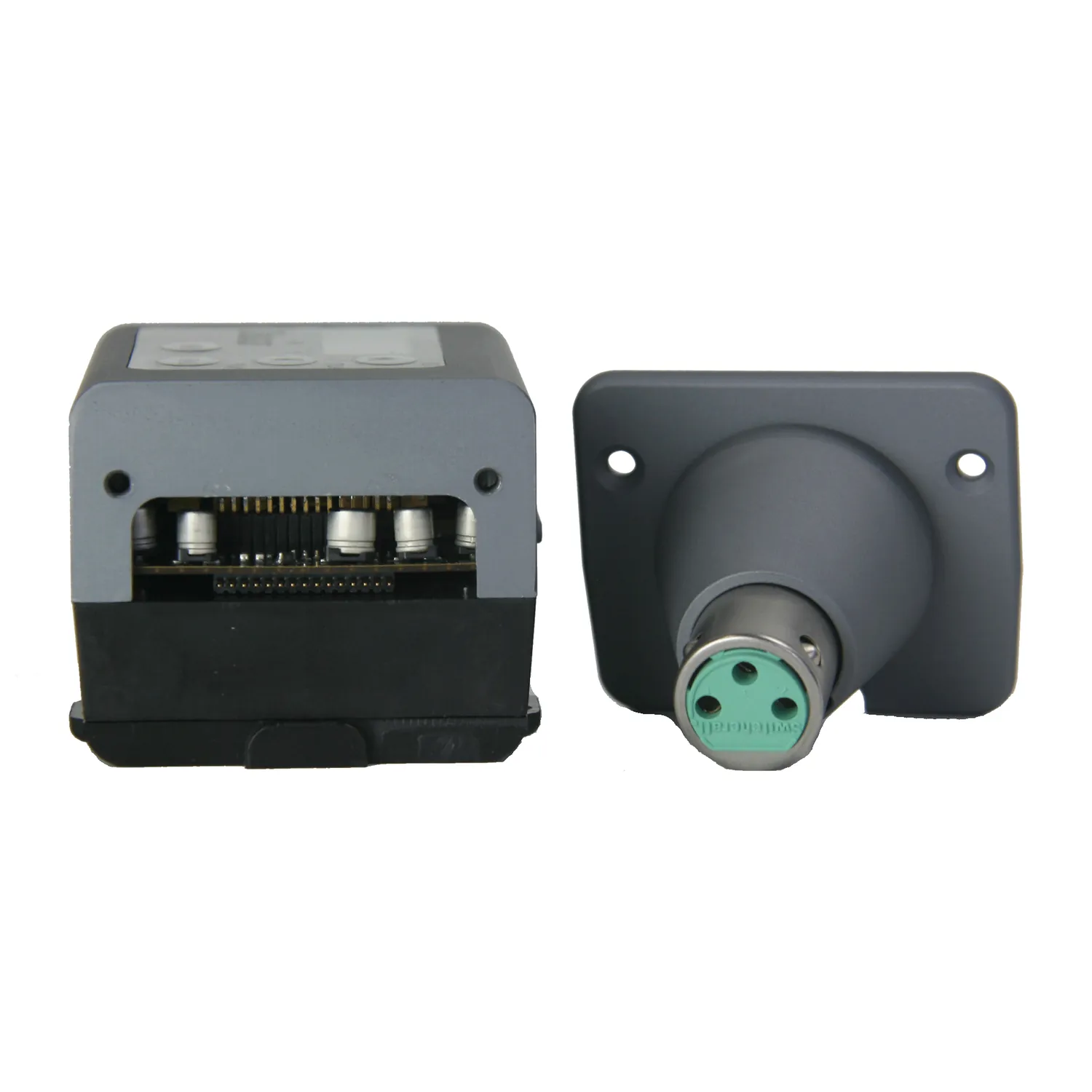

Changing cones takes two screws, so one transmitter adapts to each kind of mic. It supplies 48 V phantom power to analog mics and 10 V AES42 power to digital ones. The transmitter comes with the cone chosen above, and the others are sold separately.
Recording and Timecode
The TRX745 encrypts audio as it sends it and at the same time records it, with timecode, to a microSD card inside. Recordings use Zaxcom’s MARF format, which keeps the file intact if the battery dies or the card comes out early.
ZaxNet and PowerRoll
ZaxNet is Zaxcom’s 2.4 GHz control link. From a ZRC remote or any ZaxNet device, the operator can change the frequency, output power, and input gain, start and stop the recorder, manage timecode, and format the card without touching the talent. Quality-control audio also goes out over ZaxNet, so the mic can be checked on the spot with an ERX receiver.
PowerRoll lowers the output power while the recorder is idle and raises it when recording starts, which saves battery. Output power is 25, 50, or 100 mW.
NeverClip and ZHD
NeverClip extends the dynamic range to 126 dB, or 106 dB on the stereo model. ZHD modulation fits more channels into each megahertz of spectrum, with Mono, Stereo, XR, ZHD48, and ZHD96 modes for crowded RF environments.
Frequency Bands and Power

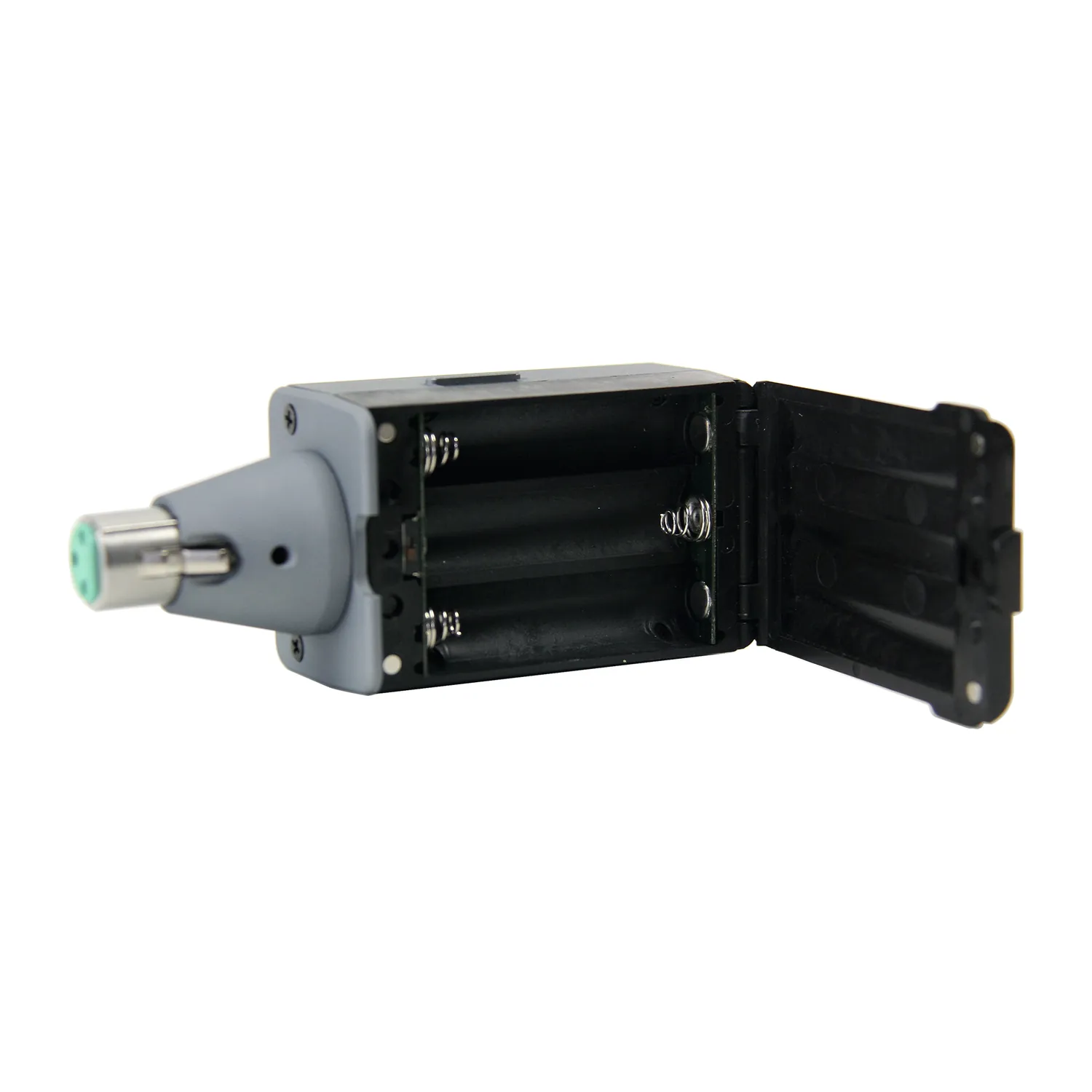

In the United States it tunes 512.0 to 607.9 MHz, 614.1 to 615.9 MHz, and 653.1 to 662.9 MHz, and elsewhere 512 to 698 MHz. It runs on three AA batteries: alkaline, lithium, or NiMH.
Features
- Plug-on transmitter with interchangeable cones
- Mono analog, stereo analog, AES, and AES42 cones
- 48 V phantom and 10 V AES42 mic power
- Encrypted digital transmission
- Internal microSD recording with timecode
- NeverClip, 126 dB dynamic range
- ZaxNet remote control, quality-control audio, and PowerRoll
- 25, 50, or 100 mW output
- Runs on three AA batteries
Available Options
| Cone | Part Number | Mic Type |
|---|---|---|
| Mono Analog 3-Pin XLR | TRX745/A | Analog mono mics, 48 V phantom |

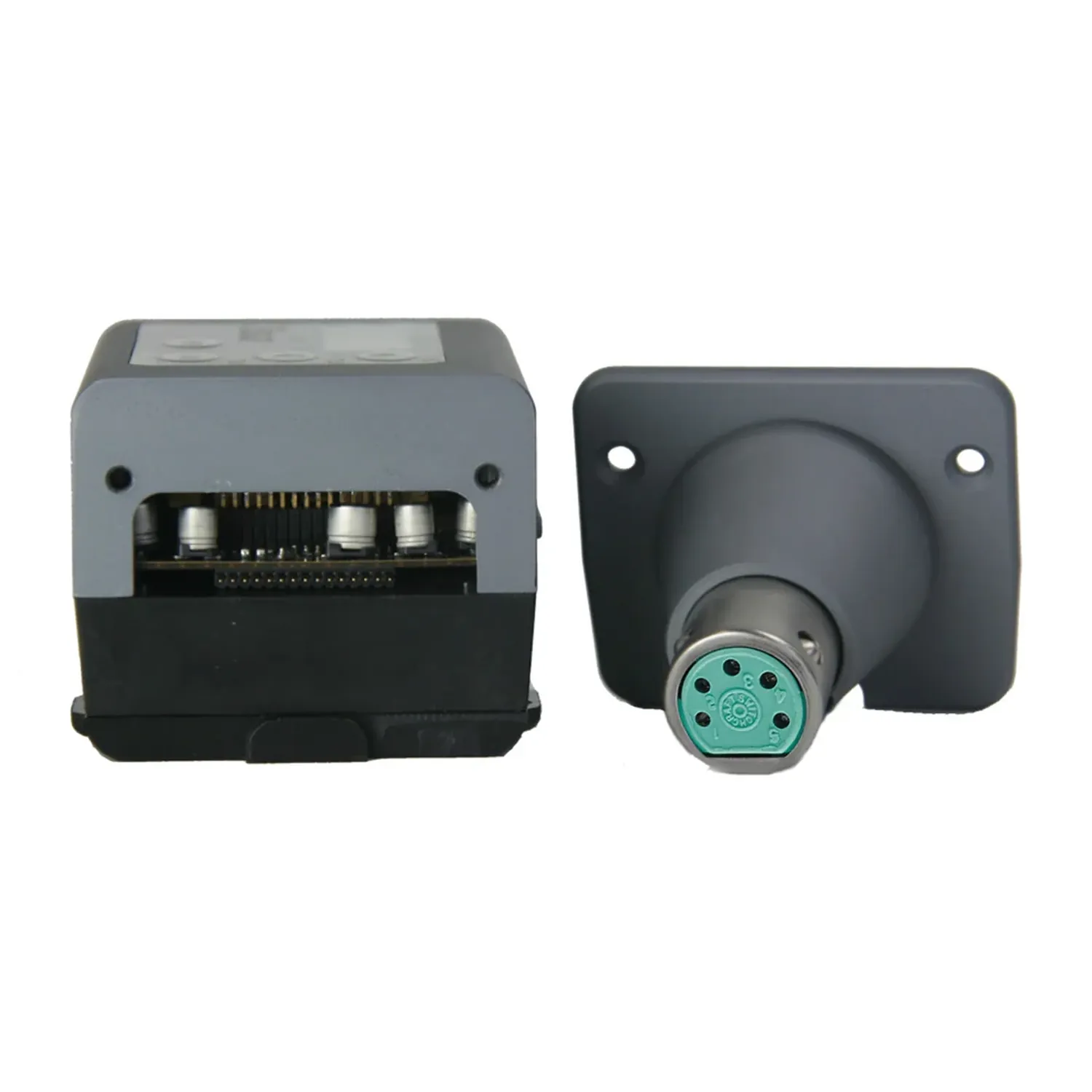

| Stereo Analog 5-Pin XLR | TRX745/S | Analog stereo mics, 5-pin XLR |
| AES 3-Pin XLR | TRX745/AES | AES digital mics, not powered |
| AES42 Powered 3-Pin XLR | TRX745/42 | AES42 digital mics, 10 V power |
What's Included
- TRX745 transmitter
- Cone (as selected)
Specifications
| Transmitter | |
|---|---|
| RF Modulation | Proprietary digital |
| US Frequency Ranges | 512 – 607.9 MHz 614.1 – 615.9 MHz 653.1 – 662.9 MHz |
| Global Frequency Range | 512 – 698 MHz |
| RF Frequency Step | 100 kHz |
| RF Bandwidth | ZHD 50 kHz; XR 200 kHz |
| Channel Separation | ZHD as close as 100 kHz (receiver dependent); XR 400 kHz |
| Antenna Connector | SMA female, 50 Ω |
| Emission Designator | 180KV2E, 100KV2E, 50KV2E |
| FCC | Part 74.861 |
| Power Output | 25, 50, or 100 mW, software selectable (varies by regulation) |
| Audio | |
| Dynamic Range | 126 dB (stereo model 106 dB) |
| Distortion | 0.002% |
| High-Pass Filter | Off or 30 – 220 Hz, in steps |
| Mic Connector | 3-pin or 5-pin XLR |
| Analog Mic Power | 48 V phantom, 10 mA max |
| Digital Mic Power | 10 V, AES42 compatible, 200 mA max |
| Input Range | −60 to −30 dBu |
| Mic Impedance | 4.7 kΩ |
| A/D Conversion | 24-bit |
| Audio Interfaces | Balanced analog mono, balanced stereo, AES42, AES |
| Timecode and Recording | |
| Clock Accuracy | 1.54 PPM (1 frame in 6 hours) |
| Timecode Type | SMPTE |
| Frame Rates | 23.98, 24, 25, 29.97 NDF, 29.97 DF, 30 NDF, 30 DF |
| Media | microSD card |
| File Format | .ZAX |
| ZaxNet Receiver | |
| RF Frequency Range | 2.403 – 2.475 GHz |
| RF Modulation | Digital spread spectrum |
| RF Frequency Step | 1 MHz |
| RF Bandwidth | 1 MHz |
| Channel Separation | 2 MHz |
| Sensitivity | −96 dBm |
| Physical and Power | |
| Dimensions | 5 × 11.5 × 4 cm, H x W x D |
| Weight | 7.5 oz (213 g) with battery |
| Display | Graphic OLED |
| Batteries | 3 x AA |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit zaxcom.com. |
