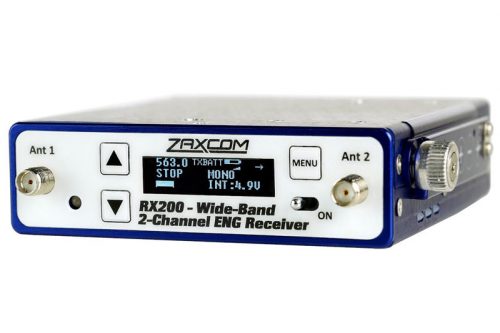

Zaxcom RX200 Compact Battery Powered ENG Receiver
- Compact ENG receiver for camera
- Two channels with embedded timecode
- Up to 12 hours on four AA batteries
$1,995.00 USD
Zaxcom RX200 Compact Battery Powered ENG Receiver
Compact and battery powered, the Zaxcom RX200 is an ENG receiver that tunes 200 MHz of UHF and sends two channels of audio and timecode to a camera.
Its tracking front-end filter covers blocks 20 through 26 and opens a 35 MHz window that keeps out strong signals such as walkie-talkies and wireless follow-focus units. Paired with a Zaxcom camera link transmitter in the bag, it delivers 100% digital audio with embedded SMPTE timecode to the camera.
Outputs
A single TA5 connector carries AES digital audio or analog audio at mic, consumer, or line level. A BNC jack outputs the embedded timecode, also at mic, consumer, or line level, to suit the camera.
Power
Four AA batteries run the RX200 for up to 12 hours. It also takes 6 to 18 V DC through a Switchcraft 760K connector, drawing just 140 mA at 12 V.
Features
- Wideband ENG receiver, blocks 20 through 26
- Two channels from one transmitter
- Tracking front-end filter with a 35 MHz window
- AES or analog audio on one TA5 connector
- BNC timecode output
- Up to 12 hours on four AA batteries
- 6 to 18 V DC external power
- RS422 serial control port
Specifications
| Receiver | |
|---|---|
| RF Channels | 1 |
| Diversity | Antenna switching |
| RF Modulation | Proprietary digital |
| RF Frequency Range | 518 – 698 MHz |
| RF Frequency Step | 100 kHz |
| RF Bandwidth | ZHD96 100 kHz; XR, mono, and stereo 200 kHz |
| Channel Separation | 500 kHz |
| Sensitivity | −114 dBm |
| Antenna Connectors | 2 x SMA female, 50 Ω |
| Analog Output | |
| Outputs | 2, active analog balanced, TA5M |
| Output Level | −35 dBm (mic), −10 dBm (consumer), or 0 dBm (line) |
| Dynamic Range | 116 dB |
| Distortion | 0.002% |
| Frequency Response | 20 Hz – 16 kHz |
| D/A Conversion | 24-bit |
| Digital Output | |
| Format | AES3 balanced, 32 kHz |
| Dynamic Range | 123 dB |
| Frequency Response | 20 Hz – 16 kHz |
| Connector | TA5M |
| Timecode | |
| Output Connector | BNC |
| Output Level | 0.01, 0.2, 0.5, 0.9, or 1.5 V p-p |
| Frame Rates | 23.98, 24, 25, 29.97 NDF, 29.97 DF, 30 |
| Physical and Power | |
| External Power | 6 – 18 V DC (140 mA at 12 V DC) |
| Power Connector | Switchcraft 760K |
| Batteries | 4 x AA |
| Battery Life | Lithium-ion up to 12 hours; NiMH up to 8.5 hours; alkaline up to 7 hours |
| Serial Control Port | RS422 |
| Dimensions | 25 × 89 × 89 mm (1.0 × 3.5 × 3.5 in) |
| Weight | 7.7 oz (218 g) without batteries |
| Display | Graphic white OLED |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit zaxcom.com. |
