Wisycom SPL2216/SPL2208 Wideband Active Antenna Combiner

Feeding up to 16 diversity receivers (SPL2216) or 8 (SPL2208) from your antennas, the Wisycom SPL2216/SPL2208 is a wideband active antenna combiner and splitter.

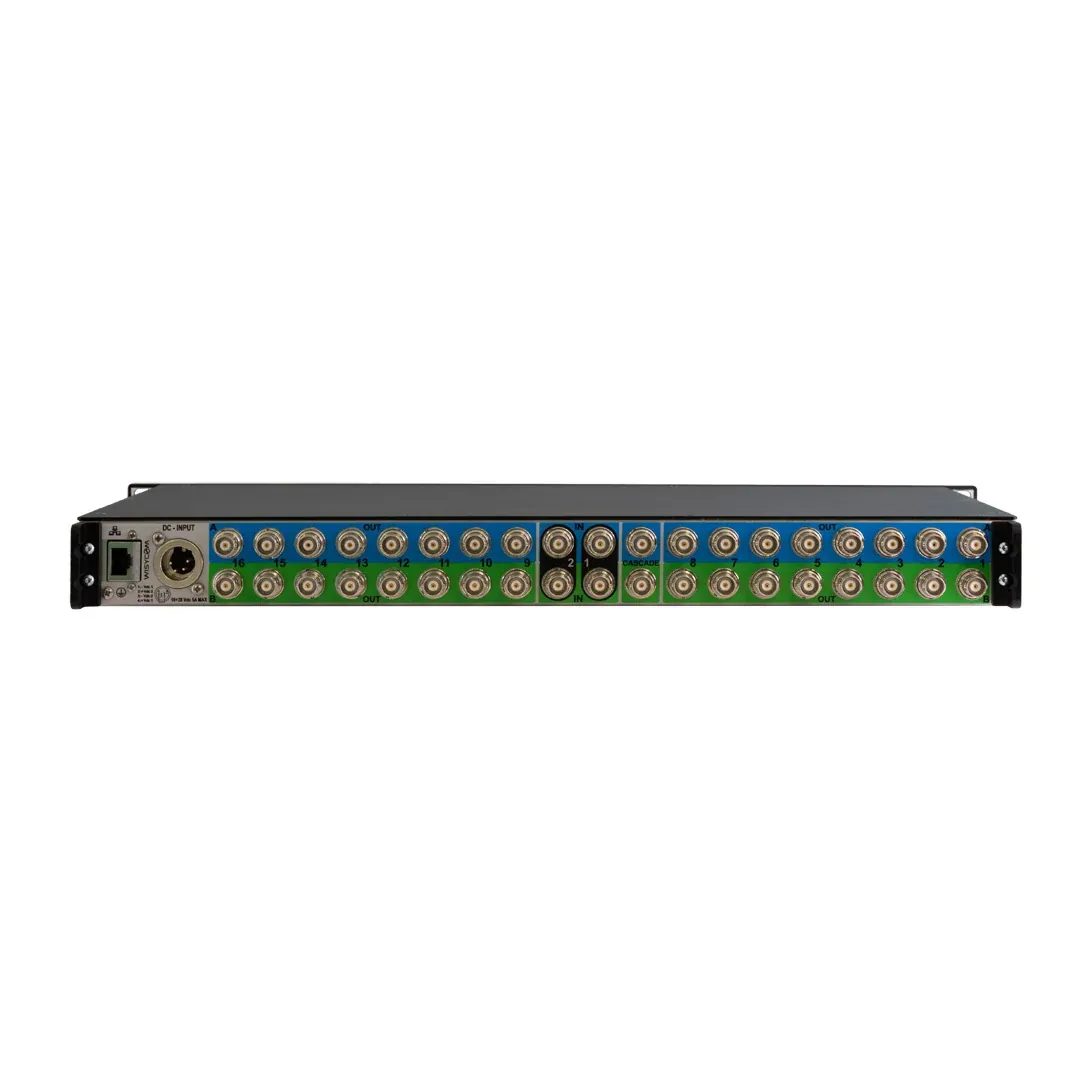

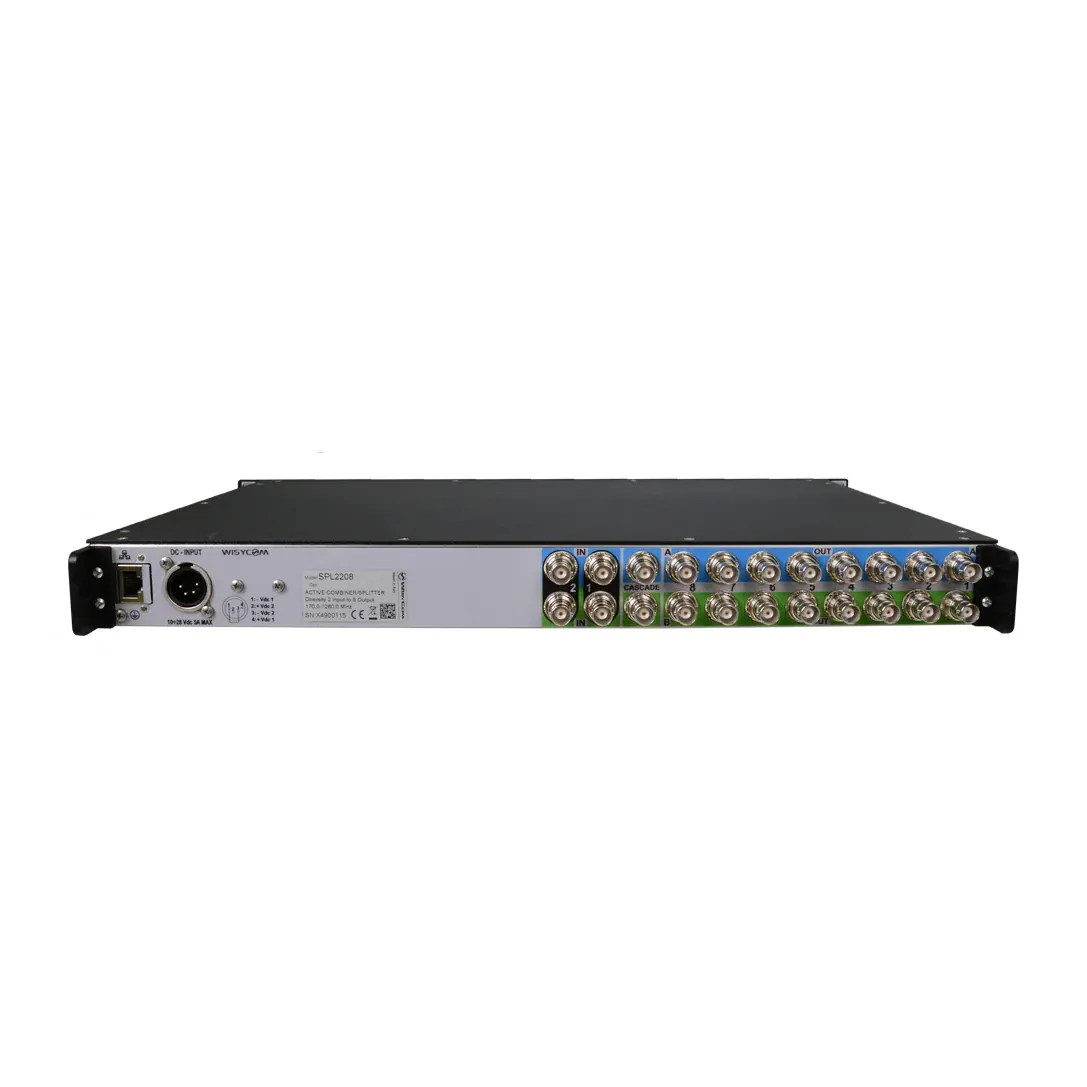

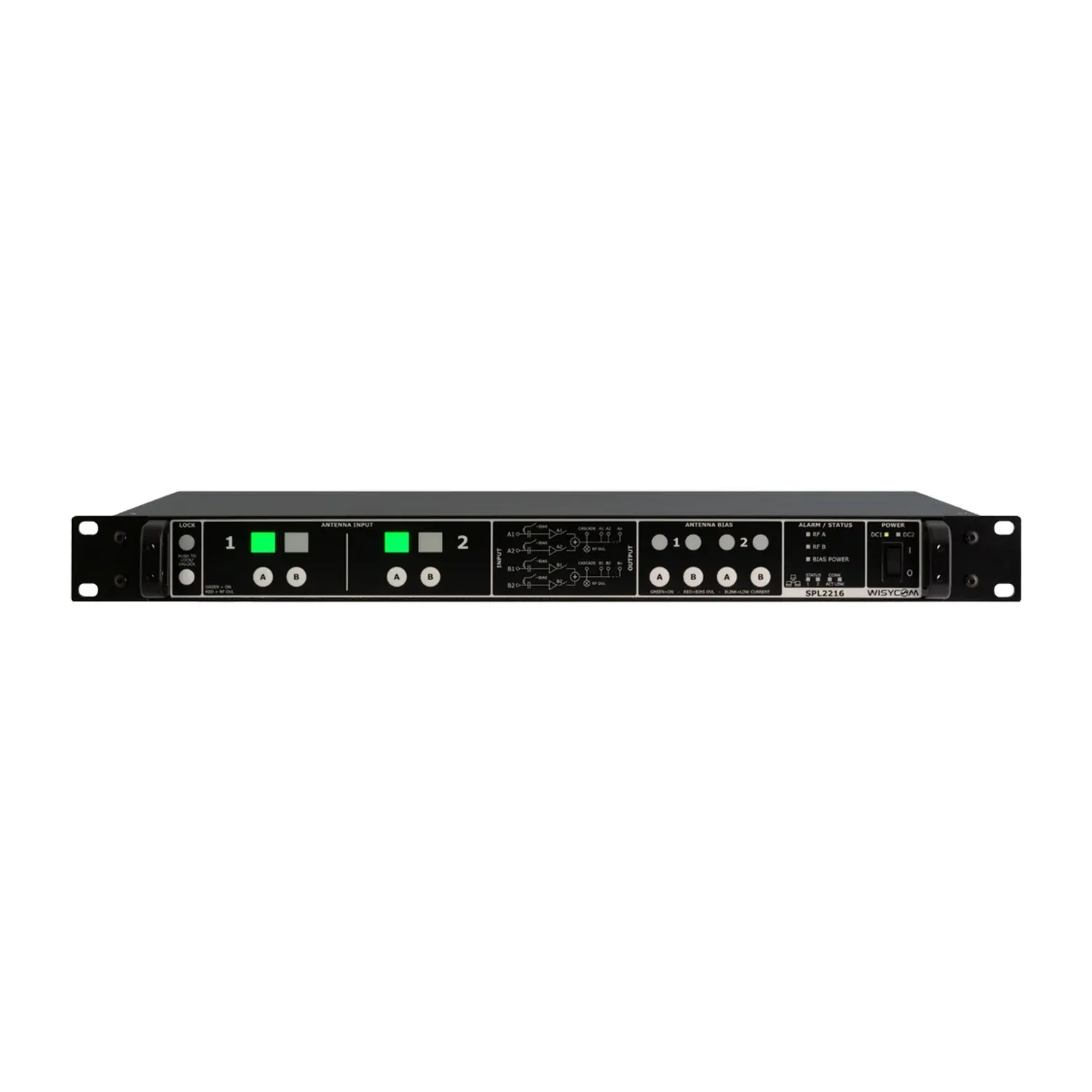

Two diversity input pairs, four antenna inputs in all, are combined and then split to 16 × 2 or 8 × 2 diversity outputs. A front panel button switches each input feed, for a basic matrix selection between two diversity areas. A cascade output links a second unit or monitoring gear.

It covers 170 to 1260 MHz with the RF robustness and linearity that high-density, equally spaced frequency plans need, such as those of Wisycom’s MTP40S Linear transmitters.

Each input supplies antenna bias and runs diagnostics. Through the Wisycom Remote Antenna Protocol, the unit monitors and controls BFA boosters and LFA antennas over the same coax. Over Ethernet, Wisycom Wireless Manager on a PC gives you every function, with presets and real-time monitoring. Two DC inputs on a 4-pin XLR male connector provide a redundant 10 to 28 V supply.

Features

• Feeds 16 (SPL2216) or 8 (SPL2208) diversity receivers
• 170 to 1260 MHz
• Combines or selects from 4 antenna inputs
• Front panel buttons for basic matrix selection between 2 areas
• Antenna bias and diagnostics on each input
• Remote Antenna Protocol control of BFA boosters and LFA antennas
• Ethernet control with Wisycom Wireless Manager
• Redundant 10 to 28 V DC supply
• Cascade output for a second unit or monitoring
