Wisycom MAT288-X1 Wideband Diversity Matrix/Combiner

The Wisycom MAT288-X1, a wideband diversity matrix combiner, routes the antenna feeds from eight areas to your receivers and reroutes those feeds on the fly with a matrix of solid state switches.

The MAT288 is built for production centers where a control room serves several studios, theaters that sometimes combine the main stage with the foyer or lobby, and ENG or OB van facilities. Software sets it as an 8:1, 8:4, or 2 × 4:2 diversity combiner across 150 to 1160 MHz, so wireless gear can be shared between areas.

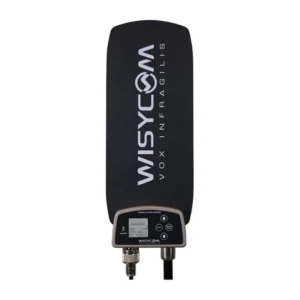

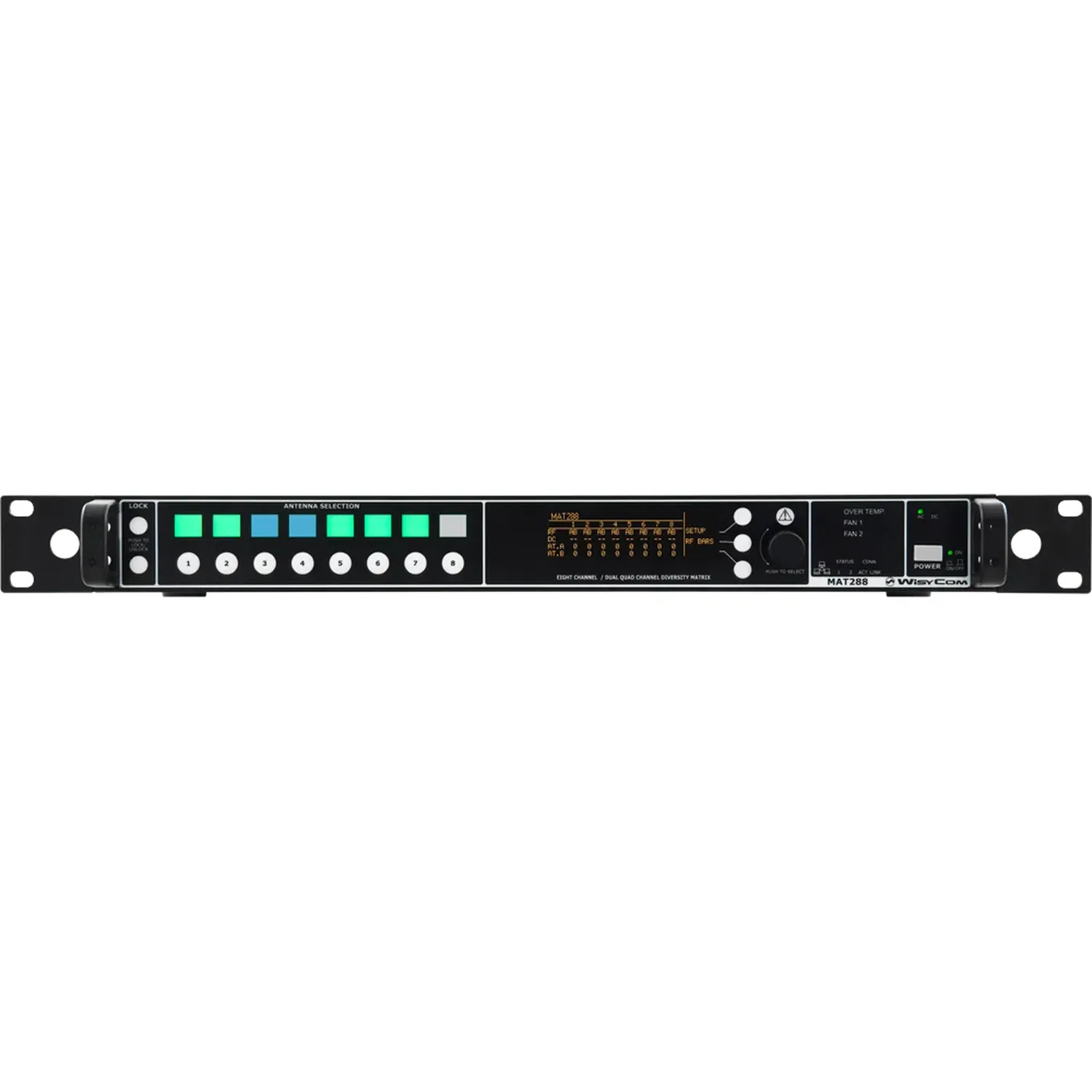

Each of the eight diversity inputs has a programmable attenuator and its own switchable antenna booster supply, with voltage and current monitoring and alarms. A two-way data link over the input coax controls the gain and bandwidth of Wisycom active antennas. A light window takes your own labels for the eight areas, and every function can be run and monitored over Ethernet.

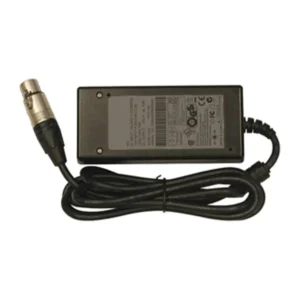

A DC version is a available which adds a DC input beside the AC supply for redundant power. The DC power supply is sold separately.

Features

Diversity combiner for 8 antenna areas
8:1, 8:4, or 2 × 4:2, set in software
150 to 1160 MHz
Programmable attenuator on each input
Switchable antenna booster supply per input, with monitoring and alarms
Remote control of active antennas over the coax
Ethernet management and alarm monitoring
Redundant AC and DC power (DC supply sold separately)

Specifications

RF
Frequency Range	150 to 1160 MHz (MAT288-X1)
Gain	7 dB (8:1), 0 dB (8:4), 7 dB (2 × 4:2)
OIP3	30 dBm typical (8:1), 24 dBm (8:4), 30 dBm (2 × 4:2)
Amplifier Linearity	±1 dB typical
Noise Figure	5.5 dB per channel
Antenna Booster Power	+12 V, 800 mA max on ports 1A, 1B, 5A, and 5B; 230 mA max on the others

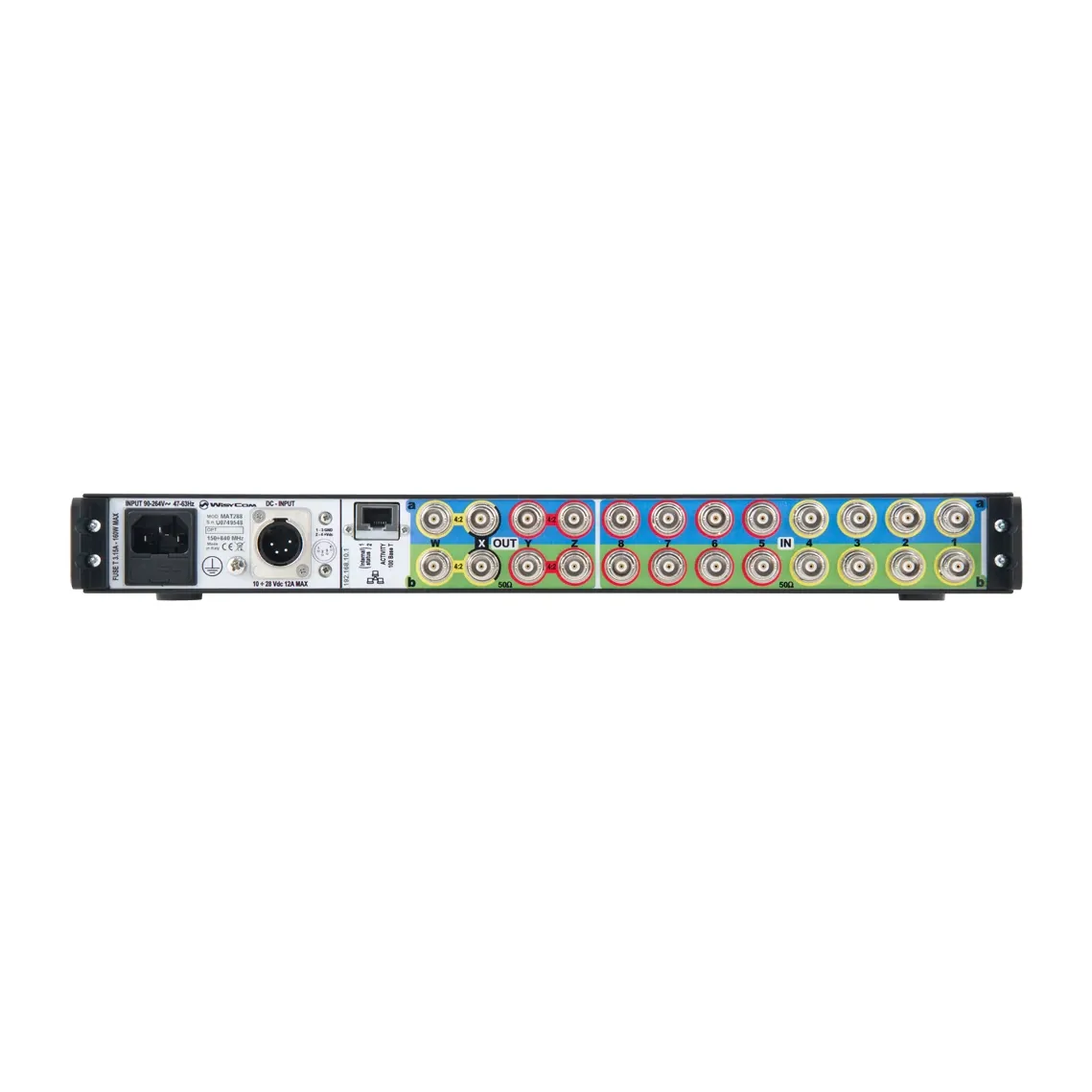

Connectors	Inputs 8 + 8 BNC female; outputs 8 BNC female
Impedance	50 Ω
Control and Power
Control	10/100 Base-TX Ethernet
Display	Yellow OLED, 64 × 256 pixels
AC Power	90 to 264 V AC, 47 to 63 Hz, 50 W max (fuse protected)
DC Power	10 to 28 V DC, 12 A max (fuse protected)
Power Consumption	120 W max
Physical
Operating Temperature	−25 to +55 °C (−13 to 131 °F)
Construction	Aluminum, black finish
Dimensions (H x W x D)	44 × 483 × 398 mm (1.7 × 19 × 15.7 in)
Weight	4.4 kg (9.7 lb)
Latest Specifications	Specifications are subject to change without prior notice. For current information, visit wisycom.com.
