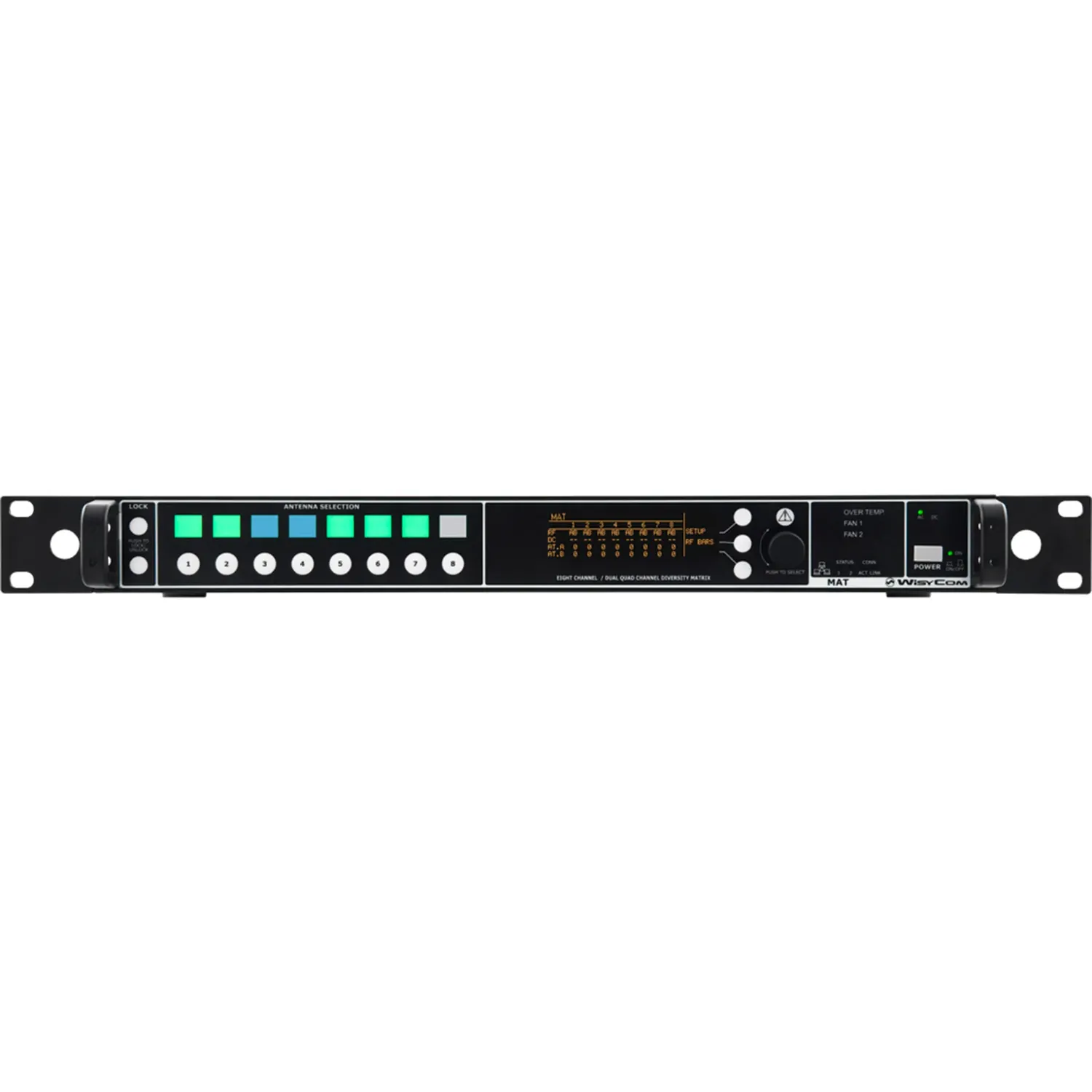

Wisycom MAT244 Wideband Diversity Matrix/Combiner
- Programmable diversity matrix combiner, 150 to 1160 MHz
- 4:2 diversity or 8:4 and 8:1 non-diversity modes
- Remote management over Ethernet
Delivery times may vary for the DC power version. Call for details.
800-241-8994
From $4,260.00 USD
Wisycom MAT244 Wideband Diversity Matrix/Combiner
The Wisycom MAT244, a wideband programmable diversity matrix combiner, manages RF across a multi-site production, with every function available remotely over Ethernet.
It routes RF in several configurations, controls antennas remotely, sets attenuation or boost for each area, and monitors RF and interference with a built-in RF meter. You set it up locally or in PC software as a 4:2 diversity combiner, or as an 8:4 or 8:1 non-diversity combiner.
The X1 version sold here covers 150 to 1160 MHz. Each input has a programmable attenuator and an antenna booster supply you switch on independently, with voltage and current monitoring and an alarm. You control the boosters’ gain and bandwidth remotely over a two-way data link on the input coax.
A light window lets you type your own name for each of the 8 areas.
Features
- Diversity 4:2 or non-diversity 8:4 and 8:1 combining, set in software
- 150 to 1160 MHz (X1 version)
- Remote management and alarm monitoring over Ethernet
- Antenna booster supply switched on each input
- Voltage and current monitoring on each booster supply, with alarm
- Programmable attenuator on each input
- Remote booster gain and bandwidth control over the coax
- Light window for naming the 8 areas
Available Options
| Power Input | Part Number | Notes |
|---|---|---|
| AC and DC Power | MAT244_X1-DC | Adds a DC input for redundant power; the PSP15V4A0-X supply is sold separately |
| AC Power | MAT244_X1 | Built-in 90 to 264 V AC supply |
Specifications
| RF | |
|---|---|
| Frequency Range | 150 to 1160 MHz (MAT244-X1) |
| Combiner Modes | 4:2 diversity; 8:4 or 8:1 non-diversity |
| Input to Output Gain | 7 dB (8:1), 0 dB (8:4), 7 dB (4:2) |
| OIP3 | 30 dBm typical (8:1), 24 dBm typical (8:4), 30 dBm typical (4:2) |
| Amplifier Linearity | ±1 dB typical |
| Noise Figure | 5.5 dB on each channel |
| Antenna Booster Power | +12 V DC, 800 mA max on ports 1A and 1B (2 × 4:2) or ports 1 and 5 (other configurations); +12 V DC, 230 mA max on the other ports |
| Input Connectors | 8 x BNC female |
| Output Connectors | 4 x BNC female |
| Impedance | 50 Ω |
| Control and Power | |
| Control | 10/100 Base-TX Ethernet |
| Display | Yellow OLED, 64 × 256 pixels |
| Power | 90 to 264 V AC, 47 to 63 Hz, T2A fuse, 50 W max |
| Physical | |
| Operating Temperature | −25 to +55 °C (−13 to 131 °F) |
| Material | Aluminum, black varnish |
| Dimensions (H x W x D) | 44 × 483 × 398 mm (1.7 × 19 × 15.7 in) |
| Weight | 3.7 kg (8.16 lb) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit wisycom.com. |
