Sony UWP-D21 Bodypack Wireless Microphone Package (941 to 960 MHz)
- UTX-B40 bodypack transmitter, URX-P40 receiver, and ECM-V1BMP lavalier
- NFC SYNC for quick, secure channel setting
- True double-tuner diversity reception
$655.00 USD
Sony UWP-D21 Bodypack Wireless Microphone Package (941 to 960 MHz)

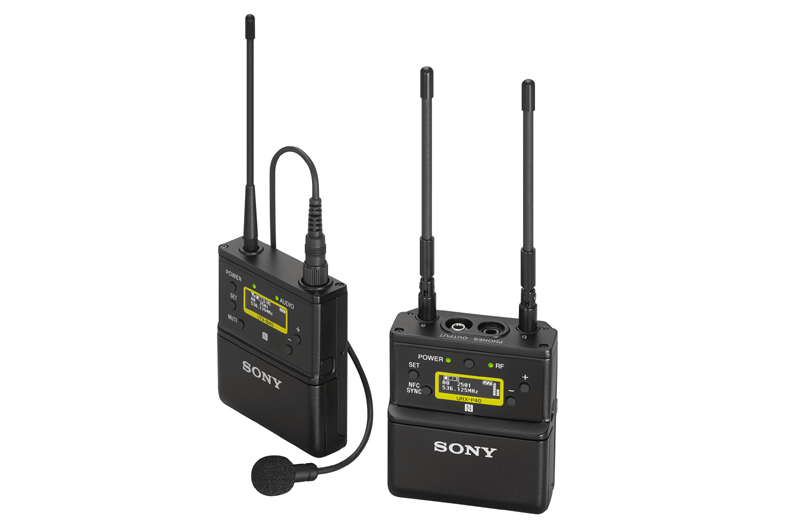

The Sony UWP-D21 gives a camera a wireless lavalier link in one box: a UTX-B40 bodypack transmitter, an ECM-V1BMP omnidirectional lavalier, and a URX-P40 true diversity receiver.
This one is the 90UC block, tuning 941.625 to 951.875 MHz, 953.000 to 956.125 MHz, and 956.625 to 959.625 MHz. NFC SYNC sets the channel when the transmitter is held next to the receiver, and auto gain mode looks after the level, with a +15 dB boost for an off-mic voice. The supplied shoe mount adapter holds the receiver on a camera, and cables are included for a 3.5 mm or an XLR input.
With the optional SMAD-P5 adapter, compatible Sony cameras take a direct digital signal, power the receiver, and show its RF level, mute status, and low-battery alert in the viewfinder. Two AA batteries run the transmitter for about 8 hours and the receiver for about 6, and USB Type-C can power either one.
Features
- UTX-B40 bodypack transmitter, URX-P40 receiver, and ECM-V1BMP lavalier
- NFC SYNC for quick, secure channel setting
- True double-tuner diversity reception
- Auto gain mode and a +15 dB boost for off-mic audio
- Line input on the transmitter
- Channel memory for switching between two transmitters
- Headphone output, with a monitor mode for use as an ear monitor
- Works with the Sony WL-800, UWP, and UWP-D series
- OLED display that reads well indoors and outdoors
- Digital audio to compatible Sony cameras through the optional SMAD-P5 adapter
What's Included
- UTX-B40 bodypack transmitter
- URX-P40 receiver
- ECM-V1BMP omnidirectional lavalier microphone
- Microphone clip
- Windscreen
- 2 × belt clips
- SMAD-P4 shoe mount adapter
- 3.5 mm to 3.5 mm output cable
- 3.5 mm to XLR male output cable
Specifications
| Carrier Frequencies | 90UC: 941.625 to 951.875 MHz, 953.000 to 956.125 MHz, and 956.625 to 959.625 MHz |
|---|---|
| Transmitter | UTX-B40 bodypack transmitter |
| Receiver | URX-P40 portable receiver |
| Reception Type | True diversity |
| Microphone | ECM-V1BMP omnidirectional electret condenser lavalier |
| RF Output Power | 30 mW/5 mW selectable |
| Transmitter Input | 3.5 mm 3-pole locking mini jack |
| Frequency Response | 23 Hz to 18 kHz (typical) |
| Transmitter Dimensions | 63 × 73 × 19 mm (2 1/2 × 2 7/8 × 3/4 in), without the antenna |
| Transmitter Weight | Approx. 83 g (2.9 oz), without batteries |
| Receiver Output Connector | 3.5 mm 3-pole locking mini jack; external connection |
| Headphone Output | 3.5 mm mini jack, max. 10 mW (16 ohm) |
| Power Requirements | DC 3.0 V (2 AA alkaline batteries); DC 5.0 V (USB Type-C), each unit |
| Battery Life | Transmitter approx. 8 hours at 30 mW; receiver approx. 6 hours |
| Receiver Dimensions | 63 × 70 × 31 mm (2 1/2 × 2 7/8 × 1 1/4 in), without the antenna |
| Receiver Weight | Approx. 131 g (4.6 oz), without batteries |
