Shure UniPlex UL4 Cardioid Lavalier Microphone

  • Cardioid subminiature lavalier for speech
  • Paintable 1.6 mm Plex cable
  • TA4F or LEMO3, four colors

From $329.00 USD

Brand: Categories: , Tags: , , , Trew SKU: SHUUNIP

Shure UniPlex UL4 Cardioid Lavalier Microphone

For presenters and guest speakers, the Shure UniPlex UL4, a cardioid lavalier, picks up the voice and turns away from the room, in a 5 mm subminiature body.

Its custom cardioid element suits speech in broadcast, corporate, and conference work, in lecture halls, meeting rooms, and theaters. High RF immunity keeps it clean with Shure digital wireless.

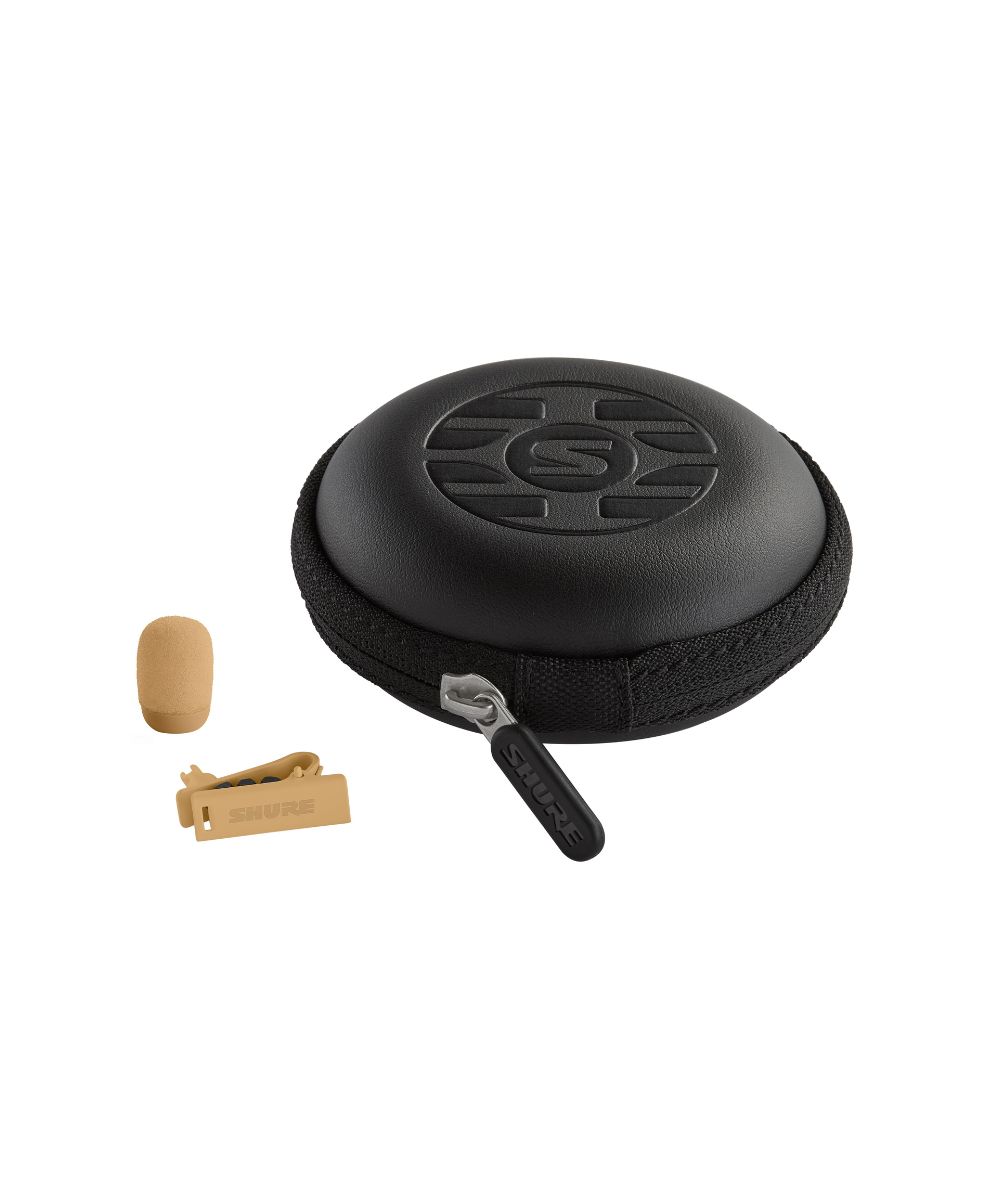

The 1.6 mm Plex cable, first used on TwinPlex, is paintable and has no memory effect. The TA4F version plugs into every Shure TA4F bodypack, and the LEMO3 version suits Shure LEMO bodypacks such as the ADX1, UR1M, and ULXD1. Each mic comes with a storage pouch, a tie clip, and a snap-fit windscreen in its own color, and spare windscreens come in packs of three.

Features

  • 5 mm cardioid subminiature lavalier
  • Custom cardioid element for speech
  • Paintable 1.6 mm Plex cable, no memory effect
  • High RF immunity with Shure digital wireless
  • TA4F or LEMO3 connector
  • Black, cocoa, tan, or white

Available Options

Connector Colors Fits

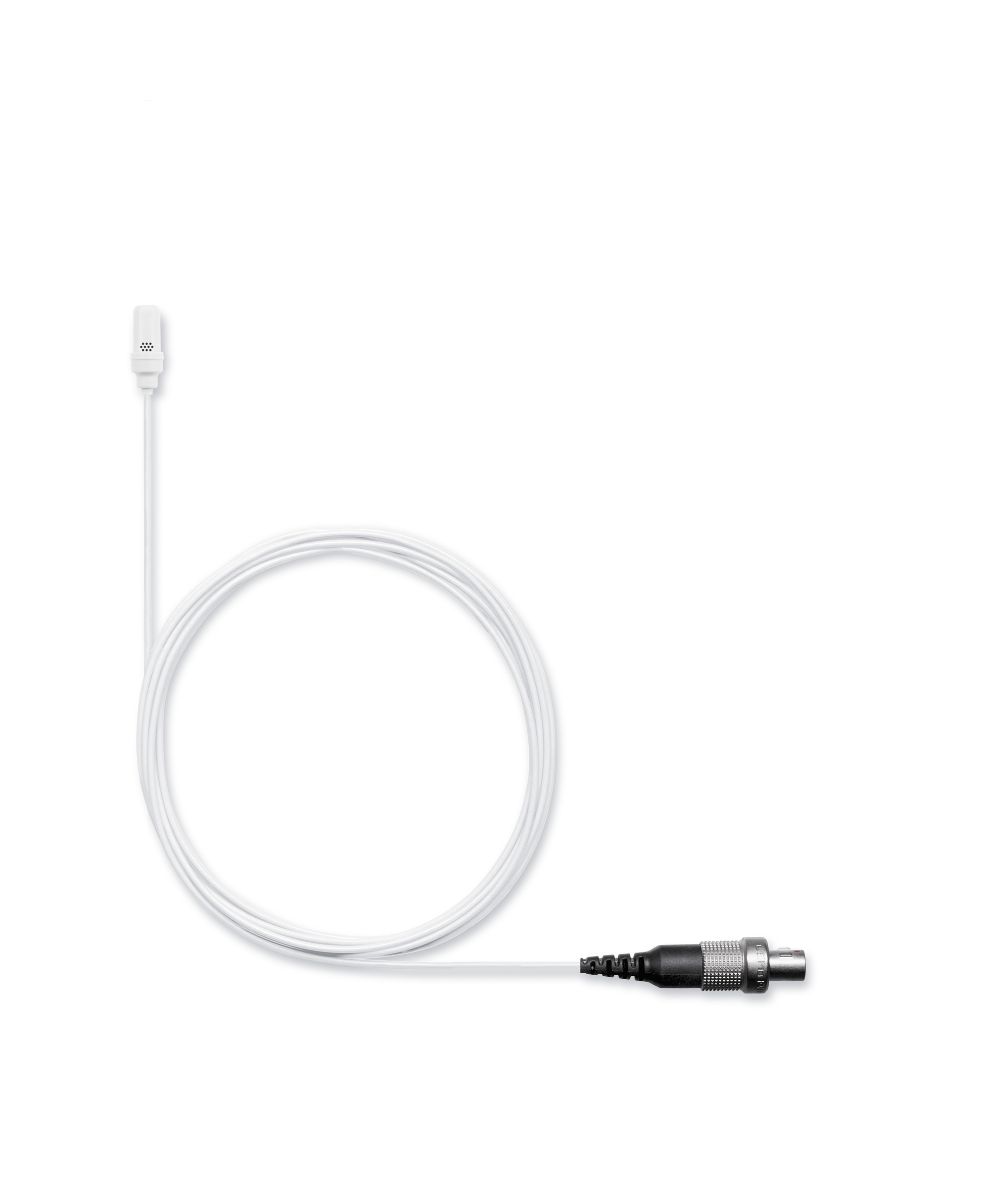

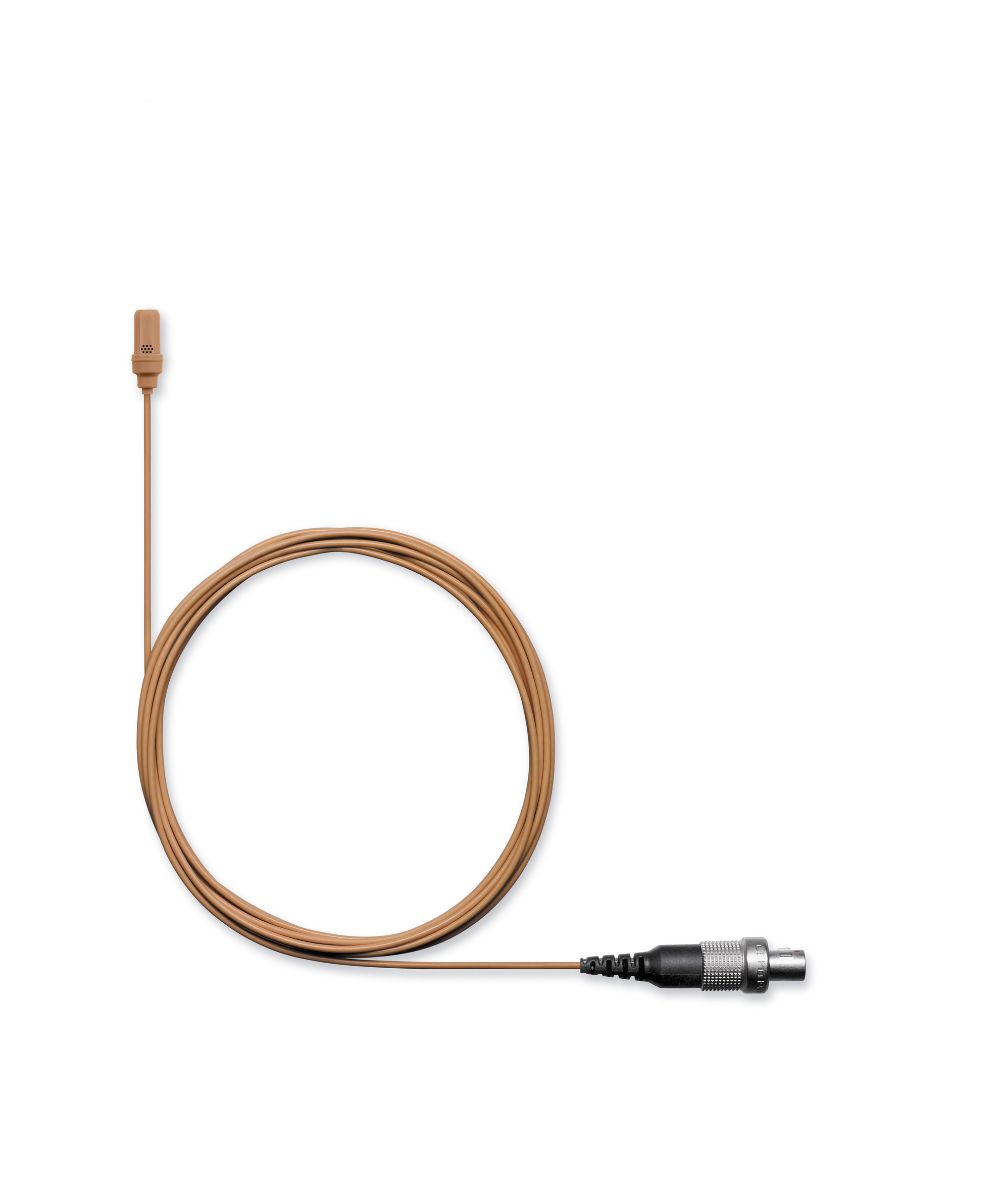

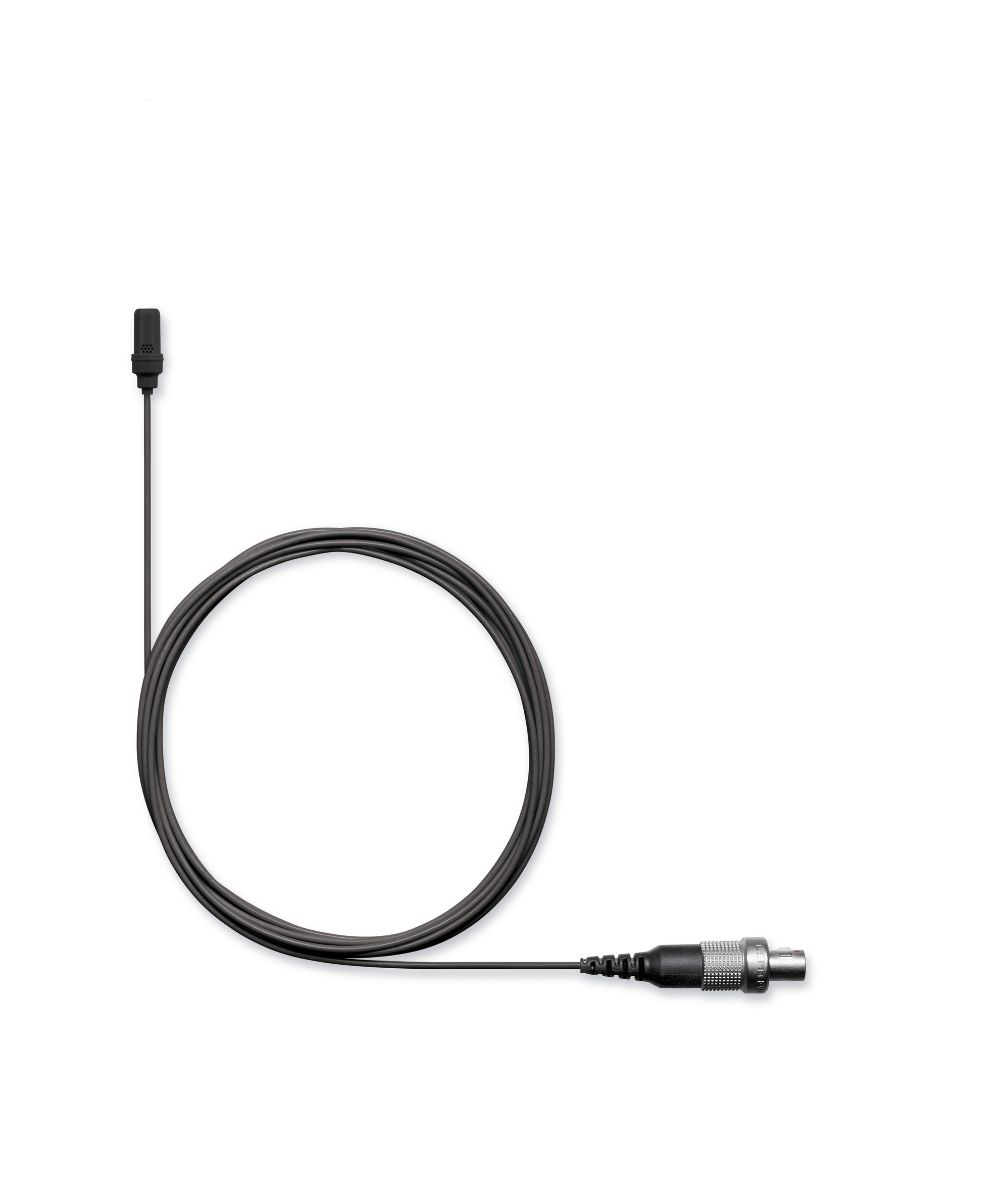

LEMO3 Black, Cocoa, Tan, White Shure LEMO bodypacks (ADX1, UR1M, ULXD1)

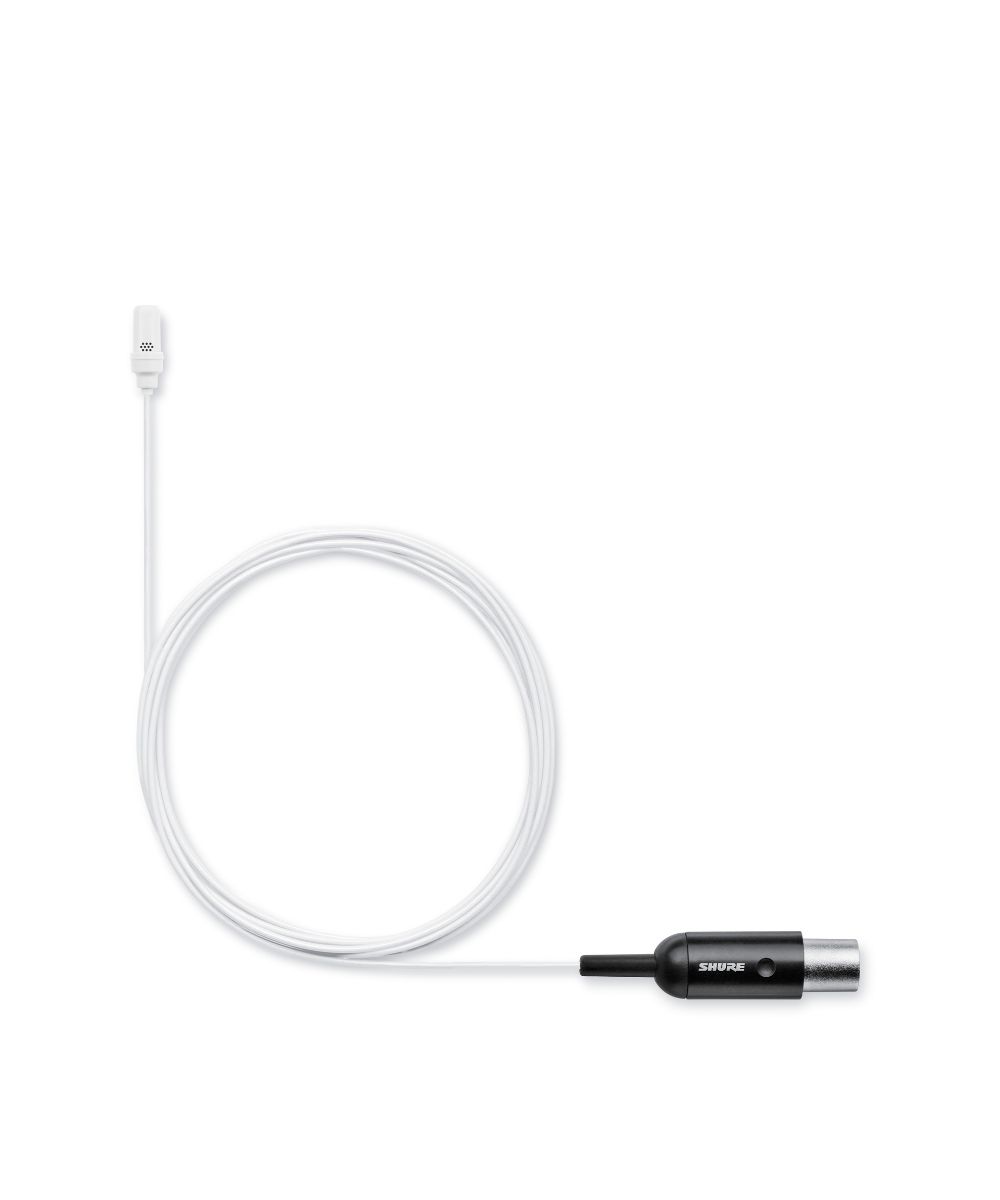

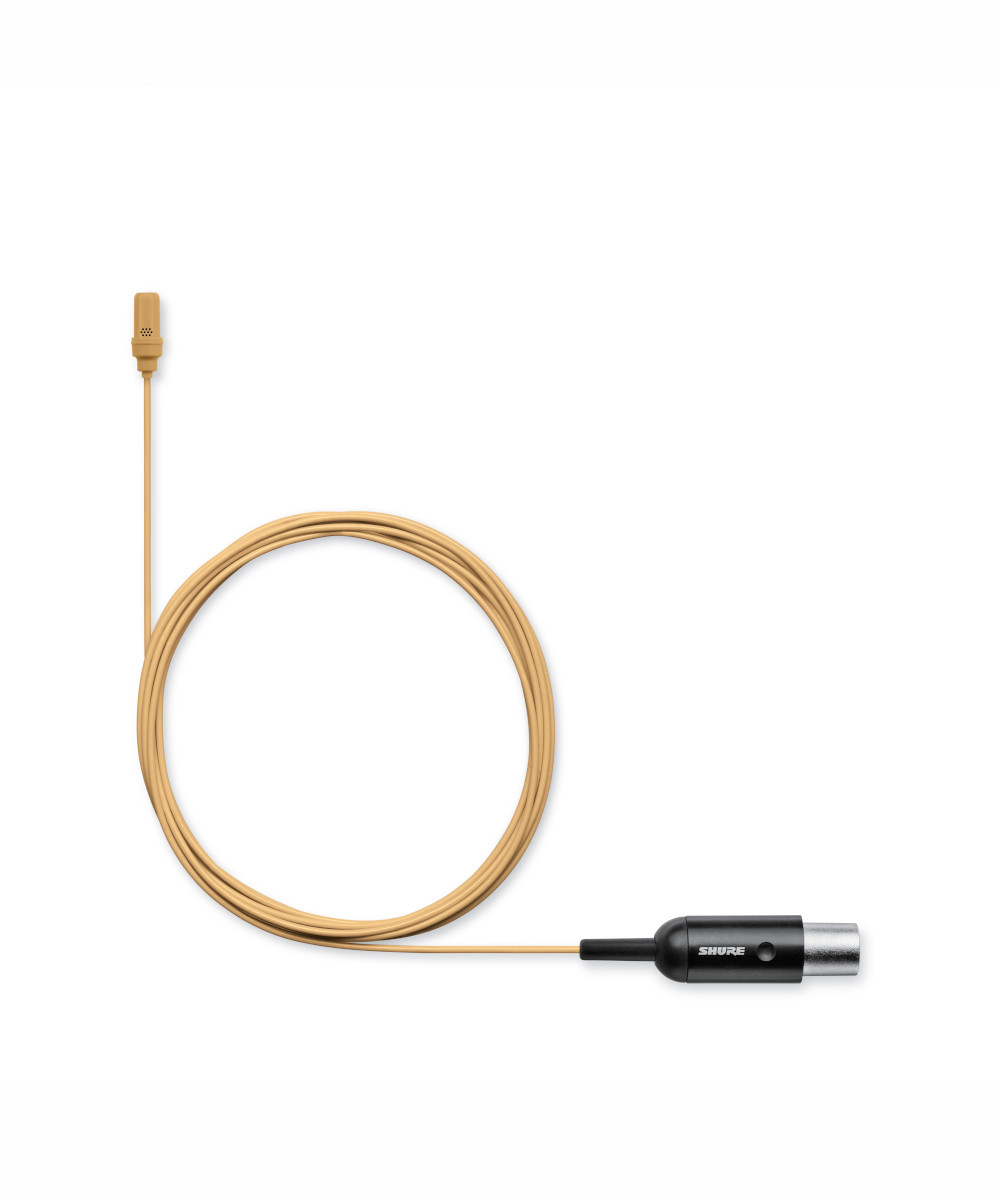

TA4F Black, Cocoa, Tan, White Shure TA4F bodypacks

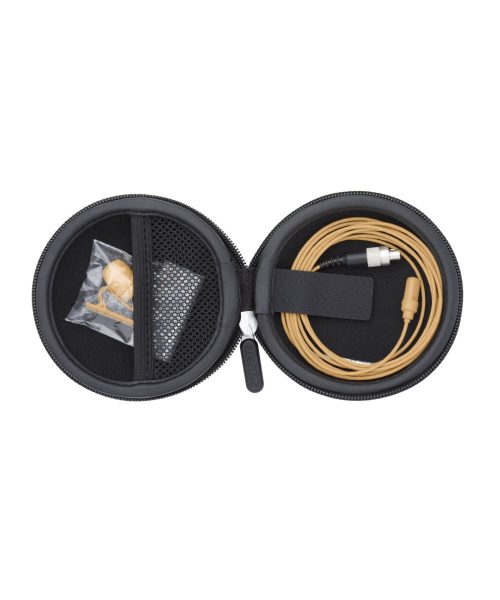

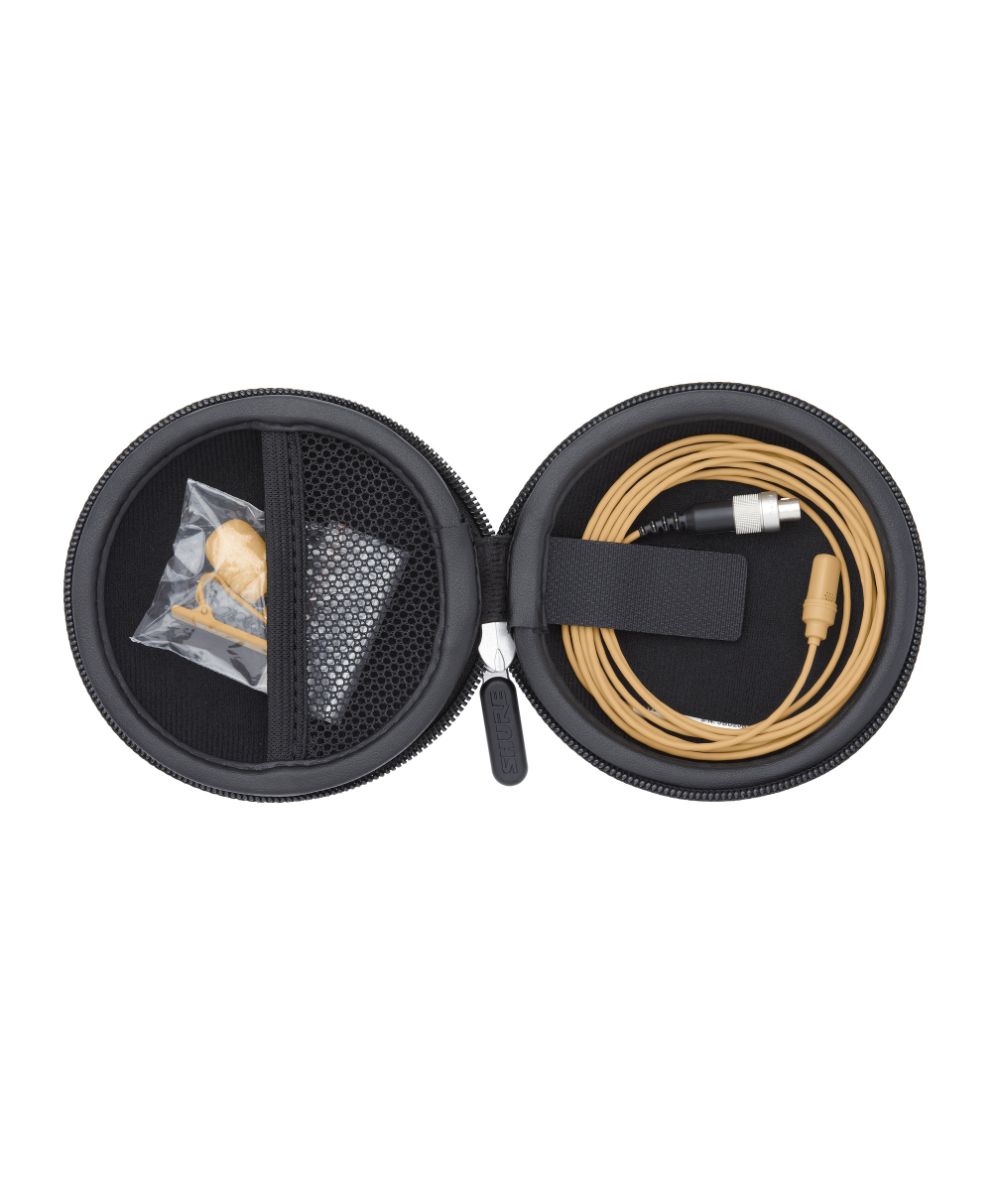

What's Included

  • UL4 cardioid lavalier
  • Single tie clip
  • Snap-fit windscreen
  • Storage pouch

Specifications

Microphone
Capsule MEMS
Polar Pattern Cardioid
Frequency Response 40 Hz – 20 kHz
Self-Noise 32 dB SPL-A
Signal-to-Noise Ratio 62 dB-A
Maximum SPL 130 dB SPL, 1 kHz at 1% THD, typical
Dynamic Range 98 dB, typical
Cable 1.6 mm diameter, 1.67 m (66 in)
Capsule Size 17 mm long, 5 mm diameter
Weight 12.5 g (0.4 oz)
Housing Molded ABS
Sensitivity TA4F −42 dBV/Pa; LEMO3 −37 dBV/Pa
Bias Voltage 3.5 – 5 V DC, 5.5 V DC max
Latest Specifications Specifications are subject to change without prior notice. For current information, visit www.shure.com.
