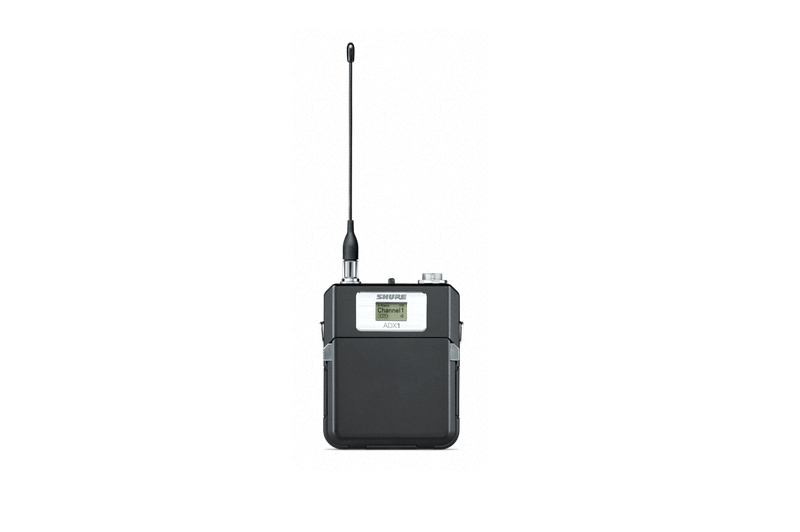

Shure ADX1 Axient Digital Bodypack Transmitter
- Axient Digital bodypack in a lightweight metal case
- TA4 or LEMO3 input
- Up to 10 hours on the SB910 battery
From $1,835.00 USD
Shure ADX1 Axient Digital Bodypack Transmitter
Built for long days on a performer, the Shure ADX1 is an Axient Digital bodypack transmitter with a lightweight, moisture-resistant metal case and a flexible quarter-wave antenna.
The ADX1 tunes across up to 184 MHz, offers Standard and High Density transmission (High Density fits more channels into a crowded band), and sets RF power to 2, 10, or 40 mW. ShowLink, Shure’s 2.4 GHz control link, lets the receiver change the transmitter’s settings in real time and move it to a clear frequency when interference appears.
An SB910 rechargeable battery powers the pack for up to 10 hours and reports its charge precisely. External contacts let the ADX1 charge in a docking charger such as the SBC240. Choose the TA4 or LEMO3 input to match your microphone. Two ADX1 packs can also be paired for frequency diversity.
Features
- TA4 or LEMO3 input
- Tuning range up to 184 MHz
- Standard and High Density modes
- 2, 10, or 40 mW RF power
- ShowLink remote control and interference avoidance
- AES-256 encryption
- Up to 10 hours on an SB910 battery
- Contacts for docked charging
- Backlit LCD with menu lockout
What's Included
- SB910 rechargeable battery
- Quarter-wave antenna
- Belt clip
- Zipper bag
Specifications
| RF | |
|---|---|
| Frequency Band | G57: 470 – 616 MHz (gap from 608 to 614 MHz) |
| Tuning Range | Up to 184 MHz, by region |
| RF Power | 2, 10, or 40 mW, by region |
| Transmission Modes | Standard (350 kHz spacing) or High Density (125 kHz spacing) |
| Line-of-Sight Range | 100 m (300 ft) |
| Encryption | AES-256 |
| Antenna | Quarter-wave, SMA |
| ShowLink | 2.40 – 2.4835 GHz, IEEE 802.15.4 |
| Audio | |
| Inputs | TA4M (910 kΩ) or LEMO3 (8.2 kΩ) |
| Maximum Input Level | 8.5 dBV pad off, 20.5 dBV pad on |
| Mic Offset | −12 to 21 dB in 1 dB steps |
| Frequency Response | 20 Hz – 20 kHz |
| Power and Physical | |
| Battery | SB910 rechargeable lithium-ion, up to 10 hours at 10 mW |
| Dimensions | 91 × 68 × 19 mm (3.58 × 2.68 × 0.75 in) H x W x D |
| Weight | 142 g (5.0 oz) without battery |
| Housing | Aluminum |
| Operating Temperature | −18 to 45 °C (0 to 113 °F) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
