Shure SLXD14D+ Dual Digital Wireless Bodypack System
- Dual digital wireless bodypack system
- SLXD4D+ receiver, two SLXD1+ bodypacks
- G57 band, 470 to 608 MHz
$1,599.00 USD
Shure SLXD14D+ Dual Digital Wireless Bodypack System

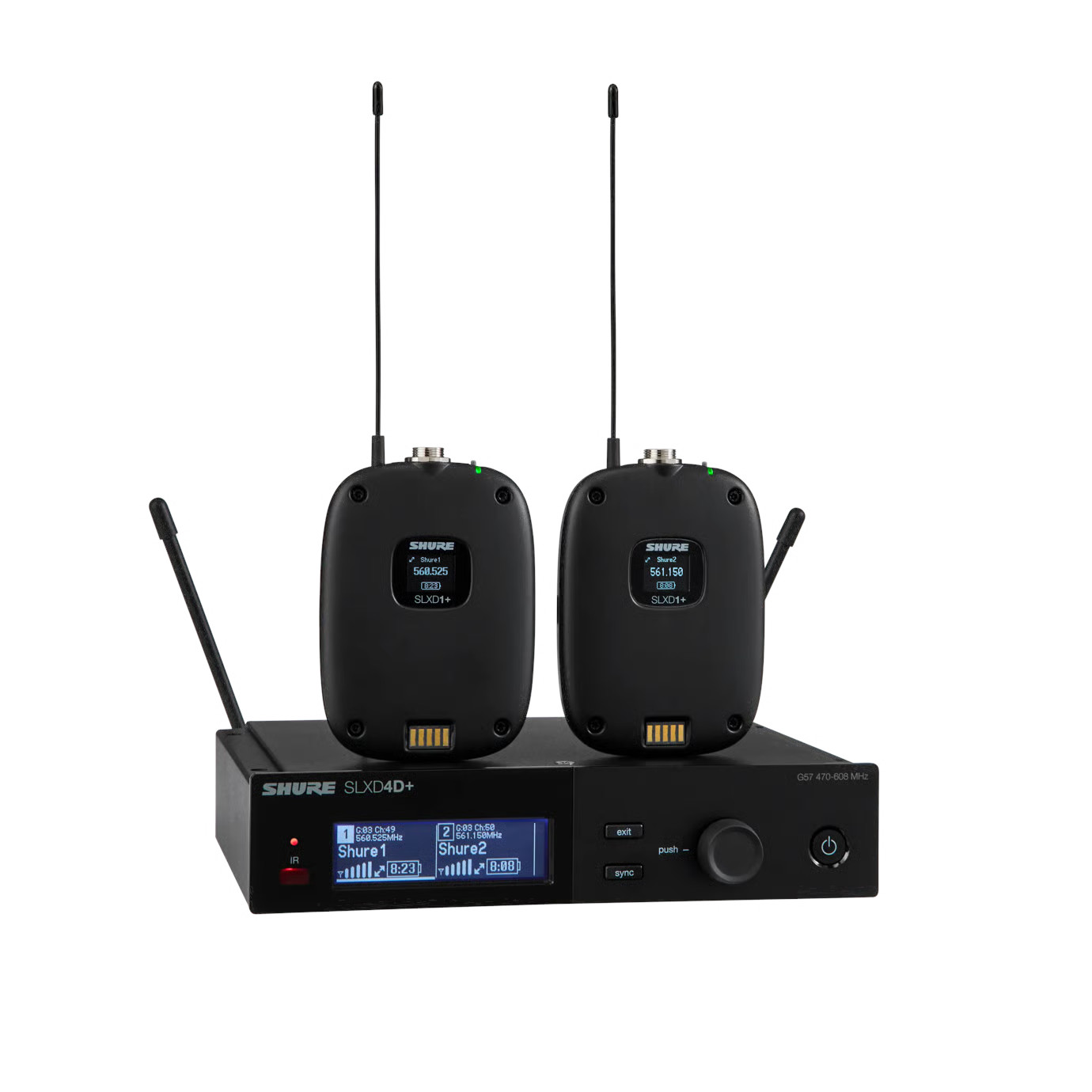

The Shure SLXD14D+ pairs the SLXD4D+ dual-channel receiver with two SLXD1+ bodypack transmitters, a complete two-channel digital wireless system for lavaliers, headsets, or instruments.
SLX-D+ tunes across a wide 138 MHz range, here the G57 band of 470 to 608 MHz, with transparent 24-bit audio and more than 118 dB of dynamic range. Up to 11 systems run together in a 6 MHz TV band and up to 14 in an 8 MHz band.
ShowLink Ease keeps transmitter and receiver linked after one IR sync, so the receiver can change the transmitter’s frequency, RF power, and lock settings and update the transmitter’s firmware without a resync. Patented digital feedback reduction places up to 16 filters per channel, and AES-256 encryption secures the audio.
The receiver’s menu walks through a frequency scan for one receiver or a whole networked system. It has XLR and 1/4 in outputs with a mic/line switch, BNC antenna inputs, and an Ethernet port. Audio summing combines both channels onto one output for a mixer short on inputs.
Each SLXD1+ bodypack takes a microphone or instrument cable on its TA4M input. SLX-D+ transmitters run up to 8 hours on two AA batteries or a Shure SB903 rechargeable. Wireless Workbench desktop software and the Wireless Workbench Mobile app monitor and control the system. The receiver also works with legacy SLX-D transmitters in the G58, H55, or J52 bands, and legacy SLX-D receivers can use SLX-D+ transmitters without ShowLink Ease.
Features
- SLXD4D+ dual-channel receiver and two SLXD1+ bodypacks
- 24-bit digital audio, over 118 dB dynamic range
- 138 MHz tuning range, G57 band 470 to 608 MHz
- ShowLink Ease remote control of transmitters
- Digital feedback reduction
- AES-256 encryption
- Up to 8 hours on 2 AA batteries or an SB903
- Audio summing
What's Included
- SLXD4D+ dual-channel receiver
- 2 × SLXD1+ bodypack transmitters
- 2 × 1/4-wave antennas
- Rackmount kit
- 4 × AA batteries
- Power supply
- 2 × carrying pouches
Specifications
| System | |
|---|---|
| Frequency Band | G57, 470 – 608 MHz |
| Working Range | 100 m (328 ft) |
| Latency | 2.8 ms |
| Dynamic Range | 118 dB, A-weighted, typical |
| Total Harmonic Distortion | Under 0.02% |
| High-Pass Filter | 160 Hz at −12 dB/octave |
| SLXD4D+ Receiver | |
| Audio Frequency Response | 20 Hz – 20 kHz (+1, −2 dB) |
| Gain Range | −18 to +42 dB in 1 dB steps |
| Outputs | XLR (mic or line) and 1/4 in (6.35 mm) |
| Mic/Line Switch | 30 dB pad |
| Antenna Connectors | BNC, 50 Ω |
| Network | Ethernet 10/100 Mbps |
| Power | 15 V DC at 360 mA, external supply |
| Housing | Galvanized steel |
| Dimensions | 42 × 197 × 152 mm (1.65 × 7.76 × 5.98 in), H x W x D |
| Weight | 930 g (2.05 lb) |
| SLXD1+ Bodypack Transmitter | |
| Input | TA4M |
| Input Impedance | 1 MΩ |
| Maximum Input Level | 8.2 dBV |
| RF Power | 1 or 10 mW |
| Power | 2 AA batteries or SB903 rechargeable, up to 8 hours |
| Housing | PC/ABS |
| Dimensions | 98 × 68 × 25.5 mm (3.86 × 2.68 × 1 in), H x W x D |
| Weight | 89 g (3.1 oz) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
