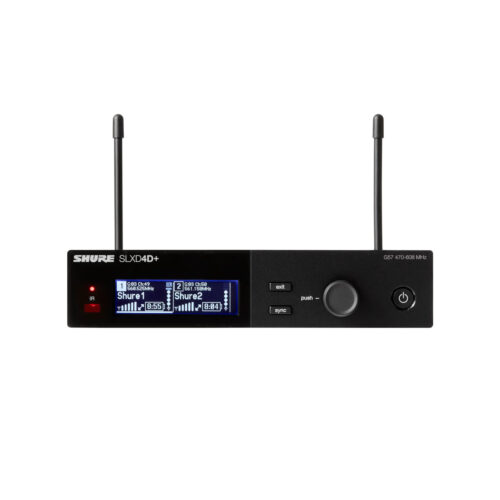

Shure SLXD4D+ Dual-Channel Digital Wireless Receiver (G57)
- Two SLX-D+ channels in a half-rack receiver
- ShowLink Ease remote transmitter control
- Works with legacy SLX-D transmitters
$1,079.00 USD
Shure SLXD4D+ Dual-Channel Digital Wireless Receiver (G57)
The Shure SLXD4D+ brings dual-channel digital wireless reception to SLX-D+ systems in a half-rack chassis of galvanized steel.
It delivers 24-bit audio with more than 118 dB of dynamic range and tunes across up to 138 MHz, depending on region. ShowLink Ease, the control link to SLX-D+ transmitters, lets you change a transmitter’s frequency, power level, and lock settings from the receiver, and update its firmware over the air.
Shure’s patented digital feedback reduction runs inside the receiver, and AES-256 encryption is built in. Monitor and control the system with Wireless Workbench, Shure’s RF management software, or the WWB Mobile app, and connect over Ethernet for third-party control. The SLXD4D+ also works with legacy SLX-D transmitters.
Features
- Two receiver channels in a half-rack chassis
- 24-bit audio, more than 118 dB dynamic range
- Tuning range up to 138 MHz, by region
- ShowLink Ease remote transmitter control
- Digital feedback reduction
- AES-256 encryption
- XLR and 1/4 in balanced outputs, mic/line switch
- Audio summing of both channels
- Ethernet for Wireless Workbench and third-party control
- Works with legacy SLX-D transmitters
Specifications
| System | |
|---|---|
| Tuning Range | Up to 138 MHz, by region |
| Latency | 2.8 ms |
| Dynamic Range | 118 dB at 1% THD, A-weighted |
| THD | < 0.02% |
| Line-of-Sight Range | 100 m (328 ft) |
| Encryption | AES-256 |
| High-Pass Filter | 160 Hz, −12 dB per octave |
| Receiver | |
| Outputs | XLR and 1/4 in (6.35 mm), balanced, per channel |
| Full Scale Output | XLR +18 dBV line, −12 dBV mic 1/4 in +18 dBV |
| Gain Adjustment | −18 to +42 dB in 1 dB steps |
| Audio Frequency Response | 20 Hz – 20 kHz (+1, −2 dB) |
| Antenna Inputs | BNC, 50 Ω |
| Network | Single-port Ethernet, 10/100 Mbps |
| Power | 15 V DC, 360 mA, external supply |
| Dimensions | 42 × 197 × 152 mm (1.65 × 7.76 × 5.98 in) H x W x D |
| Weight | 930 g (32.8 oz) without antennas |
| Housing | Galvanized steel |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
