Shure ANI4OUT-XLR 4-Channel Dante Audio Network Interface
- Dante to 4 balanced XLR outputs
- One cable for audio and PoE
- Per-channel EQ, gain, and mute
$686.00 USD
Shure ANI4OUT-XLR 4-Channel Dante Audio Network Interface

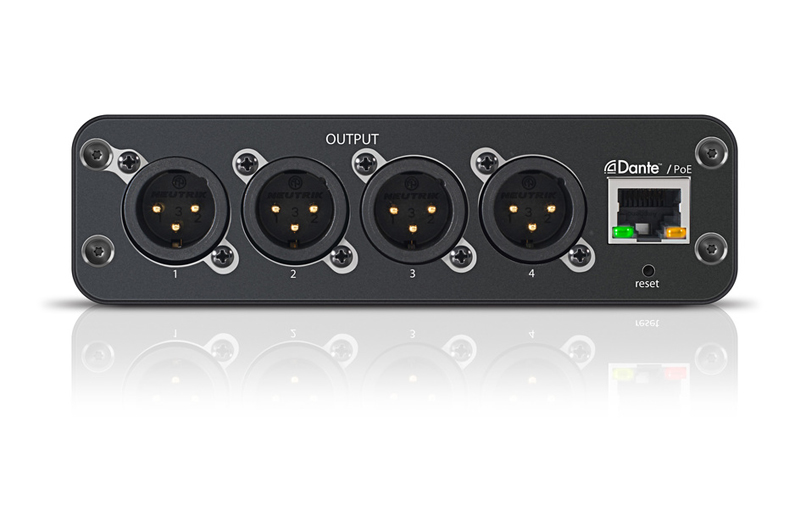

The Shure ANI4OUT-XLR is a 4-channel Dante interface that turns network audio into four balanced analog XLR outputs.
It connects networked audio to analog gear such as audio processors, video codecs, and loudspeaker systems. A single Ethernet cable carries the four Dante channels and Power over Ethernet, from a PoE switch or an injector.
Each output is set to line, aux, or mic level to suit the device it feeds. A web application gives each channel a 4-band parametric EQ, gain, mute, and polarity, and channels can be summed to one output. Third-party control systems can run it with command strings.

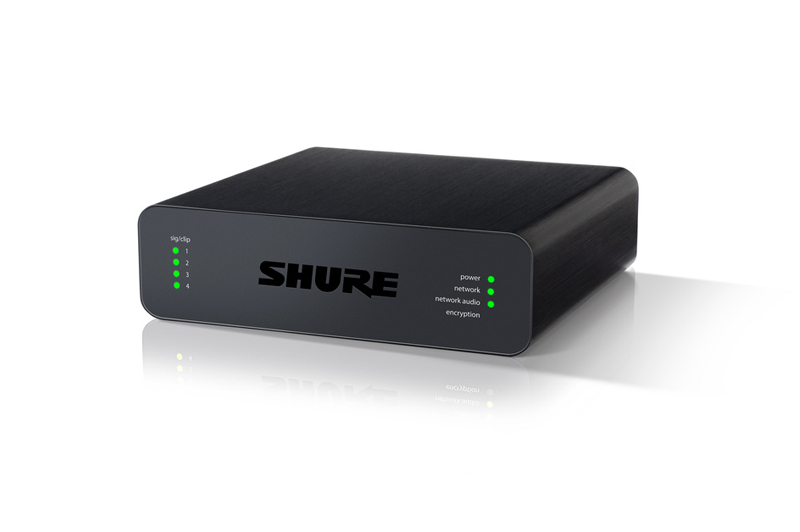

Tri-color LEDs show the signal level on each output. It mounts under a table on its supplied single-unit tray, or three units fit one 19 in rack space in the optional CRT1 tray.
Features
- Dante to 4 balanced XLR outputs
- Single Ethernet cable for audio and PoE
- Line, aux, or mic output level
- 4-band parametric EQ, gain, mute, and polarity per channel
- Channel summing to one output
- Web application and third-party control strings
- Three to a rack space with the optional CRT1 tray
What's Included
- ANI4OUT-XLR audio network interface
- Hardware kit (90A29254)
- Mounting bracket, 1/3 rack unit (53A27742)
Specifications
| Interface | |
|---|---|
| Input | 1 × RJ45 (Dante, 4 channels, 48 kHz, 24-bit) |
| Outputs | 4 × XLR, impedance balanced |
| Frequency Response | 20 – 20,000 Hz |
| Latency | 0.71 ms, not including Dante latency |
| Dynamic Range | 117 dB, A-weighted, typical |
| THD | < 0.05% |
| Output Level | Line 0 dB, aux −20 dB, mic −46 dB |
| Output Clipping Level | Line +20 dBV, aux +0 dBV, mic −26 dBV |
| Output Impedance | 150 Ω |
| Power | Power over Ethernet, Class 0; 10 W maximum |
| Cable | Cat 5e or higher, shielded recommended |
| Dimensions | 4 × 14 × 12.8 cm (1.6 × 5.5 × 5.0 in), H × W × D |
| Weight | 663 g (1.5 lb) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
