Shure MVX2U Digital Audio Interface
- XLR to USB-C digital audio interface
- Up to 60 dB of gain and 48 V phantom power
- Zero-latency 3.5 mm headphone output
$139.00 USD
Shure MVX2U Digital Audio Interface

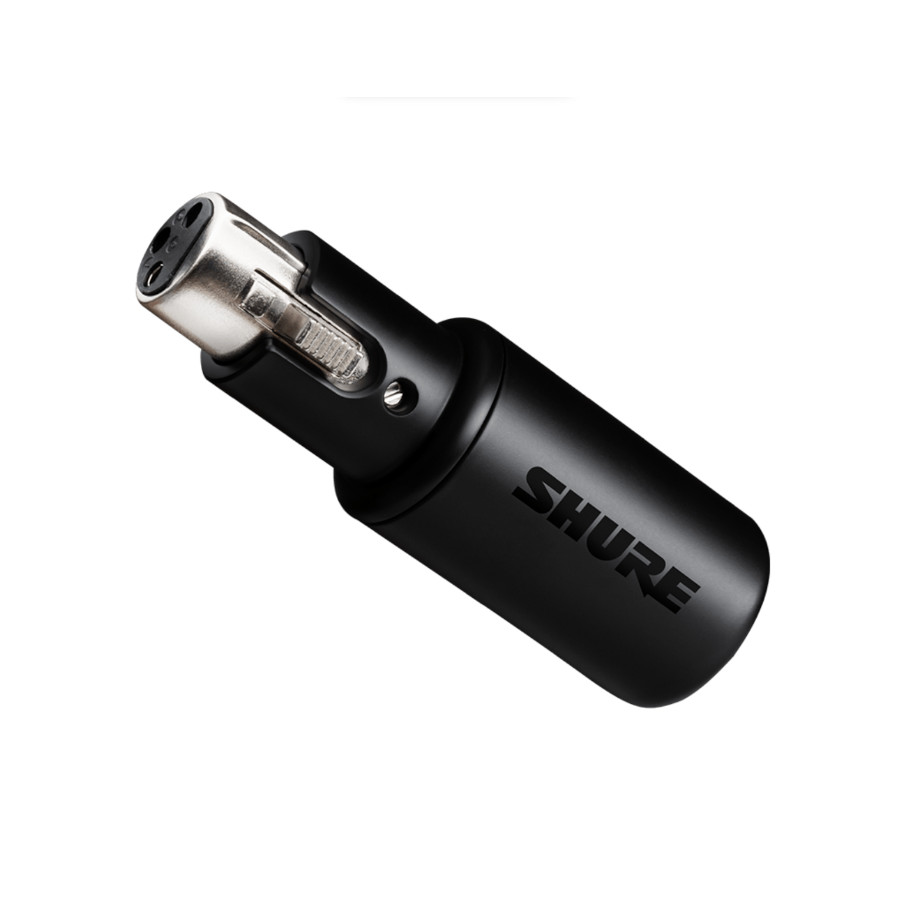

The Shure MVX2U, a digital audio interface, connects an XLR microphone straight to a computer over USB-C for recording and streaming.
It plugs onto the microphone itself or sits in line on an XLR cable, and it works plug-and-play with Windows and Mac computers. Gain runs from 0 to 60 dB in 0.5 dB steps, and the interface draws its power from the USB connection while supplying 48 V phantom power for condenser microphones.

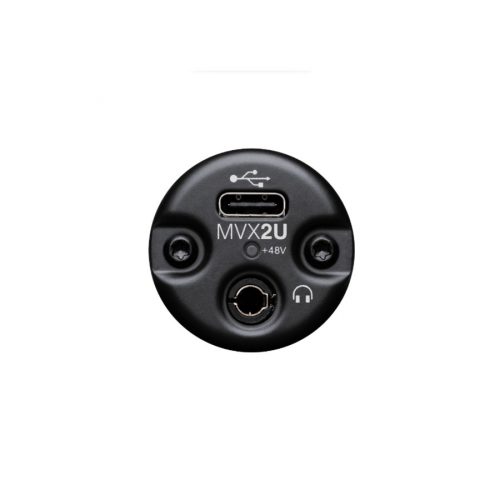

A 3.5 mm headphone output gives zero-latency monitoring, and an LED shows the connection and mute status. The all-metal housing fits a standard A25D mic clip, so the MVX2U can sit on a desk or floor stand.
Features
- XLR input to USB-C output
- Gain 0 to 60 dB in 0.5 dB steps
- 48 V phantom power
- 3.5 mm zero-latency headphone output
- Records at 24-bit or 16-bit, 48 kHz
- Powered over USB
- All-metal housing, 100 g
- Fits an A25D mic clip
What's Included
- MVX2U digital audio interface
- 1 m USB-C to USB-C cable
Specifications
| Interface | |
|---|---|
| Frequency Response | 20 Hz – 20 kHz |
| Input Impedance | 5.8 kΩ at 1 kHz |
| Maximum Input Level | 7 dBV |
| Digital Noise Floor | −105 dBFS, 20 Hz – 20 kHz, A-weighted |
| Gain Range | 0 to 60 dB in 0.5 dB steps |
| Phantom Power | 48 V, 7 mA |
| Headphone Output | 3.5 mm, 20 mW into 32 Ω |
| Bit Depth and Sample Rate | 24-bit or 16-bit, 48 kHz |
| Power | USB, 160 mA max. |
| Operating Temperature | −5 to 40 °C (23 to 104 °F) |
| Weight | 100 g (3.5 oz) |
| Housing | All metal |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
