Shure ADX5D Axient Digital Dual-Channel Portable Receiver
- Dual-channel Axient Digital slot-in receiver
- ShowLink Direct control of up to 16 ADX transmitters
- TA3, DB15, and DB25 backplates sold separately
From $2,750.00 USD
Shure ADX5D Axient Digital Dual-Channel Portable Receiver
The Shure ADX5D puts two channels of Axient Digital reception in a slot-in receiver made to ride in a camera, a multi-coupler, or an audio bag.
Each channel has true digital diversity reception and tunes across up to 184 MHz, depending on region. Standard mode gives the best coverage, while High Density mode narrows each signal so more channels fit into a crowded band. Analog output latency is 2.08 ms in Standard mode.
ShowLink, Shure’s 2.4 GHz control link, runs in Direct mode on the ADX5D, so the receiver controls up to 16 ADX-series transmitters, eight per channel, with no access point. Select portable mixers and recorders can also scan, deploy frequencies, adjust gain, and read transmitter batteries through the receiver. A 3.5 mm output feeds headphones or a balanced line input.
Backplates and Power
The ADX5D takes one of three backplates, each sold separately. The ADX5BP-TA3 has two TA3 outputs and a 4-pin Hirose power input for standalone use, and only this backplate accepts the ADX5BS-L and ADX5BS-AA battery sleds. The ADX5BP-DB15 fits cameras with a 15-pin slot, such as Sony models, and the ADX5BP-DB25 fits SuperSlot and UniSlot multi-couplers.
Choose the band that matches your transmitters: A (470 to 636 MHz), B (606 to 810 MHz), or C (925 to 1000 MHz).
Features
- Two channels, each with true digital diversity
- Tuning range up to 184 MHz, by region
- Standard and High Density transmission modes
- ShowLink Direct control of up to 16 ADX transmitters
- Analog output latency from 2.08 ms
- 3.5 mm output for headphones or a balanced line input

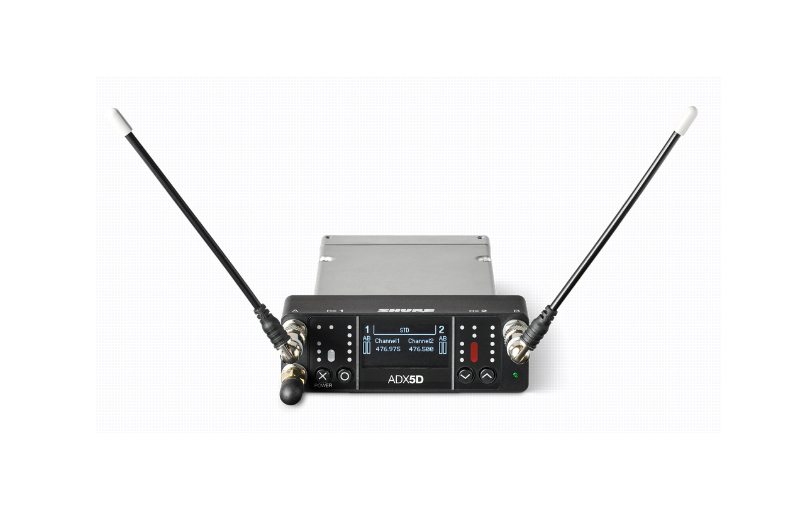

- Removable SMA antennas

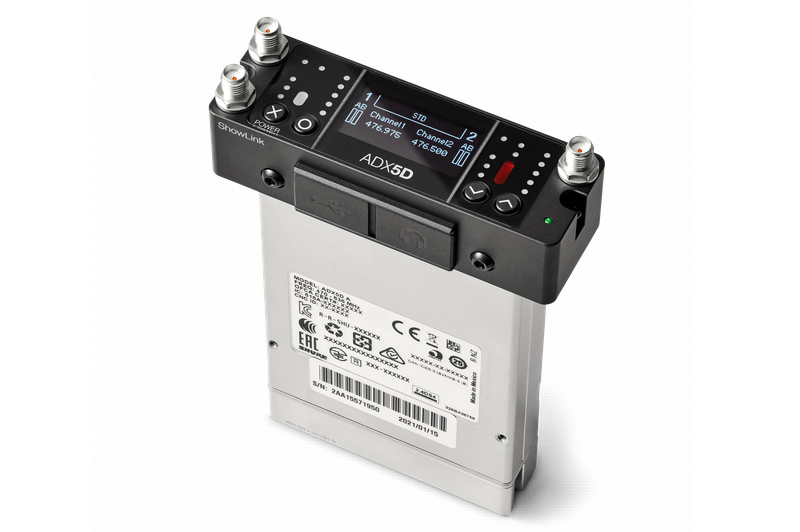

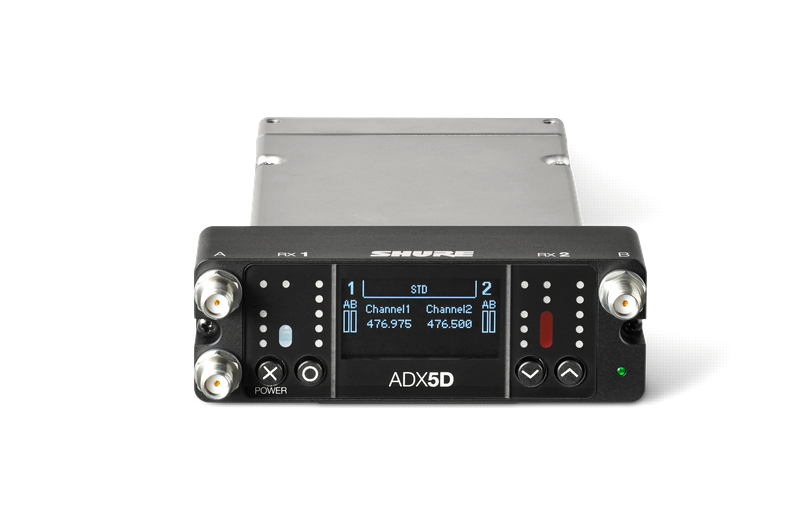

- OLED display and USB-C port for firmware updates
- Machined aluminum housing, 0.24 kg
What's Included
- ADX5D receiver
- USB-A to USB-C cable
- 2 × UHF antennas
- ShowLink (2.4 GHz) antenna
Specifications
| RF | |
|---|---|
| Frequency Bands | A: 470 – 636 MHz B: 606 – 810 MHz C: 925 – 1000 MHz |
| Tuning Range | Up to 184 MHz, by region |
| Line-of-Sight Range | 75 m (246 ft) Standard mode 40 m (131 ft) High Density mode |
| RF Sensitivity | −90 dBm at 10⁻⁵ BER |
| Antenna Connectors | SMA, 50 Ω |
| ShowLink | 2.40 – 2.4835 GHz, 16 channels, 30 m range |
| Audio | |
| Frequency Response | 20 Hz – 20 kHz, microphone dependent |
| Dynamic Range | 129 dB |
| THD | 0.0006% at −6 dBFS, 1 kHz |
| Gain Adjustment | −18 to +42 dB in 1 dB steps |
| Analog Output Latency | 2.08 ms Standard mode 2.96 ms High Density mode |
| Power and Physical | |
| DC Input | 6 – 18 V DC |
| Operating Temperature | −18 to 50 °C (0 to 122 °F) |
| Dimensions | 29 × 88 × 108 mm (1.14 × 3.46 × 4.25 in) H x W x D, without backplate |
| Weight | 0.24 kg (0.53 lb), without antennas or backplate |
| Housing | Machined aluminum |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
