Shure AD4D-DC Axient Digital Two-Channel Wireless Receiver
- Two-channel Axient Digital rack receiver
- DC module for redundant power
- Dante, AES3, and analog outputs
$4,286.00 USD
In Stock
Shure AD4D-DC Axient Digital Two-Channel Wireless Receiver
Fitted with a DC module, the Shure AD4D-DC, a two-channel Axient Digital receiver, runs on a 10.9 to 14.8 V DC supply as well as AC power, for redundancy.

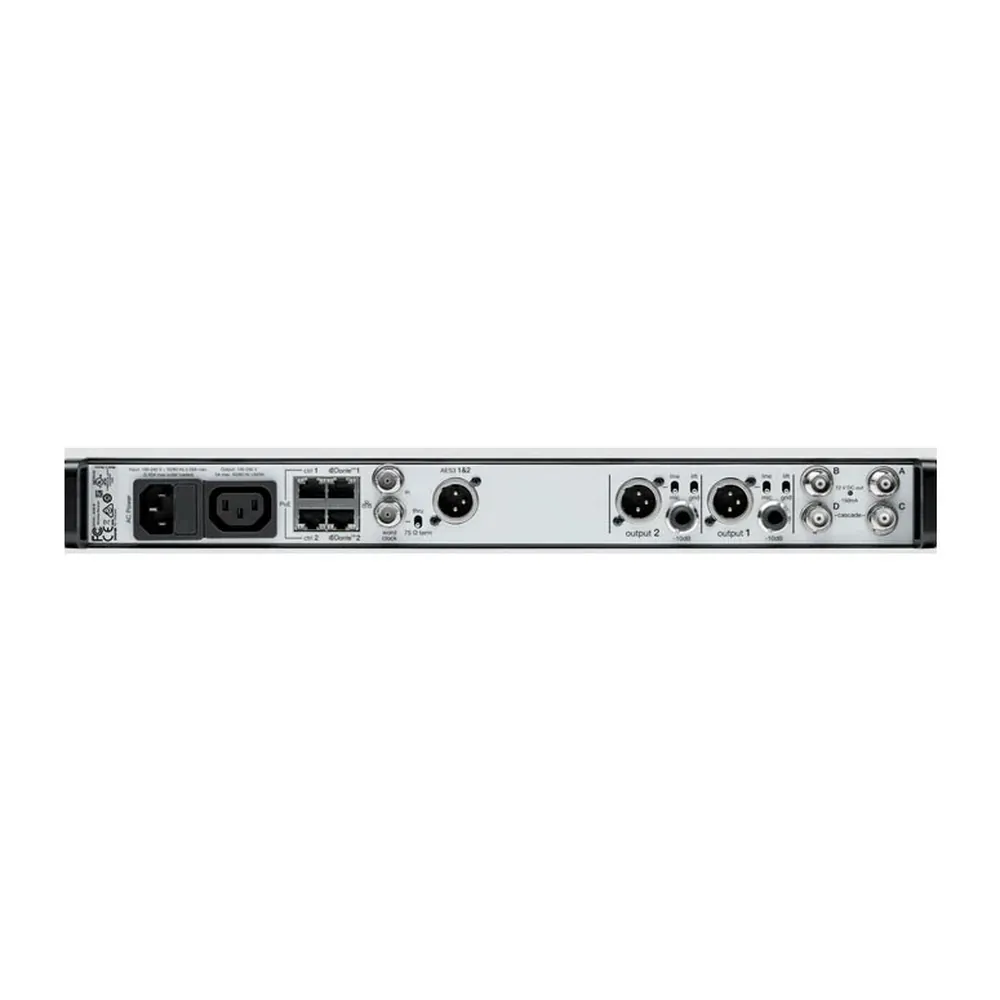

Each channel has true digital diversity, and this model tunes from 470 to 636 MHz. Outputs include two transformer-balanced XLR outputs, two 1/4 in outputs, AES3 digital audio, and Dante networked audio over its Ethernet ports.

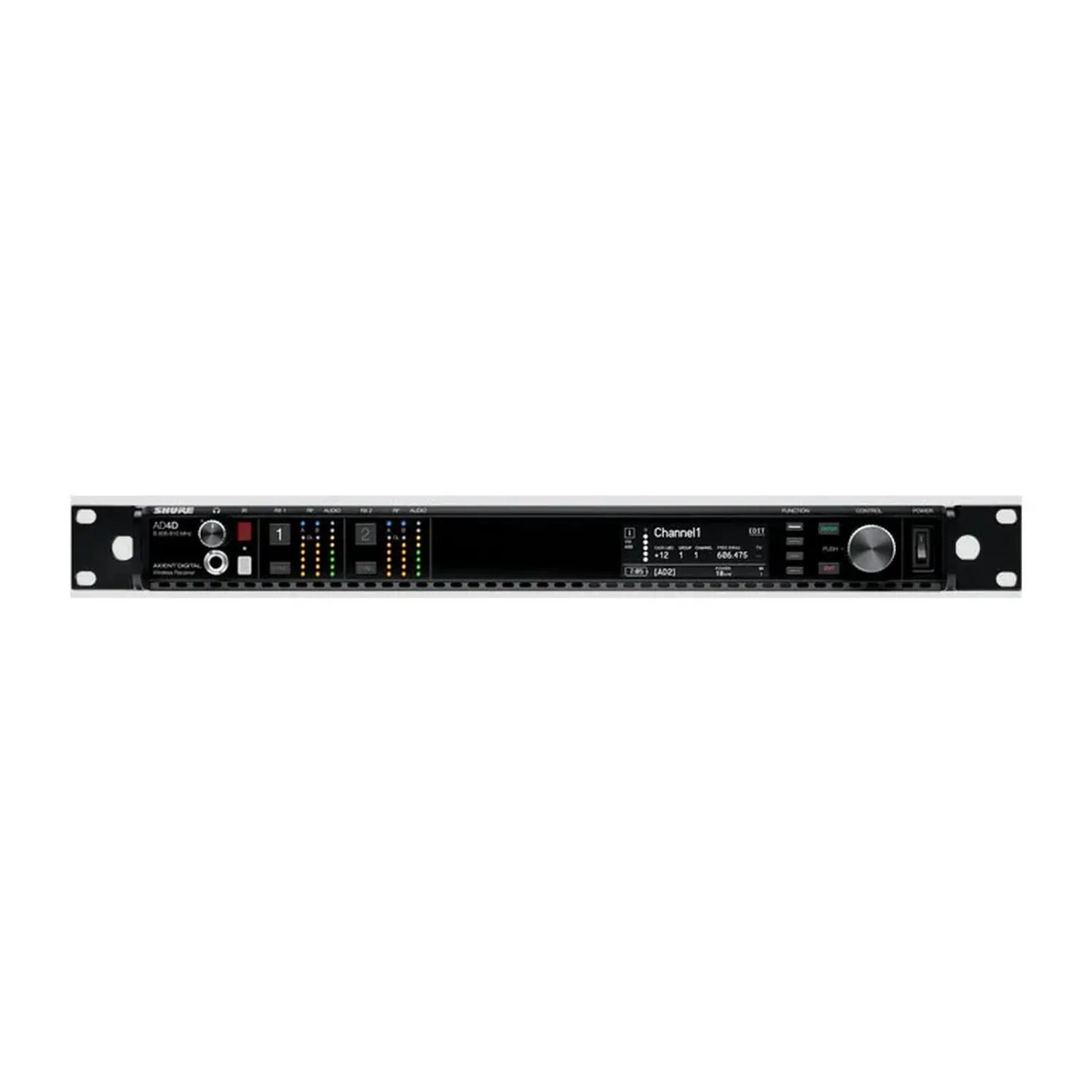

Up to eight transmitters can be registered to each channel, and frequency diversity runs with a pair of bodypacks or one ADX2FD handheld. A front-panel headphone jack monitors any Dante channel through Dante Browse, and Wireless Workbench, Shure’s RF management software, handles coordination and control over the network. The AD4D-DC works with AD and ADX series transmitters.
Features
- AC power plus DC module input for redundancy
- True digital diversity on both channels
- XLR and 1/4 in transformer-balanced outputs
- AES3 digital output
- Dante over four Ethernet ports, with PoE
- Headphone jack with Dante Browse
- Antenna cascade for one more receiver
- Up to 8 transmitters per channel
- AES-256 encryption
- Locking AC power connectors
What's Included
- Hardware kit
- BNC bulkhead adapters
- 2 × half-wave wideband antennas
- BNC-BNC coaxial cables for bulkhead mounting, short and long
- Coaxial RF cascade cable
- AC power cable
- AC power jumper cable
- Ethernet cable, 3 ft
- Ethernet jumper cable
Specifications
| RF | |
|---|---|
| Frequency Range | 470 – 636 MHz |
| RF Sensitivity | −98 dBm at 10⁻⁵ BER |
| Line-of-Sight Range | 100 m (330 ft) |
| Channel Spacing | 350 kHz Standard mode, 125 kHz High Density mode |
| Antenna Inputs | BNC, 50 Ω; cascade output BNC |
| Audio | |
| Latency | 2.08 ms Standard mode 2.96 ms High Density mode |
| Dynamic Range | 120 dB XLR line out, 130 dB digital (AES3, Dante), A-weighted |
| Gain Adjustment | −18 to +42 dB in 1 dB steps |
| Full Scale Output | XLR +18 dBV line, −12 dBV mic 1/4 in +8 dBV |
| Power and Physical | |
| AC Power | 100 – 240 V AC, 50 – 60 Hz, 0.55 A max. |
| DC Power | 10.9 – 14.8 V DC, 3.3 A max. |
| Network | 10/100 Mbps, 1 Gbps, Dante |
| Dimensions | 44 × 483 × 333 mm (1.73 × 19.02 × 13.11 in) H x W x D |
| Weight | 4.6 kg (10.1 lb), without antennas |
| Housing | Steel, extruded aluminum |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
