Shure AD1 Axient Digital Bodypack Transmitter
- Axient Digital bodypack in a cast-metal case
- TA4 or LEMO3 input
- 2 AA batteries or an SB900C
From $978.00 USD
Shure AD1 Axient Digital Bodypack Transmitter

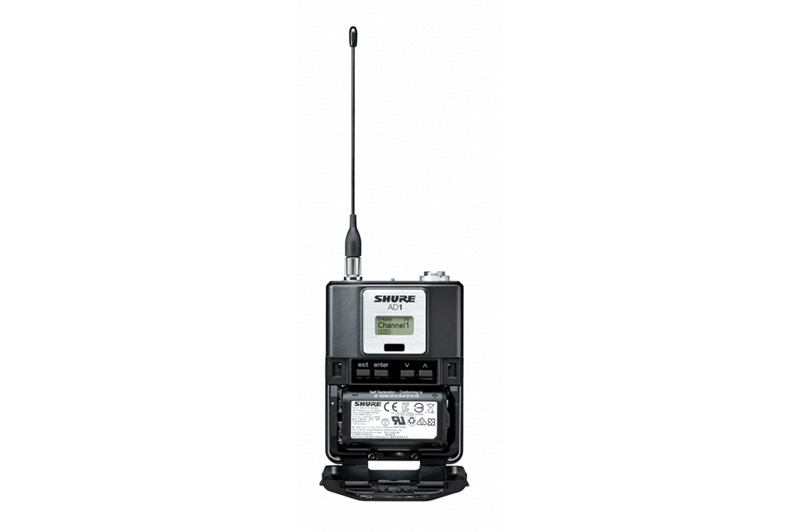

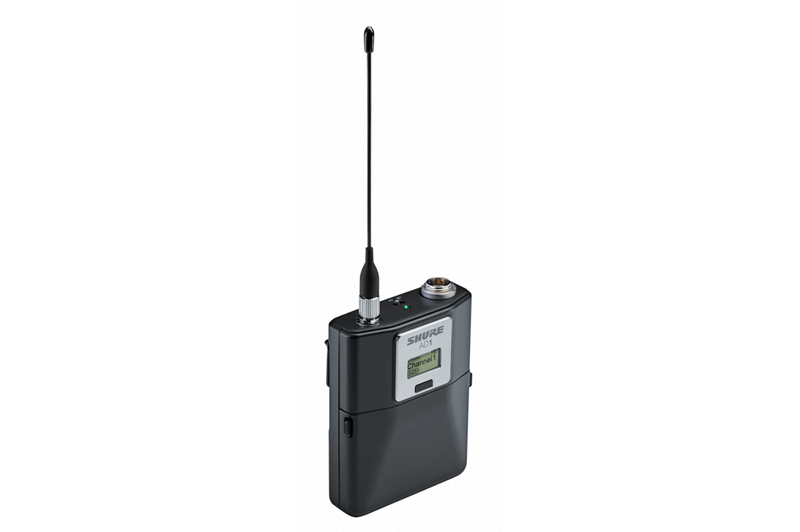

The Shure AD1 houses Axient Digital transmission in a rugged cast-metal bodypack that runs on two AA batteries or an SB900C rechargeable battery.
AA batteries give up to 8 hours, and the SB900C gives up to 11 hours with precise metering. External contacts let the AD1 charge in a docking charger. The input is TA4 or LEMO3, and a threaded TA4F adapter comes in the box.
Choose Standard mode for the best coverage or High Density mode to fit more channels into a crowded band, and set RF power to 2, 10, or 35 mW. Two AD1 packs can also run together for frequency diversity. Both versions here cover the G57 band, 470 to 616 MHz.
Features
- TA4 or LEMO3 input
- Rugged cast-metal case
- Flexible quarter-wave antenna
- Standard and High Density modes
- 2, 10, or 35 mW RF power
- AES-256 encryption
- Up to 8 hours on 2 AA batteries
- Up to 11 hours on an SB900C battery
- Contacts for docked charging
What's Included
- 2 × AA batteries
- Quarter-wave antenna
- WA340 threaded TA4F adapter
- Carrying bag
- Belt clip
Specifications
| RF | |
|---|---|
| Frequency Band | G57: 470 – 616 MHz (gap from 608 to 614 MHz) |
| RF Power | 2, 10, or 35 mW, by region |
| Transmission Modes | Standard (350 kHz spacing) or High Density (125 kHz spacing) |
| Line-of-Sight Range | 100 m (300 ft) |
| Encryption | AES-256 |
| Antenna | Quarter-wave, SMA |
| Audio | |
| Inputs | TA4M (910 kΩ) or LEMO3 (8.2 kΩ) |
| Maximum Input Level | 8.5 dBV pad off, 20.5 dBV pad on |
| Mic Offset | −12 to 21 dB in 1 dB steps |
| Frequency Response | 20 Hz – 20 kHz |
| Power and Physical | |
| Battery | 2 AA, up to 8 hours SB900C rechargeable, up to 11 hours, at 10 mW |
| Dimensions | 86 × 66 × 23 mm (3.39 × 2.6 × 0.91 in) H x W x D |
| Weight | 155 g (5.5 oz) without batteries |
| Housing | Cast metal |
| Operating Temperature | −18 to 50 °C (0 to 122 °F) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
